In modern infrastructure construction, the quality and efficiency of steel bar cage processing directly impact project timelines and structural safety. Traditional manual processing methods face challenges such as inconsistent quality, low efficiency, and high labor costs. Xuhui (Shandong) Intelligent Equipment Co., Ltd., located in Heze – China’s engineering machinery manufacturing base, specializes in developing, producing, and selling CNC steel bar processing equipment, offering standardized solutions for building steel bar construction through innovative technology and professional services.
Core Products: Automated Steel Bar Cage Processing Solutions

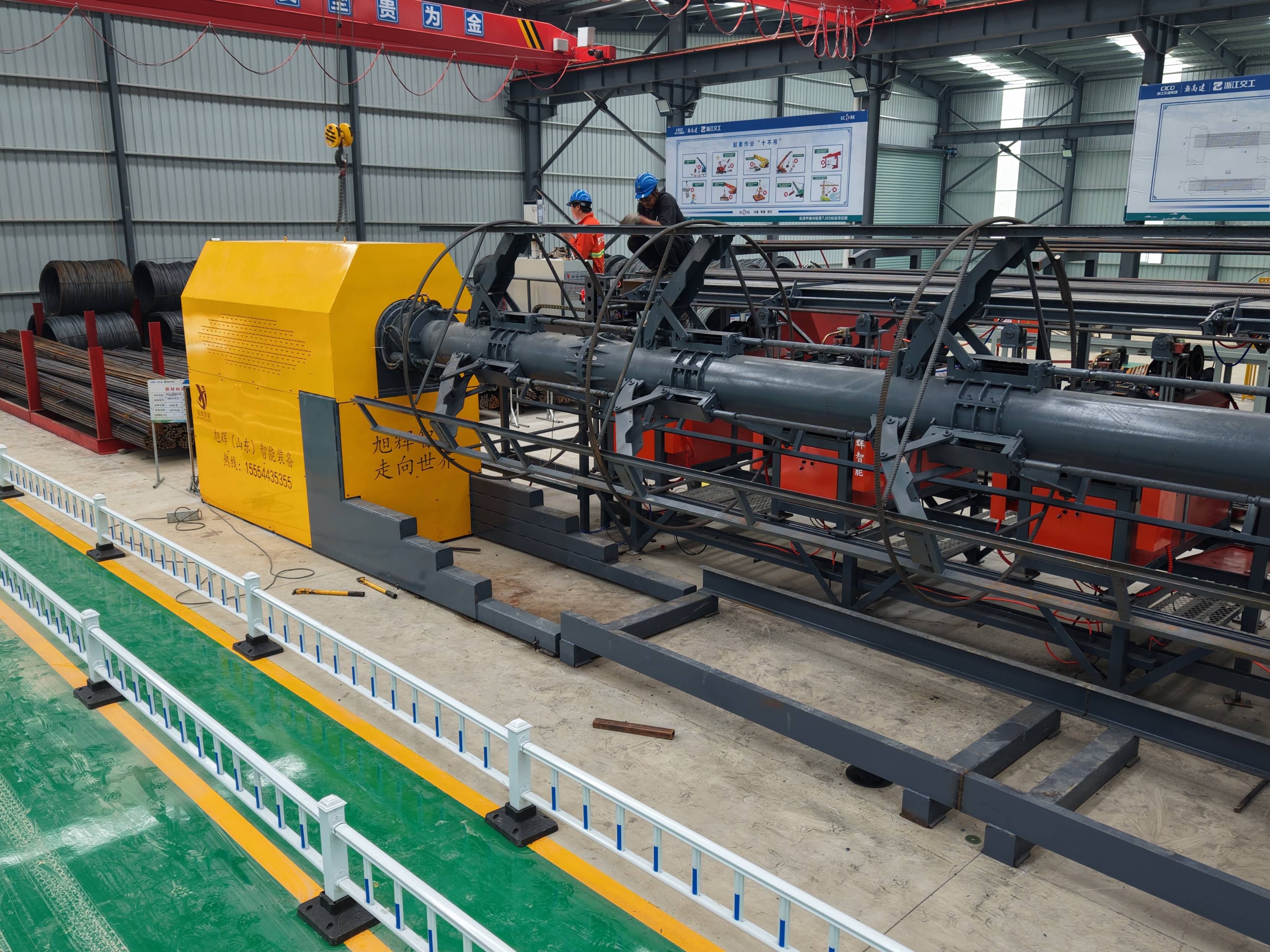

Xuhui’s flagship product – the steel bar cage rolling welding workstation – represents the pinnacle of automated steel bar processing technology. This equipment integrates multiple functions including automatic feeding, straightening, rolling, welding, and cutting, enabling complete automation of the entire steel bar cage production process. Compared with traditional manual operations, our solution offers several distinct advantages:
Firstly, the automated system ensures consistent product quality. Through precise CNC control, each steel bar cage maintains identical dimensions, spacing, and welding quality, meeting strict engineering standards. This is particularly crucial for large-scale infrastructure projects like bridges and tunnels where structural integrity depends on uniform reinforcement.
Secondly, production efficiency sees dramatic improvement. The workstation can complete a standard steel bar cage in 8-12 minutes, depending on specifications, with 24-hour continuous operation capability. This represents a 5-8 times efficiency increase compared to manual processing, significantly shortening construction schedules.
Thirdly, labor costs are substantially reduced. A single workstation requires only 1-2 operators for material loading and quality inspection, eliminating the need for skilled welders and binders. This not only reduces labor expenses but also minimizes human error factors.
Technical Specifications and Performance Parameters
Xuhui’s steel bar cage rolling welding workstations come in multiple models to accommodate different project requirements. The standard model XH-GLJ-3000 features:
- Processing diameter range: 400-3000mm
- Steel bar diameter capacity: Φ12-Φ40mm
- Main motor power: 37kW (servo controlled)
- Welding transformer capacity: 200kVA×2
- Dimensional accuracy: ±1mm
- Production cycle: 8-15 minutes/piece (depending on specifications)
For larger projects, our XH-GLJ-4000 model extends the processing diameter to 4000mm, accommodating more complex structural requirements. Both models incorporate advanced safety features including emergency stop systems, protective covers, and automatic fault detection to ensure operator safety during continuous operation.
Key Components and Quality Assurance
The reliability of our equipment stems from careful component selection and rigorous quality control. Key components include:
- Servo Drive System: Imported from Siemens or Mitsubishi, ensuring precise motion control
- Welding System: Custom-developed for steel bar cage applications, featuring stable arc and minimal spatter
- Reduction Gearbox: High-precision helical gear design with 95% transmission efficiency
- Control System: Industrial-grade PLC with touchscreen HMI for intuitive operation
- Structural Framework: Heavy-duty welded steel construction with vibration damping design
All components undergo 48-hour continuous load testing before assembly, and the complete machine passes 72-hour comprehensive performance testing. This ensures our equipment maintains stable operation even in demanding construction environments.
Application Scenarios and Project Cases
Xuhui’s steel bar cage rolling welding workstations have been successfully deployed in numerous high-profile projects worldwide:
Bridge Construction: In the Bangladesh Padma Bridge project, our equipment processed over 50,000 tons of steel bar cages with zero quality defects, helping complete the 6.15km main bridge 18 months ahead of schedule. The automated system’s consistency ensured perfect alignment of precast concrete segments.
Tunnel Engineering: For the Chengdu-Lanzhou High-Speed Railway’s Minjiang Tunnel, our workstations produced customized small-diameter steel bar cages for the tunnel lining. The equipment’s ability to process Φ12mm steel bars at high speed met the project’s tight deadlines while maintaining strict safety standards.
Subway Projects: In the Cairo Metro Line 3 expansion, our equipment handled complex steel bar cage shapes required for station construction. The CNC system’s flexibility allowed quick adjustment between different cage designs without manual retooling.
These projects demonstrate our equipment’s adaptability to various construction environments and reinforcement requirements, from standard circular cages to complex polygonal shapes.
| Project Type | Equipment Configuration | Efficiency Improvement |
|---|---|---|
| Highway Bridge | XH-GLJ-3000 + Automatic Bending Machine | 6x faster than manual |
| Railway Tunnel | XH-GLJ-2500 + Small Diameter Adapter | 8x faster than manual |
| Subway Station | XH-GLJ-4000 + Custom Molds | 5x faster than manual |
FAQ
What makes Xuhui’s steel bar cage rolling welding workstations different from other manufacturers?
Our equipment features three unique advantages: First, the patented rolling-welding integrated technology eliminates the need for manual binding, reducing processing steps by 40%. Second, our servo-controlled welding system achieves 98% welding penetration rate, exceeding industry standards. Third, the modular design allows quick adaptation to different project requirements without major modifications.
How does the equipment ensure consistent welding quality?
The workstation uses a dual-transformer welding system with independent current control for each welding point. This, combined with automatic wire feeding and arc voltage regulation, maintains stable welding parameters throughout production. Each welding spot undergoes 100% inspection via built-in sensors, with real-time data recording for quality traceability.
What maintenance is required for long-term operation?
We recommend weekly checks of lubrication levels, monthly replacement of wear parts like welding electrodes, and quarterly calibration of the CNC system. Our equipment comes with a predictive maintenance module that monitors 200+ parameters in real-time, alerting operators to potential issues before they cause downtime. We provide comprehensive maintenance manuals and on-site training.
Can the equipment process non-standard steel bar cage shapes?
Yes, our CNC system supports custom programming for any polygonal or irregular shape within the processing diameter range. The equipment comes with a library of standard templates for common bridge and tunnel designs, and our engineers can create new programs within 2 hours for special requirements. The rolling mechanism automatically adjusts to different radii during production.
What after-sales support does Xuhui provide?
We offer 24/7 technical support through our global service network covering 35 countries. Each machine comes with a 12-month warranty and lifetime access to spare parts at cost price. For overseas projects, we provide on-site installation and operator training within 15 days of equipment arrival. Our cloud-based remote monitoring system allows our engineers to diagnose and resolve most issues without site visits.
Summary
Xuhui (Shandong) Intelligent Equipment Co., Ltd. has established itself as a global leader in automated steel bar cage processing solutions through continuous innovation and customer-centric service. Our steel bar cage rolling welding workstations combine German engineering precision with Chinese manufacturing efficiency, delivering equipment that meets the highest international standards while remaining competitively priced. With over 200 installations worldwide and zero major equipment failures reported in the past three years, we have proven our ability to support even the most demanding infrastructure projects. Whether for bridge construction, tunnel engineering, or subway development, Xuhui provides the automated technology that modern construction requires to achieve perfect reinforcement quality with maximum efficiency.
