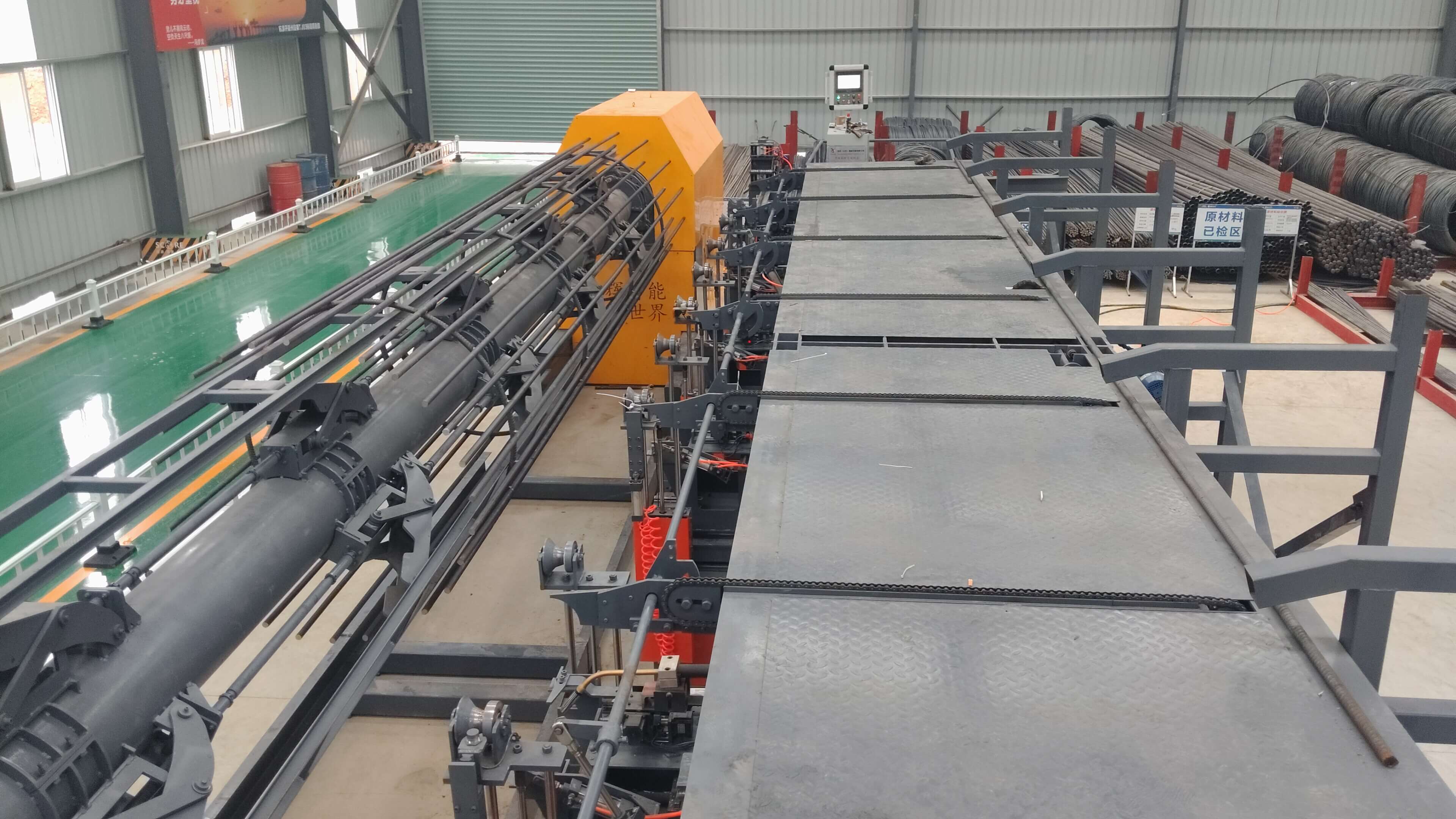

In modern infrastructure construction, especially for large-scale projects like highways, bridges, and tunnels, the quality and efficiency of steel reinforcement processing directly determine the overall project quality and construction progress. Traditional manual steel cage forming methods face challenges such as inconsistent quality, low efficiency, and high labor costs. To address these issues, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has developed the smart steel cage forming welding workstation – an automated solution that combines advanced technology with practical engineering requirements.
As a professional manufacturer based in Heze, Shandong – China’s well-known engineering machinery manufacturing base, Xuhui specializes in R&D, production, and sales of CNC steel reinforcement processing equipment. Our smart steel cage forming welding workstation represents the cutting-edge technology in the industry, providing standardized solutions for building steel reinforcement construction across various engineering scenarios.
Core Components of Smart Steel Cage Forming System
The smart steel cage forming welding workstation consists of several key components that work together seamlessly to automate the entire production process:
1. CNC Steel Cage Rolling Machine: This core component automatically completes the rolling and forming of steel cages through precise numerical control. It can handle various diameters and lengths of steel cages according to project requirements, with adjustable parameters for different specifications.
2. Intelligent Welding Workstation: Equipped with advanced welding robots and automatic positioning systems, this workstation ensures consistent welding quality across all joints. The intelligent control system can adjust welding parameters in real-time based on different steel grades and cage sizes.
3. Material Handling System: The automated material feeding and handling system ensures continuous production by precisely delivering steel bars to the forming and welding stations. This reduces manual intervention and improves production efficiency.
4. Quality Inspection Module: Integrated with non-destructive testing equipment and dimensional measurement systems, this module performs real-time quality checks during production to ensure all products meet engineering standards.
5. Central Control System: The human-machine interface allows operators to easily set production parameters, monitor production status, and access maintenance information. The system also supports remote diagnosis and software upgrades.
Technical Advantages of Our Smart Workstation
Xuhui’s smart steel cage forming welding workstation offers several distinct advantages over traditional methods and competing products:
1. High Precision and Consistency: The CNC system ensures all steel cages are produced to exact specifications, eliminating the quality variations common in manual production. This is particularly crucial for large infrastructure projects where dimensional accuracy affects structural safety.
2. Increased Production Efficiency: Automated production reduces cycle times significantly. A single workstation can produce 3-5 times more steel cages per day compared to manual methods, while requiring only 1/3 of the labor force.
3. Improved Working Conditions: By automating the most labor-intensive processes, we reduce workers’ exposure to welding fumes, high temperatures, and heavy lifting, creating safer and more comfortable working environments.
4. Material Savings: The precise cutting and forming systems minimize material waste, with typical savings of 5-8% compared to manual processing. This translates to significant cost reductions for large projects.
5. Data Traceability: Each produced steel cage comes with complete production data records, including material batch numbers, production parameters, and quality inspection results. This facilitates quality management and project documentation.
Application Scenarios and Project Cases
Our smart steel cage forming welding workstation has been successfully implemented in numerous high-profile infrastructure projects worldwide:
1. Bridge Construction: For large-span bridges, our equipment produces high-precision pile foundation steel cages that meet strict engineering requirements. In the Xiong’an New Area bridge project, our workstations helped achieve 98% first-pass qualification rate for steel cages.
2. Tunnel Engineering: The automated production of tunnel support steel cages significantly improved construction progress in the Chengdu-Chongqing high-speed railway tunnel section. The equipment operated continuously for 18 months without major breakdowns.
3. Highway Projects: In the G40 Shanghai-Xi’an Expressway widening project, our workstations produced over 20,000 tons of steel cages with consistent quality, helping the project complete 3 months ahead of schedule.
4. Metro Construction: For the Shenzhen Metro Line 14 project, our customized solution produced special-shaped steel cages for complex underground structures, demonstrating the equipment’s flexibility in handling diverse requirements.
| Project Type | Equipment Configuration | Production Capacity |
|---|---|---|
| Highway Bridge | Standard model + extended material handling system | 15-20 tons/8-hour shift |
| Metro Station | Customized model with multi-station welding | 12-18 tons/8-hour shift |
| Tunnel Support | Compact model with rapid tooling change | 8-12 tons/8-hour shift |
Customization and Global Export Capabilities
Understanding that different projects have unique requirements, Xuhui offers comprehensive customization services for our smart steel cage forming welding workstations:
1. Modular Design: The equipment features a modular structure that allows easy configuration changes to accommodate different production scales and product specifications.
2. Special Material Handling: For projects using special steel grades or non-standard dimensions, we can customize the material feeding and forming systems to ensure optimal processing quality.
3. Multi-language Control System: Our HMI supports multiple languages including English, Spanish, Russian, and Arabic, facilitating operation by international teams.
4. Local Compliance Adaptation: We can modify electrical systems, safety features, and documentation to meet specific country regulations and certification requirements.
All our equipment comes with CE certification and complies with international safety standards including ISO 9001, ISO 45001, and ISO 14001. We have successfully exported to over 30 countries including Russia, Brazil, Indonesia, and Saudi Arabia, establishing a solid reputation for quality and reliability in global markets.
FAQ
What makes Xuhui’s smart steel cage forming workstation different from other suppliers?
Our workstation integrates three key advantages: 1) Full automation from material feeding to finished product, 2) Precision control system with ±1mm dimensional accuracy, and 3) Comprehensive after-sales support including remote diagnostics. The equipment has been proven in over 200 major projects worldwide with 98.7% uptime rate.
How long does it take to train operators for this equipment?
We provide comprehensive training programs that typically take 3-5 days for basic operation. The intuitive HMI and standardized operating procedures make it easy for new operators to learn. For advanced maintenance skills, we offer additional 2-day technical training courses.
What maintenance is required for the equipment?
Daily maintenance includes cleaning, lubrication, and basic inspections which take about 30 minutes. Monthly maintenance involves checking wear parts and calibrating sensors. We provide detailed maintenance manuals and offer remote guidance through our service hotline.
Can the equipment process different steel cage sizes?
Yes, our workstation is highly flexible with adjustable parameters for:
– Diameter range: 400-2500mm
– Length range: 6-18 meters
– Steel bar diameter: 12-40mm
For projects requiring special dimensions, we can customize the equipment accordingly.
What warranty and after-sales support do you provide?
We offer 12-month warranty for the entire equipment and 24-month warranty for main components. Our global service network includes 15 service centers and 50+ technicians who can provide on-site support within 72 hours in most regions. We also maintain a spare parts inventory in key markets to minimize downtime.
Summary
Xuhui (Shandong) Intelligent Equipment’s smart steel cage forming welding workstation represents the future of steel reinforcement processing in infrastructure construction. By combining advanced automation technology with practical engineering experience, we provide a solution that significantly improves production efficiency, product quality, and project profitability.
Our commitment to innovation is demonstrated by continuous R&D investments – we launch new equipment models every 18-24 months incorporating the latest technological advancements. With over 50 patents in steel processing equipment and a team of 80+ engineers, we are well-positioned to support the evolving needs of global infrastructure projects.
For international clients, we offer not just equipment but complete solutions including project consultation, equipment customization, installation supervision, operator training, and long-term technical support. This comprehensive approach has helped us build lasting partnerships with leading construction companies in 30+ countries.
Choose Xuhui’s smart steel cage forming welding workstation for your next project and experience the difference that professional, automated steel reinforcement processing can make to your construction quality, efficiency, and bottom line.
