In modern infrastructure construction, the quality and efficiency of steel cage production directly impact project timelines and structural integrity. Smart steel cage forming welding workstations have emerged as essential equipment for highway, bridge, and large-scale construction projects worldwide. This comprehensive guide explores the key considerations for selecting high-quality equipment, compares leading solutions, and introduces Xuhui (Shandong) Intelligent Equipment’s industry-leading offerings.
Understanding Smart Steel Cage Forming Technology
Smart steel cage forming welding workstations represent the pinnacle of modern reinforcing steel processing technology. These automated systems integrate advanced CNC (Computer Numerical Control) technology with robotic welding capabilities to produce standardized steel cages with exceptional precision and consistency. The core components typically include:
- Automated feeding system for raw reinforcing bars
- CNC-controlled bending and positioning mechanisms
- Robotic welding arms with multiple welding heads
- Quality inspection sensors for dimensional accuracy
- Integrated control system for process monitoring
Compared to traditional manual methods, smart workstations reduce labor requirements by up to 70% while improving production efficiency by 3-5 times. The automated processes ensure consistent weld quality and dimensional accuracy, meeting the strictest international standards for infrastructure projects.
Key Selection Criteria for Quality Equipment
When evaluating smart steel cage forming welding workstations, several critical factors determine the equipment’s performance and long-term value:
1. Precision Engineering and Manufacturing Quality
The core framework and moving components must be constructed from high-grade steel (typically Q345 or better) with precise machining tolerances. Look for manufacturers that implement ISO 9001 quality management systems throughout their production processes. Xuhui (Shandong) Intelligent Equipment maintains a dedicated 12,000㎡ manufacturing facility in Heze, Shandong – China’s engineering machinery manufacturing hub – ensuring rigorous quality control at every stage.
2. Automation Level and Control System
Advanced equipment should feature fully automated operation from material feeding to final product discharge. The control system should offer intuitive operation interfaces with multi-language support (including English) and remote monitoring capabilities. Xuhui’s workstations incorporate Siemens PLC control systems with touchscreen HMI, enabling operators to manage production parameters with precision.
3. Welding Quality and Certification
The welding process must comply with international standards such as AWS D1.1 or ISO 17660. Look for equipment that uses premium welding consumables and incorporates real-time welding quality monitoring. Xuhui’s workstations feature Panasonic welding power sources with automatic arc voltage compensation, ensuring consistent weld penetration and strength. All our equipment carries CE certification for global market access.
4. Production Capacity and Flexibility
Evaluate the equipment’s maximum processing diameter (typically 500-2500mm) and production speed (measured in meters per hour). The system should accommodate various bar diameters (8-40mm) and spacing requirements. Xuhui’s modular design allows customization for specific project needs, with production capacities ranging from 500-2000kg/shift depending on configuration.
5. After-Sales Support and Service Network
Reliable technical support is crucial for minimizing downtime. Choose manufacturers with established global service networks and comprehensive warranty programs. Xuhui provides 12-month standard warranties with extended options available, along with 24/7 technical support through our international service centers.
| Evaluation Criteria | Xuhui Solution | Industry Average |
|---|---|---|
| Positioning Accuracy | ±0.5mm | ±1.0mm |
| Welding Speed | 1.2-1.8m/min | 0.8-1.2m/min |
| Power Consumption | 35-45kW | 45-60kW |
| Operator Requirement | 1-2 persons | 3-5 persons |
Xuhui’s Industry-Leading Solutions
As a professional manufacturer with 15 years of experience in CNC steel processing equipment, Xuhui (Shandong) Intelligent Equipment offers two premium models designed for different production scales:

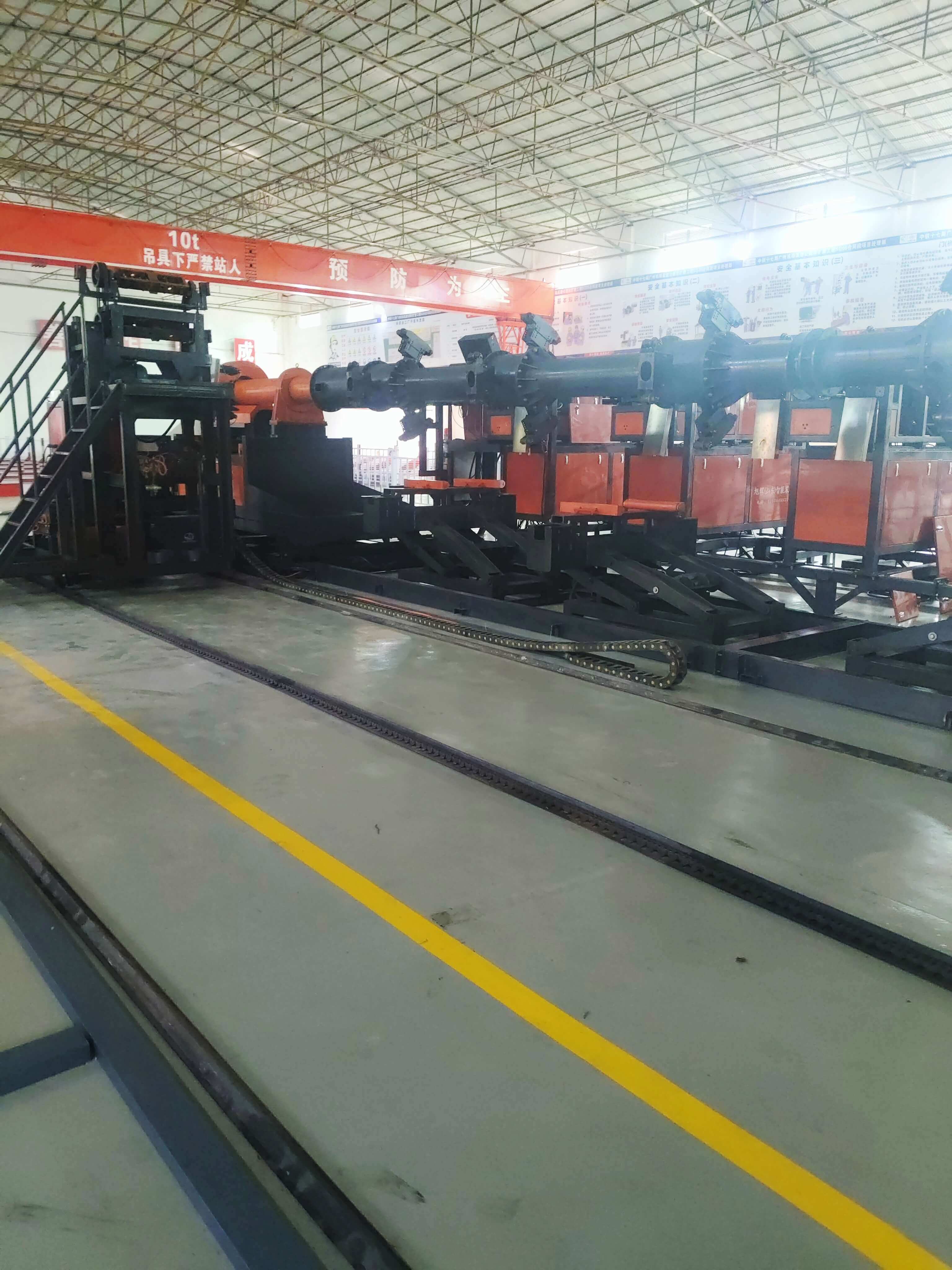

1. XH-GLW2000 Smart Steel Cage Forming Welding Workstation
Our flagship model features a maximum processing diameter of 2000mm and accommodates bar diameters from 12-40mm. The dual-host design enables simultaneous operation of feeding and welding systems, achieving production speeds of up to 1.8m/min. This model is ideal for large-scale infrastructure projects requiring high-volume steel cage production.
2. XH-GLW1200 Compact Steel Cage Forming System
Designed for smaller projects or mobile applications, this compact model processes cages up to 1200mm in diameter with bar diameters from 8-32mm. The integrated design reduces space requirements while maintaining production speeds of 1.2m/min. Its portability makes it perfect for rental fleets or contractors working on multiple sites.
Both models feature:
- Siemens PLC control system with touchscreen interface
- Panasonic welding power sources with automatic compensation
- Laser-guided positioning for ±0.5mm accuracy
- Self-diagnostic system with fault code display
- CE certification meeting EU safety standards
Global Application Success Stories
Xuhui’s equipment has been successfully deployed in over 30 countries, supporting major infrastructure projects including:
- The Jakarta-Bandung High-Speed Railway in Indonesia
- The Karachi-Lahore Motorway in Pakistan
- The Dubai Metro Expansion Project in UAE
- The Mombasa-Nairobi Standard Gauge Railway in Kenya
- Multiple wind power plant projects across Europe
A recent project in Malaysia demonstrated our equipment’s capabilities: using two XH-GLW2000 workstations, the contractor produced 1,200 tons of steel cages per month for bridge piers with zero quality defects reported during inspection. The automated system reduced their labor costs by 60% while improving production consistency.
FAQ
What makes Xuhui’s steel cage forming workstations different from other manufacturers?
Our competitive edge comes from three key areas: 1) Precision engineering with German-imported CNC systems; 2) Energy-efficient design consuming 20% less power than industry averages; 3) Comprehensive global service network with 48-hour response commitment. All our equipment carries CE certification and meets AWS D1.1 welding standards.
How long does it take to train operators for these machines?
We provide comprehensive training programs covering operation, maintenance, and troubleshooting. The basic training takes 3-5 days for operators with basic mechanical knowledge. We also offer advanced training modules for maintenance technicians and production managers.
What maintenance is required for optimal performance?
Daily maintenance includes cleaning welding dust, checking lubrication levels, and verifying sensor accuracy. We recommend monthly professional inspections of mechanical components and electrical systems. Our preventive maintenance program extends equipment lifespan by 30% compared to reactive maintenance approaches.
Can the equipment be customized for specific project requirements?
Absolutely. Our modular design allows customization of processing diameter, bar size range, welding parameters, and control system features. We’ve developed special configurations for offshore platforms, nuclear power plants, and earthquake-resistant structures with enhanced welding specifications.
What warranty and support do you offer?
All new equipment comes with a 12-month warranty covering parts and labor. We maintain spare parts inventories in regional hubs for 48-hour delivery in most markets. Our remote monitoring system enables proactive issue detection, and we offer extended warranty packages up to 5 years with preventive maintenance contracts.
Summary
Selecting the right smart steel cage forming welding workstation requires careful evaluation of precision, automation, welding quality, and after-sales support. Xuhui (Shandong) Intelligent Equipment stands out as a trusted partner with CE-certified solutions, proven global application experience, and comprehensive service capabilities. Our equipment helps contractors worldwide improve production efficiency by 300-500%, reduce labor costs by 60-70%, and achieve consistent quality meeting the strictest international standards. For projects demanding reliability, precision, and cost-effectiveness, Xuhui’s smart steel cage forming systems represent the optimal choice.
