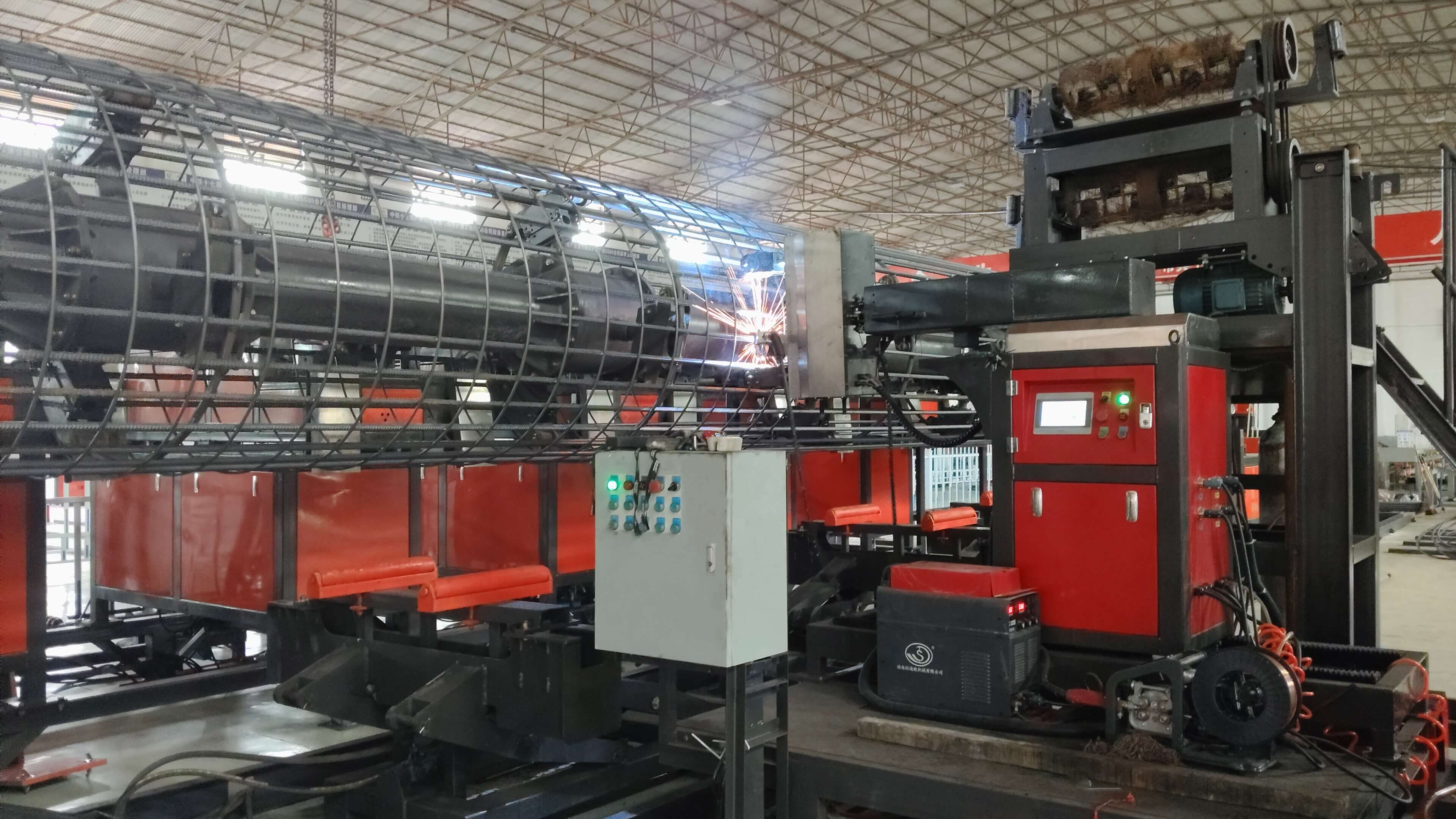

In modern infrastructure projects like bridges and subway systems, the demand for high-quality steel cage structures continues to grow. Traditional manual welding methods face challenges in meeting modern construction requirements for efficiency, precision, and consistency. Xuhui (Shandong) Intelligent Equipment Co., Ltd. introduces our state-of-the-art smart steel cage forming welding workstation – an automated solution designed specifically for large-scale infrastructure projects that transforms steel cage production through advanced technology and intelligent operation.
Core Technology Behind Smart Steel Cage Welding
Our smart steel cage forming welding workstation integrates multiple advanced technologies to create a fully automated production system. The core components include:
1. Intelligent Control System: Equipped with Siemens PLC and touchscreen HMI, operators can easily set parameters for different cage specifications. The system automatically calculates reinforcement spacing, welding positions, and rotation angles based on input dimensions.
2. Precision Mechanical Structure: The main frame uses high-strength steel with finite element analysis optimization to ensure stability during high-speed operation. The modular design allows for easy maintenance and component replacement.
3. Automated Welding Unit: Multiple welding heads work simultaneously with independent servo control, achieving consistent weld quality across the entire cage structure. The system supports both CO2 gas shielded welding and submerged arc welding processes.
4. Material Handling System: Automatic feeding, straightening, and cutting mechanisms ensure precise reinforcement positioning. The rotating clamping system holds the cage firmly during welding while allowing smooth rotation for complete circumferential welding.
5. Quality Monitoring System: Multiple sensors continuously monitor welding current, voltage, temperature, and cage dimensions. Real-time data collection enables immediate adjustment and quality traceability throughout production.
Advantages Over Traditional Methods
Compared to manual welding processes, our smart workstation offers significant improvements:
1. Production Efficiency: A single workstation can produce 8-12 steel cages per shift (8 hours), depending on cage specifications. This represents a 300-500% increase compared to manual production methods.
2. Product Consistency: Automated control ensures each cage meets identical specifications with tolerance control within ±2mm for diameter and ±1° for spiral angle. This eliminates quality variations common in manual welding.
3. Labor Cost Reduction: One operator can manage the entire production line, reducing labor requirements by 70-80% compared to traditional methods. This addresses the growing challenge of skilled welder shortages in construction projects.
4. Safety Improvement: The fully enclosed welding area protects operators from arc light, spatter, and fumes. Automatic material handling reduces manual lifting operations, minimizing workplace injury risks.
5. Space Optimization: The compact design requires only 40-60㎡ of factory space per workstation, compared to 150-200㎡ needed for manual production areas with similar output capacity.
Technical Specifications
Our standard smart steel cage forming welding workstation supports the following parameters:
| Parameter | Specification |
|---|---|
| Steel Cage Diameter | 400-2500mm (customizable) |
| Cage Length | Up to 18m (extendable) |
| Main Reinforcement Diameter | Φ12-Φ40mm |
| Stirrup Diameter | Φ5-Φ16mm |
| Welding Speed | 0.5-1.5m/min (adjustable) |
| Power Supply | 380V/50Hz, 3-phase |
| Total Power | Approx. 120kW |
Customization Options
We understand that different projects have unique requirements. Our engineering team offers comprehensive customization services:
- Special cage diameter or length requirements
- Integration with existing production lines
- Additional safety features for specific environments
- Multi-language control interface
- Compliance with local electrical standards
- Special material handling requirements
Global Application Cases
Our smart steel cage forming welding workstations have been successfully implemented in numerous international projects:
1. Jakarta-Bandung High-Speed Rail, Indonesia: Supplied 4 workstations for main bridge pile foundations, producing 1,200+ steel cages monthly with 99.7% acceptance rate from quality inspectors.
2. Istanbul New Airport, Turkey: Customized workstations with extended cage length capability (up to 24m) for runway foundation projects, improving daily production from 15 to 32 cages per shift.
3. Cairo Metro Line 3 Extension, Egypt: Integrated workstations with local material handling systems, reducing operator training time by 40% through intuitive HMI design.
4. Perth Freight Link, Australia: CE-certified workstations meeting Australian standards, with additional dust protection features for desert construction environments.
These projects demonstrate our equipment’s adaptability to different construction standards, environmental conditions, and operational requirements worldwide.
FAQ
What makes your smart steel cage workstation different from other suppliers?
Our workstation features three key differentiators: First, the patented dual-clamping rotation system ensures zero deformation during welding. Second, the intelligent parameter database automatically adjusts settings based on cage specifications. Third, our modular design allows easy maintenance and component replacement without specialized tools.
How long does it take to train operators for this equipment?
We provide comprehensive training programs including: 1) 2-day theoretical training on equipment operation and safety procedures; 2) 3-day practical training with our engineers on-site; 3) online video tutorials and operation manuals in multiple languages. Most operators achieve proficiency within one week of training.
What maintenance is required for the workstation?
Daily maintenance includes cleaning welding heads and checking lubrication levels (about 30 minutes). Weekly maintenance involves inspecting electrical connections and sensor calibration (about 2 hours). We provide detailed maintenance schedules and spare parts lists to minimize downtime.
Can the equipment handle different steel grades?
Yes, our workstation supports common construction steel grades including HRB335, HRB400, HRB500, and equivalent international standards. The welding parameters automatically adjust based on the selected steel grade through the HMI interface.
What warranty and after-sales support do you offer?
We provide 12-month warranty covering all mechanical and electrical components. Our after-sales team offers: 1) 24/7 technical support via phone/email; 2) 48-hour response for spare parts delivery; 3) annual preventive maintenance visits; 4) software upgrades for new features. Extended warranty options are available.
Summary
Xuhui (Shandong) Intelligent Equipment’s smart steel cage forming welding workstation represents the future of automated reinforcement cage production. By combining advanced robotics, intelligent control, and precision engineering, we deliver solutions that significantly improve construction quality, efficiency, and safety while reducing operational costs. Our global experience across 35 countries ensures that each workstation meets local standards and project requirements.
