Selecting the right steel reinforcement cage rolling welder is crucial for ensuring construction quality and efficiency in modern infrastructure projects. As a professional manufacturer of CNC steel reinforcement equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. understands the challenges faced by engineers and procurement managers in choosing suitable equipment. This comprehensive guide will walk you through the key considerations, technical specifications, and application scenarios to help you make an informed decision.

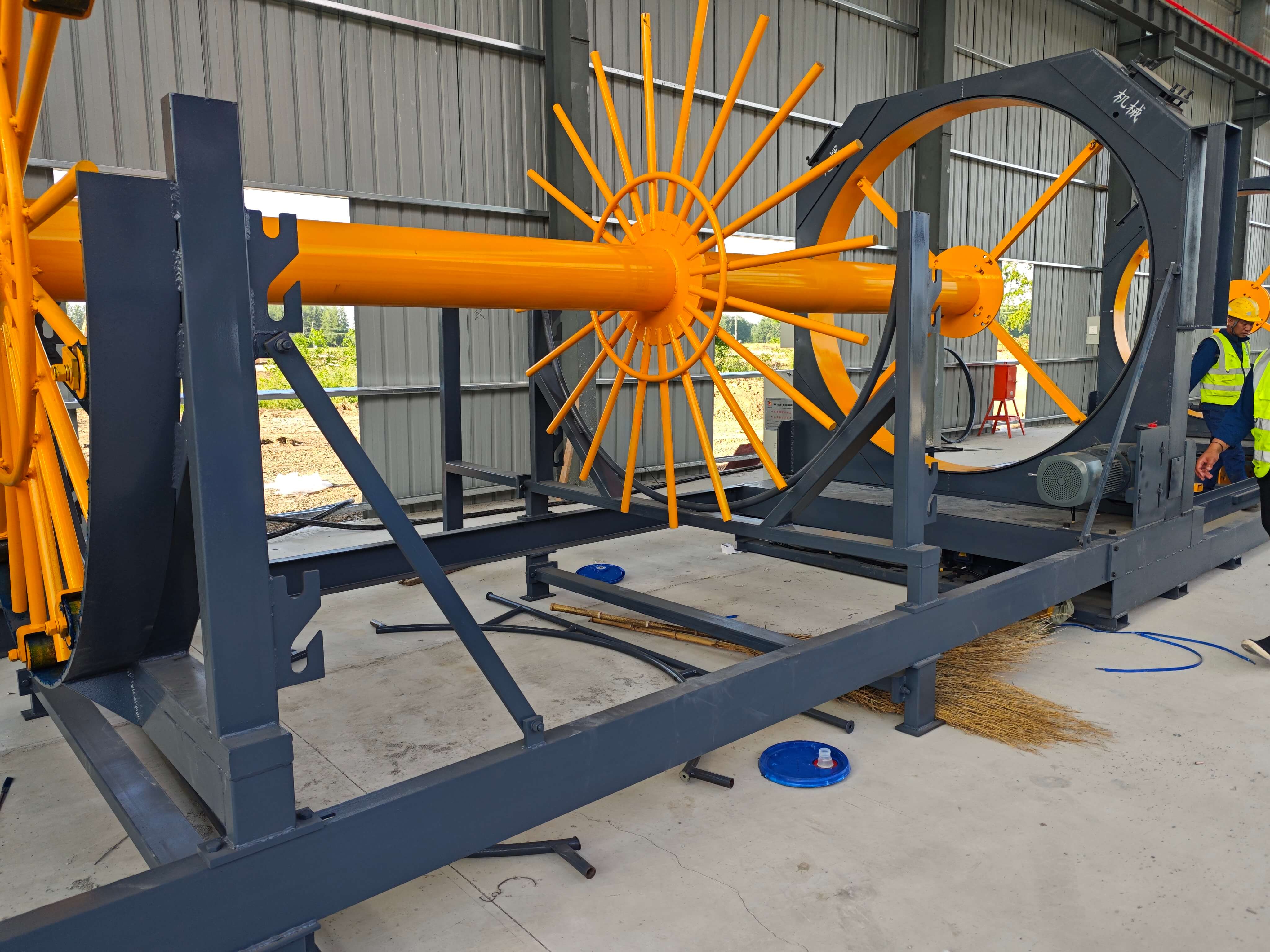

Understanding Steel Reinforcement Cage Rolling Welders

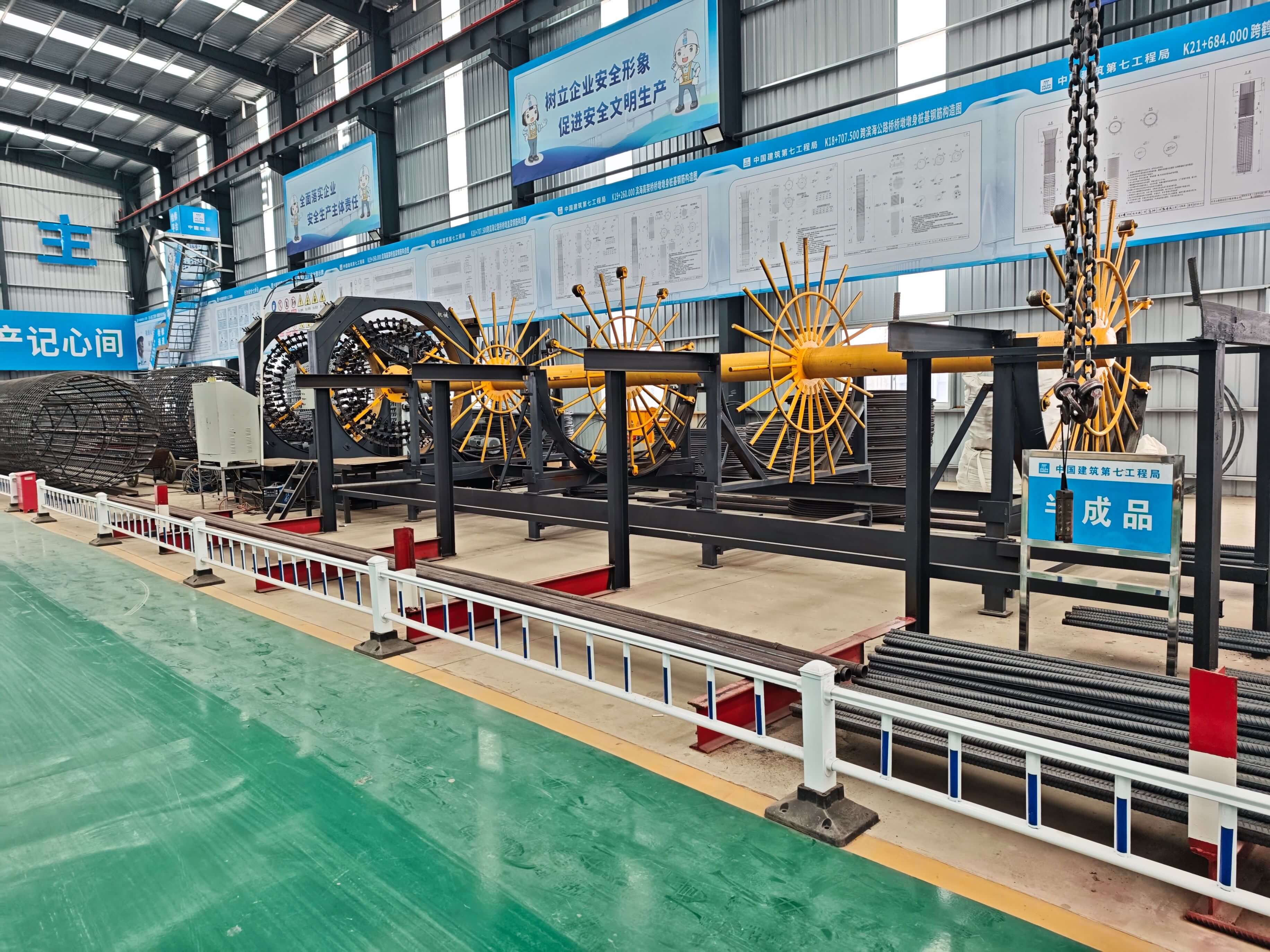

Steel reinforcement cage rolling welders are automated machines designed to fabricate reinforced concrete cages used in bridge piers, pile foundations, subway tunnels, and other large infrastructure projects. These machines replace traditional manual binding methods by automatically completing cage formation through rolling and welding processes, significantly improving production efficiency and product consistency.
The core components of a high-quality rolling welder include:
- Precision rolling system with adjustable diameter capabilities
- Automatic welding stations with multiple welding heads
- Computerized numerical control (CNC) system for precise operation
- Material feeding and handling mechanisms
- Safety protection devices and emergency stop systems
Key Selection Criteria for Rolling Welders
When evaluating different steel reinforcement cage rolling welder options, consider these essential factors:
1. Production Capacity Requirements
The first consideration should be your project’s production volume needs. For large-scale highway or bridge projects requiring hundreds of cages daily, you’ll need a high-speed machine with multiple welding stations. Smaller projects might suffice with a basic model. Xuhui’s equipment offers modular designs that can be customized to match specific production demands.
2. Cage Specifications and Versatility
Different projects require cages with varying diameters, lengths, and reinforcement patterns. Look for machines that can handle:
- Diameter range: Typically 200mm-2500mm
- Length capacity: Up to 18 meters or more
- Spiral spacing adjustment: 50mm-500mm
- Main reinforcement diameter: 12mm-40mm
Xuhui’s intelligent rolling welders feature quick-change tooling systems that allow rapid adjustment between different cage specifications without extensive setup time.
3. Welding Quality and Consistency
The welding process directly impacts cage strength and durability. Advanced models incorporate:
- CO2 gas shielded welding for clean, strong welds
- Multiple welding heads working simultaneously
- Automatic wire feeding systems with tension control
- Welding parameter digital display and adjustment
Xuhui’s equipment meets international welding standards and has been successfully implemented in projects requiring strict quality controls, including those with CE certification requirements.
4. Automation Level and Control System
Modern rolling welders offer varying degrees of automation:
| Automation Level | Features | Suitable For |
|---|---|---|
| Semi-automatic | Manual loading, automatic rolling and welding | Small workshops with moderate production |
| Fully automatic | Automatic loading, rolling, welding, and unloading | Large-scale centralized processing centers |
| Intelligent | AI-assisted parameter optimization, remote monitoring | High-tech construction projects |
5. Equipment Durability and Maintenance
Construction equipment operates in demanding environments. Look for:
- Heavy-duty steel frame construction
- Protective coatings against corrosion
- Modular design for easy component replacement
- Comprehensive maintenance manuals
- Availability of spare parts
Xuhui provides global spare parts supply and technical support through its international service network, ensuring minimal downtime for overseas projects.
Application Scenarios and Industry Solutions
Steel reinforcement cage rolling welders serve various infrastructure sectors:
1. Bridge Construction
For bridge piers and abutments requiring large-diameter cages, Xuhui’s equipment can produce cages up to 2500mm in diameter with precise spiral spacing. The automatic welding system ensures consistent weld quality even for complex reinforcement patterns.
2. High-Speed Rail Projects
Railway projects demand cages with strict dimensional tolerances. Our CNC-controlled machines maintain ±2mm accuracy in cage diameter and length, meeting the highest railway construction standards.
3. Tunnel Engineering
Tunnel lining requires specialized cage designs. Xuhui’s rolling welders can be customized with additional features like injection pipe attachment stations for tunnel projects.
4. Offshore Construction
Marine projects require corrosion-resistant equipment. We offer stainless steel components and special coatings for equipment used in coastal or offshore environments.
Comparing Top Manufacturers
When evaluating different manufacturers, consider these aspects:
- Production Experience: Xuhui has 15+ years in CNC steel reinforcement equipment manufacturing
- Certifications: All products carry CE certification and comply with ISO 9001 standards
- Customization Capability: Ability to modify equipment for specific project requirements
- Global Support: Multilingual technical support and international service network
- Project References: Successful implementations in 30+ countries worldwide
FAQ
What is the typical production cycle for a steel reinforcement cage using a rolling welder?
Production time depends on cage specifications. For a standard 12m long, 800mm diameter cage with 16mm main reinforcement, Xuhui’s automatic rolling welder can complete the process in approximately 8-12 minutes, including loading and unloading time.
How does automated equipment improve cage quality compared to manual methods?
Automated rolling welders eliminate human factors in cage formation, ensuring consistent spiral spacing, uniform welding quality, and precise dimensional control. This results in cages that meet strict engineering specifications with minimal variation between pieces.
What maintenance is required for these machines?
Regular maintenance includes daily cleaning, weekly lubrication of moving parts, monthly inspection of electrical components, and quarterly calibration of the CNC system. Xuhui provides detailed maintenance manuals and training for operators.
Can the equipment handle different reinforcement bar grades?
Yes, Xuhui’s rolling welders can process various steel grades including HRB335, HRB400, HRB500, and corresponding epoxy-coated or stainless steel bars. The welding parameters can be adjusted according to the material specifications.
What safety features are included in modern rolling welders?
Standard safety features include emergency stop buttons, protective enclosures for moving parts, interlock systems preventing operation when doors are open, welding fume extraction, and overload protection. Xuhui’s equipment meets EU machinery safety directives.
Summary
Selecting the right steel reinforcement cage rolling welder requires careful evaluation of your project’s specific requirements, production volumes, and quality standards. By considering factors like automation level, welding quality, equipment durability, and manufacturer support, you can identify the optimal solution for your infrastructure projects. Xuhui (Shandong) Intelligent Equipment Co., Ltd. offers a comprehensive range of CE-certified rolling welders with global service support, helping construction companies worldwide improve efficiency and quality in reinforced concrete cage production.
