In modern construction projects, precision and efficiency in rebar processing are critical factors determining project quality and completion time. Xuhui (Shandong) Smart Equipment Co., Ltd., located in the engineering machinery manufacturing base of Heze, Shandong, has become a leading provider of CNC steel bar processing solutions through continuous technological innovation and service optimization. As a professional manufacturer integrating R&D, production, and sales of CNC rebar equipment, we specialize in providing standardized construction solutions for building steel reinforcement across various engineering scenarios.
Core Product Advantages of CNC Steel Bar Cutting Threading Line

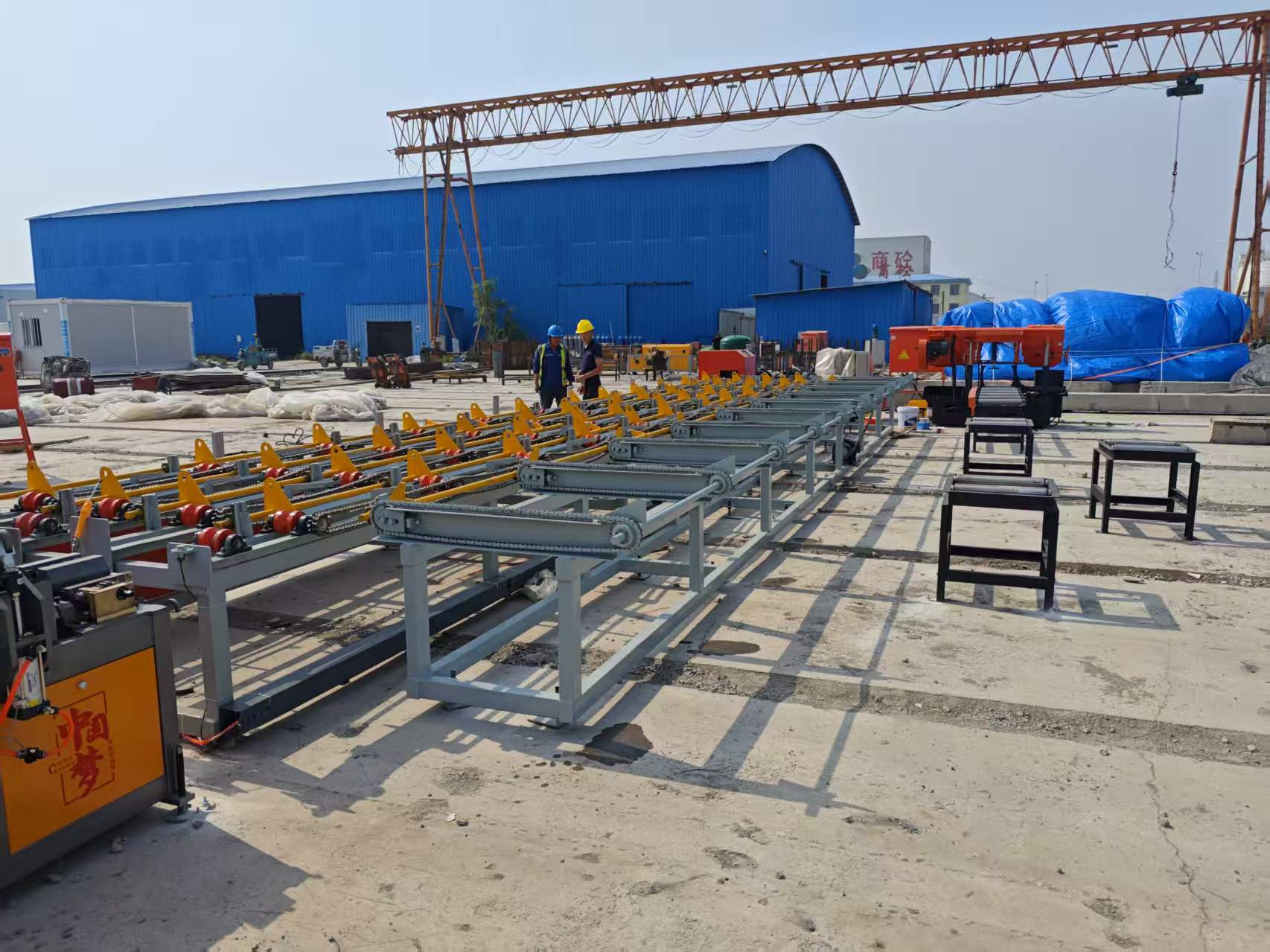

Our CNC steel bar cutting threading line represents the pinnacle of modern rebar processing technology, combining high-precision cutting, threading, and polishing in a single automated production line. This equipment features several key advantages that make it indispensable for large-scale construction projects:
Firstly, the production line achieves millimeter-level precision in rebar processing through advanced CNC control systems and servo drive technology. The cutting length error is controlled within ±1mm, while the threading pitch accuracy reaches ±0.1mm, fully meeting the stringent requirements of international construction standards. This precision ensures consistent quality across all processed rebars, eliminating the variability common in manual operations.
Secondly, the automated production line significantly improves processing efficiency. With a processing capacity of 500-800 pieces per hour (depending on rebar diameter), it can complete the same workload that would require 8-10 skilled workers in traditional methods. This efficiency gain translates directly into reduced labor costs and shorter project timelines, particularly beneficial for large infrastructure projects with tight schedules.
Thirdly, our equipment incorporates intelligent fault diagnosis and safety protection systems. The built-in sensors continuously monitor processing parameters and equipment status, automatically stopping operation when abnormalities are detected to prevent accidents. The safety guards and emergency stop mechanisms comply with EU CE standards, ensuring operator safety in various working environments.
Technical Specifications and Performance Parameters
The technical specifications of our CNC steel bar cutting threading line demonstrate its capability to handle diverse project requirements:
| Parameter | Specification |
|---|---|
| Applicable rebar diameter | Φ12-Φ40mm (customizable for larger diameters) |
| Cutting length range | 500-12,000mm (adjustable) |
| Threading pitch | 2.5-4.0mm (adjustable according to standards) |
| Power supply | 380V 50Hz 3-phase (customizable for different regions) |
| Total power | Approx. 45kW (varies by configuration) |
| Processing speed | 500-800 pieces/hour (Φ25mm rebar) |

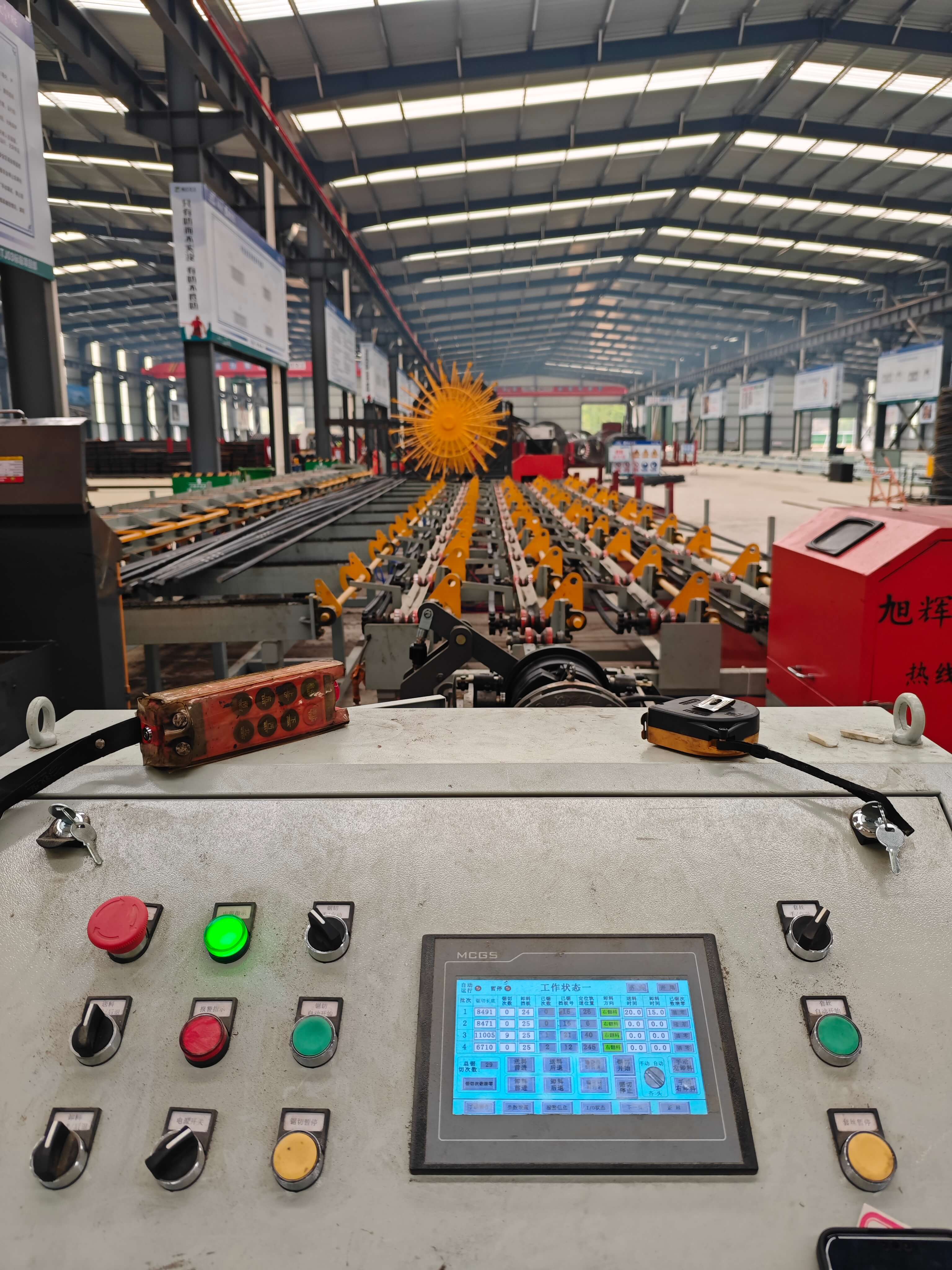

| Control system | Siemens PLC + touch screen operation |
| Dimensions (L×W×H) | 22,000×3,500×2,800mm (standard configuration) |
These parameters demonstrate the equipment’s versatility in handling various rebar sizes and processing requirements. The modular design allows for customization based on specific project needs, such as extending the cutting length range or adjusting the threading specifications for different international standards.
Application Scenarios in Construction Projects
Our CNC steel bar cutting threading line has been successfully deployed in numerous high-profile construction projects worldwide, demonstrating its value across different engineering sectors:
In highway construction, the equipment plays a crucial role in bridge pier and beam fabrication. The precise threading ensures proper connection between rebars in pre-stressed concrete structures, enhancing the overall load-bearing capacity and durability of the bridge. One notable project in Southeast Asia saw a 40% reduction in rebar processing time while achieving 100% pass rate in quality inspections.
For high-speed railway projects, where safety standards are exceptionally stringent, our equipment has consistently delivered rebars that meet the most demanding specifications. The automated processing eliminates human error in threading depth and pitch, ensuring consistent quality across millions of rebar connections in a single project. This reliability has made our equipment the preferred choice for several national railway construction bureaus in Europe and Asia.
In airport terminal construction, the equipment’s ability to process large-diameter rebars (up to Φ40mm) has been particularly valuable. The heavy-duty design can handle the high-strength rebars used in large-span concrete structures, while the precise cutting ensures optimal material utilization, reducing waste and project costs. A recent airport project in the Middle East reported a 15% reduction in rebar material costs after adopting our processing solution.
Global Certification and Quality Assurance
As an international supplier, we understand the importance of compliance with global standards. Our CNC steel bar cutting threading line has obtained CE certification from TÜV Rheinland, one of the world’s leading certification bodies. This certification covers multiple aspects:
1. Mechanical safety: All moving parts are properly guarded, and emergency stop systems comply with EU Machinery Directive 2006/42/EC requirements.
2. Electrical safety: The electrical system meets IEC 60204-1 standards, with proper insulation, grounding, and overcurrent protection.
3. Electromagnetic compatibility: The equipment passes EN 61000-6-2 and EN 61000-6-4 tests, ensuring it doesn’t interfere with other equipment in the construction site.
4. Noise emission: The operating noise level is kept below 85dB(A) at 1 meter distance, meeting workplace health and safety requirements.
In addition to CE certification, we implement a comprehensive quality management system that covers every stage from raw material procurement to final delivery. Our factory has obtained ISO 9001:2015 certification, and each production line undergoes 72 hours of continuous operation testing before shipment to ensure stable performance in actual working conditions.
Comprehensive After-Sales Service Network
We recognize that equipment reliability is only part of the solution – comprehensive after-sales support is equally crucial for our international clients. Our service network spans more than 30 countries, with local service teams providing timely support:
1. Installation and commissioning: Our engineers provide on-site installation guidance and operator training, ensuring the equipment is properly set up and personnel can operate it safely and efficiently.
2. Preventive maintenance: We offer customized maintenance schedules based on equipment usage intensity and local working conditions, helping extend equipment lifespan and maintain optimal performance.
3. Spare parts supply: We maintain a global inventory of critical spare parts, with express delivery options available to minimize downtime in case of component failure.
4. Technical upgrades: As technology evolves, we provide retrofit solutions to help existing equipment incorporate new features and meet updated standards.
One of our clients in Africa reported that thanks to our preventive maintenance program, their equipment has maintained over 95% uptime throughout a 3-year project period, significantly reducing unexpected production interruptions.
FAQ
What is the maximum rebar diameter your cutting threading line can process?
Our standard model can process rebars up to Φ40mm in diameter. For larger diameters, we offer custom solutions that can handle up to Φ50mm rebars by reinforcing the cutting and threading components. The maximum processing diameter depends on the rebar grade and specific project requirements.
How does your equipment ensure consistent threading quality?
We use high-precision servo motors and ball screws for the threading mechanism, combined with a closed-loop control system that continuously monitors and adjusts threading parameters. The equipment also features automatic lubrication to maintain optimal cutting tool conditions, and each threaded rebar undergoes real-time quality inspection using laser sensors.
What maintenance is required for the cutting blades?
The cutting blades should be inspected daily for wear and resharpened or replaced when necessary. Under normal working conditions (processing Φ25mm rebars), the blades typically last for 800-1,200 hours of continuous operation. We recommend keeping a spare set of blades on site to minimize downtime during replacements.
Can your equipment process rebars with different threading standards?
Yes, our CNC system allows for easy adjustment of threading parameters including pitch, depth, and length to meet various international standards such as ASTM, BS, DIN, and ISO. The touch screen interface provides preset options for common standards and also allows for custom settings.
Summary
Xuhui (Shandong) Smart Equipment’s CNC steel bar cutting threading line represents the perfect combination of precision, efficiency, and reliability for modern construction projects. With CE certification, global service support, and proven performance in major infrastructure projects worldwide, our equipment provides a complete solution for rebar processing needs. Whether for highway, railway, airport, or bridge construction, our automated production lines help clients improve quality, reduce costs, and accelerate project timelines. As construction standards continue to evolve globally, we remain committed to innovation, providing cutting-edge technology and professional services to support the development of the global construction industry.
