In modern infrastructure construction, the quality and efficiency of steel reinforcement processing directly determine the structural safety and construction progress of projects. As a professional manufacturer located in Heze, Shandong – China’s well-known engineering machinery manufacturing base, Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in the R&D, production, and sales of CNC steel reinforcement processing equipment. Our core product – the steel reinforcement cage rolling welder, has become the preferred equipment for major highway, railway, bridge, tunnel, and airport construction projects worldwide.
Technical Advantages of CNC Steel Reinforcement Cage Rolling Welders

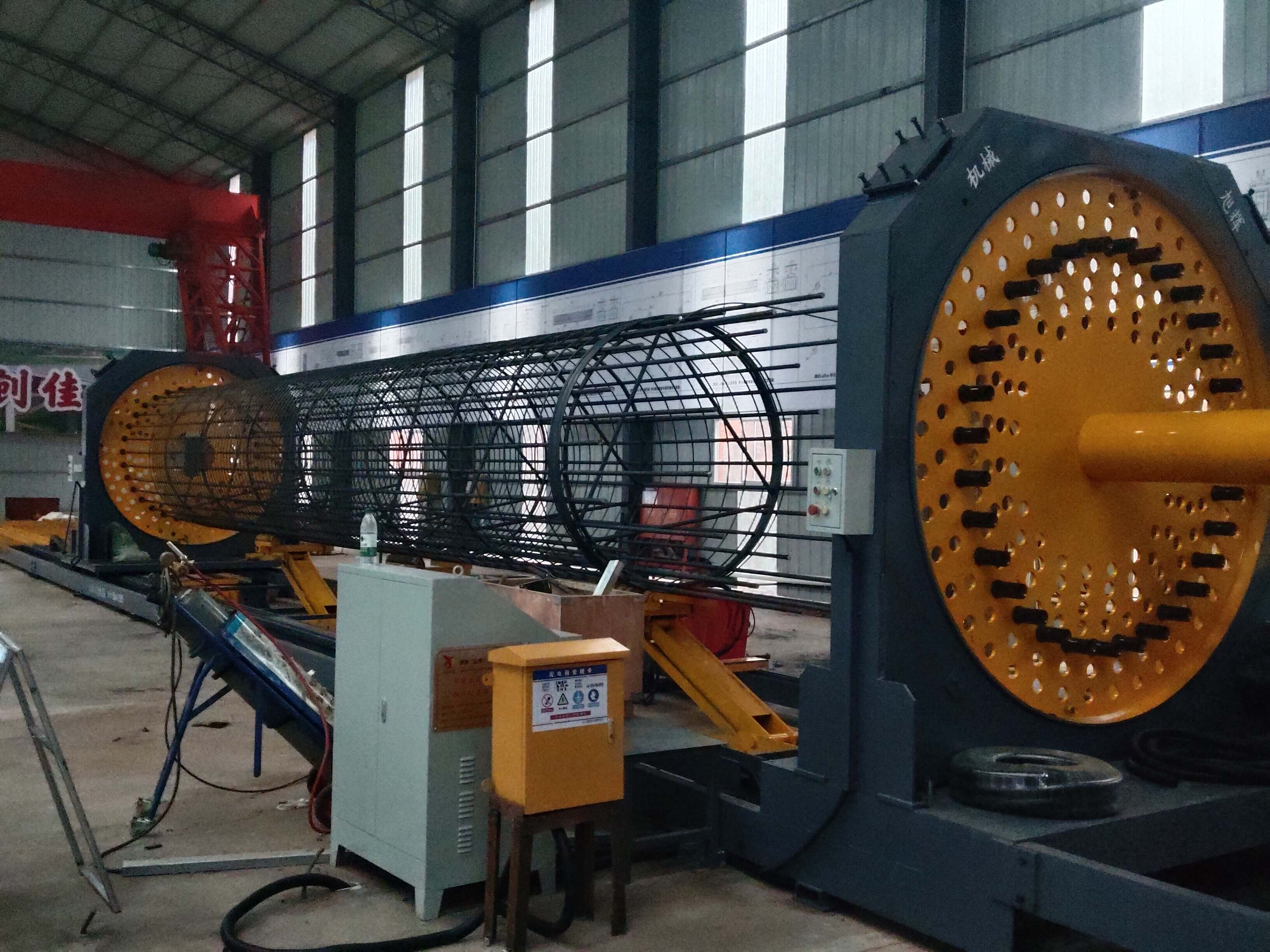

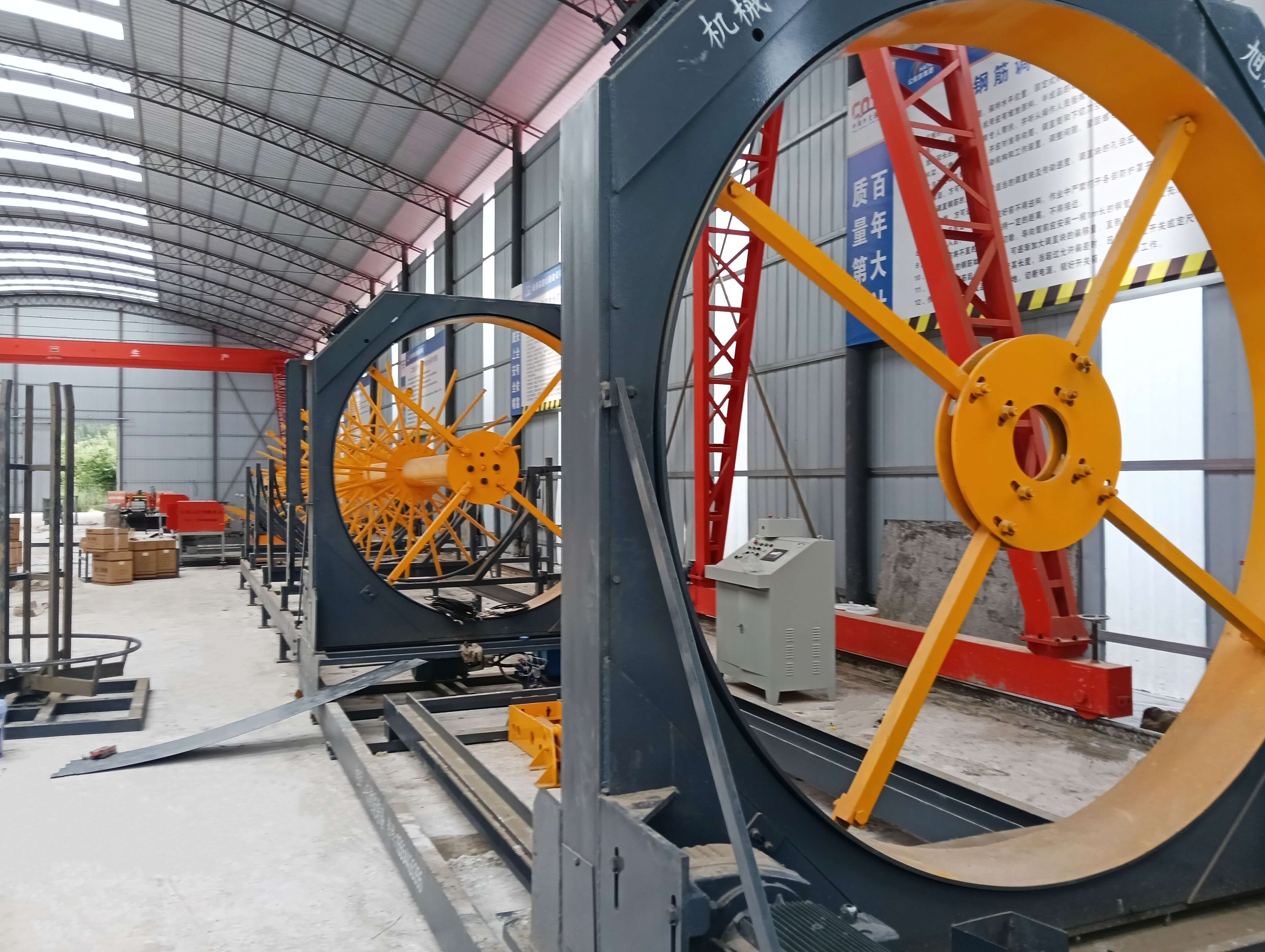

Our steel reinforcement cage rolling welders integrate advanced CNC technology, automatic welding systems, and precision mechanical design. The equipment features fully automated operation from material feeding, bending, welding to forming, replacing traditional manual operations. The key technical advantages include:
1. High Precision Processing: The equipment adopts servo motor drive system and high-precision transmission components, ensuring the dimensional accuracy of reinforcement cages within ±1mm. This meets the strict requirements of modern bridge and tunnel engineering for reinforcement positioning accuracy.
2. Intelligent Welding System: Equipped with multiple welding heads and automatic tracking welding technology, the equipment can simultaneously complete circumferential welding of multiple main reinforcement bars and spiral hoop welding. The welding quality is stable with consistent penetration, meeting international welding standards.
3. Modular Design: The equipment adopts modular structure design, allowing flexible configuration according to different project requirements. Standard models can process reinforcement cages with diameters from 200mm to 2500mm, and lengths up to 18 meters. Special models can be customized for ultra-large projects.
4. Efficient Production: A single machine can complete the production of 8-12 reinforcement cages per shift (8 hours), with production efficiency 5-8 times higher than manual operations. This significantly shortens construction periods and reduces labor costs.
5. Safety Design: The equipment features multiple safety protection devices including emergency stop, safety grating, and protective covers. The operation interface adopts human-machine engineering design with intuitive parameters and simple operation, reducing operator training time.
Application Scenarios of Reinforcement Cage Rolling Welders
Our steel reinforcement cage rolling welders have been widely applied in various infrastructure projects around the world, demonstrating excellent performance in different working conditions:
1. Bridge Construction: In highway and railway bridge pile foundation projects, our equipment can produce standard reinforcement cages with consistent quality, ensuring the load-bearing capacity of bridge piers. The equipment has been successfully applied in major projects such as the Hong Kong-Zhuhai-Macao Bridge and various cross-sea bridges.
2. Tunnel Engineering: For tunnel lining reinforcement processing, our equipment can produce reinforcement cages with complex shapes according to tunnel cross-section designs. The automatic welding function ensures the structural integrity of reinforcement cages in soft soil or rock strata conditions.
3. Subway Projects: In urban subway station and interval construction, our equipment can process reinforcement cages for diaphragm walls and pile foundations. The compact structure design allows operation in limited construction space while maintaining high production efficiency.
4. Water Conservancy Projects: For dam and water channel reinforcement processing, our equipment can produce large-diameter reinforcement cages with special reinforcement arrangements. The stable welding quality ensures the anti-seepage performance of concrete structures.
5. Standardized Processing Centers: Our equipment is the core equipment in centralized reinforcement processing centers, enabling standardized production and batch supply of reinforcement cages for multiple projects. This mode improves material utilization and reduces construction costs.
Key Parameters Comparison Table
| Parameter | Standard Model | Customized Model |
|---|---|---|
| Processing Diameter Range | 200-2000mm | 300-2500mm |
| Maximum Processing Length | 12m | 18m |
| Main Reinforcement Diameter | Φ12-Φ40mm | Φ16-Φ50mm |
| Spiral Hoop Diameter | Φ6-Φ16mm | Φ8-Φ20mm |
| Power Supply | 380V 50Hz 3P | Customizable |
| Total Power | Approx. 45kW | Approx. 60kW |
Customized Solutions for Different Projects
Understanding that different projects have unique requirements for reinforcement cage specifications, Xuhui Intelligent Equipment provides comprehensive customized services:
1. Equipment Dimension Customization: For projects with special space requirements such as urban subway stations or narrow tunnel sites, we can customize equipment dimensions to ensure optimal operation in limited space while maintaining processing capacity.
2. Processing Capacity Customization: For large-scale projects requiring high daily output, we can increase the number of welding heads and optimize the material handling system to double the production efficiency while maintaining welding quality.
3. Special Reinforcement Processing: For projects requiring special reinforcement arrangements such as variable-pitch spiral hoops or multi-layer main reinforcement, we can customize the control system and mechanical structure to achieve precise processing of complex reinforcement cages.
4. Environmental Adaptation: For projects in high-altitude, high-humidity, or corrosive environments, we can enhance equipment protection levels with special coatings, sealed structures, and corrosion-resistant components to ensure stable operation in harsh conditions.
5. Integration Solutions: For standardized processing centers requiring complete production lines, we can provide integrated solutions combining reinforcement cage rolling welders with material storage systems, automatic bending machines, and stacking robots to realize unmanned production.
FAQ
What is the production cycle for a standard steel reinforcement cage rolling welder?
The production cycle depends on the equipment model and customization requirements. Standard models typically take 30-45 working days from order confirmation to delivery. Customized equipment requires additional 15-30 days for design and manufacturing of special components. We maintain adequate raw material inventory and use modular production methods to ensure timely delivery.
How does your company ensure the welding quality of reinforcement cages?
We implement strict quality control throughout the production process: 1) Using imported welding power sources with stable arc characteristics; 2) Implementing automatic welding parameter control to ensure consistent welding quality; 3) Conducting 100% non-destructive testing on sample welds before delivery; 4) Providing welding process parameters and operation training to customers. Our equipment has passed CE certification and meets international welding standards.
What are the maintenance requirements for the equipment?
Our equipment is designed for low maintenance: 1) Daily maintenance includes cleaning, lubrication, and inspection of key components; 2) Monthly maintenance includes checking electrical connections and replacing wear parts; 3) Annual maintenance includes comprehensive inspection and replacement of critical components. We provide detailed maintenance manuals and training, and our service team is available 24/7 for technical support.
Can the equipment process reinforcement cages with variable diameters?
Yes, our advanced models are equipped with automatic diameter adjustment systems. By inputting the required diameter parameters in the control system, the equipment can automatically adjust the spacing between main reinforcement bars and the pitch of spiral hoops to produce reinforcement cages with variable diameters along the length. This is particularly suitable for projects with complex structural requirements.
Summary
As a professional manufacturer of CNC steel reinforcement cage rolling welders, Xuhui (Shandong) Intelligent Equipment Co., Ltd. combines advanced technology with practical engineering experience to provide high-quality, efficient, and reliable reinforcement processing solutions. Our products have been successfully applied in numerous domestic and international infrastructure projects, winning recognition from customers for their excellent performance and stability. With complete production facilities, a professional technical team, and a comprehensive service system, we are committed to becoming your most trusted partner in steel reinforcement processing equipment. Contact us today to discuss your project requirements and explore customized solutions that meet your specific needs.
