In modern construction projects, especially in infrastructure development like highways, railways, and bridges, the quality and efficiency of steel bar processing directly impact project progress and structural safety. As a professional manufacturer of CNC steel bar processing equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. provides comprehensive solutions for standardized steel bar construction. This article will guide you through the key considerations when selecting steel bar sawing, threading, and polishing machines.
Understanding the Core Functions of Steel Bar Processing Equipment

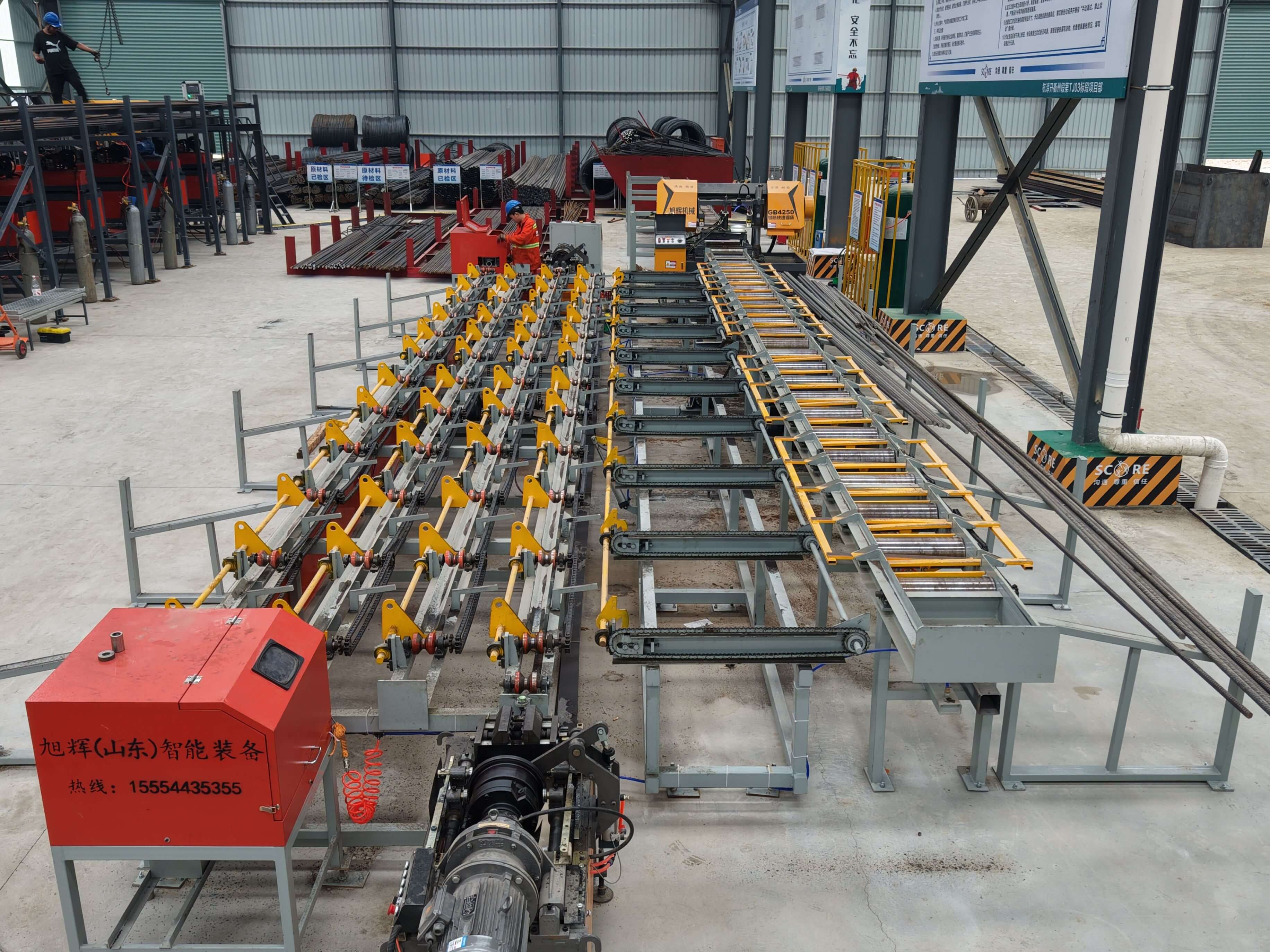

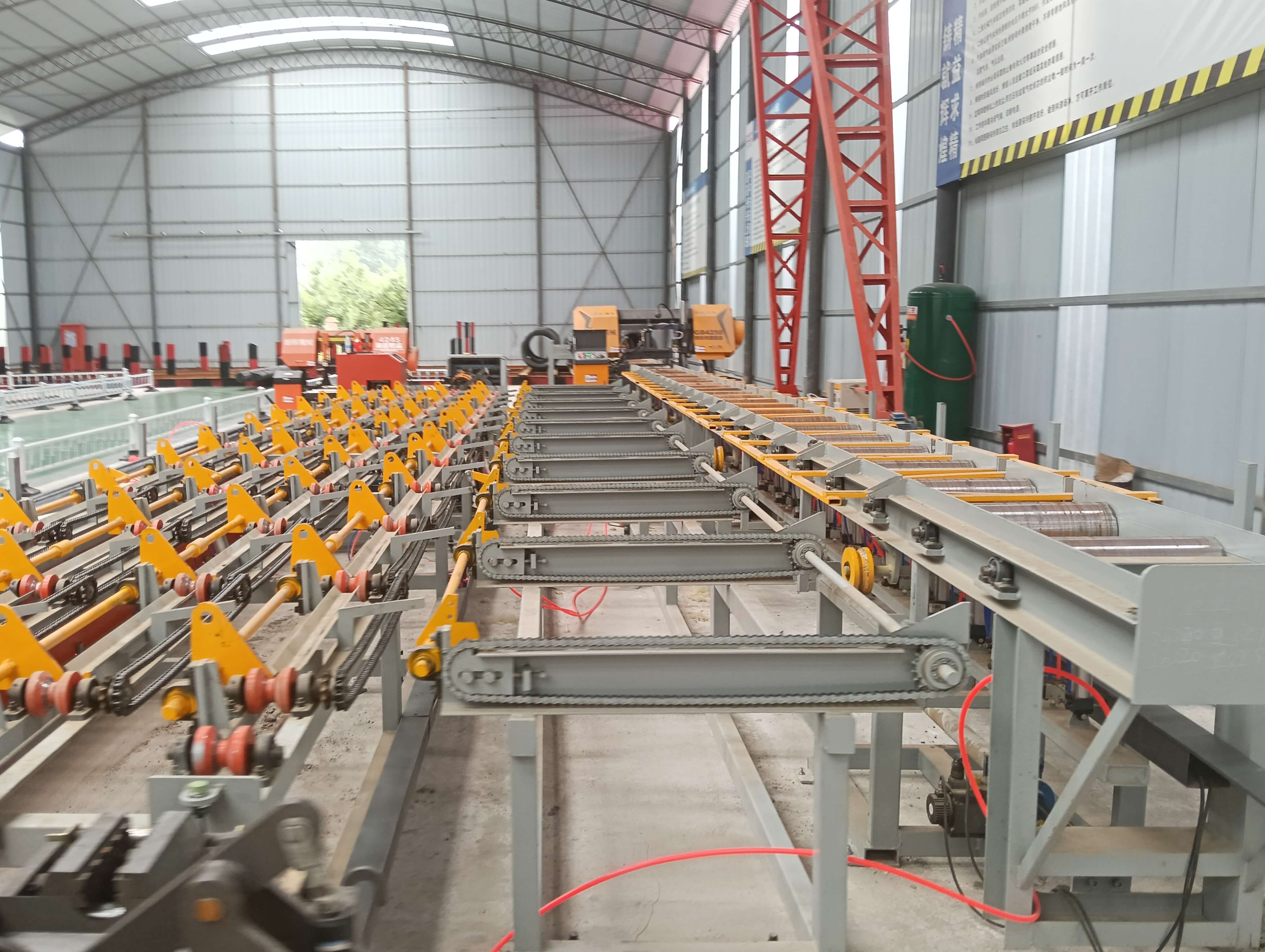

Steel bar sawing, threading, and polishing machines are essential equipment in modern construction projects. These integrated systems can complete three critical processes in one continuous operation: precise cutting of steel bars to specified lengths, accurate threading of both ends, and professional polishing of the threaded sections. This integration significantly improves processing efficiency while ensuring consistent quality across all workpieces.
The equipment typically features CNC (Computer Numerical Control) technology, which enables automated operation with minimal human intervention. This automation reduces labor costs and minimizes the risk of human error, ensuring each steel bar meets exact specifications. The precision threading capability is particularly crucial for projects requiring high-strength connections, such as bridge piles and foundation reinforcements.
Key Selection Criteria for Steel Bar Processing Machines
When evaluating different suppliers and models, several critical factors should guide your decision-making process:
1. Processing Precision and Consistency
The primary function of these machines is to ensure each steel bar meets precise dimensional requirements. Look for equipment with advanced CNC control systems that can maintain tolerance levels within ±0.5mm for cutting length and ±1 pitch for threading. High-precision servo motors and ball screws contribute to this accuracy, while automatic compensation systems can adjust for material variations during processing.
The threading quality is equally important. The best machines produce threads that comply with international standards like ISO or ASTM, ensuring compatibility with standard couplings and nuts. Some advanced models offer multiple threading options to accommodate different project requirements.
2. Production Capacity and Efficiency
Construction projects often require processing thousands of steel bars daily. Evaluate the machine’s cycle time – the time needed to complete one full processing cycle (cutting, threading, polishing). Top-performing models can process a 12-meter steel bar in under 3 minutes, with some achieving even faster speeds for shorter bars.
Also consider the maximum processing diameter and length the machine can handle. For large infrastructure projects, you may need equipment capable of processing bars up to 50mm in diameter and 18 meters in length. The loading capacity of the material magazine affects continuous operation time between reloads.
3. Equipment Durability and Reliability
Construction sites present harsh operating environments with dust, vibrations, and varying temperatures. The machine’s construction quality directly impacts its service life and maintenance requirements. Look for models with robust steel frames, industrial-grade components, and effective dust protection systems.
The cutting system should use high-quality carbide saw blades with automatic cooling to prevent overheating. The threading dies should be made of premium alloy steel with special coating to resist wear. Some manufacturers offer die life guarantees of processing over 5,000 steel bars before replacement.
4. Safety Features and Compliance
Safety is paramount in industrial equipment. Reputable manufacturers incorporate multiple safety mechanisms, including emergency stop buttons, protective enclosures for moving parts, and automatic shutdown when doors are opened during operation. The equipment should comply with international safety standards like CE certification for European markets or equivalent standards for other regions.
5. After-Sales Support and Service
Even the most reliable equipment requires maintenance and occasional repairs. Choose a supplier that offers comprehensive after-sales support, including on-site installation and commissioning, operator training, and readily available spare parts. Some manufacturers provide remote diagnostic capabilities through IoT connections, allowing technicians to troubleshoot issues without site visits.
Application Scenarios and Industry Solutions
Steel bar sawing, threading, and polishing machines serve diverse construction applications:
- Highway Construction: Processing reinforcement bars for bridge piers, abutments, and pavement reinforcement. The equipment’s high throughput matches the large-scale requirements of highway projects.
- Railway Construction: Producing precision-threaded bars for railway sleepers and track reinforcement. The consistent quality ensures reliable connections in critical infrastructure.
- Bridge Projects: Handling large-diameter bars for main girder reinforcement. Some machines can process bars up to 50mm diameter, meeting the demands of major bridge construction.
- Building Construction: Standardizing reinforcement bar processing for high-rise buildings and commercial complexes. The automated operation reduces labor costs in urban construction sites.
- Tunnel Projects: Preparing anchorage bars with precise threading for tunnel support systems. The polishing function ensures proper coupling engagement in challenging underground environments.
Technical Specifications Comparison
When comparing different models, consider these key technical parameters:
| Parameter | Standard Model | Heavy-Duty Model |
|---|---|---|
| Max Processing Diameter | 12-40mm | 16-50mm |
| Max Processing Length | 12m | 18m |
| Threading Accuracy | ±1 pitch | ±0.5 pitch |
| Cycle Time (12m bar) | 3-4 minutes | 2.5-3.5 minutes |
| Power Consumption | 15-20kW | 25-30kW |
| Dimensions (L×W×H) | 18×2.5×2.2m | 22×3×2.5m |
FAQ
What certifications should I look for when purchasing steel bar processing equipment for international projects?
For global projects, prioritize equipment with CE certification for European markets, or equivalent standards like ISO 9001 for quality management. Some countries may require additional local certifications. Xuhui’s equipment meets international standards and can be customized for specific market requirements.
How does automated steel bar processing improve project efficiency compared to manual methods?
Automated systems reduce processing time by 70-80% compared to manual operations. A single machine can replace 5-8 skilled workers while maintaining consistent quality. The integration of cutting, threading, and polishing in one cycle eliminates material handling between processes, further improving efficiency.
What maintenance is required for steel bar sawing, threading, and polishing machines?
Regular maintenance includes daily cleaning of the cutting area, weekly lubrication of moving parts, and monthly inspection of electrical components. Saw blades need replacement every 200-500 processing cycles depending on material type, while threading dies last 3,000-5,000 cycles. Xuhui provides comprehensive maintenance manuals and training.
Can these machines process different steel grades?
Yes, modern machines can process various steel grades including carbon steel, stainless steel, and alloy steel. The processing parameters like cutting speed and threading force can be adjusted through the CNC system to accommodate different material properties while maintaining quality standards.
How does Xuhui ensure the precision of their steel bar processing equipment?
We use high-precision components like German-made ball screws and Japanese servo motors in our machines. Each unit undergoes rigorous testing before delivery, including processing trials with actual steel bars to verify accuracy. Our CNC systems feature automatic calibration functions to compensate for tool wear over time.
Summary
Selecting the right steel bar sawing, threading, and polishing machine requires careful evaluation of processing precision, production capacity, equipment durability, safety features, and after-sales support. Xuhui (Shandong) Intelligent Equipment Co., Ltd. offers a comprehensive range of CNC steel bar processing machines that meet the demanding requirements of modern infrastructure projects. Our equipment combines advanced technology with robust construction to deliver reliable performance in highway, railway, bridge, and building construction applications worldwide. With CE certification and global export capabilities, we provide standardized steel bar processing solutions that help contractors improve efficiency, ensure quality, and reduce costs in their projects.
