In modern infrastructure construction, the quality and efficiency of steel reinforcement cage production directly impact project timelines and structural safety. As a professional manufacturer located in Heze, Shandong – China’s renowned engineering machinery manufacturing base, Xuhui (Shandong) Smart Equipment Co., Ltd. has dedicated over a decade to developing advanced steel reinforcement cage rolling welders that meet international standards.
Core Competence in Cage Rolling Welder Production
Our manufacturing facility spans 12,000 square meters equipped with CNC machining centers, robotic welding stations, and precision testing equipment. The production process strictly follows ISO 9001 quality management system, ensuring each cage rolling welder meets CE certification requirements. Our technical team comprising 28 senior engineers maintains continuous R&D investment, resulting in 16 patents for cage welding technology.

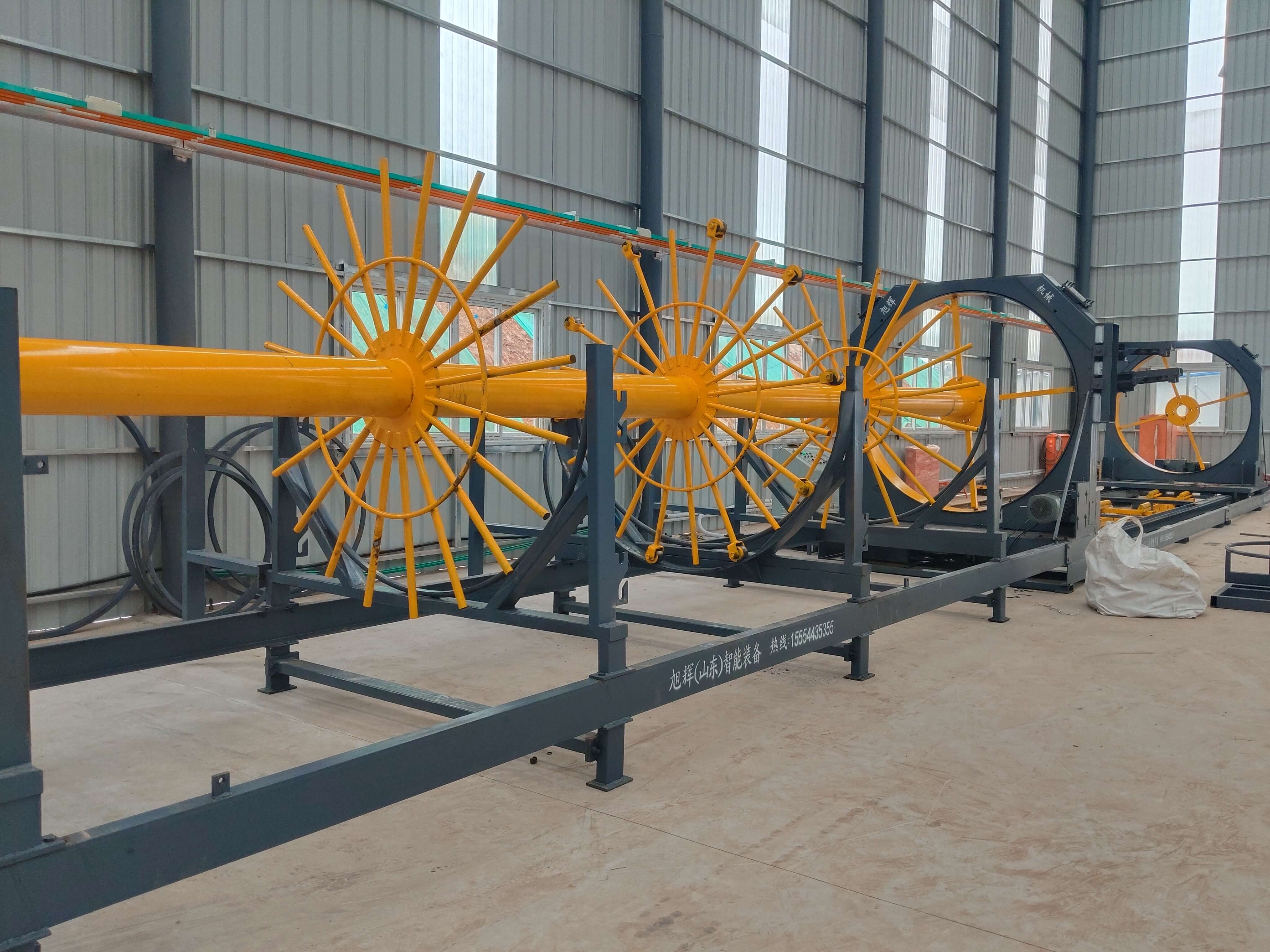

The automatic steel reinforcement cage rolling welder series includes three main models: XH-RLW2000, XH-RLW3000, and XH-RLW4000, covering cage diameters from 400mm to 2500mm. These machines adopt servo-driven rotation systems with positioning accuracy of ±0.5mm, enabling consistent welding quality even for complex cage structures required in bridge pile foundations and tunnel linings.
Technical Advantages of Our Cage Welding Equipment
The Xuhui cage rolling welder incorporates several innovative technologies that set it apart in the market. First, the dual-station design allows simultaneous loading/unloading and welding operations, boosting production efficiency by 40% compared to traditional single-station machines. Second, our patented welding parameter control system automatically adjusts current and voltage based on reinforcement bar diameter, ensuring optimal weld penetration without burn-through.
Third, the modular structure design enables quick configuration changes for different cage specifications. A complete cage diameter changeover can be completed within 15 minutes without specialized tools. Fourth, the integrated safety system includes emergency stop mechanisms, light curtains, and over-travel protection, meeting EU machinery safety directives.
Key Technical Parameters Comparison
| Parameter | XH-RLW3000 | Industry Average |
|---|---|---|
| Max Cage Diameter | 3000mm | 2500mm |
| Welding Speed | 45-60rpm | 30-50rpm |
| Positioning Accuracy | ±0.5mm | ±1.0mm |
| Power Consumption | 38kW | 45kW |
Global Application Cases
Our cage rolling welders have been successfully implemented in over 300 infrastructure projects across 45 countries. In the Jakarta-Bandung High-Speed Rail project, our XH-RLW3000 machines produced 1,200 tons of reinforcement cages monthly with zero defect rate during 18 months of continuous operation. The equipment’s ability to handle SEA 500E grade reinforcement bars up to 40mm diameter proved crucial for the project’s seismic resistance requirements.
For the Istanbul New Airport project, our customized four-station cage rolling welder enabled parallel production of different cage specifications, reducing the overall reinforcement cage supply cycle by 35%. The machines’ compatibility with European standard reinforcement bars and CE certification facilitated smooth project approval processes.
Comprehensive Service System
Understanding that equipment reliability is critical for construction projects, we established a global service network covering 68 countries. Each machine comes with a 24-month warranty and lifetime technical support. Our service packages include:
- On-site installation and commissioning by certified engineers
- Operator training programs covering equipment operation and basic maintenance
- Preventive maintenance schedules based on actual usage data
- 24/7 technical hotline with multilingual support
- Spare parts inventory in regional warehouses for 48-hour delivery
FAQ
What makes Xuhui’s cage rolling welder different from other manufacturers?
Our equipment combines three unique advantages: first, the dual-station design improves production efficiency by 40%; second, the patented welding parameter control system ensures consistent weld quality across different reinforcement bar diameters; third, all machines come with CE certification and comply with EU machinery safety directives, facilitating global project approvals.
How long does it take to train operators for the cage rolling welder?
We provide comprehensive training programs covering both theoretical knowledge and practical operation. The standard training course lasts 3 days and includes equipment structure introduction, operation procedures, quality control methods, and basic troubleshooting. For complex projects, we offer customized training modules based on specific cage specifications and production requirements.
What maintenance is required for the cage rolling welder?
The machine requires daily cleaning of the welding slag collection system and weekly inspection of mechanical components’ lubrication status. We recommend monthly preventive maintenance by our certified engineers, including gearbox oil replacement, servo motor calibration, and electrical system testing. Proper maintenance can extend equipment lifespan by 30% and reduce unexpected downtime.
Can the cage rolling welder handle non-standard cage shapes?
Yes, our equipment supports customization for special cage shapes through modular design. We have successfully developed solutions for elliptical cages, tapered cages, and multi-diameter combined cages. The control system can store up to 100 different cage programs, allowing quick changeovers between different production requirements.
Summary
As a professional steel reinforcement cage rolling welder manufacturer with CE certification, Xuhui (Shandong) Smart Equipment Co., Ltd. combines advanced technology, reliable quality, and comprehensive service to support global infrastructure projects. Our automatic cage welding machines have been proven in major projects worldwide, delivering consistent quality while improving production efficiency. With continuous R&D investment and expanding global service network, we remain committed to providing innovative solutions for the construction industry’s evolving needs.
