Selecting the right pile foundation steel cage rolling welder is crucial for ensuring construction quality and efficiency in major infrastructure projects. As a leading manufacturer of CNC steel reinforcement equipment based in Heze, Shandong – China’s engineering machinery manufacturing hub, Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in providing standardized solutions for building steel reinforcement construction. This comprehensive guide will walk you through the essential considerations for choosing the ideal steel cage rolling welder for your specific project requirements.
Understanding Steel Cage Rolling Welders for Pile Foundations

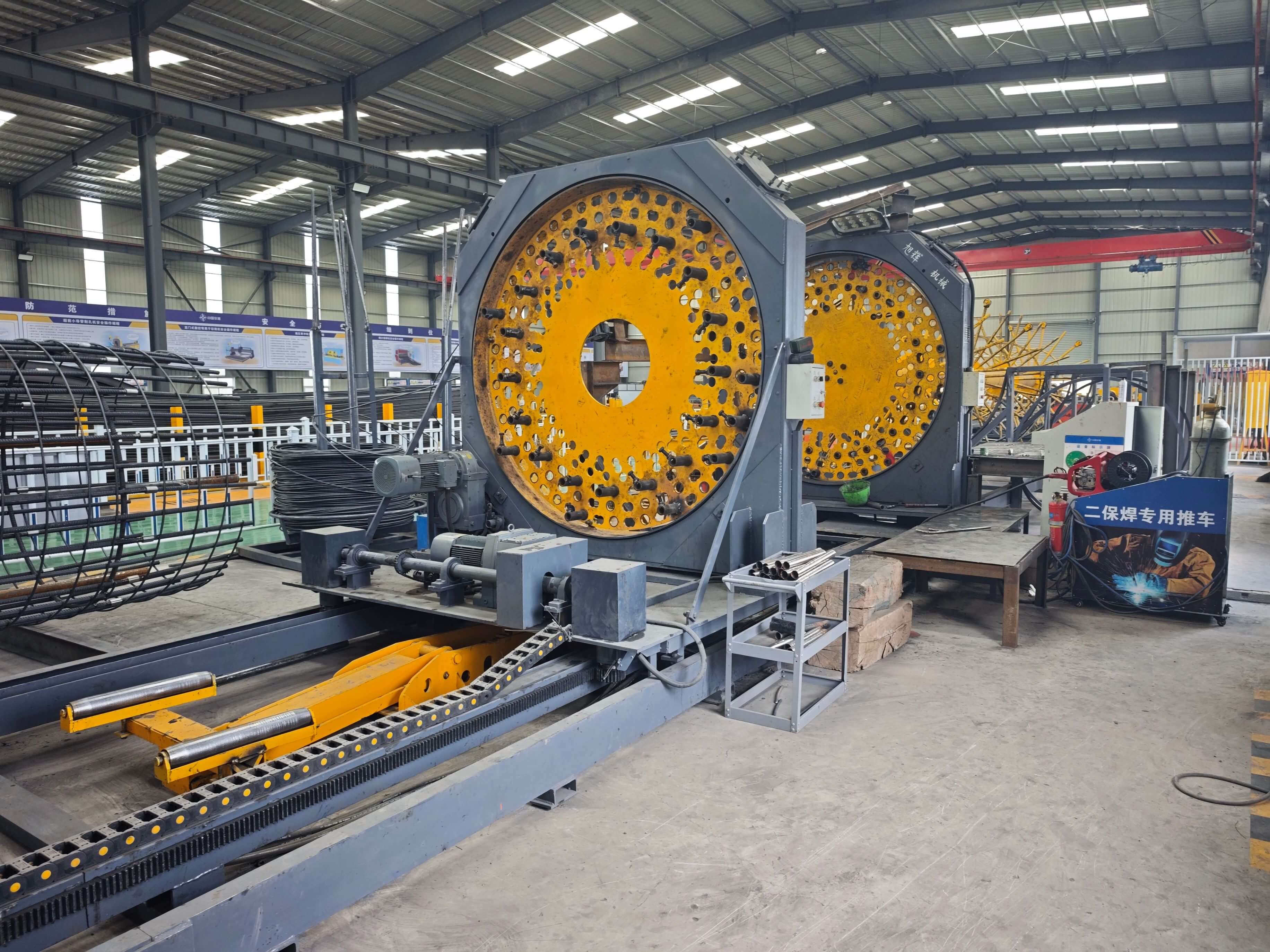

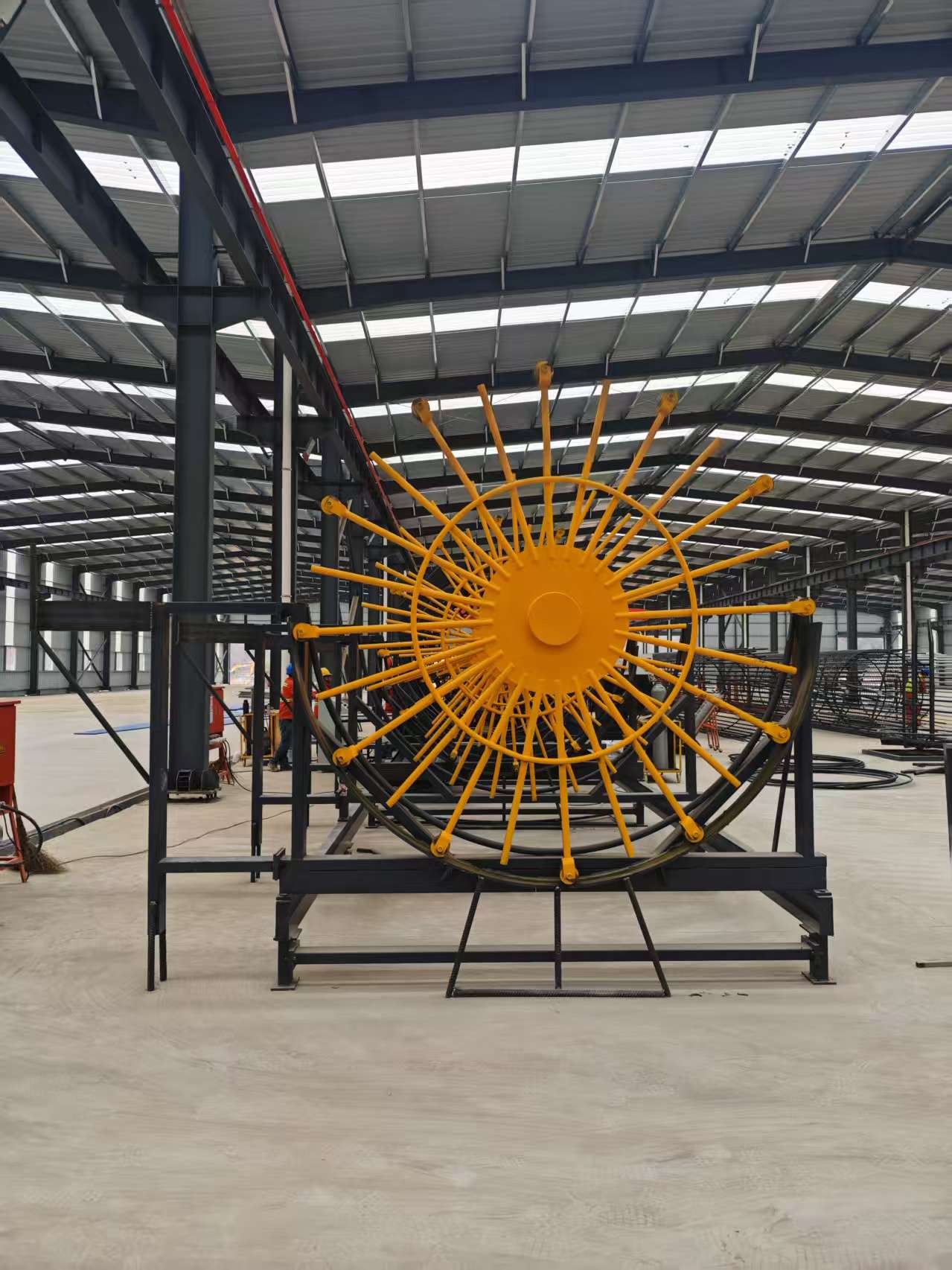

Steel cage rolling welders are specialized machines designed to automate the production of reinforced steel cages used in pile foundations, bridge piers, and other deep foundation structures. These machines replace traditional manual binding and welding processes with automated systems that ensure consistent quality, improved productivity, and enhanced worker safety. The core components typically include a main frame, rotating mechanism, welding system, and control panel.
Our product range includes the CNC steel cage rolling welder and intelligent steel cage welding workstation, both capable of automatically completing the binding and welding of steel cages. These machines produce standardized finished products that meet stringent engineering requirements, making them ideal for large-scale infrastructure projects such as bridges, pile foundations, and subway constructions.
Key Selection Criteria for Steel Cage Rolling Welders
When evaluating different models and manufacturers, several critical factors should influence your decision-making process:
1. Technical Specifications and Performance
The machine’s technical capabilities directly impact its suitability for your projects. Key parameters to consider include:
- Maximum cage diameter capacity (typically ranging from 400mm to 2500mm)
- Maximum cage length capacity (often up to 12-18 meters)
- Main motor power (usually 15-30kW depending on model)
- Welding speed (typically 30-60 RPM)
- Power supply requirements (3-phase, 380V standard)
- Control system precision (PLC-based systems offer better accuracy)
Our CNC steel cage rolling welder features advanced PLC control systems with touchscreen interfaces, enabling precise parameter settings and operation monitoring. The variable frequency drive system allows for smooth speed adjustment during welding operations.
2. Automation Level and Production Efficiency
The degree of automation significantly affects both productivity and labor costs. Modern steel cage rolling welders offer varying levels of automation:
- Semi-automatic models require some manual intervention for material feeding and position adjustment
- Fully automatic systems handle the complete process from material loading to finished product unloading
- Intelligent models incorporate features like automatic diameter adjustment and self-diagnostic systems
Our intelligent steel cage welding workstation represents the pinnacle of automation, featuring automatic material feeding, welding, and unloading processes. This level of automation reduces labor requirements by up to 70% while increasing production capacity by 3-5 times compared to traditional methods.
3. Quality and Certification Standards
For international projects, ensuring compliance with global quality standards is essential. Look for manufacturers that:
- Hold ISO 9001 quality management system certification
- Have products certified to CE standards for European markets
- Follow international welding standards like AWS D1.1 or ISO 3834
- Implement strict quality control processes throughout manufacturing
All our equipment carries EU CE certification and undergoes rigorous testing before delivery. Our quality management system ensures every machine meets international standards for performance and safety.
4. Customization Capabilities
Different projects may have unique requirements that standard machines cannot accommodate. A manufacturer’s ability to provide customized solutions demonstrates their technical expertise and commitment to customer satisfaction. Consider whether the supplier offers:
- Custom cage diameter and length specifications
- Special welding configurations for different steel grades
- Integration with existing production lines
- Multi-language control interfaces for international operations
We specialize in developing customized equipment and production line solutions tailored to specific project needs. Our engineering team works closely with clients to design machines that perfectly match their operational requirements.
| Feature | Standard Model | Customized Option |
|---|---|---|
| Max Cage Diameter | 800-2000mm | 400-2500mm |
| Max Cage Length | 12m | Up to 18m |
| Welding Speed | 0-40 RPM | 0-60 RPM |
| Control System | PLC + Touchscreen | Industrial PC + Multi-language |
Application Scenarios and Project Suitability
The versatility of steel cage rolling welders makes them essential equipment for various construction sectors:
1. Bridge Construction Projects
For bridge pile foundations and piers, our machines produce high-precision steel cages that meet the stringent requirements of modern bridge engineering. The automated welding process ensures consistent weld quality, crucial for the structural integrity of bridge components.
2. Subway and Tunnel Engineering
In subway construction, where space is limited and quality requirements are high, our compact yet powerful steel cage rolling welders deliver optimal performance. The ability to produce cages with varying diameters makes them ideal for different tunnel sections.
3. Deep Foundation Projects
For high-rise buildings and other structures requiring deep foundations, our machines can produce extra-long steel cages efficiently. The automatic unloading system facilitates easy transfer of finished cages to the construction site.
4. Standardized Steel Processing Centers
Our equipment is equally suitable for centralized steel processing facilities that supply multiple construction sites. The high production capacity and consistent quality help these centers meet the demands of large-scale infrastructure development.
Maintenance and Operational Best Practices
To maximize the service life and performance of your steel cage rolling welder, follow these maintenance guidelines:
- Implement daily cleaning routines to remove welding slag and dust
- Regularly inspect and lubricate all moving parts according to the manual
- Schedule monthly professional maintenance checks for electrical components
- Keep spare parts inventory for critical components like welding electrodes and bearings
- Train operators on proper machine operation and safety procedures
We provide comprehensive after-sales support including installation guidance, operator training, and maintenance consulting. Our technical team is available 24/7 to assist with any operational issues that may arise.
FAQ
What factors determine the production capacity of a steel cage rolling welder?
Production capacity depends on several factors including welding speed (typically 0-40 RPM for standard models), cage diameter and length specifications, and the degree of automation. Our intelligent models with higher RPM ratings and automatic material handling systems offer significantly higher daily output compared to basic models.
How does automation level affect the required operator skill?
Basic models require operators with welding knowledge and machine operation skills, while fully automatic systems need personnel trained in program input and basic troubleshooting. We provide comprehensive training programs tailored to each machine’s automation level to ensure safe and efficient operation.
What maintenance intervals are recommended for optimal performance?
Daily cleaning and visual inspections are essential. Moving parts should be lubricated weekly, while electrical components require monthly professional checks. We supply detailed maintenance manuals with each machine and offer remote technical support to guide your maintenance team.
Can these machines handle different steel grades and diameters?
Yes, our machines are designed to process various steel grades commonly used in construction (HRB335, HRB400, etc.) and can accommodate main bar diameters from 12mm to 40mm. For special requirements, we offer customized solutions with adjustable welding parameters.
What safety features are included in modern steel cage rolling welders?
Standard safety features include emergency stop buttons, protective covers for moving parts, interlock systems, and safety sensors. Our latest models incorporate additional features like automatic fault diagnosis, overload protection, and warning systems for abnormal operations to ensure operator safety.
Summary
Selecting the right pile foundation steel cage rolling welder requires careful consideration of technical specifications, automation level, quality standards, and customization options. As a professional manufacturer with CE certification and extensive experience in international projects, Xuhui (Shandong) Intelligent Equipment offers a comprehensive range of CNC steel reinforcement equipment designed to meet the diverse needs of modern construction projects. Our commitment to quality, innovation, and customer service ensures that you receive equipment that enhances productivity, ensures consistent quality, and provides reliable performance for years to come. Contact our sales team today to discuss your specific requirements and discover how our solutions can benefit your next infrastructure project.
