In modern tunnel construction projects, the processing quality and efficiency of small ducts directly affect the overall progress and safety of the project. Xuhui (Shandong) Intelligent Equipment Co., Ltd., located in the engineering machinery manufacturing base of Heze, Shandong, has become a leading supplier in the industry with its professional fully automatic tunnel small duct production line solutions. Our company integrates R&D, production, and sales of CNC steel bar processing equipment, providing standardized solutions for building steel bar construction in various engineering projects.
Core Advantages of Our Tunnel Small Duct Production Line

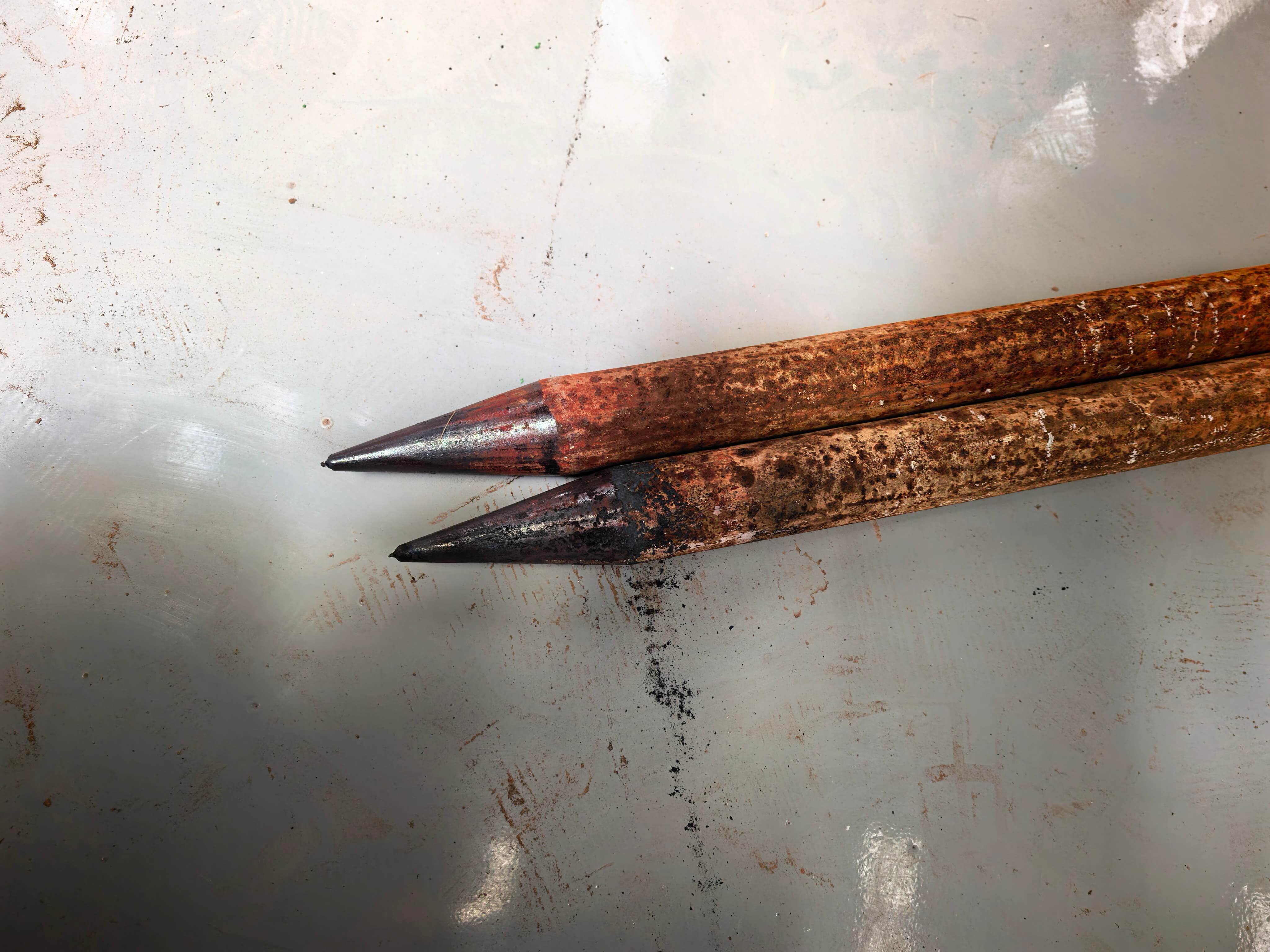

Our fully automatic tunnel small duct production line represents the cutting-edge technology in the industry, integrating multiple processing functions into one complete system. The equipment can automatically complete the entire processing flow of tunnel small ducts from cutting holes to tip shrinking, replacing traditional manual operations with significantly improved processing precision and efficiency.
The production line adopts advanced CNC technology and servo control system, ensuring that each processing parameter can be precisely controlled. The hole cutting position accuracy reaches ±0.5mm, and the tip shrinking dimension accuracy reaches ±0.3mm, fully meeting the strict requirements of tunnel construction projects for small duct processing quality.
Our equipment is designed with modular structure, allowing flexible configuration according to different project requirements. The standard configuration includes automatic feeding system, hole cutting unit, tip shrinking unit, and finished product collection system, with optional functions such as automatic marking and length measurement available to meet various processing needs.
Technical Specifications and Performance Parameters
The fully automatic tunnel small duct production line we provide has comprehensive technical parameters to ensure stable operation in various working conditions. The equipment is suitable for processing small ducts with diameters ranging from Φ32mm to φ108mm, and wall thickness from 3mm to 8mm, covering most tunnel construction requirements.
In terms of processing speed, our production line can complete 8-12 small ducts per hour (depending on specific specifications), which is 3-5 times faster than traditional processing methods. The equipment operates with low noise (≤75dB) and low energy consumption (total power about 30kW), meeting international environmental protection standards.
| Parameter | Specification |
|---|---|
| Applicable pipe diameter | Φ32-φ108mm |
| Wall thickness range | 3-8mm |
| Processing speed | 8-12 pieces/hour |
| Hole cutting accuracy | ±0.5mm |
| Tip shrinking accuracy | ±0.3mm |
| Total power | About 30kW |
Quality Assurance and Certification
As a professional manufacturer, we attach great importance to product quality and safety. All our tunnel small duct production lines have passed the strict CE certification of the European Union, meeting international safety standards. The equipment adopts high-quality components from well-known brands, with key components such as servo motors and PLC control systems imported from Germany and Japan to ensure stable and reliable operation.
Our quality control system covers the entire production process from raw material inspection to final assembly testing. Each production line undergoes 72 hours of continuous load testing before leaving the factory to ensure that it can operate stably in actual working conditions. We also provide complete technical documentation and operation manuals to help customers quickly master equipment operation and maintenance.
Application Scenarios and Customer Cases
Our fully automatic tunnel small duct production lines have been widely used in various tunnel construction projects around the world, including highway tunnels, railway tunnels, urban subways, and water conservancy tunnels. In a large-scale highway tunnel project in Southeast Asia, our equipment helped the customer improve processing efficiency by 400% compared to traditional methods, while reducing the defect rate from 8% to less than 1%.
Another typical case is a railway tunnel project in Europe where our production line operated continuously for more than 1,800 hours without major failures, demonstrating excellent reliability and stability. The customer praised our equipment for its “high precision, high efficiency, and easy operation”, and established a long-term cooperative relationship with us.
We have successfully delivered production lines to more than 20 countries and regions, including Europe, Asia, Africa, and South America. Our professional after-sales service team provides 24/7 technical support to ensure that customers can get timely help whenever they encounter problems.
Customized Solutions and Service Support
Understanding that different tunnel projects may have specific requirements for small duct processing, we offer comprehensive customized services. Our professional engineering team can design production line solutions tailored to customers’ actual needs based on project specifications, processing volume, and site conditions.
In addition to standard equipment, we can add special functions such as automatic marking, length measurement, and data management systems according to customer requirements. For projects with limited space, we can provide compact design solutions to maximize space utilization while maintaining processing efficiency.
Our service support covers the entire lifecycle of the equipment, including installation and commissioning, operator training, regular maintenance, and spare parts supply. We have established a global service network with local service centers in major regions to provide timely on-site service when needed.
FAQ
What makes your tunnel small duct production line different from other suppliers?
Our production line integrates multiple advanced technologies including high-precision servo control, modular design, and intelligent operation interface. The equipment has passed CE certification and uses imported key components to ensure superior performance and reliability. More importantly, we provide comprehensive customized solutions and lifetime service support.
How long does it take to install and commission the production line?
Under normal circumstances, our professional installation team can complete the installation and commissioning of standard equipment within 5-7 working days. For customized equipment, the installation period may be slightly longer depending on the complexity of modifications. We provide detailed installation plans and schedules before delivery.
What kind of training do you provide for operators?
We provide comprehensive training programs including theoretical courses and practical operations. The training covers equipment structure, operation procedures, maintenance knowledge, and safety regulations. After training, operators can independently operate and perform basic maintenance on the equipment. We also provide online training materials for future reference.
How do you ensure the quality of spare parts supply?
We maintain a large inventory of commonly used spare parts in our global service centers to ensure quick delivery. For special parts, we can arrange production within 2 weeks. All our spare parts are manufactured with the same quality standards as original equipment to ensure perfect compatibility and reliability.
Summary
Xuhui (Shandong) Intelligent Equipment Co., Ltd. is committed to providing the tunnel construction industry with high-quality, high-precision fully automatic tunnel small duct production lines. With advanced technology, reliable quality, and comprehensive service support, our equipment has become the preferred choice for numerous tunnel projects worldwide. Whether for new projects or equipment upgrades, we can provide professional solutions to help customers improve processing efficiency, reduce costs, and ensure project quality.
As a professional manufacturer with CE certification, we not only provide standard equipment but also offer customized production line solutions to meet specific project requirements. Our global service network ensures that customers can get timely support wherever they are. Choose Xuhui equipment, choose professionalism and reliability for your tunnel construction projects.
