In modern infrastructure construction, the demand for high-quality, standardized steel reinforcement processing continues to grow. As a professional manufacturer of numerical control steel reinforcement equipment, Xuhui (Shandong) Smart Equipment Co., Ltd. has dedicated itself to providing comprehensive solutions for building steel reinforcement construction standardization. Our flagship product, the fully automatic steel cage welding workstation, represents the pinnacle of modern steel reinforcement processing technology, offering unparalleled efficiency, precision, and reliability for large-scale infrastructure projects worldwide.
The Evolution of Steel Cage Processing Technology
Traditional steel cage production methods relied heavily on manual labor, which presented several challenges including inconsistent quality, low production efficiency, and high labor costs. Manual welding processes were prone to human error, resulting in variations in cage dimensions, weld quality, and overall structural integrity. These inconsistencies could lead to significant delays during construction and potentially compromise the safety of the final structure.

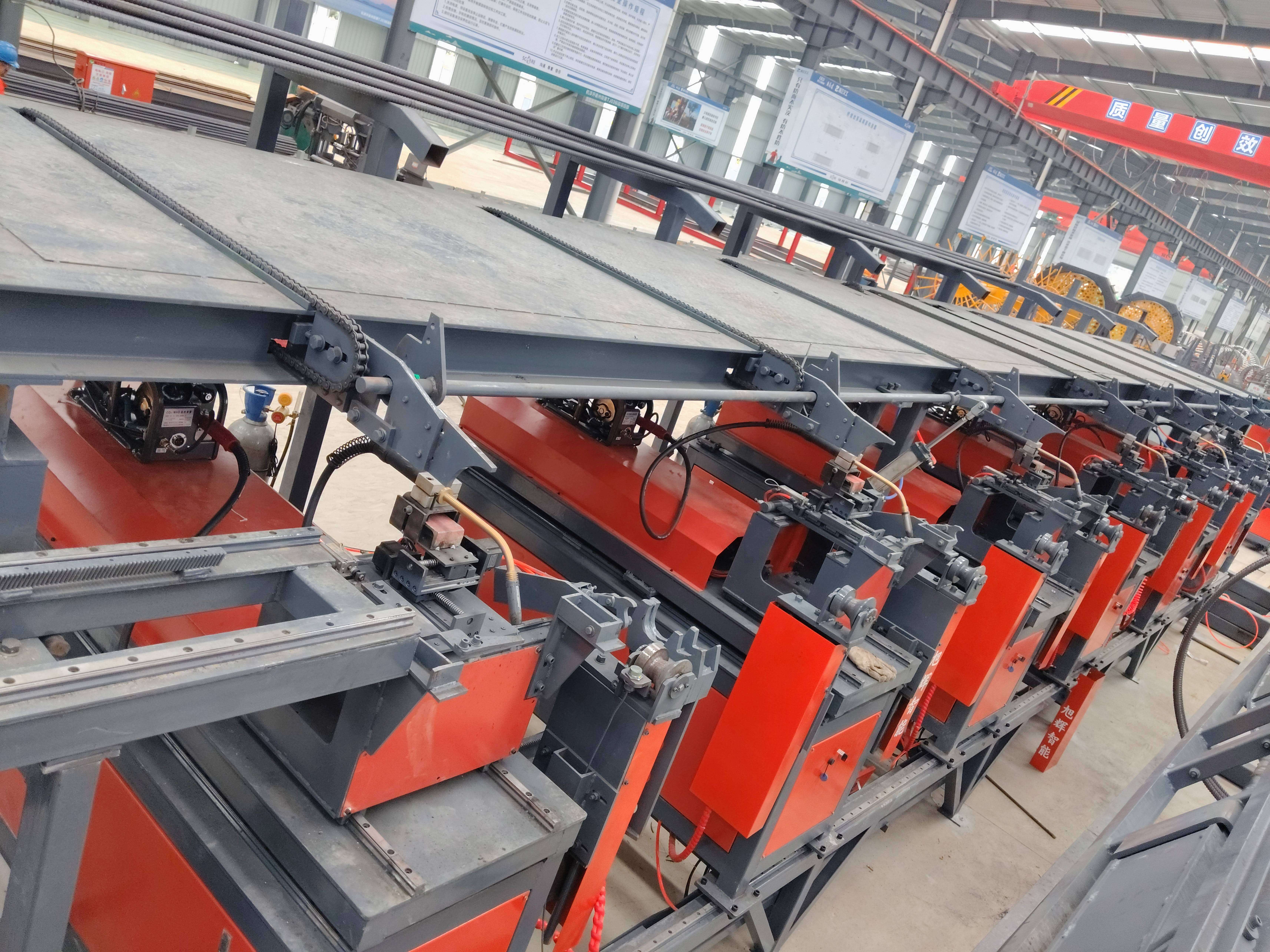

The introduction of automated steel cage welding technology revolutionized the industry by addressing these challenges head-on. Our fully automatic steel cage welding workstation integrates advanced robotics, precision control systems, and high-quality welding components to deliver a production solution that eliminates manual intervention while ensuring consistent, high-quality output. This technological advancement has made it possible to produce standardized steel cages that meet the most stringent international quality standards.
Core Components and Working Principle

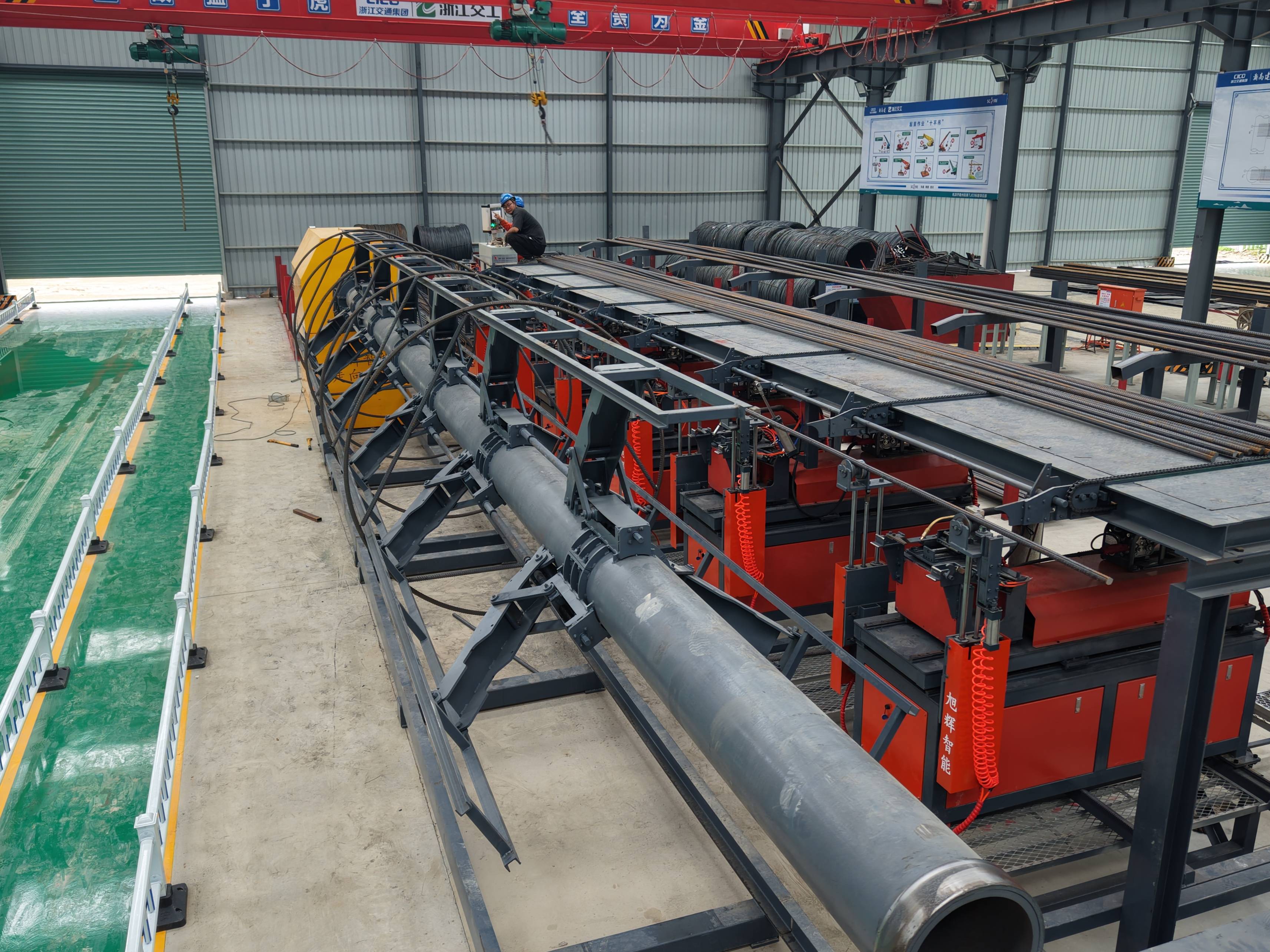

The fully automatic steel cage welding workstation consists of several key components working in harmony to deliver seamless production. The main frame provides the structural foundation, housing the precision guide rails and drive systems that ensure accurate positioning of all moving parts. The main spindle system is responsible for rotating the steel cage during welding, maintaining consistent speed and alignment throughout the process.
The welding system features multiple high-precision welding heads that simultaneously perform circumferential welding operations. These welding heads are equipped with advanced servo control systems that adjust welding parameters in real-time based on material specifications and cage dimensions. The feeding system automatically transports reinforcing bars to the correct positions, while the clamping mechanism securely holds the bars in place during welding.
Our control system represents the brain of the operation, integrating all components through a user-friendly interface. Operators can input precise specifications for cage diameter, length, spacing, and other parameters, which the system then translates into machine instructions. The control system continuously monitors production parameters, making automatic adjustments as needed to maintain optimal performance and quality.
Technical Specifications and Performance Parameters
Our fully automatic steel cage welding workstation is designed to handle a wide range of production requirements with exceptional precision and efficiency. The standard model can process steel cages with diameters ranging from 400mm to 2500mm, with custom sizes available upon request. The maximum cage length capability reaches 18 meters, accommodating most bridge and tunnel construction needs.
The equipment operates at impressive speeds, with typical production rates of 1-2 complete steel cages per hour, depending on complexity and specifications. This represents a significant productivity increase compared to traditional manual methods. The welding precision is maintained at ±1mm for diameter and ±2mm for spacing, ensuring perfect alignment and structural integrity in every cage produced.
| Parameter | Specification |
|---|---|
| Applicable Rebar Diameter | 12-50mm |
| Welding Speed | 40-60 points/min |
| Power Supply | 380V 50Hz 3-phase |
| Total Power | Approx. 120kW |
| Equipment Weight | Approx. 18 tons |
Advantages of Our Fully Automatic Solution
The implementation of our fully automatic steel cage welding workstation brings numerous benefits to construction projects of all scales. First and foremost is the significant improvement in production efficiency. By automating the entire process from rebar feeding to final welding, we eliminate the bottlenecks associated with manual operations, enabling continuous production with minimal downtime.
Quality consistency represents another major advantage. Our automated system ensures that every steel cage produced meets the exact same specifications, eliminating the variations common in manual production. This consistency is crucial for maintaining structural integrity and ensuring smooth assembly during construction. The precise welding technique also results in stronger, more durable welds compared to manual methods.
From an economic perspective, our solution offers substantial cost savings over time. While the initial investment may be higher than traditional equipment, the reduced labor requirements, higher production capacity, and lower material waste quickly offset these costs. The equipment’s durability and reliability further contribute to long-term savings by minimizing maintenance needs and production interruptions.
Safety is another critical consideration in modern construction. Our fully automatic workstation significantly reduces the need for manual welding operations, protecting workers from the hazards associated with high-temperature welding processes. The enclosed design and safety interlocks prevent accidental contact with moving parts, creating a safer working environment overall.
Application Scenarios and Industry Solutions
Our fully automatic steel cage welding workstation finds extensive applications across various infrastructure sectors. In bridge construction, it provides the ideal solution for producing standardized pile cages, pier cages, and beam cages with consistent quality and precise dimensions. The ability to customize cage specifications makes it equally suitable for both simple beam bridges and complex cable-stayed structures.
Tunnel construction projects benefit greatly from our equipment’s ability to produce high-quality tunnel lining cages. The precise spacing and alignment capabilities ensure optimal fit within tunnel sections, contributing to overall structural stability and waterproofing performance. For metro and subway projects, our workstations produce the specialized cages required for station foundations and tunnel segments.
In the realm of high-rise buildings and large-scale construction projects, our equipment supports the efficient production of foundation cages and column cages. The ability to handle large diameters and long lengths makes it particularly valuable for skyscraper foundations and other mega-structures. Standardized钢筋加工配送 centers (rebar processing and distribution centers) leverage our workstations to streamline their operations and meet the diverse needs of multiple construction sites simultaneously.
We have successfully implemented our solutions in numerous prestigious projects worldwide, including the construction of major highways in Southeast Asia, high-speed rail networks in Europe, and urban metro systems in the Middle East. In one notable case, our equipment helped a Middle Eastern client reduce steel cage production time by 60% while improving quality consistency, enabling them to complete their metro project ahead of schedule.
Customization and Technical Support Services
Understanding that different projects have unique requirements, we offer comprehensive customization services for our fully automatic steel cage welding workstations. Our engineering team works closely with clients to analyze their specific needs, considering factors such as cage dimensions, rebar specifications, production volume, and site conditions. Based on this analysis, we develop tailored solutions that optimize performance and efficiency for each application.
Customization options include adjusting the working range to accommodate non-standard cage sizes, integrating specialized welding parameters for different rebar grades, and designing unique material handling systems for specific site layouts. We can also incorporate additional features such as automatic labeling systems, quality inspection modules, and data collection interfaces to support modern construction management practices.
Our commitment to customer success extends beyond equipment delivery. We provide comprehensive technical support throughout the entire lifecycle of our products. This includes professional installation and commissioning services to ensure optimal performance from day one, as well as operator training programs that cover both basic operation and advanced maintenance techniques.
To minimize downtime and ensure continuous production, we maintain a global service network with trained technicians available for on-site support. Our remote monitoring system allows us to track equipment performance in real-time, enabling proactive maintenance and quick resolution of any potential issues. We also offer a generous warranty period and readily available spare parts to provide our clients with complete peace of mind.
FAQ
What makes your fully automatic steel cage welding workstation different from other suppliers?
Our workstation stands out in several key aspects. First, we use high-precision servo control systems throughout the machine, ensuring exceptional welding accuracy and consistency. Second, our equipment features a modular design that allows for easy customization to meet specific project requirements. Third, we provide comprehensive after-sales support including installation, training, and maintenance services. Finally, all our products carry CE certification and are designed for global export, meeting international quality and safety standards.
How long does it take to train operators for your equipment?
We provide comprehensive training programs that typically take 3-5 days to complete, depending on the operator’s prior experience with similar equipment. Our training covers both theoretical knowledge and practical operation, including safety procedures, equipment setup, parameter adjustment, and basic troubleshooting. After training, operators will be fully qualified to operate the equipment efficiently and safely. We also offer refresher courses and online support resources to ensure continued proficiency.
Can your equipment handle different types of reinforcing bars?
Yes, our fully automatic steel cage welding workstation is designed to process various types of reinforcing bars commonly used in construction. This includes standard hot-rolled ribs bars, cold-rolled ribbed bars, and deformed bars with different surface patterns. The equipment can automatically adjust welding parameters based on the bar type and diameter to ensure optimal weld quality. For special applications, we can customize the welding heads and control programs to accommodate specific bar materials or coatings.
What maintenance is required for the equipment?
Regular maintenance is crucial for ensuring optimal performance and longevity of our equipment. We recommend daily checks of lubrication levels, cleaning of welding heads, and inspection of electrical connections. Weekly maintenance should include checking belt tension, verifying sensor accuracy, and cleaning the main frame. Monthly maintenance involves more thorough inspections of mechanical components, lubrication of all moving parts, and calibration of control systems. We provide detailed maintenance manuals and can train your maintenance personnel during the installation process.
Summary
As a leading manufacturer of fully automatic steel cage welding workstations, Xuhui (Shandong) Smart Equipment Co., Ltd. is committed to advancing construction technology through innovation and quality. Our comprehensive solution addresses the most pressing challenges in modern infrastructure projects, offering unparalleled efficiency, precision, and reliability in steel cage production. With a focus on customization, global support, and continuous improvement, we empower construction companies worldwide to achieve higher standards of quality and productivity in their operations.
Whether you’re working on a major highway, a high-speed rail network, an urban metro system, or a complex bridge structure, our fully automatic steel cage welding workstation provides the ideal solution for your reinforcement processing needs. Contact us today to learn more about how our technology can transform your construction operations and help you stay ahead in today’s competitive market.
