In modern infrastructure construction projects, the quality and efficiency of steel cage production directly impact overall project progress and structural safety. As a professional manufacturer of CNC steel processing equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has developed a series of fully automatic steel cage welding workstations that integrate advanced technology with practical engineering requirements. Our intelligent steel cage forming systems are widely used in bridge construction, pile foundation engineering, subway projects, and other large-scale infrastructure developments across the globe.
Core Technology of Automatic Steel Cage Welding Systems

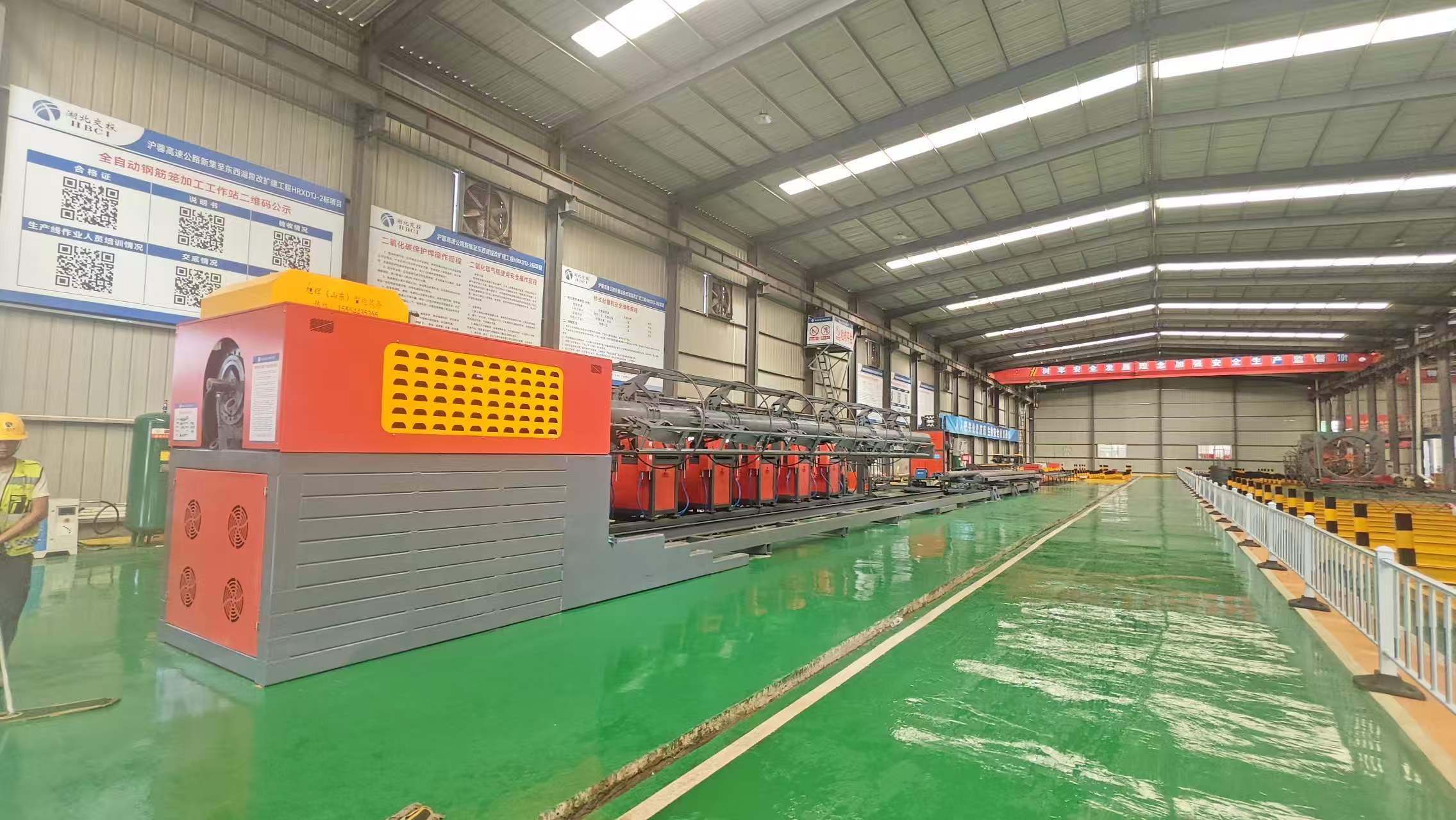

Our fully automatic steel cage welding workstations represent the pinnacle of modern steel processing technology. These systems integrate multiple advanced technologies including CNC programming, servo control, and automatic welding to achieve complete automation of the steel cage production process. The core components include high-precision feeding systems, automatic straightening mechanisms, programmable welding heads, and intelligent control panels that work in perfect synchronization to ensure consistent product quality.
The intelligent control system features a user-friendly interface that allows operators to input production parameters quickly and accurately. With support for multiple welding patterns and adjustable welding parameters, our workstations can adapt to various project requirements for different steel cage specifications. The automatic error detection and correction functions significantly reduce production waste and improve overall equipment utilization rates.
Compared with traditional manual welding methods, our automatic systems offer several distinct advantages. First, they eliminate human factors that could affect welding quality, ensuring uniform weld strength and appearance. Second, the production efficiency is increased by 3-5 times, with some models capable of producing over 20 steel cages per shift. Third, the automated operation reduces labor intensity and minimizes workplace safety risks associated with manual welding operations.
Product Range and Technical Specifications
Xuhui Intelligent Equipment offers a comprehensive range of steel cage forming solutions to meet different project requirements. Our main product lines include:
- CNC Steel Cage Rolling Welders: Designed for continuous production of large-diameter steel cages, these machines feature automatic feeding, rolling, and welding functions with adjustable cage diameters from 400mm to 2500mm.
- Intelligent Steel Cage Welding Workstations: Compact modular systems suitable for both factory production and on-site construction, with welding speeds up to 120 points/minute and support for various reinforcement bar diameters (Φ12-Φ40mm).
- Customized Production Lines: We provide complete turnkey solutions including material storage systems, automatic feeding conveyors, welding stations, and finished product handling systems tailored to specific project requirements.
All our equipment is manufactured in accordance with international standards and has obtained CE certification for export to European markets. The key components such as servo motors, welding transformers, and control systems are sourced from renowned international suppliers to ensure reliable performance and long service life. Our engineering team can also customize equipment specifications based on specific project requirements for different countries and regions.
Technical Parameters Comparison
The following table compares the key technical parameters of our main steel cage welding equipment models:
| Parameter | XH-GL2000 | XH-GL3000 | XH-GL4000 |
|---|---|---|---|
| Applicable Bar Diameter | Φ12-Φ32mm | Φ16-Φ40mm | Φ20-Φ50mm |
| Max Cage Diameter | 2000mm | 3000mm | 4000mm |
| Welding Speed | 80-120 points/min | 60-100 points/min | 40-80 points/min |
| Power Supply | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Total Power | 45kW | 65kW | 90kW |
Global Application Cases and Project References
Xuhui Intelligent Equipment’s steel cage welding systems have been successfully implemented in numerous infrastructure projects worldwide. In Southeast Asia, our equipment is supporting the construction of several major highway and bridge projects, helping contractors reduce construction periods by up to 30% while maintaining consistent product quality. In the Middle East, our customized production lines are being used in large-scale subway construction projects, demonstrating excellent performance in harsh desert environments.
One notable project in Europe involved supplying a complete steel cage production line for a prestressed concrete bridge project. Our engineering team worked closely with the client to design a system that could handle the project’s specific requirements for large-diameter steel cages with complex reinforcement patterns. The installation included automatic material handling systems, multiple welding stations, and quality inspection equipment, resulting in a 40% increase in production capacity compared to the client’s previous setup.
For international clients, we provide comprehensive support services including equipment installation, operator training, and long-term maintenance. Our technical team is available 24/7 to assist with any operational issues, and we maintain a global spare parts inventory to ensure minimal downtime for our clients’ production operations. Many of our clients have reported significant improvements in project efficiency and cost control after implementing our automated steel cage welding solutions.
FAQ
What are the main advantages of your fully automatic steel cage welding workstations compared to semi-automatic models?
Our fully automatic systems offer complete automation of the entire production process from material feeding to finished product handling, eliminating manual intervention in welding operations. This results in significantly higher production efficiency (typically 3-5 times faster), more consistent welding quality, and reduced labor costs. The intelligent control system also enables easier production parameter adjustments and better data tracking for quality control purposes.
How do you ensure the welding quality meets international standards for different projects?
All our welding equipment uses high-quality welding power sources from reputable suppliers and incorporates precise welding parameter control systems. The welding heads are designed to maintain consistent pressure and current during operation, ensuring uniform weld penetration and strength. Additionally, we provide comprehensive welding procedure specifications (WPS) and operator training to help clients achieve optimal welding results according to their specific project requirements and standards.
What maintenance is required for your steel cage welding machines?
Regular maintenance is crucial for maintaining optimal performance. We recommend daily cleaning of the welding heads and material feeding tracks, weekly inspection of electrical connections and lubrication points, and monthly comprehensive checks of all mechanical components. Our equipment is designed with easy access to key components for maintenance, and we provide detailed maintenance manuals with each machine. We also offer preventive maintenance contracts to help clients schedule regular professional servicing.
Can your equipment be customized for specific project requirements?
Absolutely. As a professional manufacturer, we specialize in providing customized solutions based on clients’ specific needs. Our engineering team can modify equipment dimensions, welding patterns, control systems, and material handling methods to accommodate different steel cage specifications, production volumes, and site conditions. We have extensive experience in designing complete production lines that integrate multiple machines for efficient large-scale production.
What certifications do your steel cage welding equipment have for international markets?
All our standard products have obtained CE certification for the European market, demonstrating compliance with EU safety, health, and environmental requirements. For specific projects in other regions, we can assist with obtaining additional certifications as needed, such as ISO quality management system certification or local safety approvals. Our manufacturing processes follow strict quality control procedures to ensure consistent product quality that meets international standards.
Summary
Xuhui (Shandong) Intelligent Equipment Co., Ltd. stands as a trusted partner for global infrastructure projects requiring high-quality steel cage welding solutions. Our fully automatic steel cage welding workstations combine advanced technology with robust construction to deliver reliable performance in demanding construction environments. With a comprehensive product range, customization capabilities, and global support services, we help clients improve production efficiency, ensure consistent product quality, and reduce overall project costs.
As infrastructure development continues to grow worldwide, the demand for efficient and reliable steel processing equipment will only increase. Xuhui Intelligent Equipment remains committed to innovation and quality, continuously improving our products to meet the evolving needs of the construction industry. Whether for bridge construction, subway projects, or highway development, our steel cage forming solutions provide the technology and support needed for successful project execution.
