In the construction industry, the precision and efficiency of steel bar bending directly impact project quality and progress. For large-scale infrastructure projects like highways, bridges, and prefabricated component factories, traditional manual bending methods can no longer meet modern construction requirements. This is where advanced CNC steel bar bending equipment comes into play, particularly the four-head horizontal CNC steel bar bending center – a game-changing solution that combines precision, efficiency, and versatility.

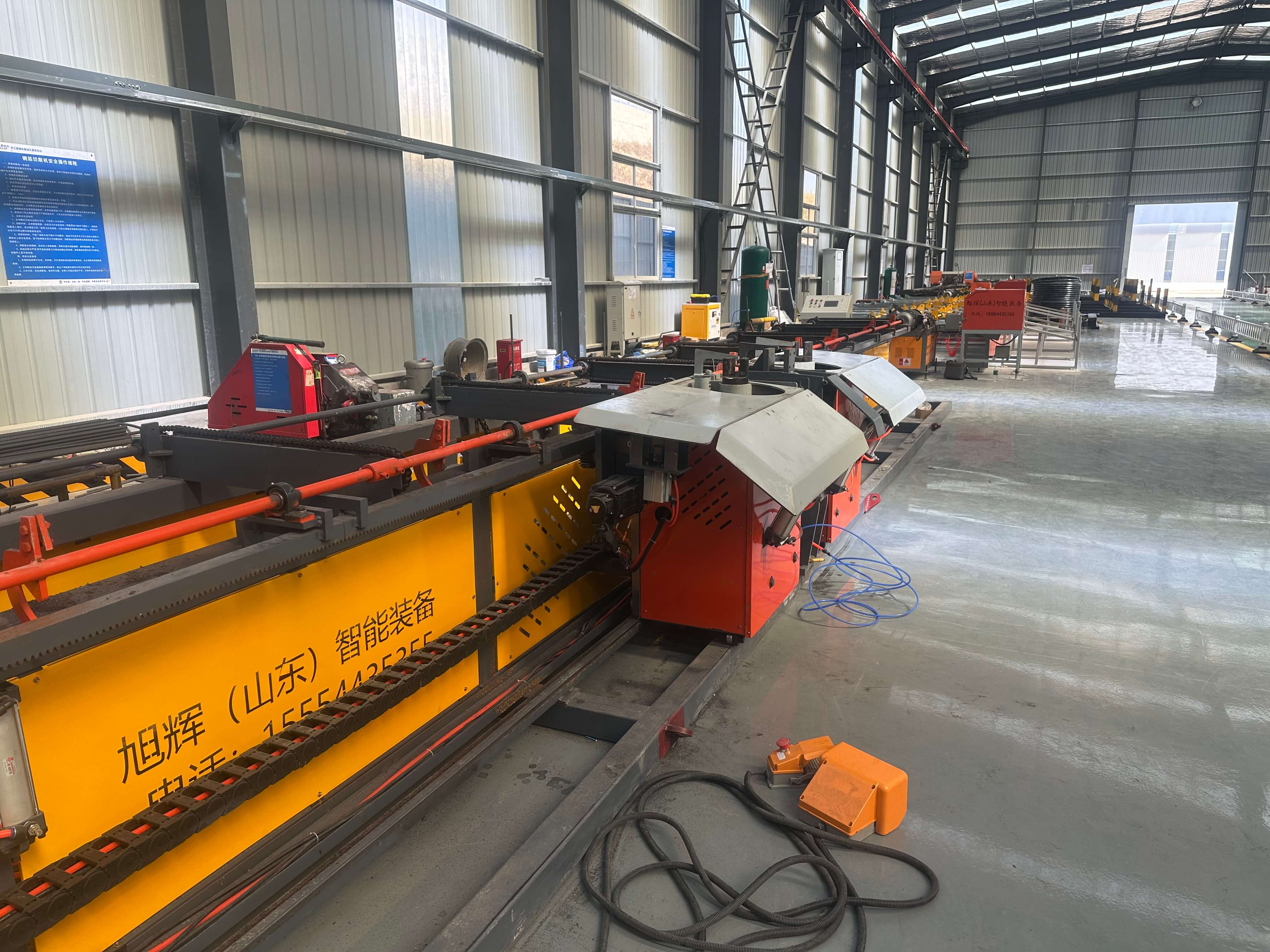

Understanding the Four-Head Horizontal CNC Steel Bar Bending Center
The four-head horizontal CNC steel bar bending center represents the pinnacle of modern steel bar processing technology. Unlike traditional single-head or double-head bending machines, this advanced equipment features four independent bending heads that can operate simultaneously or individually, offering unparalleled flexibility and productivity. Each bending head is equipped with its own CNC control system, allowing for precise programming of bending angles, radii, and sequences.
This innovative design enables the machine to process multiple steel bars or complex shapes in a single operation, significantly reducing processing time and labor costs. The horizontal configuration provides better stability during high-speed operation, ensuring consistent bending quality even for large-diameter steel bars or challenging bending angles.
Key Features That Set Our Equipment Apart
At Xuhui (Shandong) Intelligent Equipment Co., Ltd., our four-head horizontal CNC steel bar bending centers are engineered with cutting-edge technology and premium components to deliver exceptional performance. Here are some of the standout features that make our equipment the preferred choice for construction professionals worldwide:
1. High Precision Bending Technology
Our bending centers utilize advanced servo motor systems and high-precision transmission mechanisms to achieve bending accuracy within ±0.5mm. This level of precision ensures that every steel bar meets exact design specifications, eliminating rework and material waste. The independent control of each bending head allows for complex multi-angle bending with consistent quality throughout the production process.
2. Versatile Processing Capabilities
With four independently programmable bending heads, our equipment can handle a wide range of bending requirements. From simple L-shapes and U-shapes to complex polygonal shapes and spiral forms, the machine can be configured to produce virtually any steel bar shape needed for modern construction projects. This versatility makes it ideal for producing various types of stirrups, links, and special-shaped reinforcement bars.
3. User-Friendly CNC Control System
We’ve equipped our bending centers with an intuitive CNC control system featuring a large color touchscreen interface. The system supports both manual input and CAD file import, making programming quick and easy even for complex shapes. Operators can save frequently used programs for rapid recall, while the system’s diagnostic functions help minimize downtime by quickly identifying and resolving issues.
4. Robust Construction for Heavy-Duty Use
Built to withstand the demands of continuous industrial operation, our bending centers feature a heavy-duty welded steel frame with stress relief treatment to prevent deformation. The bending heads are equipped with hardened tooling that maintains precision even after processing thousands of steel bars. The machine’s modular design allows for easy maintenance and component replacement when needed.
5. Safety Features for Operator Protection
We prioritize operator safety in all our equipment designs. Our bending centers come standard with multiple safety features including emergency stop buttons, protective guards around moving parts, and safety interlocks that prevent operation when doors are open. The control system also includes password protection to prevent unauthorized use.
Applications Across Construction Sectors
The versatility and precision of our four-head horizontal CNC steel bar bending centers make them invaluable across various construction sectors. Here are some of the primary applications where our equipment excels:
- Highway Construction: Producing standardized reinforcement bars for road surfaces, bridges, and retaining walls with consistent quality and dimensions.
- Railway Projects: Manufacturing specialized steel bar shapes for railway sleepers, track beds, and tunnel reinforcement with strict tolerance requirements.
- Bridge Engineering: Creating complex stirrup shapes and special reinforcement bars for bridge piers, abutments, and deck structures.
- Prefabricated Component Factories: Mass-producing standardized reinforcement cages for concrete columns, beams, and wall panels with high efficiency.
- Airport Construction: Processing large-diameter steel bars for runway reinforcement and terminal building foundations.
- Power Plant Projects: Fabricating reinforcement bars for cooling towers, boiler foundations, and other critical infrastructure components.
| Technical Parameter | Specification |
|---|---|
| Max Bending Diameter | Φ8-Φ40mm (depending on steel bar grade) |
| Bending Speed | 0-1000°/sec (adjustable) |
| Bending Accuracy | ±0.5mm |
| Max Processing Length | 18,000mm (customizable) |
| Power Supply | 380V 50Hz 3-phase (customizable) |
| Total Power | Approx. 30kW |
| Machine Dimensions | 12,000×2,200×1,800mm (L×W×H) |
| Machine Weight | Approx. 8,500kg |
Why Choose Xuhui as Your Equipment Supplier?
When investing in a four-head horizontal CNC steel bar bending center, choosing the right manufacturer is crucial for long-term success. Here’s why Xuhui (Shandong) Intelligent Equipment Co., Ltd. stands out as the preferred partner for construction professionals worldwide:
1. Comprehensive Product Range
As a leading manufacturer of CNC steel bar processing equipment, we offer a complete range of solutions beyond just bending centers. Our product lineup includes steel arch frame production lines, reinforcement cage welding workstations, automatic small duct production lines, automatic wire mesh welding lines, and more. This comprehensive offering allows us to provide complete solutions for any steel bar processing needs.
2. Customization Capabilities
We understand that every construction project has unique requirements. That’s why we offer extensive customization options for our equipment. Whether you need special bending tools, modified machine dimensions, or customized control software, our engineering team can work with you to create a solution that perfectly matches your production needs.
3. Global Certification Standards
All our equipment meets international quality and safety standards, with full CE certification for export to European markets. We adhere to strict manufacturing processes and quality control measures to ensure that every machine leaving our factory delivers reliable performance in demanding construction environments.
4. Complete After-Sales Support
Our commitment to customer satisfaction extends beyond the point of sale. We provide comprehensive after-sales support including installation guidance, operator training, maintenance consulting, and spare parts supply. Our global service network ensures that help is always available when you need it, minimizing downtime and maximizing productivity.
5. Proven Track Record
With years of experience serving the construction industry, we’ve built a strong reputation for delivering high-quality equipment and reliable service. Our machines are currently in operation at numerous prestigious projects worldwide, including major highway networks, high-speed rail lines, and landmark infrastructure developments.
FAQ
What makes a four-head horizontal CNC steel bar bending center better than traditional bending machines?
The four-head design allows for simultaneous processing of multiple bending points or steel bars, dramatically increasing productivity. Each head operates independently, enabling complex multi-angle bending in a single operation. The CNC control ensures consistent precision across all bends, eliminating human error. This combination of efficiency and accuracy makes it ideal for high-volume, high-precision construction projects.
How do I determine the right model for my project requirements?
Our technical team can help you select the most suitable model based on several factors: the maximum diameter of steel bars you need to process, the required bending accuracy, your typical production volume, and available workshop space. We also consider any special bending requirements or future expansion plans to ensure your investment provides long-term value.
What maintenance is required for these bending centers?
Regular maintenance is crucial for optimal performance. We recommend daily cleaning of the machine, weekly lubrication of moving parts, and monthly inspection of electrical components and bending tools. Our equipment is designed for easy maintenance with accessible components and clear documentation. We also provide comprehensive maintenance training as part of our installation service.
How long does it take to train operators to use this equipment?
The intuitive CNC control system makes our bending centers relatively easy to operate. Typically, we can train operators to perform basic functions in 1-2 days, with additional time needed for mastering complex programming and troubleshooting. We provide detailed operation manuals and offer remote technical support to assist with any questions that arise during daily use.
Summary
The four-head horizontal CNC steel bar bending center represents a significant advancement in construction equipment technology, offering unmatched precision, efficiency, and versatility for modern steel bar processing needs. At Xuhui (Shandong) Intelligent Equipment Co., Ltd., we’ve combined advanced engineering with practical construction experience to create bending centers that set new standards for performance and reliability.
Whether you’re working on a major highway project, a complex bridge structure, or a high-volume prefabricated component factory, our equipment can help you achieve superior results while reducing labor costs and production time. With our commitment to quality, customization capabilities, and comprehensive support services, we’re ready to be your trusted partner for all your steel bar processing needs.
Contact us today to learn more about our four-head horizontal CNC steel bar bending centers and how we can help optimize your construction operations. Our team of experts is ready to provide detailed information, answer any questions, and offer customized solutions tailored to your specific requirements.
