In modern construction projects, especially large-scale infrastructure developments like bridges, high-speed railways, and metro systems, the quality and efficiency of steel reinforcement cage production directly impact project timelines and structural safety. Traditional manual methods for reinforcement cage fabrication face challenges including inconsistent quality, low productivity, and high labor costs. To address these issues, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has developed an advanced steel reinforcement cage workstation that automates the entire production process while ensuring consistent quality standards.
As a professional manufacturer based in Heze, Shandong – China’s well-known engineering machinery manufacturing base – Xuhui specializes in research, development, production, and sales of CNC steel reinforcement processing equipment. Our steel reinforcement cage workstation represents the culmination of years of technological innovation and practical experience in serving global construction projects.
Core Components of Our Steel Reinforcement Cage Workstation

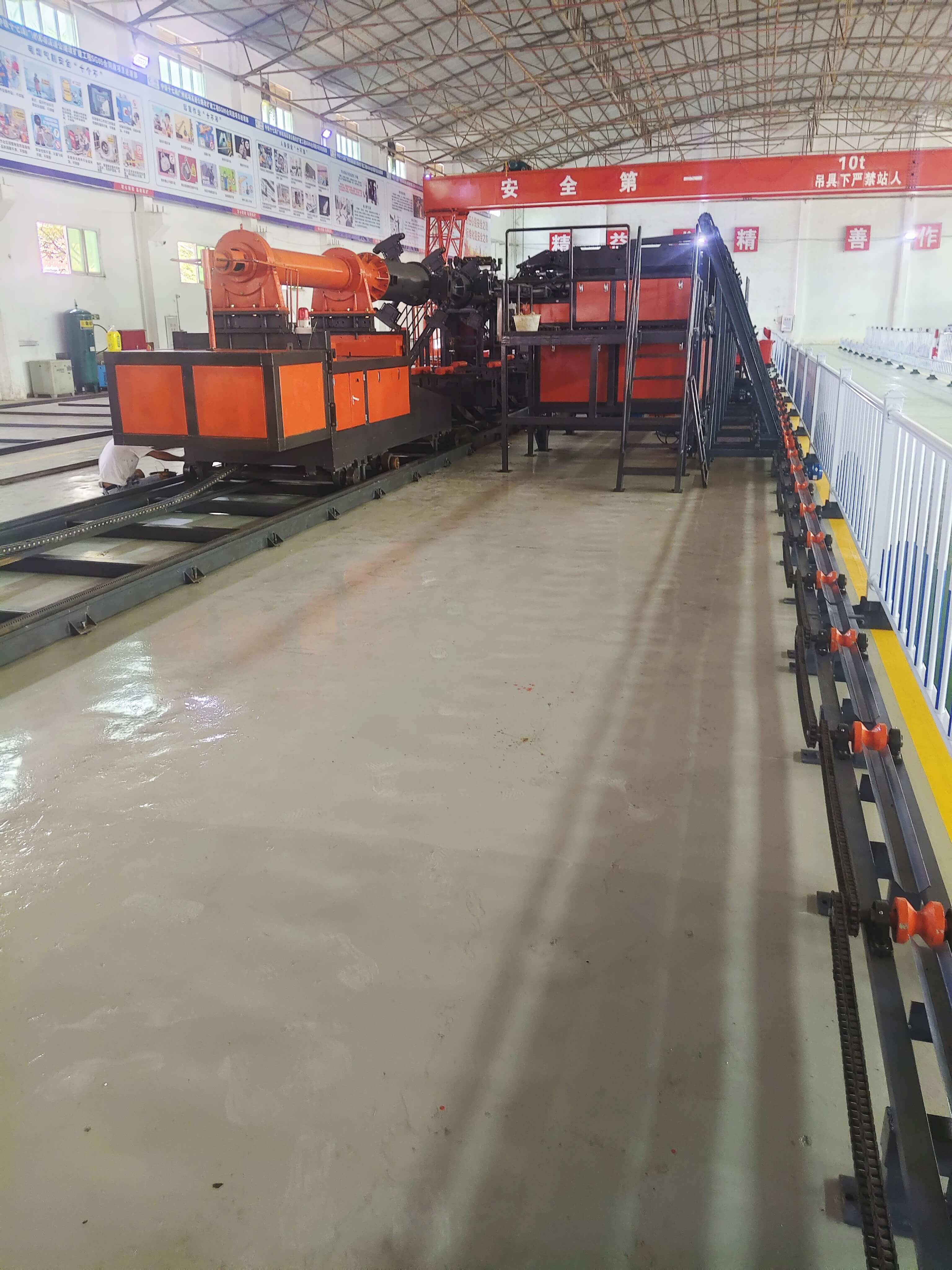

The Xuhui steel reinforcement cage workstation integrates multiple advanced technologies to create a fully automated production system. The main components include:
1. CNC Reinforcement Cage Rolling Machine
This core component automatically forms reinforcement cages by rolling steel bars into precise circular shapes. The machine features high-precision servo control systems that maintain consistent diameter throughout the production process, eliminating human error and ensuring each cage meets design specifications exactly.
2. Intelligent Welding Workstation
Equipped with multiple welding heads that operate simultaneously, our intelligent welding workstation dramatically increases production speed while maintaining welding quality. The system uses advanced welding parameters that automatically adjust based on material specifications and cage dimensions, ensuring optimal bond strength in every weld.
3. Automated Material Handling System
To streamline the production flow, we’ve incorporated an automated material handling system that transports steel bars from storage to processing stations without manual intervention. This reduces material handling time and minimizes the risk of damage during transfer operations.
4. Quality Control Module
Our workstation includes real-time quality monitoring that inspects cage dimensions, welding integrity, and spiral spacing during production. Any deviations from specifications trigger immediate alerts, allowing operators to correct issues before completing the cage.
Technical Advantages of Xuhui’s Solution
The steel reinforcement cage workstation from Xuhui offers several competitive advantages that make it the preferred choice for construction companies worldwide:
- High Precision: The CNC control system maintains tolerances within ±1mm for cage diameter and ±5mm for spiral spacing, meeting the strictest international standards.
- Increased Productivity: A single workstation can produce 8-12 complete reinforcement cages per shift (8 hours), depending on cage specifications, representing a 300-500% increase over manual methods.
- Consistent Quality: Automated processes eliminate variations caused by human factors, ensuring every cage meets identical quality standards.
- Material Savings: Precise cutting and forming reduce steel waste by approximately 15% compared to traditional methods.
- Operator Safety: By minimizing manual handling of heavy steel bars and reducing exposure to welding operations, our solution significantly improves workplace safety.
- Easy Operation: The intuitive HMI (Human-Machine Interface) requires minimal training, allowing operators to master the system quickly.
Application Scenarios
Our steel reinforcement cage workstation has proven its value across various construction sectors, particularly in projects demanding high-quality, large-volume reinforcement cage production:
1. Bridge Construction
For bridge piles and piers requiring reinforcement cages with diameters from 600mm to 2500mm and lengths up to 18 meters, our workstation delivers consistent quality while handling the heavy-duty requirements of these large structures.
2. Metro and Tunnel Projects
The compact design of our workstation makes it ideal for metro station construction and tunnel projects where space is limited but production demands remain high. The automated system ensures rapid cage production even in constrained environments.
3. High-Speed Railway
China’s extensive high-speed railway network relies on our workstations for producing the millions of reinforcement cages needed for viaducts and station structures. The system’s precision helps maintain the exacting standards required for these critical infrastructure projects.
4. Large Building Foundations
For commercial complexes, stadiums, and other large buildings requiring deep foundations, our workstation produces the heavy-duty reinforcement cages needed to ensure structural integrity under significant loads.
| Technical Parameter | Specification |
|---|---|
| Applicable Cage Diameter | 600-2500mm (customizable) |
| Maximum Cage Length | 18 meters (extendable) |
| Main Bar Diameter | 12-40mm |
| Spiral Bar Diameter | 5-16mm |
| Power Supply | 380V/50Hz (customizable) |
| Total Power | Approx. 45kW |
| Control System | Siemens PLC + Touch Screen |
Global Service and Support
As an international supplier, Xuhui understands that equipment reliability is crucial for projects worldwide. Our comprehensive service package ensures your steel reinforcement cage workstation operates at peak efficiency throughout its service life:
- Professional Installation: Our engineers provide on-site installation and commissioning, ensuring optimal equipment setup for your specific production environment.
- Operator Training: We offer comprehensive training programs covering equipment operation, basic maintenance, and safety procedures to maximize your team’s productivity.
- Spare Parts Supply: We maintain a global inventory of critical spare parts to minimize downtime in case of component replacement needs.
- Technical Support: Our multilingual technical support team is available 24/7 to assist with any operational questions or troubleshooting.
- Preventive Maintenance: We provide scheduled maintenance programs to help you identify and address potential issues before they cause production interruptions.
- Equipment Upgrades: As technology evolves, we offer upgrade packages to keep your workstation current with the latest advancements.
FAQ
What makes Xuhui’s steel reinforcement cage workstation different from other manufacturers?
Our workstation combines three key advantages: first, our proprietary CNC control system offers unmatched precision in cage forming; second, our modular design allows customization for specific project requirements; third, our global service network ensures reliable support wherever your project is located. These factors make our solution particularly suitable for international projects with strict quality standards.
How long does it take to train operators for this equipment?
Typically, we can train a competent operator in 3-5 days, depending on their prior experience with similar machinery. Our training covers both theoretical knowledge and practical operation, with hands-on practice using your actual equipment. We also provide comprehensive operation manuals and video tutorials for ongoing reference.
What maintenance is required for the workstation?
Daily maintenance includes cleaning, lubrication of moving parts, and visual inspection of critical components. Weekly checks should include tension adjustments and verification of safety devices. We provide a detailed maintenance schedule and checklist with each machine, along with training on these procedures during installation.
Can the workstation handle different cage specifications?
Yes, our workstation is designed for flexibility. You can easily adjust parameters including cage diameter, length, main bar spacing, and spiral pitch through the HMI interface. For significant changes in cage dimensions, our engineers can assist with reconfiguring the machine setup to ensure optimal performance.
What certifications does your equipment have for international markets?
All our steel reinforcement cage workstations comply with CE certification requirements for the European market. We can also provide documentation for other international standards as needed, including ISO quality management system certification. For specific project requirements, we work with certification bodies to obtain necessary approvals.
Summary
The steel reinforcement cage workstation from Xuhui (Shandong) Intelligent Equipment represents a significant advancement in construction automation technology. By combining precision engineering with intelligent control systems, our solution addresses the key challenges of traditional reinforcement cage production: inconsistent quality, low productivity, and high labor costs.
With applications spanning bridge construction, metro projects, high-speed railways, and large building foundations, our workstation has proven its value on some of the world’s most demanding infrastructure projects. The equipment’s flexibility allows it to adapt to various cage specifications, while our global service network ensures reliable support wherever your project is located.
As construction standards continue to rise globally, automated solutions like our steel reinforcement cage workstation become essential for maintaining competitiveness. By choosing Xuhui as your equipment supplier, you gain not just a machine, but a complete production solution backed by technical expertise and responsive service.
