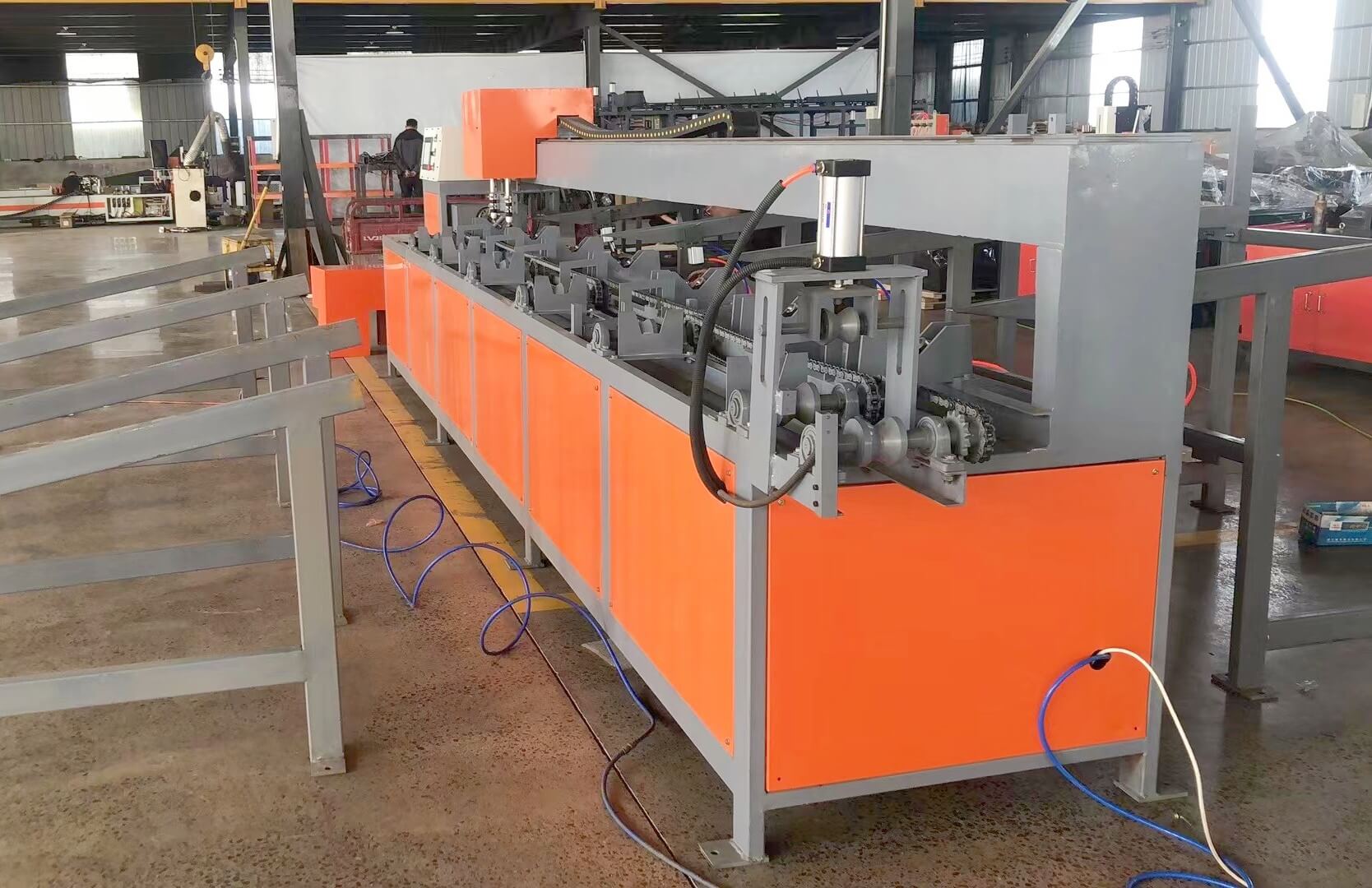

In modern tunnel construction projects, the processing quality and efficiency of small ducts directly impact project progress and safety. As a professional manufacturer specializing in tunnel equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has developed a complete range of automated small duct processing solutions that meet international standards. Our fully automatic small duct production lines integrate cutting, hole punching, and tip forming processes, significantly improving processing precision and production efficiency for tunnel projects worldwide.
Core Advantages of Our Tunnel Small Duct Processing Lines
Our automated small duct processing equipment represents the cutting-edge technology in tunnel construction machinery. The system features a modular design that integrates multiple processing stations, enabling one-stop completion of small duct production from raw material feeding to finished product collection. The equipment adopts advanced CNC control technology with precision servo drives, ensuring processing accuracy within ±0.1mm and consistent product quality across batches.
The production line incorporates an intelligent control system with user-friendly HMI interface, allowing operators to easily set processing parameters and monitor production status in real-time. The equipment’s automatic error detection and alarm functions minimize downtime, while the integrated safety protection system complies with CE standards, ensuring operator safety during operation. Our machines support 24-hour continuous production with minimal maintenance requirements, significantly reducing labor costs for tunnel projects.
As a professional manufacturer with complete production facilities, we maintain strict quality control throughout the manufacturing process. From raw material inspection to final assembly testing, each component undergoes multiple quality checks to ensure reliable performance. Our production lines have been successfully implemented in major tunnel projects across Asia, Africa, and Europe, receiving consistent praise from clients for their stability and processing precision.
Technical Specifications of Automated Processing Lines
Our standard small duct processing line configuration includes feeding station, cutting station, hole punching station, tip forming station, and collection station. The equipment can process ducts with diameters ranging from φ32mm to φ108mm and lengths up to 6 meters, accommodating most tunnel construction requirements. The cutting station adopts high-speed plasma cutting technology with automatic edge detection, ensuring precise cutting without material waste.
The hole punching station features a multi-axis CNC control system that can simultaneously process multiple holes with different patterns and spacing requirements. The tip forming station uses specialized molds to create precise conical tips with consistent angles, meeting strict tunnel engineering standards. The entire production line achieves processing speeds of up to 120 pieces per hour, significantly outperforming traditional manual processing methods.
For projects with special requirements, we offer customized solutions including extended processing lengths, special material handling systems, and integration with existing production workflows. Our engineering team works closely with clients to analyze specific project needs and develop optimal equipment configurations that maximize production efficiency while maintaining budget control.
Key Technical Parameters Comparison
| Parameter | Standard Model | Customized Model |
|---|---|---|
| Processing Diameter Range | φ32-φ108mm | φ25-φ159mm |
| Maximum Processing Length | 6,000mm | 12,000mm |
| Cutting Precision | ±0.2mm | ±0.1mm |
| Hole Positioning Accuracy | ±0.15mm | ±0.1mm |
| Production Capacity | 80-120 pcs/hour | Customized |
Comprehensive Service System for International Projects
As a global supplier of tunnel equipment, we understand the challenges of international project implementation. Our service system covers every stage from pre-sales consultation to after-sales support. Before project commencement, our technical team conducts detailed site surveys and provides equipment layout recommendations based on actual site conditions. During equipment installation, we dispatch experienced engineers to provide on-site guidance and operator training.
We maintain a global spare parts inventory system to ensure rapid response to maintenance needs. Our remote monitoring system allows real-time equipment status tracking and predictive maintenance, minimizing unexpected downtime. For complex technical issues, we offer 24/7 online support through multiple channels including video conferencing and remote desktop assistance.
All our equipment comes with a 12-month warranty and lifetime technical support. We provide regular maintenance reminders and equipment upgrade recommendations to help clients maintain optimal production efficiency. Our service network covers major regions worldwide, with local service centers established in Southeast Asia, the Middle East, and Africa to provide timely on-site support.
FAQ
What makes your tunnel small duct processing lines different from other manufacturers?
Our equipment features a fully automated production process with integrated cutting, hole punching, and tip forming functions in one line. The advanced CNC control system ensures processing precision within ±0.1mm, while the modular design allows flexible configuration for different project requirements. All our equipment carries CE certification and undergoes strict quality testing before delivery.
How long does it take to install and commission the equipment?
Standard model installation typically takes 7-10 working days, including equipment positioning, connection, and initial testing. Customized models may require additional time based on specific configurations. Our installation team provides comprehensive operator training covering equipment operation, maintenance, and basic troubleshooting during commissioning.
What types of materials can your equipment process?
Our processing lines are designed for carbon steel pipes commonly used in tunnel construction, with material strength up to Q345. For special material requirements, we can customize the cutting system and tooling to handle stainless steel or alloy materials. Please consult our technical team with specific material specifications for optimal processing parameters.
How do you ensure processing consistency across long production runs?
The equipment incorporates an automatic compensation system that continuously monitors and adjusts processing parameters to maintain consistency. The CNC control system stores processing programs for different duct specifications, eliminating setup errors between batches. Regular preventive maintenance and calibration ensure long-term processing stability.
What after-sales support do you provide for international clients?
We offer comprehensive after-sales support including 12-month warranty, lifetime technical consultation, and priority spare parts supply. Our remote monitoring system enables proactive maintenance and troubleshooting, while local service centers in key regions provide rapid on-site support. We also offer equipment upgrade services to help clients maintain technological competitiveness.
Summary
Xuhui (Shandong) Intelligent Equipment Co., Ltd. stands as a leading manufacturer of automated tunnel small duct processing lines, combining advanced technology with reliable performance. Our complete product range and customized solutions meet diverse project requirements, while the CE certification and global service network ensure smooth international project implementation. With a commitment to innovation and quality, we continue to provide cutting-edge equipment solutions that enhance efficiency and safety in tunnel construction worldwide.
