In modern infrastructure construction, the demand for high-precision, standardized rebar cage production has become increasingly critical. As a professional manufacturer based in Heze, Shandong – China’s engineering machinery manufacturing hub, Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in developing and producing automated rebar cage workstations that meet international standards. Our solutions have successfully supported numerous highway, railway, airport, and tunnel projects globally, helping clients achieve significant improvements in production efficiency and product quality.
Core Advantages of Our Rebar Cage Workstations

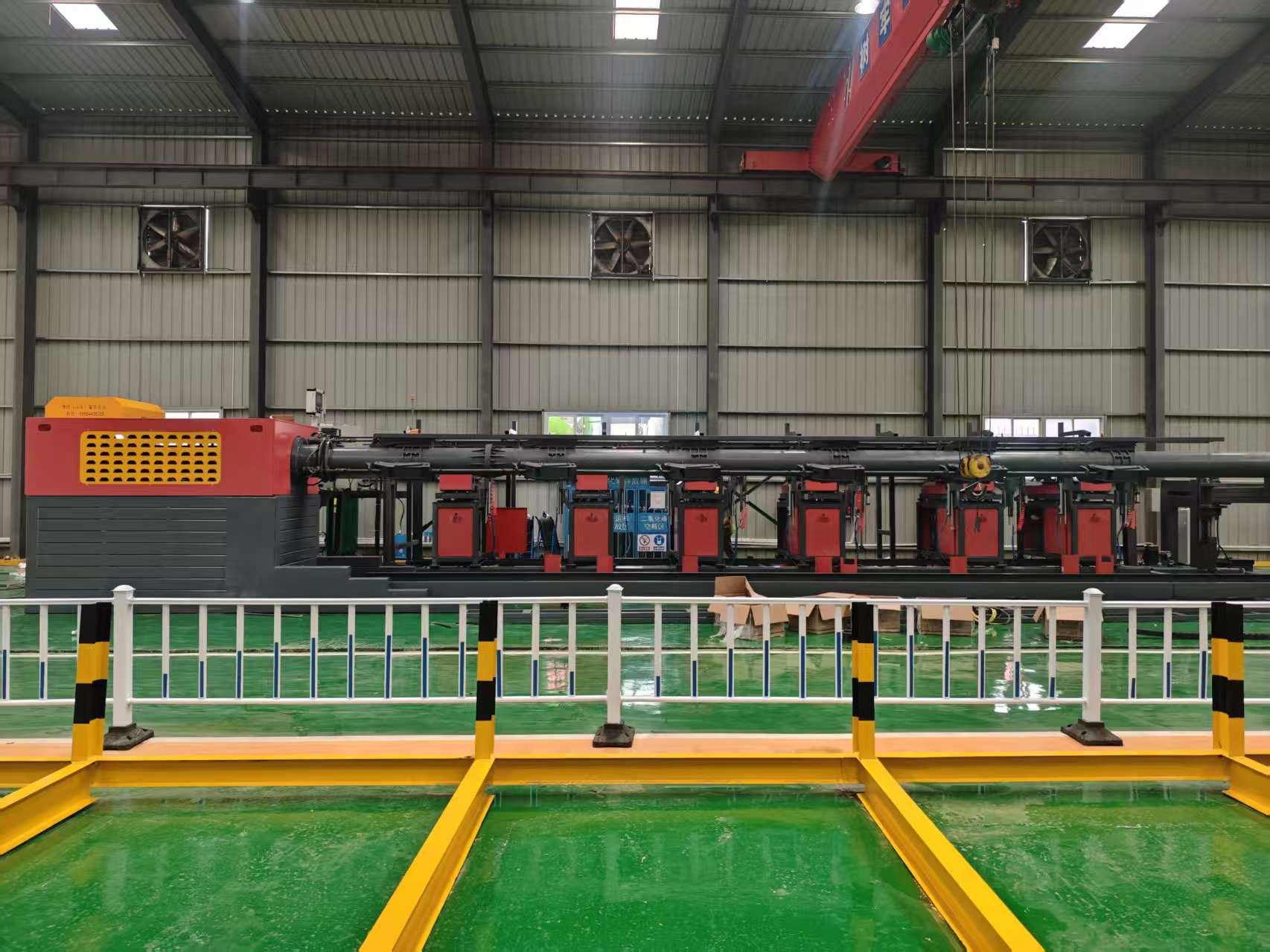

Our automated rebar cage production systems represent the culmination of years of R&D and practical application experience. The equipment features multiple technological innovations that address common challenges in traditional rebar cage manufacturing:
1. Precision Welding Technology: Equipped with advanced servo control systems and high-precision welding heads, our workstations ensure consistent weld quality across all reinforcement positions. The welding parameters can be precisely adjusted according to different rebar diameters (8-40mm) and spacing requirements (50-300mm), achieving weld penetration depths that meet or exceed industry standards.
2. Modular Design Architecture: The production line adopts a standardized modular structure that allows flexible configuration based on project requirements. Key modules include automatic feeding, straightening, cutting, bending, welding, and unloading systems. This modular approach enables quick equipment adaptation for various cage diameters (600-3000mm) and lengths (up to 24m), while facilitating easy maintenance and component replacement.
3. Intelligent Control System: Incorporating industrial-grade PLC and HMI interfaces, our workstations feature intuitive operation panels with multi-language support. The system stores production parameters for different cage specifications, enabling rapid model switching with simple parameter selection. Real-time production data monitoring and fault diagnosis functions help operators maintain optimal production conditions.
4. Safety Protection Mechanisms: Comprehensive safety designs include emergency stop buttons, protective enclosures, and automatic alarm systems for abnormal conditions. The equipment meets CE safety standards and includes safety interlock features to prevent operation during maintenance or when protective covers are open.

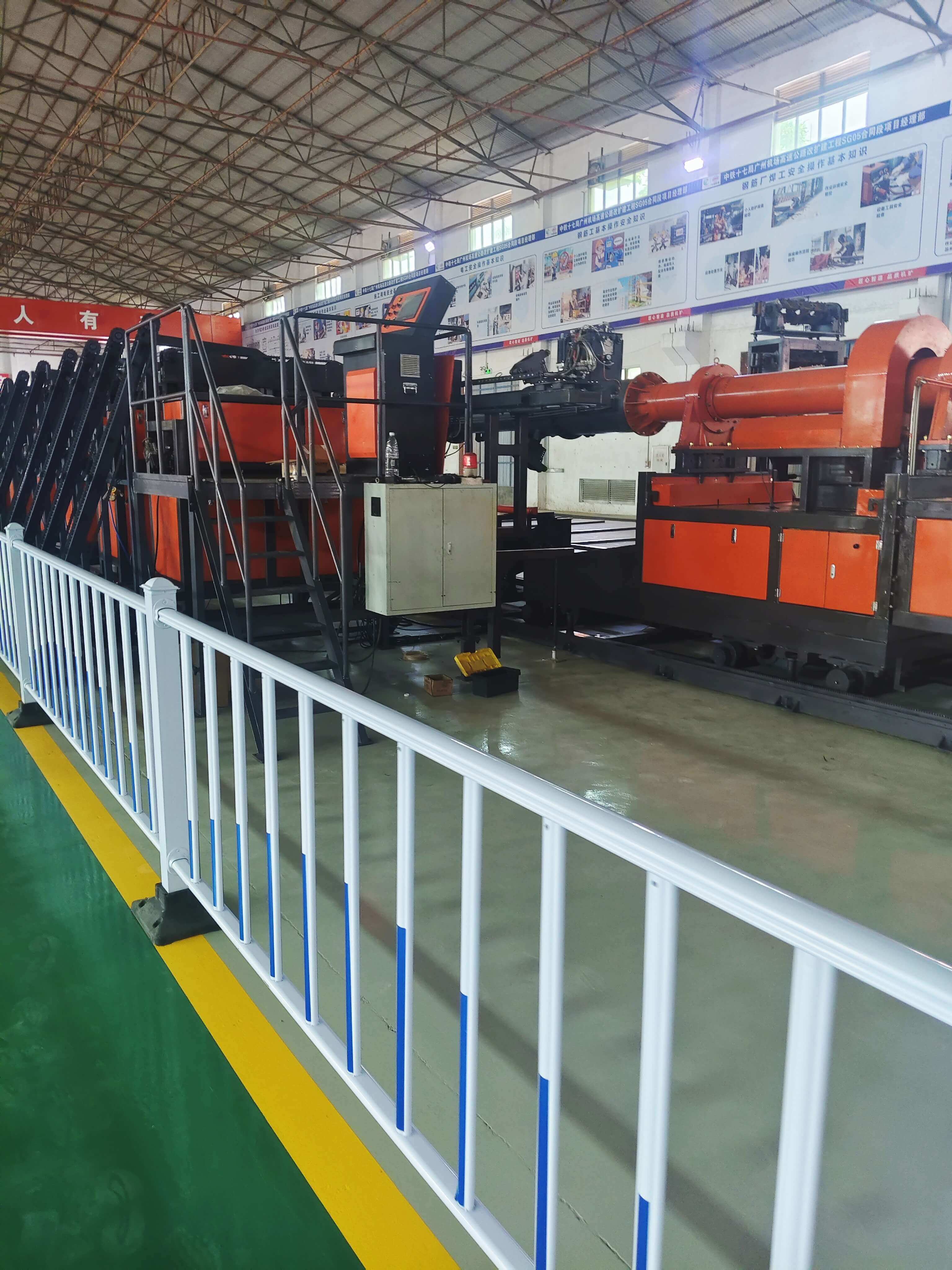

Technical Specifications of Rebar Cage Workstations
To help clients better understand our equipment capabilities, we’ve compiled key technical parameters in the following table:
| Parameter | Specification Range |
|---|---|
| Applicable Rebar Diameter | 8-40mm (customizable) |
| Cage Diameter Range | 600-3000mm |
| Maximum Cage Length | 24m (extendable) |
| Spiral Rebar Pitch | 50-300mm (adjustable) |
| Production Capacity | 8-15 cages/shift (8h) |
| Power Supply | 380V/50Hz (customizable) |
| Total Power | Approx. 65kW |
| Control System | PLC + HMI (multi-language) |
Customization Capabilities
Understanding that different projects have unique requirements, we offer comprehensive customization services for our rebar cage workstations. Our engineering team can modify equipment dimensions, power configurations, and control systems to match specific production environments. For example, we’ve successfully developed compact versions for space-constrained workshops and high-capacity models for centralized processing centers.
The customization process begins with detailed technical consultations where we analyze your project requirements, production volumes, and site conditions. Based on this information, we provide 3D equipment layout designs and production flow simulations to ensure optimal integration with your existing operations. Our engineers remain available throughout the installation and commissioning phases to make any necessary adjustments.
Global Application Cases
Our rebar cage workstations have been successfully implemented in infrastructure projects across 30+ countries and regions. Here are some representative cases demonstrating our equipment’s versatility:
1. Southeast Asia Bridge Project: For a major bridge construction in Malaysia, we supplied a customized workstation capable of producing 24m-long rebar cages with 2500mm diameter. The equipment’s modular design allowed easy transportation through narrow site access roads, while the precision welding system ensured compliance with strict local engineering standards.
2. Middle East Railway Tunnel: In a desert environment project, we delivered a reinforced workstation with enhanced dust protection and cooling systems. The equipment maintained stable operation despite 50°C ambient temperatures, helping the project achieve a 30% increase in daily cage production compared to traditional methods.
3. European Airport Expansion: A European airport required rebar cages with complex spiral patterns for foundation reinforcement. Our intelligent control system was programmed with custom welding sequences, enabling the production of cages with varying spiral pitches along their length – a capability that reduced manual rework by 90%.
These cases demonstrate our ability to adapt equipment to diverse climatic conditions, space constraints, and technical requirements while maintaining consistent production quality. Our after-sales team provides ongoing support including remote diagnostics, spare parts supply, and operator training updates to ensure long-term equipment performance.
FAQ
What maintenance is required for rebar cage workstations?
Regular maintenance includes daily cleaning of welding heads and feed tracks, weekly lubrication of moving parts, and monthly inspection of electrical connections. We provide detailed maintenance manuals and offer remote guidance through video calls. Our standard equipment warranty covers 12 months or 2000 working hours (whichever comes first), with extended warranty options available.
How long does it take to train operators for the workstation?
Basic operation training typically takes 2-3 days, covering equipment startup, parameter setting, production monitoring, and emergency procedures. For advanced functions like custom program creation, we offer additional 1-2 days of specialized training. All training materials are available in multiple languages and include video tutorials for reference.
Can the workstation handle different rebar grades?
Yes, our equipment is compatible with common rebar grades including HRB335, HRB400, HRB500, and their international equivalents. The welding parameters can be adjusted to accommodate different material properties, ensuring proper weld penetration without damaging the rebar structure. We provide recommended parameter settings for various rebar grades in the operation manual.
What safety features are included in the workstation?
Key safety features include: emergency stop buttons at multiple locations, protective enclosures around moving parts, safety interlocks preventing operation when doors are open, automatic alarm for abnormal temperature/voltage, and grounding protection. All equipment meets CE safety standards and includes warning labels in multiple languages.
Summary
As a professional rebar cage workstation manufacturer with global export capabilities, Xuhui (Shandong) Intelligent Equipment Co., Ltd. combines advanced technology with practical engineering experience to deliver production solutions that meet international standards. Our automated equipment helps clients reduce labor costs by 70%, improve product consistency, and increase daily output by 3-5 times compared to traditional methods. With CE certification, modular design, and comprehensive customization options, our workstations have become the preferred choice for infrastructure projects worldwide. Contact us today to discuss how we can support your next rebar cage production project with tailored solutions and professional service.
