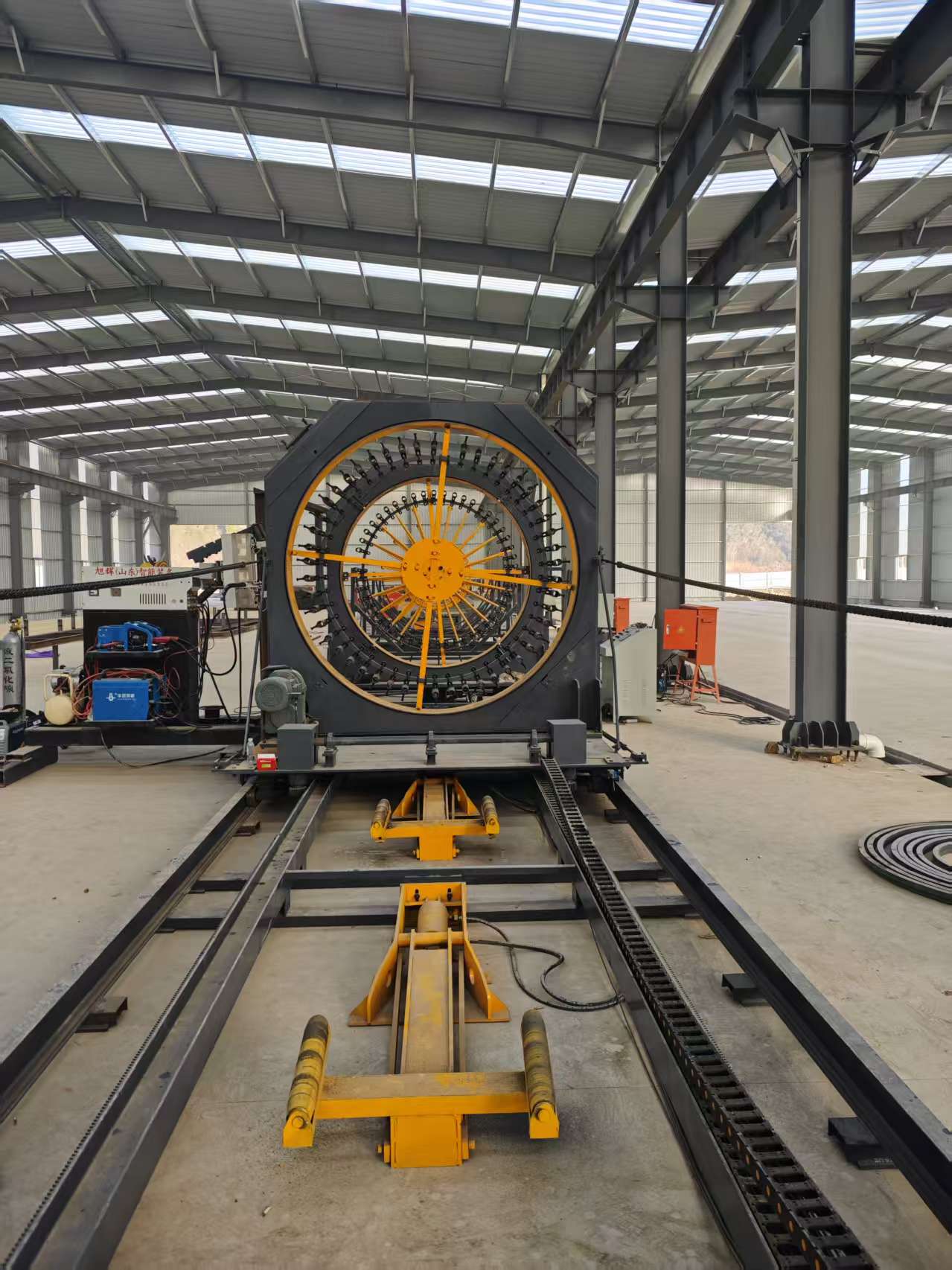

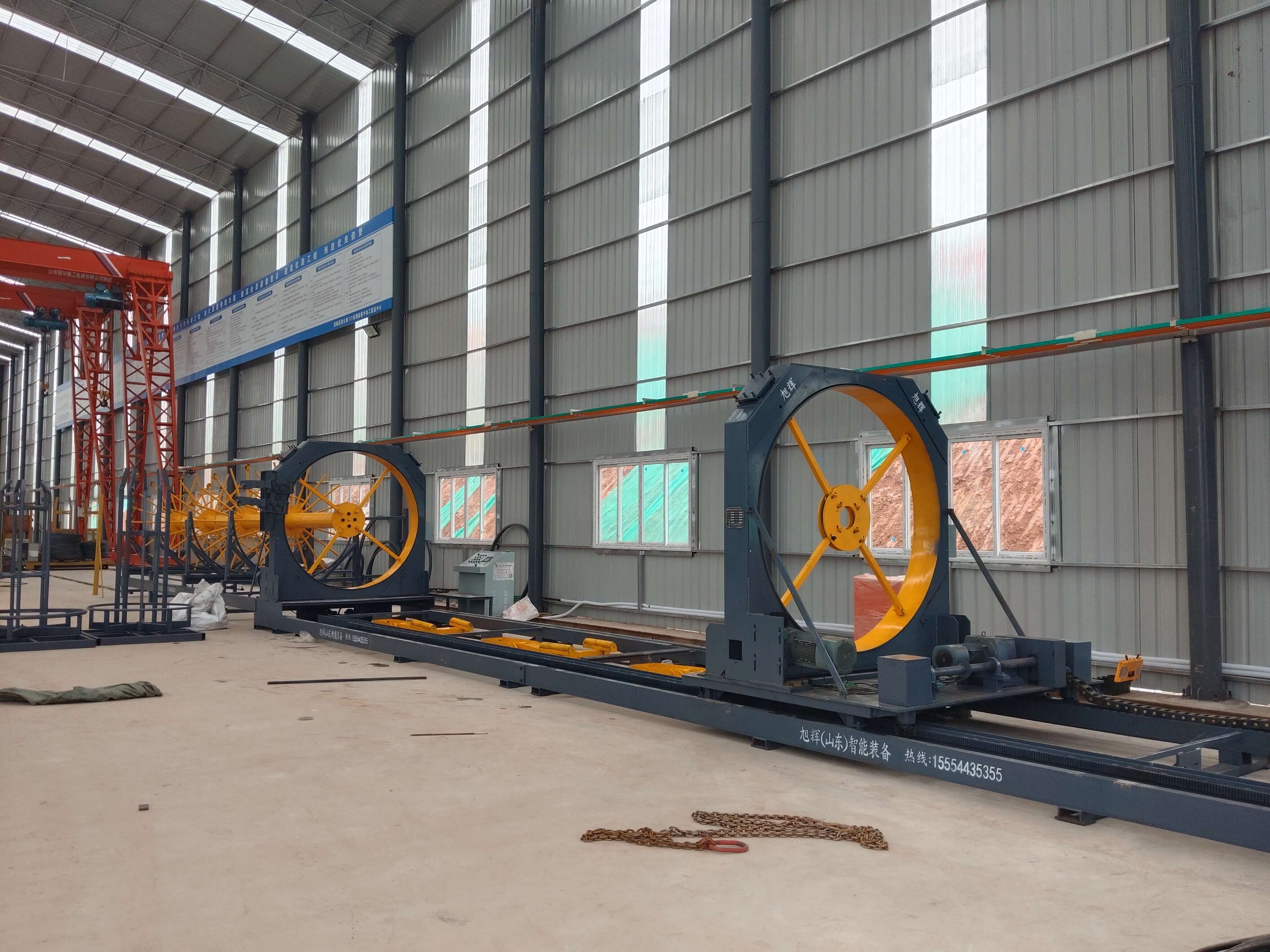

In modern construction projects, especially large-scale infrastructure developments like highways, high-speed railways, bridges, and tunnels, the quality and efficiency of steel bar processing directly impact the overall project quality and construction progress. As a professional manufacturer of numerical control steel bar processing equipment, Xuhui (Shandong) Smart Equipment Co., Ltd. has been dedicated to providing standardized solutions for building steel bar construction through innovative technology and reliable products. Our fully automatic steel bar cage rolling welder represents the pinnacle of modern steel bar processing technology, offering unparalleled advantages in terms of efficiency, precision, and reliability.
Core Advantages of Our Fully Automatic Steel Bar Cage Rolling Welder
The fully automatic steel bar cage rolling welder developed by Xuhui (Shandong) Smart Equipment incorporates advanced numerical control technology and intelligent automation systems, making it the ideal choice for modern construction projects. This equipment offers several key advantages that set it apart from traditional processing methods:
1. Complete Automation for Enhanced Efficiency
Our equipment automates the entire process from steel bar feeding, straightening, bending, welding to cage forming. This complete automation eliminates the need for manual intervention in most stages, significantly reducing labor costs while improving production efficiency. A single machine can complete the work that previously required 5-8 workers, with production capacity reaching 15-20 steel bar cages per 8-hour shift.
2. Precision Processing for Consistent Quality
Equipped with high-precision servo motors and advanced control systems, our equipment ensures precise positioning and uniform welding quality for every steel bar cage. The welding parameters can be precisely adjusted according to different project requirements, ensuring that each cage meets the exact specifications. This consistency is particularly crucial for large-scale projects where uniform quality is essential for structural safety.
3. Intelligent Operation for Reduced Skill Requirements
The user-friendly interface and intelligent control system make operation extremely simple. Operators only need basic training to master the equipment operation, eliminating the need for highly skilled welders. The intelligent system can automatically detect and adjust for different steel bar diameters and cage specifications, reducing the potential for human error.
4. Modular Design for Flexible Applications
Our equipment features a modular design that allows for easy customization to meet specific project requirements. Whether for bridge piles, subway tunnels, or other large infrastructure projects, we can configure the equipment to produce steel bar cages of different diameters, lengths, and spacing requirements. This flexibility makes our equipment suitable for a wide range of construction scenarios.
Technical Specifications and Performance Parameters
To better understand the capabilities of our fully automatic steel bar cage rolling welder, let’s examine its key technical specifications:
| Parameter | Specification |
|---|---|
| Applicable steel bar diameter | Φ12-Φ40mm (customizable for larger diameters) |
| Cage diameter range | Φ400-Φ2500mm |
| Cage length range | Up to 18m (adjustable) |
| Welding speed | 30-45 RPM (adjustable) |
| Power supply | 380V 50Hz 3-phase |
| Total power | Approx. 45kW |
| Control system | PLC + Touch screen |
| Weight | Approx. 8,500kg |
These specifications demonstrate that our equipment is designed for heavy-duty industrial applications, capable of handling the demanding requirements of large construction projects. The adjustable parameters allow for customization to meet specific project needs, while the robust construction ensures reliable performance even in continuous operation scenarios.
Application Scenarios and Project Cases
Our fully automatic steel bar cage rolling welder has been successfully applied in numerous prestigious projects around the world, demonstrating its versatility and reliability in various construction scenarios:
1. Bridge Construction Projects
In bridge pile foundation construction, our equipment has been used to produce high-quality steel bar cages for bored piles. The precise welding and uniform spacing ensure optimal load distribution and structural integrity. One notable project was the construction of a major highway bridge in Southeast Asia, where our equipment helped the contractor reduce processing time by 40% while improving cage quality.
2. Subway and Tunnel Projects
For subway station construction and tunnel lining, our equipment produces steel bar cages with consistent spacing and precise dimensions, crucial for maintaining the structural integrity of underground constructions. In a Middle Eastern metro project, our equipment’s ability to produce cages up to 18 meters long without joints significantly improved construction efficiency and reduced welding seams.
3. Large Infrastructure Developments
In the construction of large dams, power plants, and other infrastructure projects, our equipment has proven invaluable for producing the massive steel bar cages required. The automation features allowed for continuous production, meeting tight project deadlines while maintaining high quality standards.
4. Standardized Steel Bar Processing Centers
Our equipment is also widely used in centralized steel bar processing centers that supply multiple construction sites. The high production capacity and consistent quality make it ideal for such operations, helping to standardize steel bar processing across different projects and reduce overall costs.
Comprehensive Services Beyond Equipment Supply
At Xuhui (Shandong) Smart Equipment, we understand that providing high-quality equipment is just the first step in ensuring project success. That’s why we offer a comprehensive range of services to support our clients throughout the entire equipment lifecycle:
- Customized Solutions: Our engineering team works closely with clients to design equipment configurations that precisely match their project requirements, including special adaptations for unique applications.
- Professional Installation: We provide on-site installation and commissioning services by our trained technicians, ensuring the equipment is set up correctly for optimal performance.
- Operator Training: Comprehensive training programs are provided to ensure operators can fully utilize the equipment’s capabilities while maintaining safe operation practices.
- Maintenance Support:
- Spare Parts Supply: A complete inventory of genuine spare parts ensures quick replacements when needed, maintaining continuous equipment operation.
- Technical Consultation: Our technical experts are available to provide advice on process optimization, equipment upgrades, and troubleshooting.
We offer regular maintenance services and quick response to any operational issues, minimizing downtime and extending equipment lifespan.
FAQ
What makes your fully automatic steel bar cage rolling welder different from other suppliers?
Our equipment stands out in several key aspects: First, we use high-precision servo motors and advanced control systems for superior welding quality and consistency. Second, our modular design allows for easy customization to meet specific project requirements. Third, we provide comprehensive after-sales support including installation, training, and maintenance. Finally, all our equipment is CE certified, meeting international safety and quality standards.
How long does it take to train an operator for this equipment?
The training duration depends on the operator’s prior experience, but typically 3-5 days of intensive training is sufficient for most operators to master the basic operation. Our training covers equipment operation, safety procedures, minor troubleshooting, and routine maintenance. We also provide detailed operation manuals and video tutorials for ongoing reference.
What maintenance is required for the equipment?
Regular maintenance includes daily cleaning, weekly lubrication of moving parts, monthly inspection of electrical components, and quarterly comprehensive checks. We provide a detailed maintenance schedule and checklist with each equipment delivery. Our service team can also assist in developing a customized maintenance plan based on your specific usage patterns.
Can the equipment be customized for special project requirements?
Absolutely. One of our core strengths is our ability to customize equipment to meet specific project needs. Whether you need special cage dimensions, unique welding patterns, or integration with other processing equipment, our engineering team can design a solution that fits your requirements perfectly.
What certifications does your equipment have for international projects?
All our fully automatic steel bar cage rolling welders are CE certified, meeting the stringent safety and quality requirements of the European market. We can also assist with obtaining other certifications as required by specific countries or projects, such as ISO quality management system certification or local safety approvals.
Summary
As a leading manufacturer of fully automatic steel bar cage rolling welders, Xuhui (Shandong) Smart Equipment Co., Ltd. combines advanced technology with practical industry experience to deliver equipment that truly meets the needs of modern construction projects. Our commitment to quality, innovation, and customer service has made us the preferred supplier for numerous prestigious projects worldwide. Whether you’re working on a highway bridge, subway tunnel, or large infrastructure development, our equipment can help you improve efficiency, ensure quality, and reduce costs. Contact us today to discuss how we can support your next project with our customized steel bar processing solutions.
