In the modern construction industry, precision and efficiency in steel reinforcement processing are paramount. Xuhui (Shandong) Intelligent Equipment Co., Ltd., located in Heze – a major engineering machinery manufacturing base in Shandong Province, China, has established itself as a leading developer and manufacturer of CNC steel bar processing equipment. Our flagship product, the CNC steel bar cutting, threading, and grinding production line, represents the pinnacle of industrial steel reinforcement processing technology, offering unmatched precision, productivity, and reliability for construction projects worldwide.
Understanding the CNC Steel Bar Processing Line

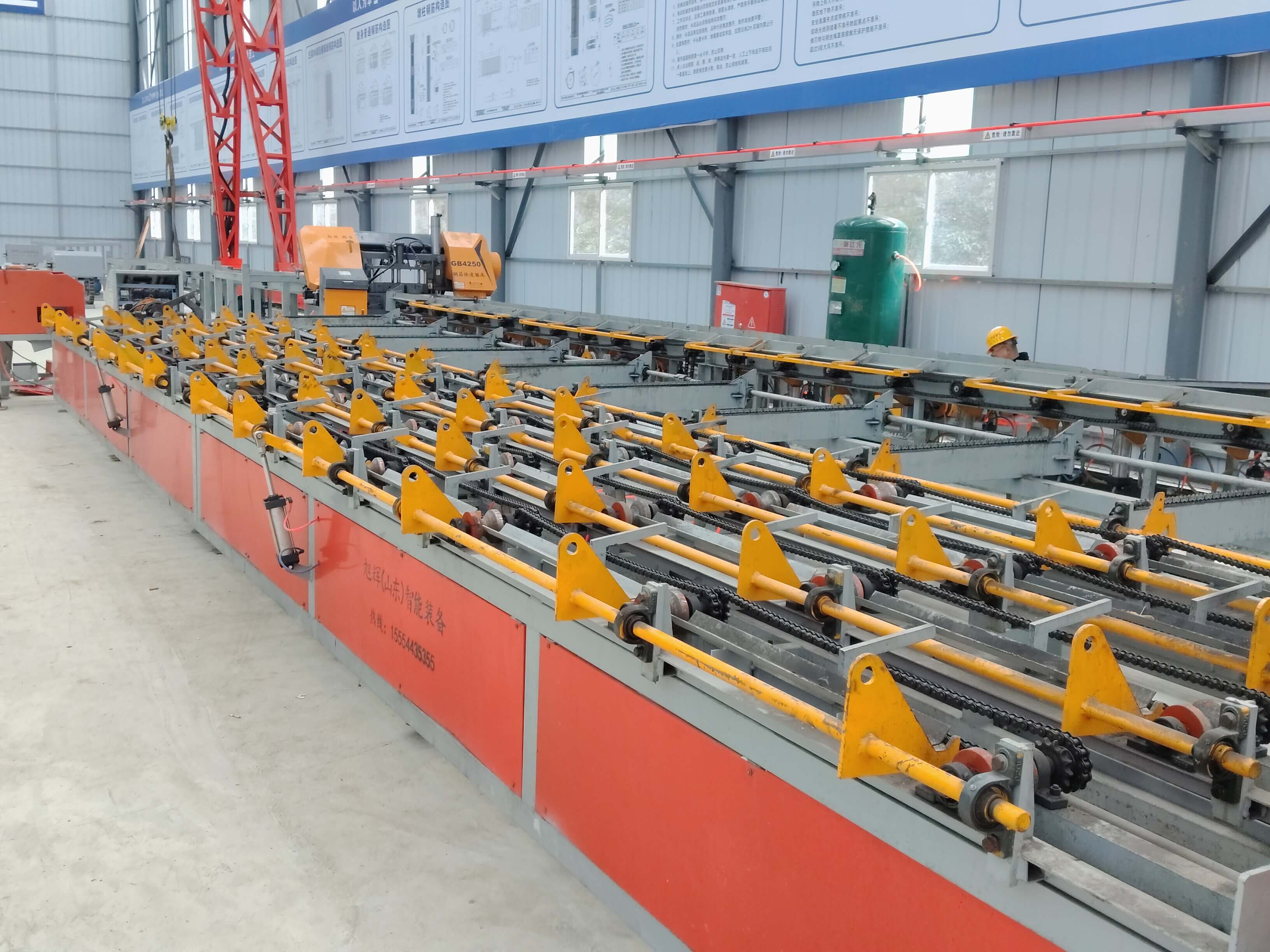

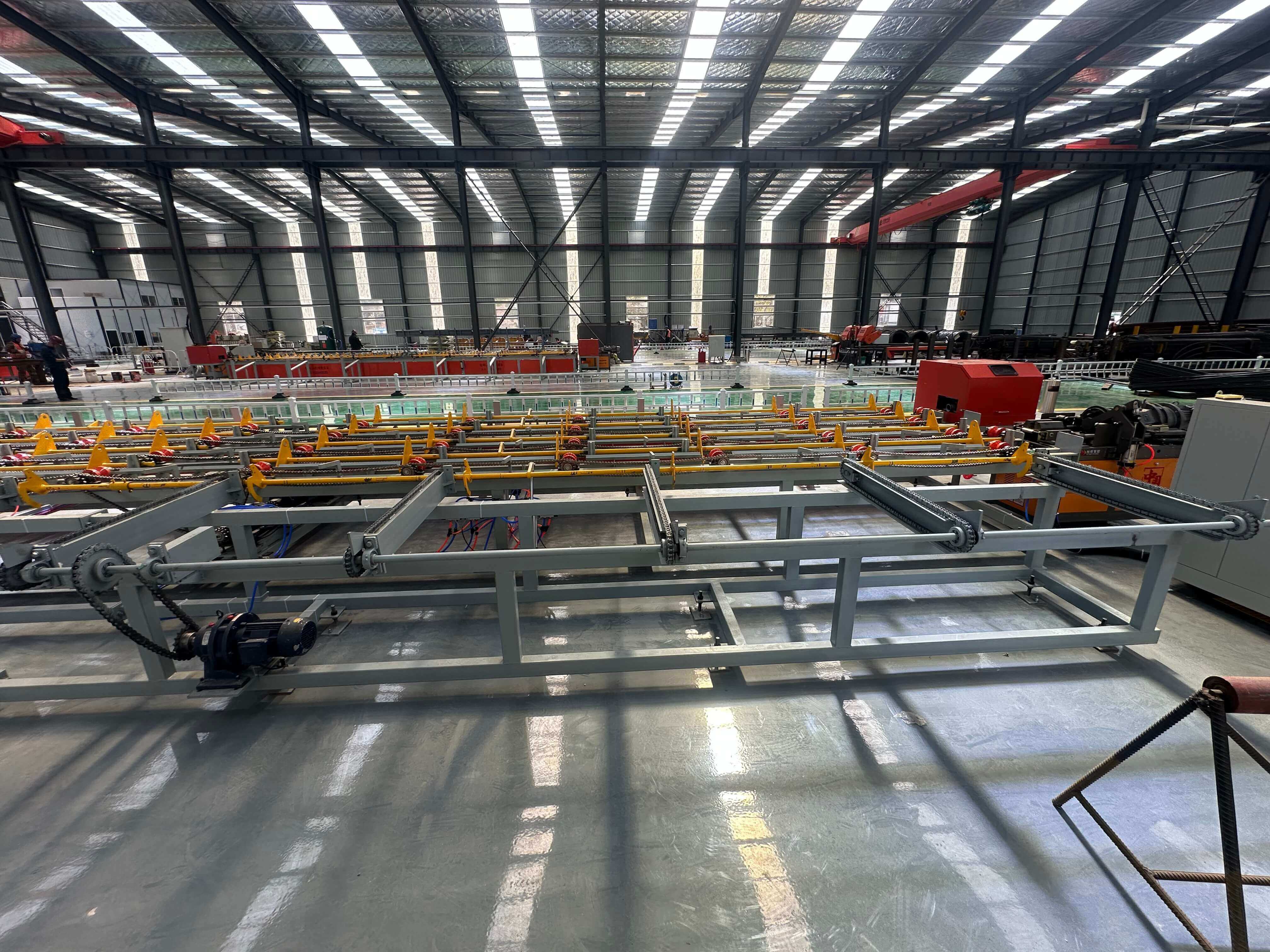

Our CNC steel bar cutting, threading, and grinding production line is a fully automated system designed to handle the complete processing of steel reinforcement bars with exceptional precision and efficiency. This integrated solution combines three critical operations – cutting, threading, and grinding – into a single seamless workflow, eliminating the need for multiple machines and manual handling between processes. The system is engineered to process steel bars of various diameters (typically 12-40mm) with consistent quality, meeting the stringent requirements of modern construction projects.
The production line features advanced CNC (Computer Numerical Control) technology that ensures precise control over every aspect of the processing operation. From exact length measurement and cutting to consistent thread quality and smooth end grinding, our system delivers results that surpass industry standards. This level of precision is particularly crucial for applications where steel reinforcement bars must fit perfectly into pre-designed structural elements, such as in high-rise buildings, bridges, tunnels, and other critical infrastructure projects.
Key Components and Working Principle
The CNC steel bar processing line consists of several integrated modules that work in harmony to deliver complete processing solutions:
1. Automatic Feeding System: This module ensures smooth and consistent feeding of steel bars into the processing line, eliminating manual handling and reducing the risk of errors or accidents.
2. Precision Cutting Unit: Equipped with high-quality cutting blades and advanced measurement systems, this unit accurately cuts steel bars to the required lengths with minimal deviation (typically within ±1mm).
3. Threading Station: The core of the system, this station uses specialized threading tools to create consistent, high-precision threads on the cut ends of the steel bars. The CNC control ensures uniform thread depth and pitch across all processed bars.
4. End Grinding Module: After threading, the bars pass through this module where their ends are smoothly ground to remove any burrs or sharp edges, ensuring safe handling and perfect fit during assembly.
5. Quality Control System: Integrated throughout the production line, this system continuously monitors processing parameters and final product quality, automatically adjusting as needed to maintain consistent output.
6. Automated Unloading and Stacking: The final module neatly stacks the processed steel bars for easy transportation and storage, completing the automated workflow.
Technical Specifications
Our CNC steel bar processing lines are available in various configurations to meet different production requirements. Here are the typical specifications for our standard models:
| Parameter | Specification |
|---|---|
| Applicable Bar Diameter | 12-40mm (customizable for larger diameters) |
| Cutting Length Range | 500-12000mm (adjustable) |
| Length Accuracy | ±1mm |
| Threading Speed | 15-30 seconds per end (depending on diameter) |
| Production Capacity | 800-1200 pieces/8 hours (varies by model) |
| Power Supply | 380V 50Hz 3-phase (customizable) |
| Total Power | 25-40kW (depending on configuration) |
| Machine Dimensions | 18000×2500×2200mm (approx., varies by model) |
| Machine Weight | 8-12 tons (depending on configuration) |
Advantages of Xuhui’s CNC Steel Bar Processing Line
Choosing Xuhui’s CNC steel bar cutting, threading, and grinding production line offers numerous advantages for construction companies and steel processing centers:
1. Unmatched Precision: Our advanced CNC technology ensures consistent quality across all processed steel bars, meeting the most demanding specifications of modern construction projects.
2. Increased Productivity: The fully automated workflow significantly reduces processing time compared to traditional methods, with some models capable of processing up to 1,200 pieces in an 8-hour shift.
3. Labor Cost Savings: By automating the entire processing operation, our production line reduces the need for skilled labor, cutting down on labor costs and minimizing the risk of human error.
4. Improved Safety: The enclosed processing modules and automated handling systems protect operators from potential hazards associated with manual cutting, threading, and grinding operations.
5. Material Efficiency: Precise cutting and minimal waste generation result in better material utilization, reducing overall project costs and environmental impact.
6. Consistent Quality: The integrated quality control system ensures that every processed steel bar meets the same high standards, eliminating variations that could affect structural integrity.
7. Space Optimization: Combining multiple operations into a single production line reduces the factory floor space required for steel bar processing, optimizing your facility layout.
8. Easy Operation: Despite its advanced technology, our production line is designed for user-friendly operation, with intuitive controls and clear visual indicators.
9. Durability and Reliability: Built with high-quality components and robust construction, our machines are designed for continuous operation in demanding industrial environments.
10. Global Compliance: All our CNC steel bar processing lines come with CE certification, ensuring compliance with international safety and quality standards for global export.
Applications Across Construction Sectors
Xuhui’s CNC steel bar processing lines find applications across a wide range of construction sectors where precision-engineered steel reinforcement is crucial:
1. Highway Construction: For reinforcing concrete road surfaces, bridge decks, and retaining walls where consistent thread quality ensures proper load distribution.
2. High-Speed Rail Projects: In the construction of rail tracks, viaducts, and stations where precise reinforcement bar dimensions are essential for structural stability.
3. Airport Infrastructure: For reinforcing runways, taxiways, terminal buildings, and control towers where durability and precision are paramount.
4. Power Plant Construction: In building foundations, cooling towers, and other structures that must withstand extreme conditions and heavy loads.
5. Large-Scale Building Complexes: For high-rise buildings, commercial centers, and residential complexes where uniform reinforcement ensures structural integrity.
6. Bridge and Tunnel Engineering: In constructing bridges of all types and tunnel linings where precise reinforcement bar processing is critical for safety and longevity.
7. Standardized Steel Processing Centers: For centralized processing facilities that supply ready-to-use reinforced bars to multiple construction sites.
Customization Options for Diverse Needs
At Xuhui, we understand that different construction projects have unique requirements. That’s why we offer extensive customization options for our CNC steel bar processing lines:
1. Bar Diameter Range: While our standard models handle 12-40mm bars, we can customize machines for larger diameters up to 50mm or more for specialized applications.
2. Processing Speed: We can adjust the speed of cutting, threading, and grinding operations to match your specific production volume requirements.
3. Automation Level: Depending on your budget and operational needs, we can provide varying degrees of automation, from semi-automatic to fully automated systems.
4. Control System Interface: We can customize the HMI (Human-Machine Interface) to match your preferred operating language and display format.
5. Integration with Existing Systems: Our engineers can design interfaces to connect our processing lines with your existing inventory management or production control systems.
6. Special Thread Profiles: For projects requiring non-standard thread profiles, we can customize the threading tools and programming to produce the exact specifications you need.
7. Safety Features: We can incorporate additional safety systems based on your specific operational environment or local regulations.
Global Reach and Customer Support
As a manufacturer with a global outlook, Xuhui (Shandong) Intelligent Equipment Co., Ltd. is committed to providing exceptional support to our international customers:
1. Multilingual Support: Our technical team provides support in multiple languages, ensuring clear communication throughout the purchasing, installation, and operational phases.
2. Global Delivery: We have experience in shipping our heavy machinery to customers worldwide, handling all aspects of packaging, documentation, and customs clearance.
3. Professional Installation: Our engineers travel to your site to supervise the installation and initial setup of the processing line, ensuring optimal performance from day one.
4. Comprehensive Training: We provide thorough training for your operators and maintenance personnel, covering all aspects of machine operation, safety procedures, and basic troubleshooting.
5. Spare Parts Availability: We maintain a global inventory of critical spare parts to minimize downtime in case of component replacement needs.
6. Remote Technical Support: Our team can provide remote assistance for troubleshooting and minor adjustments through secure communication channels.
7. Regular Maintenance Programs: We offer customized maintenance contracts to ensure your processing line continues to operate at peak efficiency throughout its service life.
FAQ
What makes Xuhui’s CNC steel bar processing line different from other manufacturers?
Xuhui’s production line stands out for its complete integration of cutting, threading, and grinding operations in a single automated system, ensuring consistent quality and high efficiency. Our machines are built with precision German components and feature advanced CNC control systems for unmatched accuracy. Additionally, we offer comprehensive global support including multilingual technical assistance, professional installation, and operator training.
How long does it take to set up and commission the processing line at our facility?
The installation and commissioning process typically takes 7-14 days, depending on the specific model and any customization requirements. Our experienced engineers will be on-site to supervise the entire process, from unloading and positioning the machinery to initial testing and operator training. We ensure the system is fully operational and producing to specifications before completing the commissioning.
What kind of maintenance is required for the CNC steel bar processing line?
Regular maintenance is crucial for optimal performance and longevity. We recommend daily cleaning, weekly lubrication of moving parts, and monthly inspection of critical components. Our machines come with detailed maintenance manuals, and we offer comprehensive training for your maintenance personnel. We also provide remote technical support and can supply genuine spare parts quickly to minimize downtime.
Can the processing line handle different thread standards required in various countries?
Yes, our CNC steel bar processing lines are highly adaptable and can be programmed to produce various thread profiles and standards, including metric, imperial, and other specialized threads. During the installation and commissioning process, our engineers will configure the machine to meet your specific thread requirements and provide training on how to change thread specifications as needed for different projects.
What is the warranty period for Xuhui’s CNC steel bar processing lines?
We offer a standard 12-month warranty on all our machinery, covering defects in materials and workmanship. During this period, we will provide free replacement parts and technical support for any issues covered by the warranty. Extended warranty options are also available for customers who prefer additional coverage. Our global service network ensures prompt assistance wherever your machinery is installed.
Summary
Xuhui (Shandong) Intelligent Equipment Co., Ltd.’s CNC steel bar cutting, threading, and grinding production line represents the pinnacle of industrial steel reinforcement processing technology. With its complete automation, unmatched precision, and high productivity, our solution is transforming how construction companies worldwide approach steel bar processing. Backed by our commitment to quality, evidenced by CE certification, and supported by our global service network, Xuhui’s production lines offer a reliable, efficient, and cost-effective solution for projects of all scales.
Whether you’re involved in highway construction, high-speed rail projects, airport infrastructure, or any other sector requiring precision-engineered steel reinforcement, our CNC steel bar processing lines can help you achieve superior results while reducing costs and improving safety. With extensive customization options and comprehensive support, we’re ready to partner with you to meet the unique challenges of your next construction project.
