When it comes to tunnel construction projects, the efficiency and precision of small duct processing play a crucial role in determining overall project success. Xuhui (Shandong) Smart Equipment Co., Ltd., located in Heze – China’s renowned engineering machinery manufacturing base, specializes in providing state-of-the-art CNC automatic small duct production lines that are transforming the tunnel construction industry. As a leading manufacturer integrating R&D, production, and sales of numerical control steel processing equipment, we understand the unique challenges faced by tunnel construction professionals and have developed specialized solutions to meet these demands.
Why Choose Our CNC Automatic Small Duct Production Line?

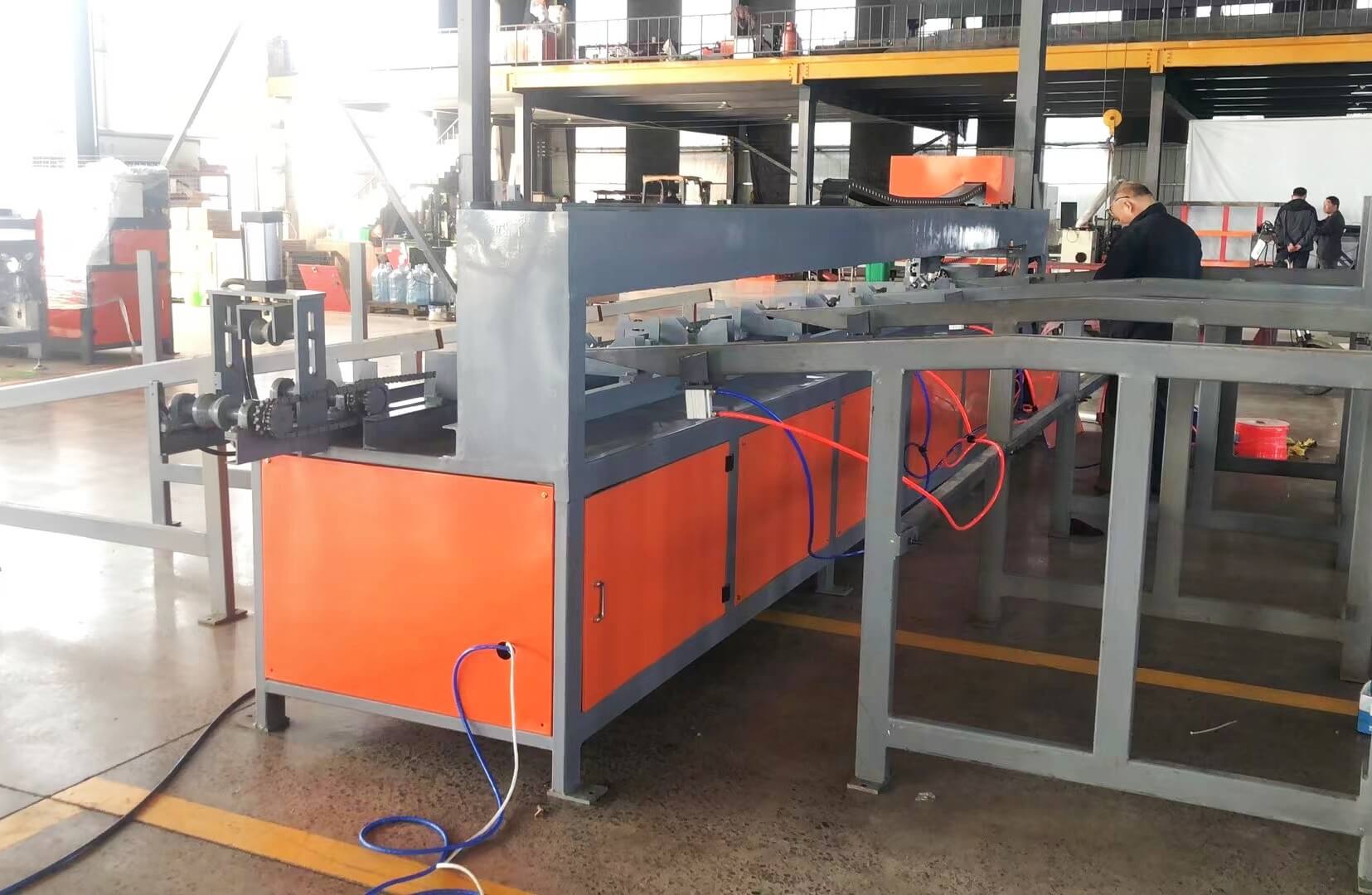

Our flagship product – the CNC automatic small duct production line – represents the pinnacle of modern tunnel construction equipment technology. Designed specifically for tunnel engineering applications, this production line integrates multiple processing functions including cutting, hole punching, and tapering in a single automated system. The equipment features advanced CNC control technology that ensures millimeter-precision processing while maintaining consistent production quality throughout long manufacturing runs.
The production line’s modular design allows for flexible configuration to meet different project requirements. Whether you need to process small ducts for tunnel support systems, drainage applications, or ventilation networks, our equipment can be customized to handle various diameters, lengths, and processing specifications. This versatility makes it an ideal solution for both large-scale infrastructure projects and specialized tunneling operations.
One of the key advantages of our automatic small duct production line is its significantly improved production efficiency compared to traditional methods. The fully automated process reduces manual intervention by up to 80%, while increasing production speed by 3-5 times. This not only shortens project timelines but also minimizes labor costs and reduces the potential for human error in the manufacturing process. For tunnel construction companies operating under tight deadlines and strict quality standards, this efficiency gain translates directly into improved project profitability and client satisfaction.
Technical Specifications and Features
Our CNC automatic small duct production line incorporates several advanced features that set it apart from competitors in the market:
- High-precision CNC control system: Equipped with imported servo motors and precision ball screws, the system maintains positioning accuracy within ±0.1mm throughout continuous operation.
- Automatic material feeding: The integrated material feeding system handles coils up to 3 tons, with automatic straightening and feeding functions that ensure consistent material quality during processing.
- Multi-station processing: The production line features independent processing stations for cutting, hole punching, and tapering, allowing for simultaneous operations that maximize throughput.
- Intelligent fault diagnosis: Built-in sensors and diagnostic software continuously monitor equipment status, providing real-time alerts for potential issues before they cause production delays.
- User-friendly interface: The touchscreen control panel supports multiple languages and features intuitive operation menus, making it easy for operators to program complex processing tasks.
Quality Assurance and Certification
As a professional manufacturer committed to delivering reliable industrial equipment, we subject all our production lines to rigorous quality control procedures. Our CNC automatic small duct production lines have obtained CE certification, meeting European safety and quality standards for industrial machinery. This certification provides our international clients with confidence in the equipment’s performance and safety compliance.
In addition to CE certification, our quality management system follows ISO 9001 standards, ensuring consistent manufacturing quality across all production batches. Each production line undergoes comprehensive testing before shipment, including load testing, precision verification, and endurance trials to simulate real-world operating conditions. This attention to detail has earned us a reputation for reliability among tunnel construction professionals worldwide.
| Technical Parameter | Specification |
|---|---|
| Processing Range | Φ32-Φ219mm small ducts |
| Maximum Length | 12 meters (customizable) |
| Processing Speed | 3-5 pieces/minute (depending on specification) |
| Power Supply | 380V/50Hz (customizable) |
| Total Power | Approx. 45kW |
| Machine Dimensions | 22m × 3.5m × 2.8m (L×W×H) |
Global Applications and Client Success Stories
Our CNC automatic small duct production lines have been successfully implemented in numerous tunnel construction projects around the world. From highway tunnels in Southeast Asia to metro systems in the Middle East, our equipment has proven its reliability and efficiency in diverse operating environments. One notable project in Turkey involved supplying three complete production lines for a major highway tunnel project, where our equipment helped the contractor reduce processing time by 40% while maintaining consistent quality standards.
In another case in Chile, our client reported that the automatic production line enabled them to complete small duct fabrication for a 5km tunnel section in just three weeks – a task that would have taken two months using traditional methods. The precision of the processed ducts also reduced installation time on-site, contributing to overall project completion ahead of schedule.
These success stories demonstrate how our equipment not only improves manufacturing efficiency but also creates positive ripple effects throughout the entire construction process. By providing consistently high-quality small ducts with precise dimensions, our production lines help reduce installation errors, minimize material waste, and enhance overall project safety.
Comprehensive After-Sales Support
Understanding that reliable equipment performance depends on both high-quality manufacturing and professional support services, we offer comprehensive after-sales packages to our international clients. Our support services include:
- Remote technical support: Our engineering team provides 24/7 remote assistance for troubleshooting and operational guidance through video conferencing and remote access to equipment control systems.
- On-site installation and training: For large projects or new clients, we can dispatch experienced technicians to provide on-site equipment installation, calibration, and operator training.
- Spare parts supply: We maintain a global inventory of critical spare parts to ensure quick delivery when replacements are needed, minimizing equipment downtime.
- Preventive maintenance programs:
- Customizable maintenance contracts that include regular equipment inspections, cleaning, and component replacement to extend service life.
FAQ
What makes your CNC automatic small duct production line different from other suppliers?
Our production line features a unique modular design that allows for flexible configuration based on specific project requirements. The integration of multiple processing functions in a single automated system reduces equipment footprint and improves production efficiency. Additionally, our proprietary CNC control system offers superior precision and stability compared to standard solutions in the market.
How long does it take to install and commission the equipment?
For standard configurations, our experienced installation team can typically complete setup and commissioning within 7-10 working days. This includes equipment leveling, electrical connections, system calibration, and initial production trials. For customized configurations or complex site conditions, we will provide a detailed project timeline based on specific requirements.
What kind of training do you provide for operators?
We offer comprehensive operator training programs that cover equipment operation, maintenance procedures, safety protocols, and basic troubleshooting. Training can be conducted at our factory in China or on-site at the client’s location, depending on preference. We also provide detailed operation manuals and video tutorials in multiple languages for ongoing reference.
How do you ensure the quality consistency of processed small ducts?
Our production line incorporates multiple quality control mechanisms, including automatic material inspection, in-process dimension verification, and final product testing. The CNC control system continuously monitors and adjusts processing parameters to maintain consistent quality throughout production runs. We also provide statistical process control (SPC) data for clients to track production quality trends.
What is your warranty policy for the equipment?
We offer a standard 12-month warranty covering all major components of the production line. During the warranty period, we provide free replacement of defective parts (excluding consumables) and remote technical support. Extended warranty options are available for clients who require longer coverage periods or additional service levels.
Summary
Xuhui (Shandong) Smart Equipment Co., Ltd. stands as a premier provider of CNC automatic small duct production lines for the global tunnel construction industry. Our commitment to technological innovation, precision manufacturing, and comprehensive client support has established us as a trusted partner for engineering firms worldwide. With a complete range of specialized equipment, customized solutions, and professional after-sales services, we are well-positioned to meet the evolving needs of modern tunnel construction projects.
Whether you require standard production lines or customized solutions for unique project specifications, our team of experts is ready to collaborate with you to develop the optimal equipment configuration. Contact us today to discuss your tunnel construction equipment needs and discover how our CNC automatic small duct production lines can enhance your project efficiency and profitability.
