In modern tunnel construction projects, the efficiency and precision of small duct processing directly impact overall project quality and progress. As a professional manufacturer located in Heze – China’s engineering machinery manufacturing base, Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in developing numerical control automatic small duct production lines that meet international standards. Our equipment integrates cutting-edge numerical control technology with practical engineering requirements, providing comprehensive solutions for tunnel construction enterprises worldwide.
Core Advantages of Our Numerical Control Automatic Small Duct Production Line

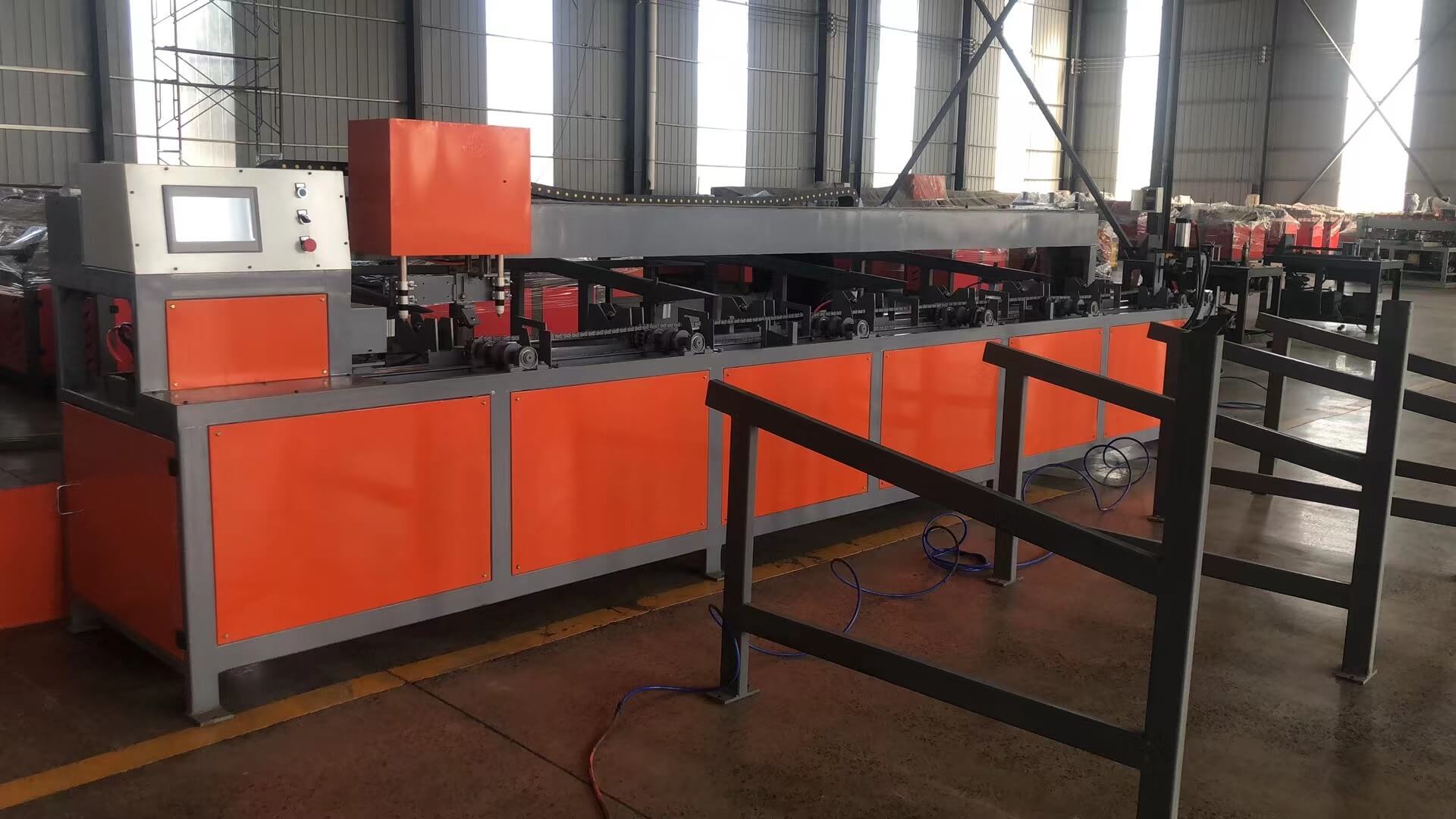

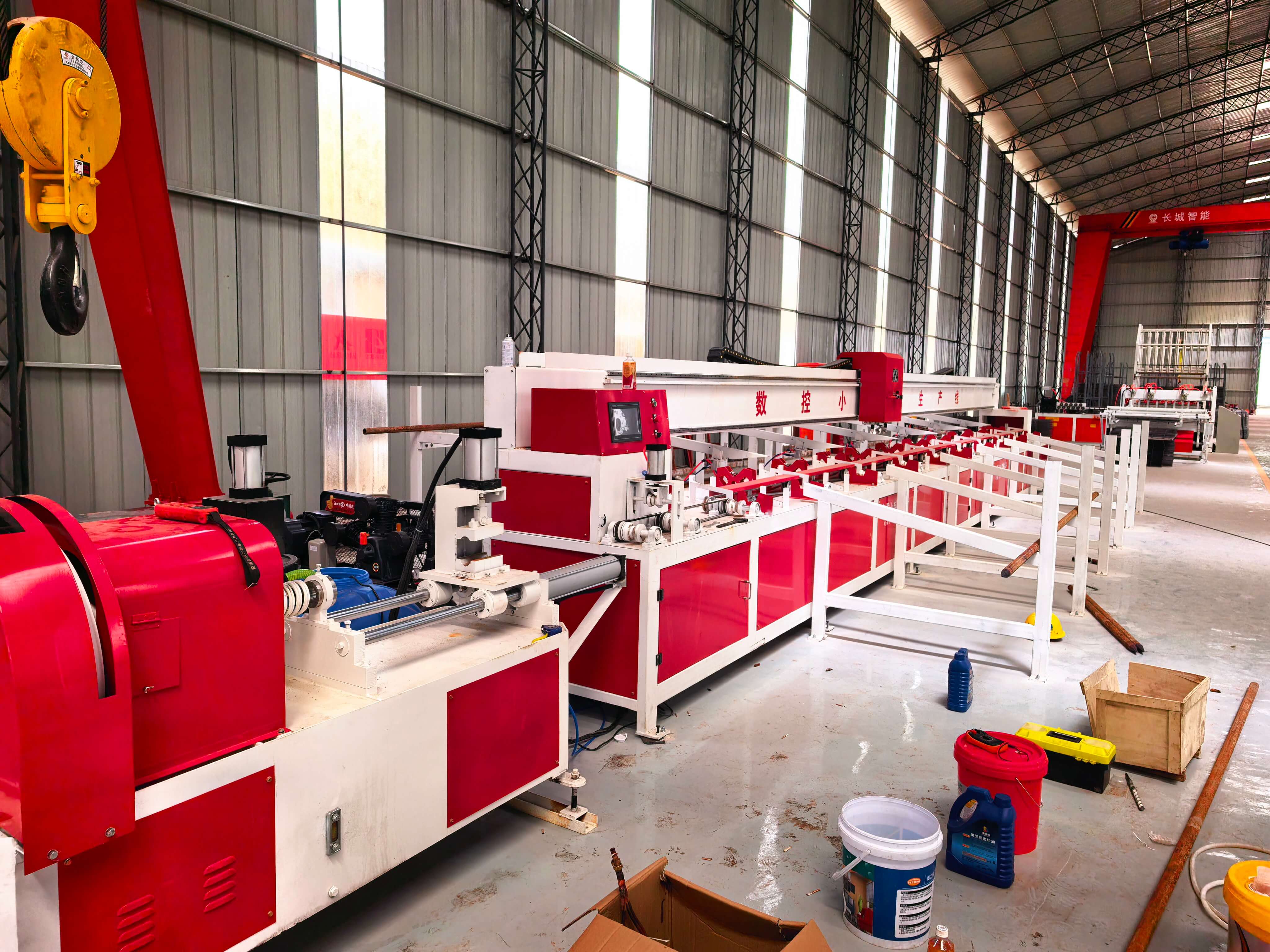

The numerical control automatic small duct production line represents our company’s technological breakthrough in tunnel construction equipment. This fully automated system integrates pipe cutting, hole punching, and tip shrinking processes into one continuous production line, eliminating manual operations and significantly improving processing efficiency. The equipment adopts advanced Siemens numerical control system, achieving ±0.5mm processing precision that meets the most demanding tunnel engineering standards.
Our production line features modular design philosophy, allowing customization according to different project requirements. The standard configuration includes automatic feeding system, numerical control cutting unit, multi-axis hole punching station, and tip shrinking module. For special projects, we can integrate additional functions like pipe bending or marking systems. The entire production line is designed with ergonomic principles, featuring intuitive human-machine interface and easy maintenance access points.
The equipment’s material handling system deserves special mention. We employ high-precision servo motors and ball screw drives to ensure stable material feeding throughout the production process. The cutting unit uses carbide-tipped tools that maintain sharpness for extended periods, reducing tool change frequency and production interruptions. The hole punching station features programmable punching patterns, enabling quick adjustment between different pipe specifications without mechanical modifications.
Technical Specifications and Performance Parameters
Our numerical control automatic small duct production line demonstrates excellent technical performance across multiple dimensions. The standard model can process pipes with outer diameters ranging from 32mm to 108mm, with wall thickness up to 6mm. The cutting speed reaches 120 cuts per minute, while the hole punching frequency achieves 80 holes per minute. The tip shrinking module can handle pipe ends up to 1.5 meters long, with adjustable shrinking diameter from 28mm to 100mm.
The equipment’s power system consists of three-phase 380V industrial power supply with total installed capacity of 45kW. We incorporate energy-saving design principles throughout the system, with power consumption 15% lower than comparable products. The numerical control system supports multiple language interfaces and can store up to 100 different processing programs. The touch screen control panel provides real-time production data monitoring and fault diagnosis functions.
| Parameter | Specification |
|---|---|
| Pipe Diameter Range | 32-108mm |
| Wall Thickness | ≤6mm |
| Cutting Speed | 120 cuts/min |
| Hole Punching Frequency | 80 holes/min |
| Positioning Accuracy | ±0.05mm |
| Total Power | 45kW |
Quality Assurance and Certification System
As an ISO9001 certified manufacturer, we implement strict quality control throughout the production process. From raw material inspection to final assembly testing, each component undergoes multiple quality checks. Our numerical control automatic small duct production lines have obtained CE certification, meeting all European Union safety, health, and environmental requirements. The equipment complies with international standards including EN ISO 12100 for machinery safety and EN 60204-1 for electrical equipment.
The production facility features advanced manufacturing equipment including CNC machining centers, laser cutting machines, and robotic welding systems. These precision machines ensure consistent component quality and dimensional accuracy. We maintain complete traceability for all critical components, with detailed production records stored in our ERP system for at least 10 years. Each production line undergoes 72-hour continuous operation testing before shipment, with comprehensive performance reports provided to customers.
Global Application Cases and Customer Feedback
Our numerical control automatic small duct production lines have been successfully implemented in numerous international projects. In Southeast Asia, a major infrastructure contractor reported 300% productivity improvement after replacing manual processing with our automated system. The equipment’s ability to handle multiple pipe specifications without adjustment significantly reduced downtime between different construction phases.
A European tunnel construction company praised our equipment’s reliability in harsh working conditions. After 18 months of continuous operation in a mountain tunnel project, the production line maintained consistent processing quality with minimal maintenance requirements. The customer specifically highlighted the intuitive control system that allowed their operators to master the equipment within one day of training.
In the Middle East, our customized production line solution helped a customer standardize pipe processing across multiple construction sites. By centralizing pipe preparation, they achieved 25% material savings through optimized cutting patterns and reduced waste. The numerical control system’s production data recording function also provided valuable insights for project cost control and progress monitoring.
FAQ
What makes numerical control systems superior to traditional mechanical control in small duct production?
Numerical control systems offer several advantages over traditional mechanical control methods. First, they enable precise positioning with ±0.05mm accuracy, ensuring consistent processing quality. Second, programmable control allows quick switching between different pipe specifications without mechanical adjustments. Third, numerical control systems support production data recording and analysis, facilitating process optimization and quality control. Finally, they reduce operator skill requirements through automated operation and intuitive human-machine interfaces.
How does your company ensure the durability of critical components in harsh construction environments?
We implement multiple measures to ensure component durability. All structural parts use high-strength steel with special surface treatment to resist corrosion and wear. Critical moving parts employ imported bearings and linear guides with extended service life. The electrical system features dust-proof and waterproof design with IP54 protection rating. Additionally, we provide comprehensive spare parts packages and maintenance training to help customers properly maintain the equipment throughout its service life.
What customization options are available for special project requirements?
Our production lines support extensive customization to meet specific project needs. Common customization options include: 1) Extended processing length for large-diameter pipes; 2) Additional hole punching stations for complex patterns; 3) Specialized pipe bending modules; 4) Customized feeding systems for different material shapes; 5) Multi-language control interfaces; 6) Integration with customer’s existing production management systems. Our engineering team works closely with customers during the design phase to develop optimal solutions.
How does your company support international customers with equipment installation and training?
We provide comprehensive global support services for international customers. Our standard package includes: 1) On-site installation and commissioning by certified engineers; 2) Operator training covering equipment operation, basic maintenance, and safety procedures; 3) Technical support hotline with multilingual service; 4) Remote diagnosis capability through internet connection; 5) One-year warranty with extended options available; 6) Regular maintenance reminders and service schedule planning. We maintain service centers in major regions to ensure timely response to customer needs.
Summary
Xuhui (Shandong) Intelligent Equipment Co., Ltd. stands as a trusted partner for tunnel construction enterprises seeking reliable numerical control automatic small duct production lines. Our Heze-based manufacturing facility combines advanced technology with practical engineering experience to deliver equipment that meets the highest international standards. With CE certification, global export capabilities, and comprehensive after-sales support, we help customers worldwide improve construction efficiency, ensure processing quality, and reduce operational costs. Contact us today to discuss how our customized solutions can benefit your next tunnel project.
