In modern infrastructure construction projects, the quality and efficiency of rebar processing directly impact project timelines and structural safety. As a professional manufacturer of CNC rebar processing equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in developing and producing high-precision, fully automated rebar cage welding stations that meet international construction standards. Our equipment has been widely adopted in highway, railway, airport, power plant, and large-scale building projects across the globe.
Core Advantages of Our CNC Rebar Cage Welding Stations

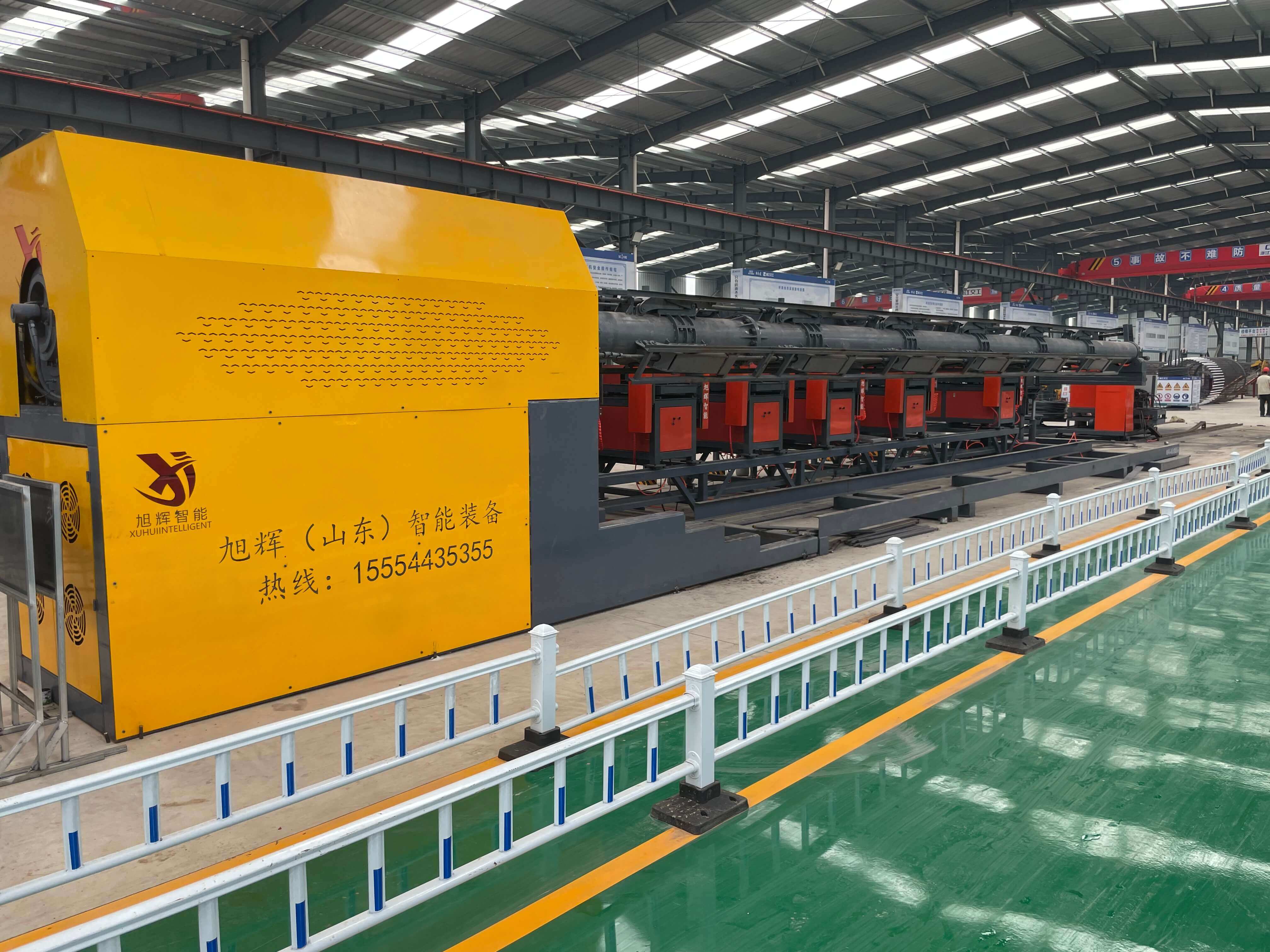

Our flagship product, the CNC rebar cage welding station, represents the pinnacle of automated rebar processing technology. This equipment integrates multiple functions including rebar feeding, straightening, bending, welding, and cutting into a single automated system. The key advantages include:
1. Precision Welding Technology: Equipped with advanced CNC control systems and high-precision servo motors, our welding stations achieve welding accuracy within ±1mm, ensuring consistent quality across all rebar cages. The automatic welding process eliminates human error and guarantees uniform weld quality throughout the production cycle.
2. High Production Efficiency: Compared to traditional manual welding methods, our automated stations increase production efficiency by 3-5 times. A single machine can produce 15-20 rebar cages per day (depending on specifications), significantly reducing project timelines and labor costs. The continuous production mode operates 24/7 with minimal downtime.
3. Flexible Configuration Options: We offer customized solutions tailored to specific project requirements. The equipment can be configured with different welding heads (single, double, or multi-head) to accommodate various rebar diameters (Φ12-Φ40mm) and cage lengths (up to 24 meters). This flexibility makes our stations suitable for projects of all scales.
4. Comprehensive Safety Features: Designed with operator safety as a priority, our equipment includes multiple protection mechanisms such as emergency stop buttons, safety light curtains, and automatic fault detection systems. The enclosed welding chamber reduces arc light and spatter exposure, creating a safer working environment.
Technical Specifications and Performance Parameters
Our CNC rebar cage welding stations are engineered to meet the most demanding construction requirements. The standard technical specifications include:
| Parameter | Specification |
|---|---|
| Rebar Diameter Range | Φ12-Φ40mm (customizable) |
| Max Cage Length | 24 meters (extendable) |
| Welding Speed | 40-60 points/minute |
| Power Supply | 380V/50Hz 3-phase |
| Total Power | Approx. 45kW |
| Control System | Siemens PLC + Touch Screen |
| Weight | Approx. 8,500kg |
Advanced Control System Features
The heart of our welding stations is the Siemens PLC control system combined with a 10-inch color touch screen interface. This intelligent control system offers several advantages:
- Programmable welding patterns for different rebar cage designs
- Real-time monitoring of production parameters and fault diagnostics
- Data storage for up to 100 different rebar cage specifications
- Remote operation and maintenance capabilities
- Multi-language interface supporting English, Spanish, Russian, etc.
Global Application Cases and Project References
Our CNC rebar cage welding stations have been successfully implemented in numerous international projects, demonstrating their reliability and performance in diverse construction environments:
1. Highway Bridge Project in Southeast Asia: For a major highway expansion project requiring 2,500 rebar cages of varying specifications, our equipment achieved a daily production rate of 18 cages with 99.8% welding quality pass rate. The project was completed 15% ahead of schedule.
2. Railway Tunnel Construction in Eastern Europe: In a challenging tunnel project with strict safety requirements, our welding stations produced rebar cages with perfect circularity (deviation <2mm) that withstood rigorous quality inspections. The automated production reduced on-site labor by 60%.
3. Airport Terminal Building in the Middle East: For a large-scale airport construction project, we supplied 4 welding stations working in parallel to produce 1,200 rebar cages per month. The equipment operated continuously in 45°C desert conditions without performance degradation.
These projects demonstrate our equipment’s adaptability to different climates, construction standards, and project scales. Our global service network ensures prompt technical support wherever our equipment operates.
FAQ
What makes your rebar cage welding stations different from other manufacturers?
Our equipment features three key differentiators: First, we use German-imported welding heads that provide superior weld quality and durability. Second, our proprietary CNC control system offers more precise motion control than standard systems. Third, we provide complete project solutions including equipment selection, production line layout, and operator training, not just selling machines.
How long does it take to train operators for your equipment?
We provide comprehensive training programs that typically take 3-5 days depending on the operator’s experience level. The training covers equipment operation, basic maintenance, troubleshooting, and safety procedures. We also offer online training materials and 24/7 technical support after installation.
What is the warranty period for your welding stations?
We offer a standard 12-month warranty covering all mechanical and electrical components. During this period, we provide free replacement parts and on-site repair services for any manufacturing defects. Extended warranty options up to 3 years are available at additional cost.
Can your equipment process stainless steel rebar?
Yes, our welding stations can be configured to process stainless steel rebar with special welding electrodes and parameters. We recommend informing us of your specific material requirements during the ordering process so we can customize the equipment accordingly.
Summary
As a professional manufacturer of CNC rebar processing equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. remains committed to providing innovative solutions that improve construction efficiency and quality. Our CNC rebar cage welding stations represent the perfect combination of precision engineering, advanced automation, and reliable performance. With full CE certification and a global service network, we are your trusted partner for rebar processing equipment needs in any international project. Contact us today to discuss how our solutions can benefit your next construction project.
