In modern infrastructure construction, the quality and efficiency of steel cage fabrication directly impact project timelines and structural safety. As a professional CNC steel cage rolling machine manufacturer based in Heze, Shandong – China’s engineering machinery manufacturing hub, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has dedicated over a decade to developing automated steel cage production solutions that meet international standards.

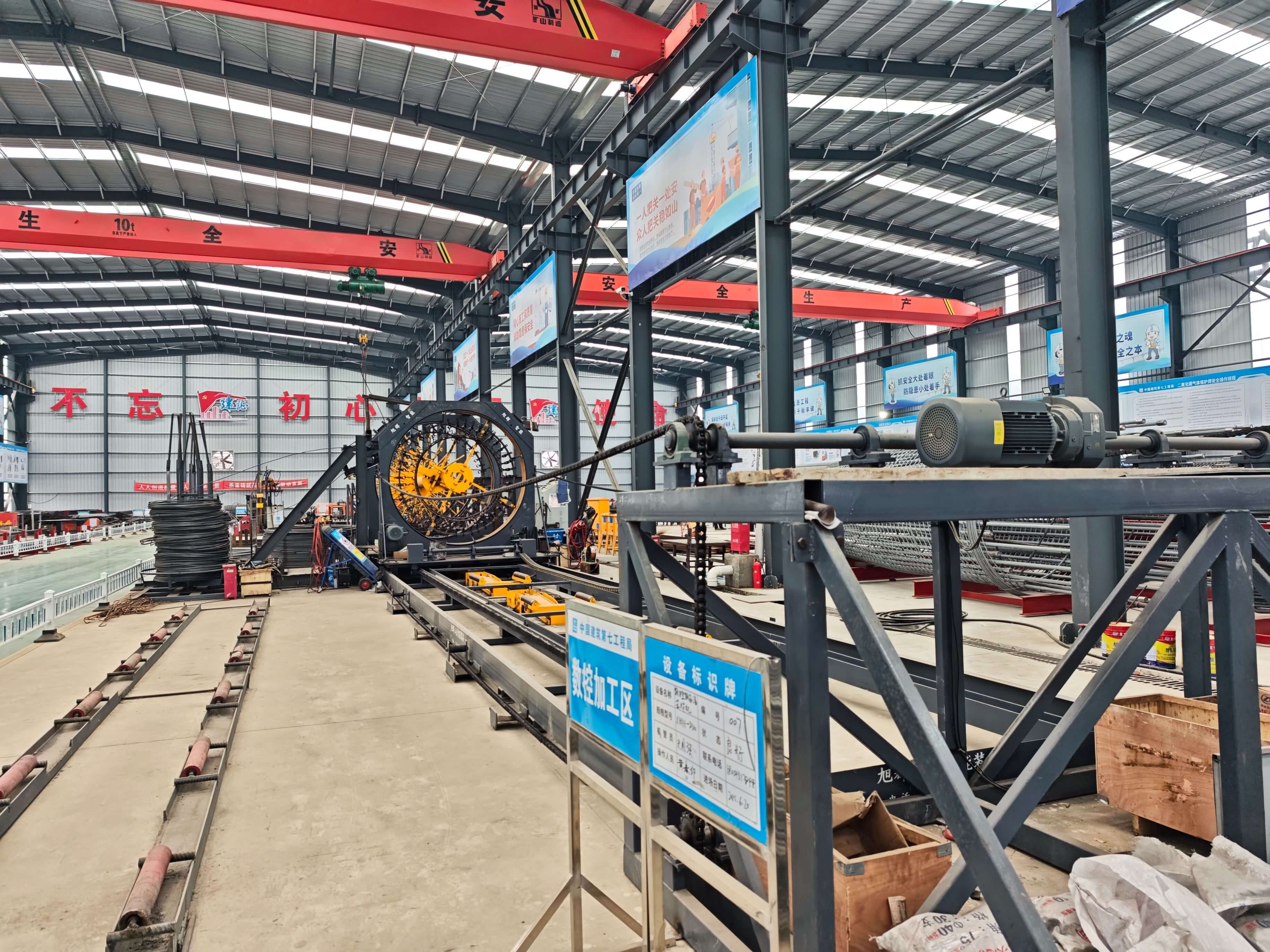

Our core product line includes the XH-GJ series CNC steel cage rolling machines, which integrate advanced welding technology with precision control systems. These machines are specifically designed for large-scale infrastructure projects including highway bridges, railway tunnels, airport terminals, and power plant construction. With CE certification and global export capabilities, our equipment has been successfully implemented in over 30 countries across Asia, Europe, and Africa.
Technical Advantages of Our Steel Cage Production Systems
The Xuhui XH-GJ series represents the fourth generation of our automated steel cage fabrication technology, incorporating several key innovations that set it apart from conventional equipment:
1. Precision Welding Control System
Our proprietary welding algorithm ensures consistent electrode pressure and current distribution across the entire welding cycle. This maintains weld quality even when processing different steel grades (HRB335 to HRB500) and diameters (12mm-50mm). The system automatically adjusts parameters based on material specifications, reducing manual intervention by 70%.
2. Modular Machine Design
The equipment features a standardized modular structure with quick-change components for different cage diameters (800-2500mm) and lengths (up to 18m). This allows rapid reconfiguration between projects without requiring complete machine overhauls. The main frame uses high-strength Q345B steel with finite element analysis optimization to ensure stability during high-speed operation.
3. Intelligent Fault Diagnosis
Equipped with over 200 sensors monitoring critical parameters including temperature, vibration, and electrical current, the system provides real-time diagnostics through our XH-Cloud platform. Operators receive instant alerts about potential issues via mobile app, enabling preventive maintenance that reduces downtime by 40% compared to traditional equipment.
4. Energy-Efficient Operation
Through optimized power distribution and regenerative braking technology, our machines consume 25% less electricity than comparable models while maintaining production speeds of 8-12 cages per hour (depending on specifications). The welding transformer uses nano-crystalline core material that reduces energy loss by 18%.
Complete Production Line Solutions

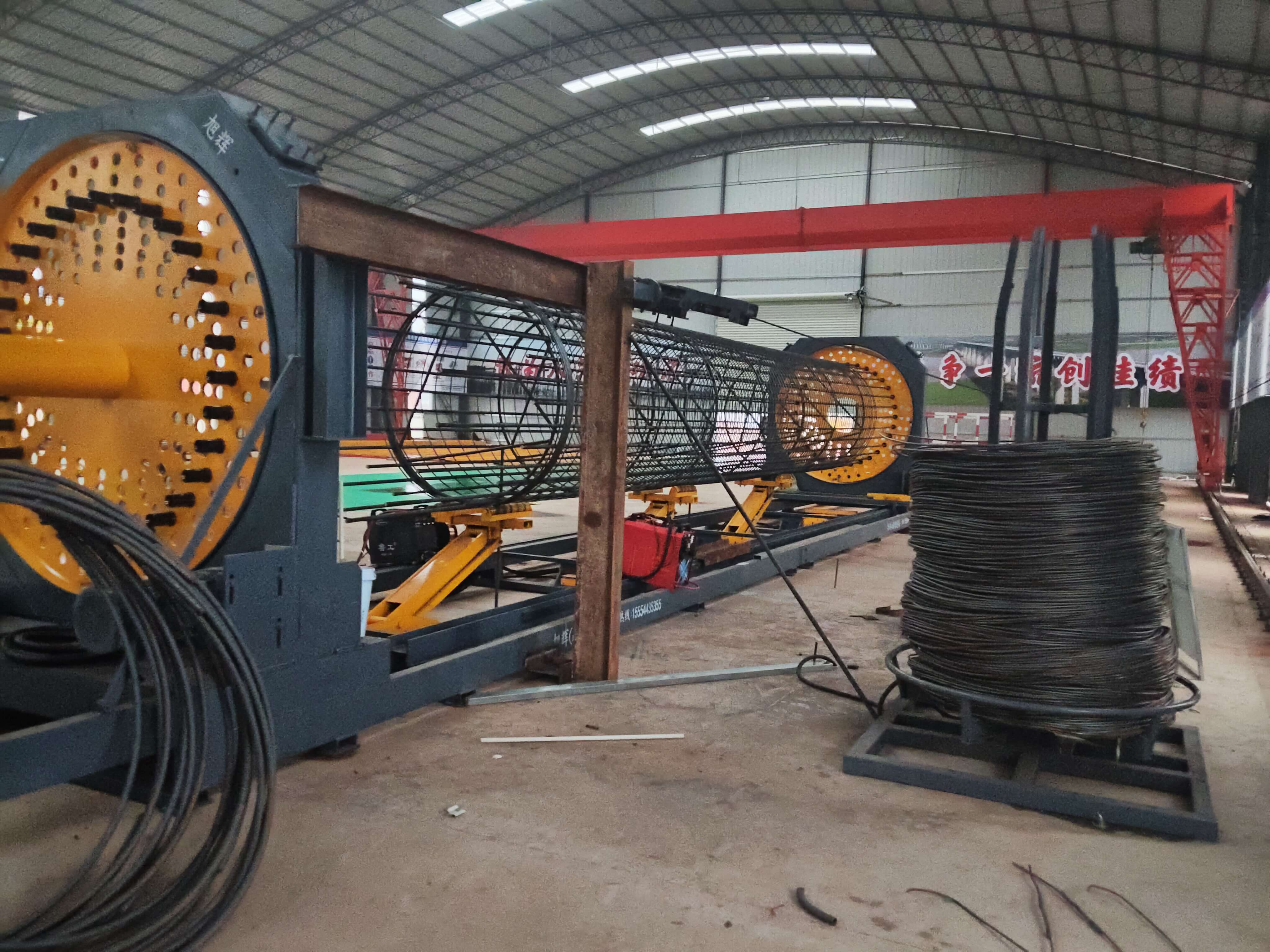

Beyond individual machines, we offer complete steel cage production lines that integrate multiple processes into a seamless workflow:
1. Material Handling System
Automated storage and retrieval systems (AS/RS) feed steel coils to uncoiling machines with tension control, ensuring consistent material supply to the cutting and bending stations. This reduces material waste by 15% through precise length control.
2. Welding Station Configuration
Our standard production line includes 8-12 welding heads arranged in a circular pattern, enabling simultaneous welding of multiple longitudinal bars. For special projects requiring complex cage geometries, we can customize configurations with up to 24 welding heads.
3. Quality Inspection Module
Integrated laser scanning systems perform 3D measurement of finished cages, verifying dimensional accuracy to ±2mm and straightness to ±5mm/m. Data is automatically recorded in our XH-Trace system for quality追溯 and compliance reporting.
4. Packaging and Logistics
The production line concludes with automated bundling and marking stations that prepare cages for transport according to project requirements. Our packaging system handles cages up to 18m long with adjustable spacing to prevent deformation during shipping.
| Production Line Model | Capacity | Power Requirement | Floor Space |
|---|---|---|---|
| XH-GJ800 | 6-8 cages/hour | 180kW | 800m² |
| XH-GJ1200 | 8-12 cages/hour | 220kW | 1200m² |
| XH-GJ1500 | 10-15 cages/hour | 280kW | 1500m² |
Global Project Implementation Experience
Our equipment has been successfully deployed in major infrastructure projects worldwide:
- Middle East: Supplied 12 production lines for the Riyadh Metro Project in Saudi Arabia, producing 1,200 steel cages per month with 99.7% uptime
- Southeast Asia: Customized XH-GJ1200 lines for the Jakarta-Bandung High-Speed Rail in Indonesia, achieving 15% higher production efficiency than local competitors
- Africa: Installed 6 production lines for the Nairobi-Mombasa Expressway in Kenya, reducing labor costs by 60% through automation
- Europe: Provided CE-certified equipment for the Istanbul New Airport project in Turkey, meeting strict EU safety and quality standards
FAQ
What makes your CNC steel cage rolling machines different from other manufacturers?
Our machines feature three key differentiators: 1) Proprietary welding control algorithm that maintains consistent quality across different steel grades; 2) Modular design allowing rapid reconfiguration between projects; 3) Industry-leading 5-year warranty on main components compared to the standard 2-year warranty in the market.
How do you ensure equipment compatibility with our existing production systems?
We conduct detailed site surveys before project implementation, analyzing factors like available power supply, workshop layout, and material specifications. Our engineers then develop customized integration plans that may include adding intermediate buffers, adjusting conveyor heights, or modifying control interfaces to ensure seamless operation with your existing equipment.
What training and support do you provide after equipment delivery?
All our machines come with comprehensive documentation in multiple languages. We provide: 1) On-site training for 3-5 operators covering machine operation, basic maintenance, and safety procedures; 2) 24/7 remote technical support through our XH-Cloud platform; 3) Annual preventive maintenance visits by certified engineers; 4) Spare parts inventory management recommendations to minimize downtime.
Can your machines process special steel grades required for seismic zones?
Yes, our equipment is capable of processing high-strength steel grades up to HRB600 with proper parameter adjustments. For seismic applications requiring specific welding procedures, we can customize the welding head configuration and control algorithms to meet ASTM A1064 or equivalent standards, with certification available upon request.
What is your lead time for customized production lines?
Standard production lines typically require 120-150 days from order confirmation to delivery, including 60 days for manufacturing, 30 days for assembly and testing, and 30-60 days for shipping depending on the destination. For customized configurations requiring special components or additional modules, we recommend adding 30-45 days to the schedule to ensure proper engineering and quality control.
Summary
As a professional CNC steel cage rolling machine manufacturer with global export capabilities, Xuhui (Shandong) Intelligent Equipment Co., Ltd. combines advanced technology with practical engineering experience to deliver production solutions that enhance both quality and efficiency in infrastructure projects. Our complete range of automated steel cage fabrication equipment, backed by comprehensive technical support and customization services, has made us the preferred supplier for major construction companies worldwide. Whether for highway bridges, railway tunnels, or airport terminals, our machines help clients achieve consistent quality while reducing production costs and meeting tight project deadlines.
