In modern infrastructure construction, the quality and efficiency of steel reinforcement processing directly determine the safety and durability of structures. As a leading manufacturer of CNC steel reinforcement equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in providing automated steel cage welding stations that meet international standards. Our advanced solutions have been successfully implemented in highway, railway, airport, and bridge projects across the globe, helping clients achieve standardized, efficient, and high-quality steel reinforcement processing.
Core Advantages of Our CNC Steel Cage Welding Stations

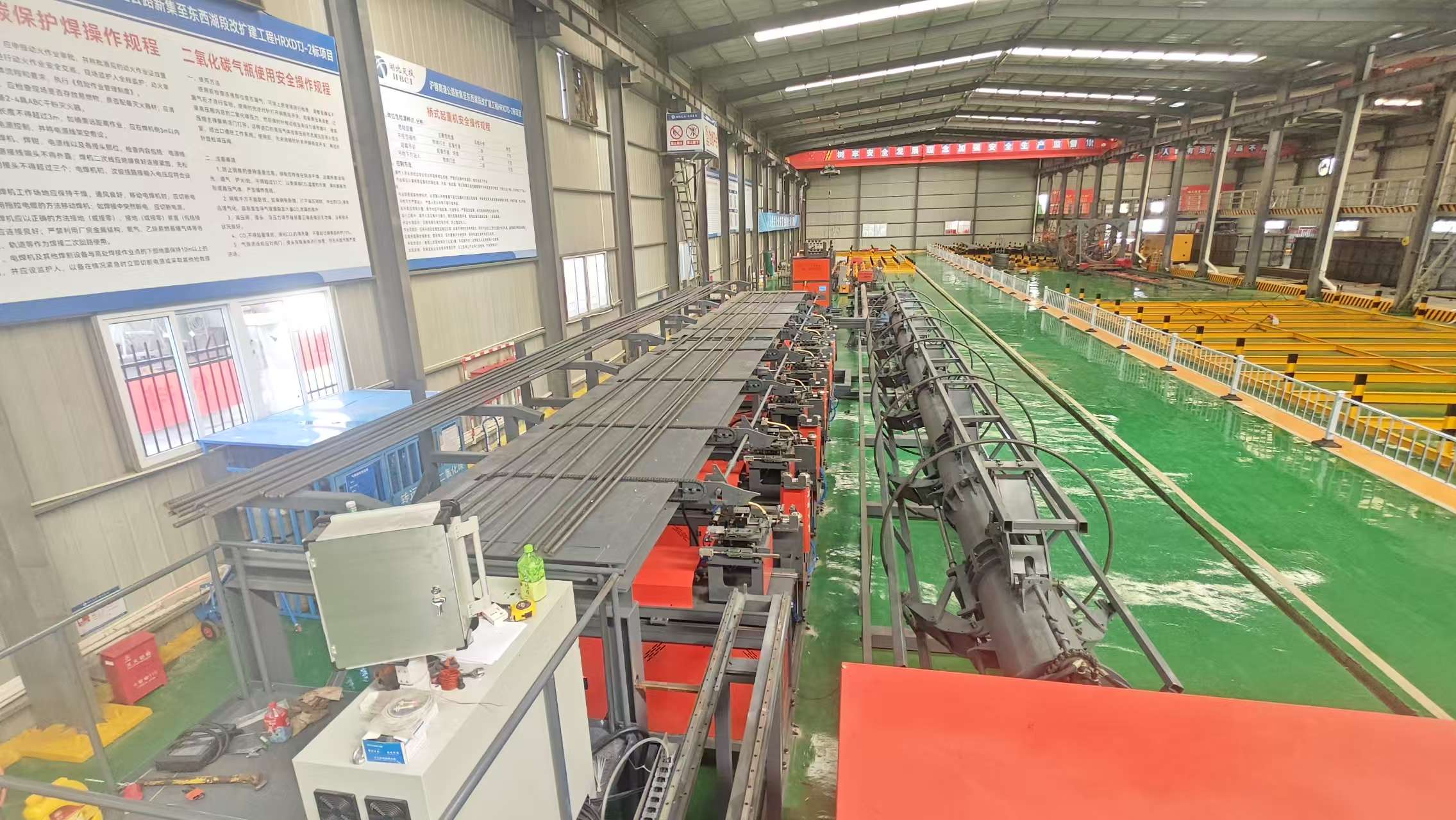

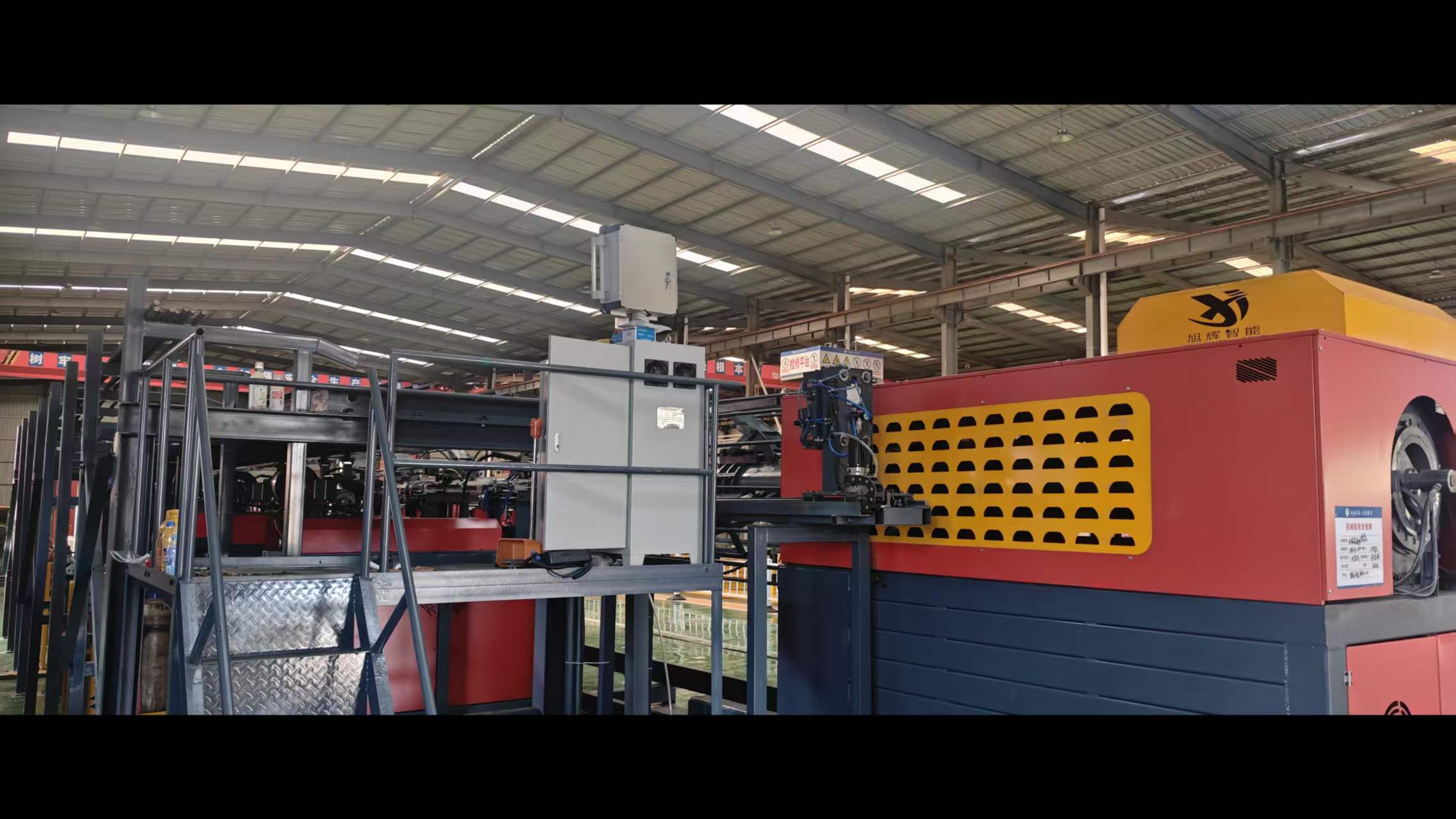

Our automated steel cage welding stations represent the pinnacle of modern steel reinforcement processing technology. These systems integrate multiple functions including automatic feeding, precise positioning, high-speed welding, and quality inspection. The equipment features advanced CNC control systems that ensure consistent welding quality with ±1mm precision, meeting the most demanding engineering requirements.
The modular design of our welding stations allows for flexible configuration according to different project needs. Whether for standard bridge piles or complex foundation structures, our equipment can be customized with various welding parameters and cage dimensions. This adaptability makes our solutions ideal for both small-scale projects and large infrastructure developments requiring high-volume production.
Energy efficiency is another key advantage. Our welding stations consume 30% less power compared to traditional equipment while maintaining higher production speeds. The intelligent power management system automatically adjusts energy consumption based on workload, reducing operational costs without compromising performance. This combination of efficiency and quality has made our equipment the preferred choice for many international construction projects.
Technical Specifications and Performance Parameters
Our standard CNC steel cage welding station model XH-RCW3000 offers the following specifications:
| Parameter | Specification |
|---|---|
| Max cage diameter | 3000mm (customizable up to 5000mm) |
| Max cage length | 18m (extendable) |
| Rebar diameter range | 12-50mm |
| Welding speed | 40-60 points/min |
| Power requirement | 380V/50Hz, 3-phase |
| Total power | 45kW (variable) |
| Control system | Siemens PLC + HMI touchscreen |
The equipment features dual-spindle rotation for simultaneous welding of multiple longitudinal bars, significantly improving production efficiency. The automatic wire feeding system ensures consistent welding quality while reducing material waste. Our patented welding head design provides stable arc performance even under high-speed operation, producing welds that meet or exceed ASTM A36 and EN 10025 standards.
Customization Options for Special Projects
Understanding that different projects have unique requirements, we offer extensive customization options for our steel cage welding stations. For tunnel construction projects, we can equip the machines with special clamping systems to handle irregularly shaped reinforcement cages. For offshore projects requiring corrosion resistance, we can integrate stainless steel processing capabilities and special coating systems.
Our engineering team works closely with clients during the design phase to develop solutions that match specific project needs. This includes adjusting the machine’s working range, integrating with existing production lines, or adding specialized quality control systems. All customizations maintain our commitment to CE certification standards while providing the flexibility needed for complex engineering projects.
Global Applications and Project Cases
Our automated steel cage welding stations have been successfully implemented in numerous international projects. In Southeast Asia, our equipment supports the construction of a major highway network, producing over 200 steel cages per day with consistent quality. In the Middle East, our customized solution for a desert highway project included special dust protection systems and high-temperature operation capabilities.
For a European bridge reconstruction project, we supplied welding stations with enhanced precision controls to meet strict European engineering standards. The equipment’s ability to produce complex reinforcement cages with minimal manual intervention helped reduce construction time by 35% while improving structural integrity. These projects demonstrate our equipment’s adaptability to different environmental conditions and engineering requirements.
In Africa, our equipment supports the development of new airport infrastructure, handling large-diameter reinforcement cages for terminal buildings. The machines’ reliability in challenging conditions and our local technical support have made them the preferred choice for several major infrastructure programs in the region. These global applications confirm our solutions’ effectiveness across diverse construction environments.
Comprehensive Service and Support System
We understand that reliable equipment performance depends not just on quality manufacturing but also on professional support services. Our global service network provides complete pre-sales, installation, and after-sales support. Before delivery, each machine undergoes rigorous testing to ensure it meets our quality standards and client specifications.
Our installation teams provide on-site training covering equipment operation, maintenance procedures, and safety protocols. We offer multilingual technical manuals and video tutorials to ensure operators can quickly master the equipment. For international clients, we provide remote technical support through video conferencing and have established regional service centers for timely on-site assistance.
Regular maintenance programs help maximize equipment lifespan and maintain optimal performance. We stock critical spare parts in multiple global warehouses to ensure quick replacement when needed. Our preventive maintenance system tracks equipment usage and automatically schedules service intervals, helping clients avoid unexpected downtime and reduce long-term operational costs.
FAQ
What makes your steel cage welding stations different from other manufacturers?
Our equipment combines three key advantages: CE certification ensuring international quality standards, complete customization capabilities to meet specific project requirements, and energy-efficient design that reduces operational costs. The Siemens control system provides precise welding parameters while our patented welding head design ensures consistent quality even at high speeds.
How long does it take to train operators for your welding stations?
We provide comprehensive training programs that typically take 3-5 days depending on the operator’s experience level. The training covers equipment operation, basic maintenance, safety procedures, and troubleshooting. We also offer follow-up online training and provide detailed operation manuals in multiple languages to ensure operators can fully utilize the equipment’s capabilities.
What maintenance is required for your steel cage welding stations?
Regular maintenance includes daily cleaning of the welding head, weekly lubrication of moving parts, and monthly inspection of electrical components. We provide a detailed maintenance schedule with each machine and our service team can help develop a customized maintenance plan based on your production volume. Preventive maintenance typically takes 2-4 hours per week depending on usage.
Can your equipment handle different rebar grades and sizes?
Yes, our welding stations are designed to process rebar grades from ASTM A615 to BS 4449 and diameters from 12mm to 50mm. The equipment automatically adjusts welding parameters based on the rebar specifications entered through the HMI touchscreen. For special applications, we can equip the machine with additional sensors to handle non-standard rebar grades or coated reinforcement bars.
What warranty do you offer for your steel cage welding stations?
We provide a standard 12-month warranty covering all mechanical and electrical components. During this period, we offer free replacement of defective parts and on-site repair services for major issues. The warranty can be extended up to 36 months through our extended service packages, which also include priority spare parts delivery and regular preventive maintenance visits.
Summary
Xuhui (Shandong) Intelligent Equipment Co., Ltd. stands as a global leader in automated steel cage welding solutions, combining advanced technology with professional services to support infrastructure development worldwide. Our CE-certified CNC steel cage welding stations offer unmatched precision, efficiency, and reliability, helping clients improve construction quality while reducing costs and timelines. With complete customization options, comprehensive technical support, and a proven track record in international projects, we are the ideal partner for modern infrastructure construction needs.
