In modern tunnel construction projects, the demand for efficient and precise pipe processing equipment continues to grow. As a professional manufacturer based in Heze, Shandong – China’s well-known engineering machinery manufacturing base, Xuhui Intelligent Equipment specializes in developing and producing automatic small duct production lines that meet international standards. Our tunnel-specific machinery has been successfully applied in highway tunnels, railway tunnels, urban subways, and other infrastructure projects worldwide.

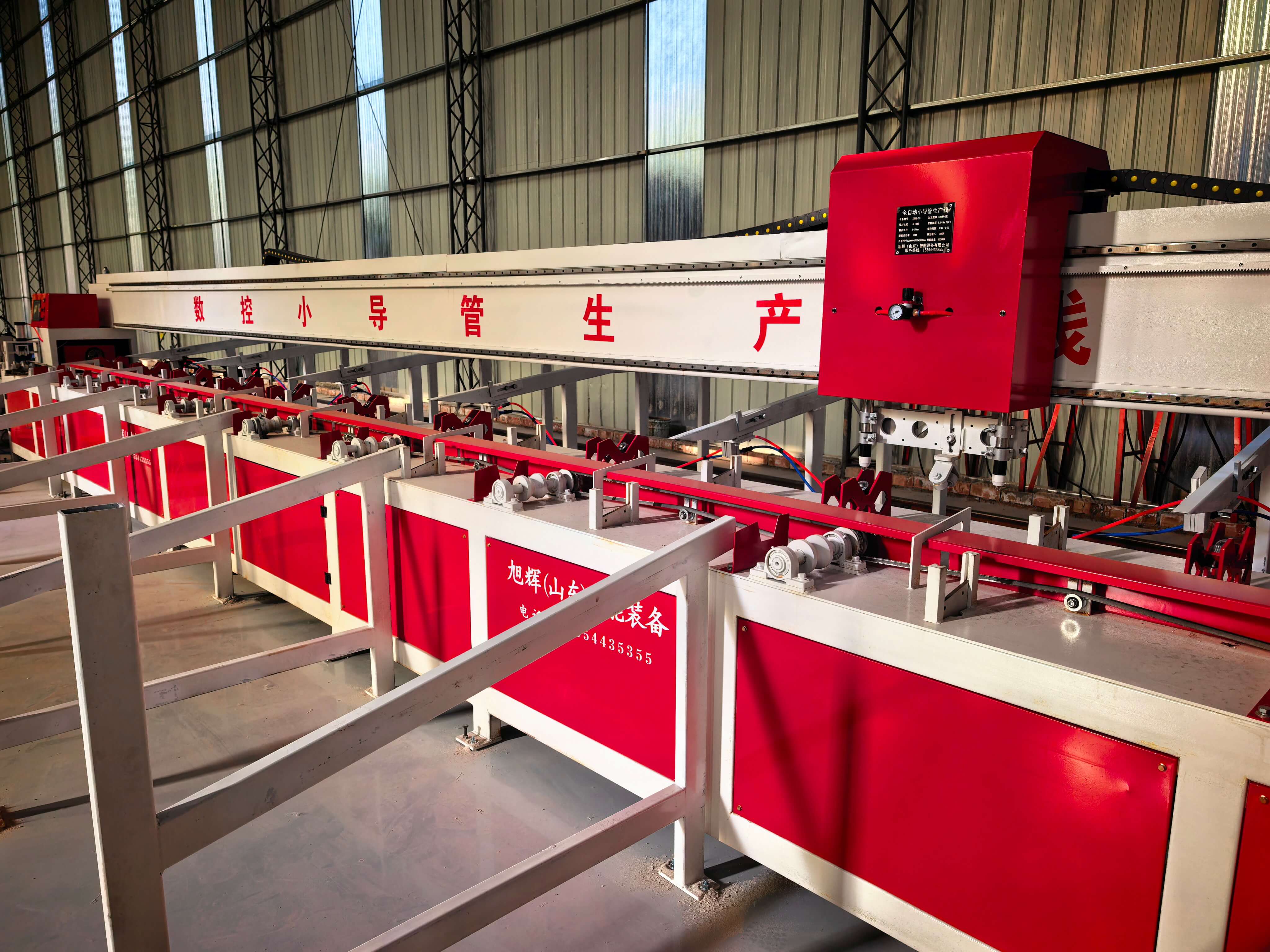

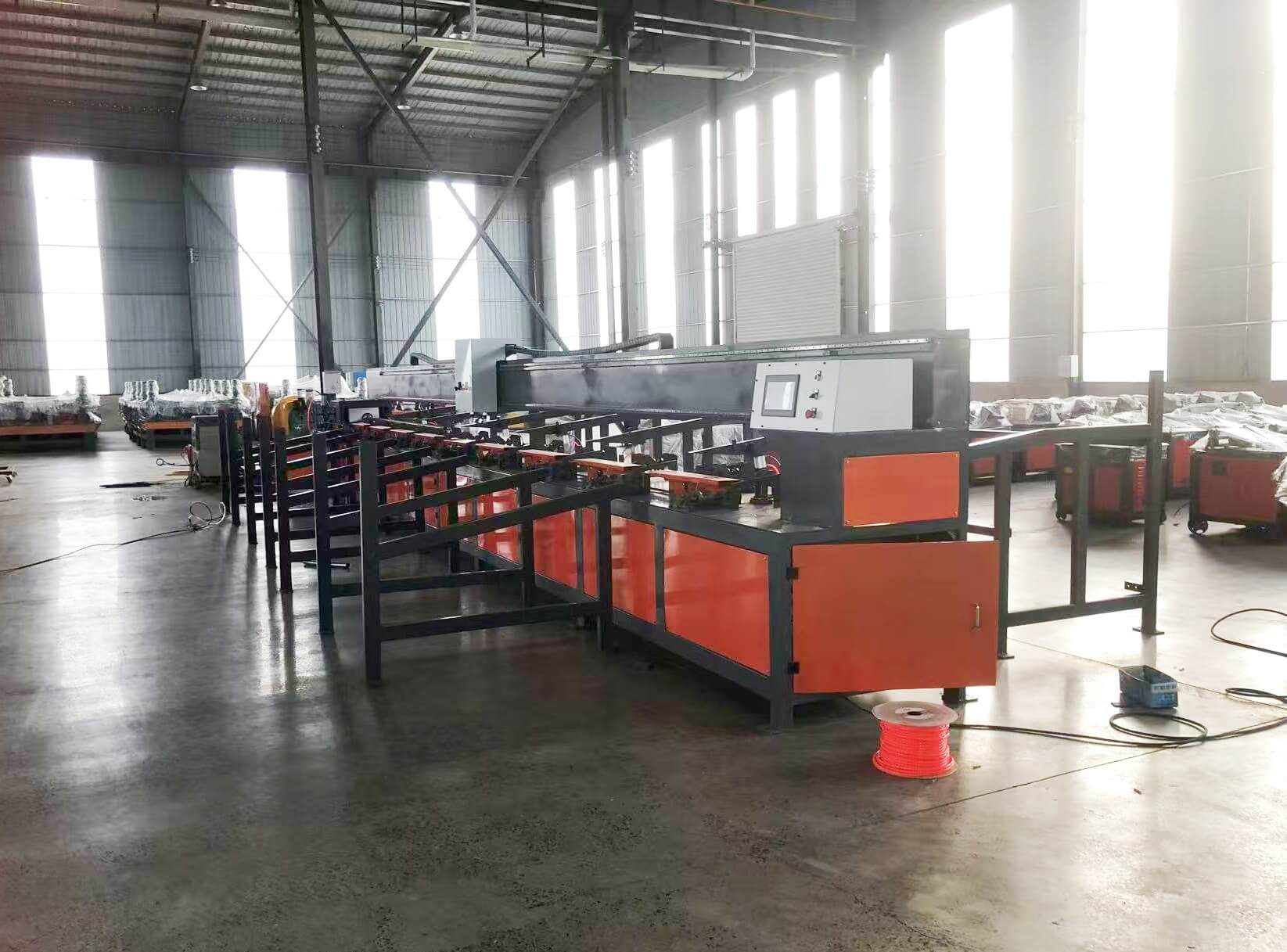

Core Components of Automatic Small Duct Production Line
Our fully automatic production line integrates multiple processing functions into one system, including pipe feeding, cutting, hole punching, threading, and end forming. The equipment features advanced CNC control systems that enable precise parameter settings for different project requirements. The modular design allows for flexible configuration based on specific tunnel construction needs.
The pipe feeding system uses high-precision servo motors to ensure stable material transportation. The cutting unit employs plasma or laser cutting technology with automatic compensation functions to maintain cutting accuracy even when processing different material thicknesses. The hole punching station can complete multiple hole patterns in one operation, significantly improving processing efficiency compared to traditional methods.
The threading unit is equipped with automatic tool changing capabilities and can handle various thread specifications. The end forming station performs precise pipe end shaping operations including beveling, flaring, and reducing. The entire production line is monitored by an intelligent control system that provides real-time production data and fault diagnosis.
Technical Advantages of Xuhui’s Tunnel Equipment
Our automatic small duct production lines offer several key advantages that make them ideal for tunnel construction projects. First, the integrated design reduces the need for multiple standalone machines, saving both space and setup time. The fully automated operation minimizes human intervention, improving both safety and processing consistency.
The equipment’s high precision ensures that all processed pipes meet strict engineering standards. The CNC control system allows for easy parameter adjustment, enabling quick switching between different pipe specifications. This flexibility is particularly valuable in projects with varying requirements or when processing pipes for different tunnel sections.
Key Technical Specifications
The production line can process pipes with diameters ranging from 32mm to 200mm, with length capabilities up to 12 meters. The cutting precision reaches ±0.5mm, while threading accuracy maintains ±0.2mm tolerance. The hole punching station can handle hole diameters from 6mm to 50mm with positioning accuracy of ±0.1mm. The equipment operates at processing speeds of 0.5-2 meters per minute, depending on specific operations.
The control system supports multiple languages and features a user-friendly interface. It includes production data recording functions, maintenance reminders, and remote diagnostic capabilities. The equipment is designed for 24-hour continuous operation with robust components that ensure long-term reliability in demanding tunnel environments.
| Component | Function | Technical Parameters |
|---|---|---|
| Pipe Feeding | Automatic material transportation | 32-200mm diameter, 12m max length |
| Cutting Unit | Precision pipe cutting | ±0.5mm accuracy, 0.5-2m/min speed |
| Hole Punching | Multi-hole pattern processing | 6-50mm holes, ±0.1mm positioning |
| Threading Unit | Automatic pipe threading | ±0.2mm accuracy, multiple specifications |
| End Forming | Pipe end shaping | Beveling, flaring, reducing capabilities |
Global Application Cases
Xuhui’s automatic small duct production lines have been successfully implemented in numerous tunnel projects worldwide. In Southeast Asia, our equipment supported the construction of a major highway tunnel network, where the integrated processing capabilities helped reduce project timelines by 30% compared to traditional methods. The precise hole punching function enabled accurate installation of support systems, improving overall tunnel stability.
In Middle Eastern railway tunnel projects, our equipment demonstrated exceptional reliability in harsh desert environments. The dust-proof design and robust components maintained consistent performance despite extreme temperature variations. The automatic threading function ensured all support pipes met exact specifications, critical for the project’s seismic resistance requirements.
For European urban subway projects, our equipment’s compact design and low-noise operation proved advantageous in densely populated areas. The precise cutting and end forming capabilities enabled direct installation without additional processing, reducing material waste and construction costs. The equipment’s multi-language control system also facilitated easy operation by local technicians.
FAQ
What makes Xuhui’s automatic small duct production line different from other manufacturers?
Our production line integrates all processing functions into one system, eliminating the need for multiple standalone machines. The equipment features advanced CNC control with precise parameter settings and real-time monitoring. As a CE-certified manufacturer, we ensure all components meet international safety and quality standards. Our modular design also allows for customization based on specific project requirements.
How does the equipment ensure processing precision for different pipe specifications?
The production line uses high-precision servo motors and advanced cutting technologies with automatic compensation functions. The CNC control system stores precise parameters for different pipe diameters, lengths, and processing requirements. The equipment also includes automatic calibration functions that adjust for material variations, ensuring consistent precision across all operations.
What maintenance is required for the automatic production line?
We provide detailed maintenance manuals and training programs for all equipment. The production line features self-diagnostic functions that alert operators to potential issues before they become major problems. Key components like cutting tools and punching dies have wear indicators showing when replacement is needed. We recommend regular maintenance checks every 500 operating hours, with more comprehensive inspections annually.
Can the equipment be customized for specific tunnel projects?
Yes, our modular design allows for extensive customization. We can adjust pipe size capacities, processing speeds, and functional combinations based on project requirements. The control system can be programmed with specific hole patterns, threading specifications, and end forming shapes. We also offer options for different power supplies and safety features to comply with various country regulations.
How does Xuhui ensure equipment quality for international projects?
All our equipment undergoes rigorous testing before shipment, including 72-hour continuous operation tests. We use high-quality components from reputable suppliers and implement strict quality control throughout the manufacturing process. As a CE-certified manufacturer, our equipment meets European safety and quality standards. We also provide comprehensive documentation including operation manuals, maintenance guides, and spare parts lists in multiple languages.
Summary
Xuhui Intelligent Equipment’s automatic small duct production lines represent the cutting edge in tunnel construction machinery. By integrating multiple processing functions into one efficient system, we help tunnel projects worldwide improve precision, reduce costs, and enhance safety. Our CE-certified equipment, backed by comprehensive global support services, provides reliable solutions for even the most demanding tunnel environments. With our commitment to continuous innovation and customer-focused service, we remain at the forefront of the tunnel equipment manufacturing industry.
