In modern construction projects, especially in highway, railway, and bridge engineering, the precision and efficiency of steel bar processing directly impact project quality and progress. As a key equipment in steel bar processing, the fully automatic CNC hydraulic steel bar straightening and cutting machine plays a crucial role. This article will provide a comprehensive guide to help you understand how to select the most suitable equipment from professional manufacturers like Xuhui (Shandong) Intelligent Equipment Co., Ltd.
Understanding the Core Functions of CNC Hydraulic Steel Bar Processing Equipment

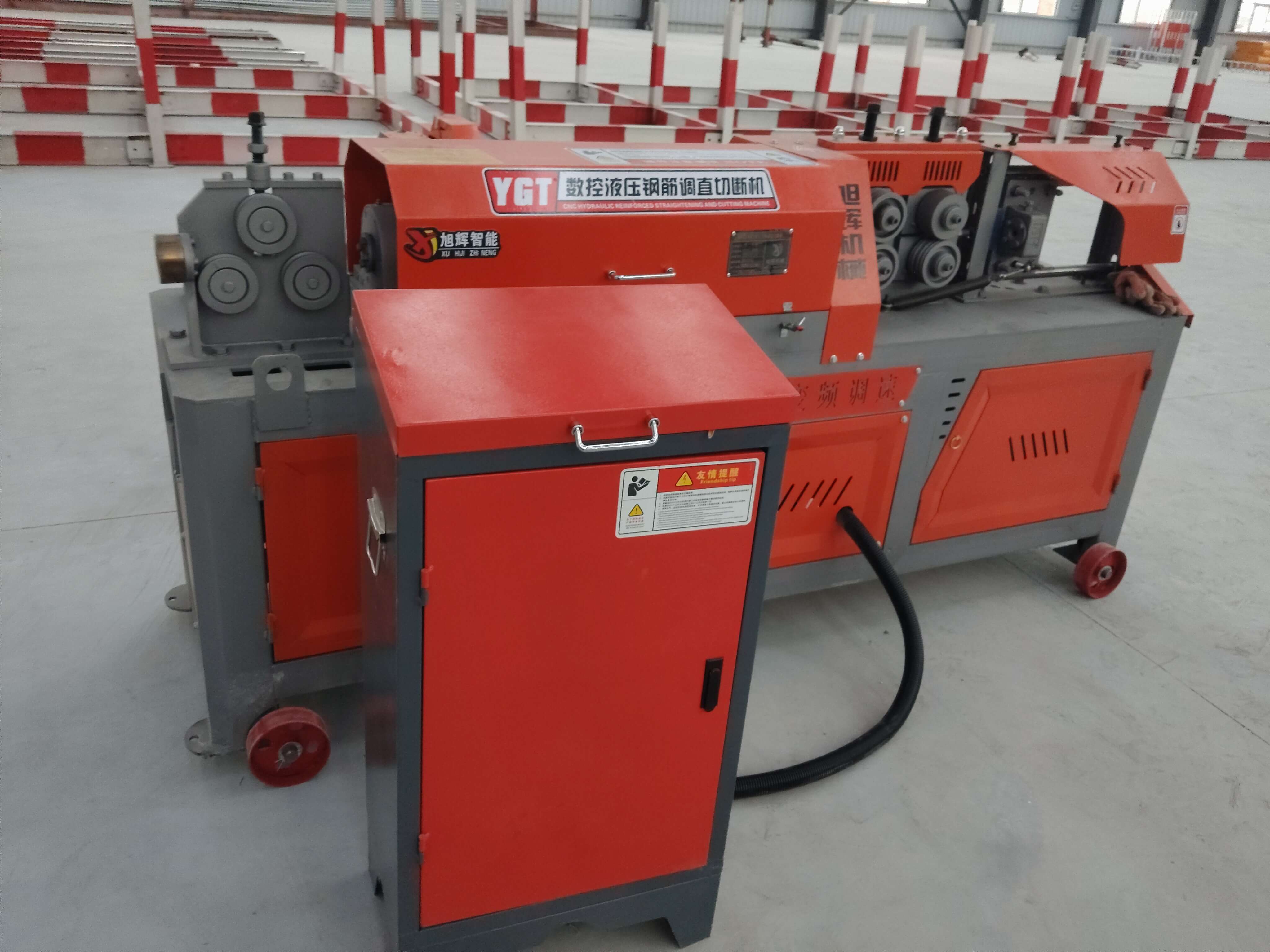

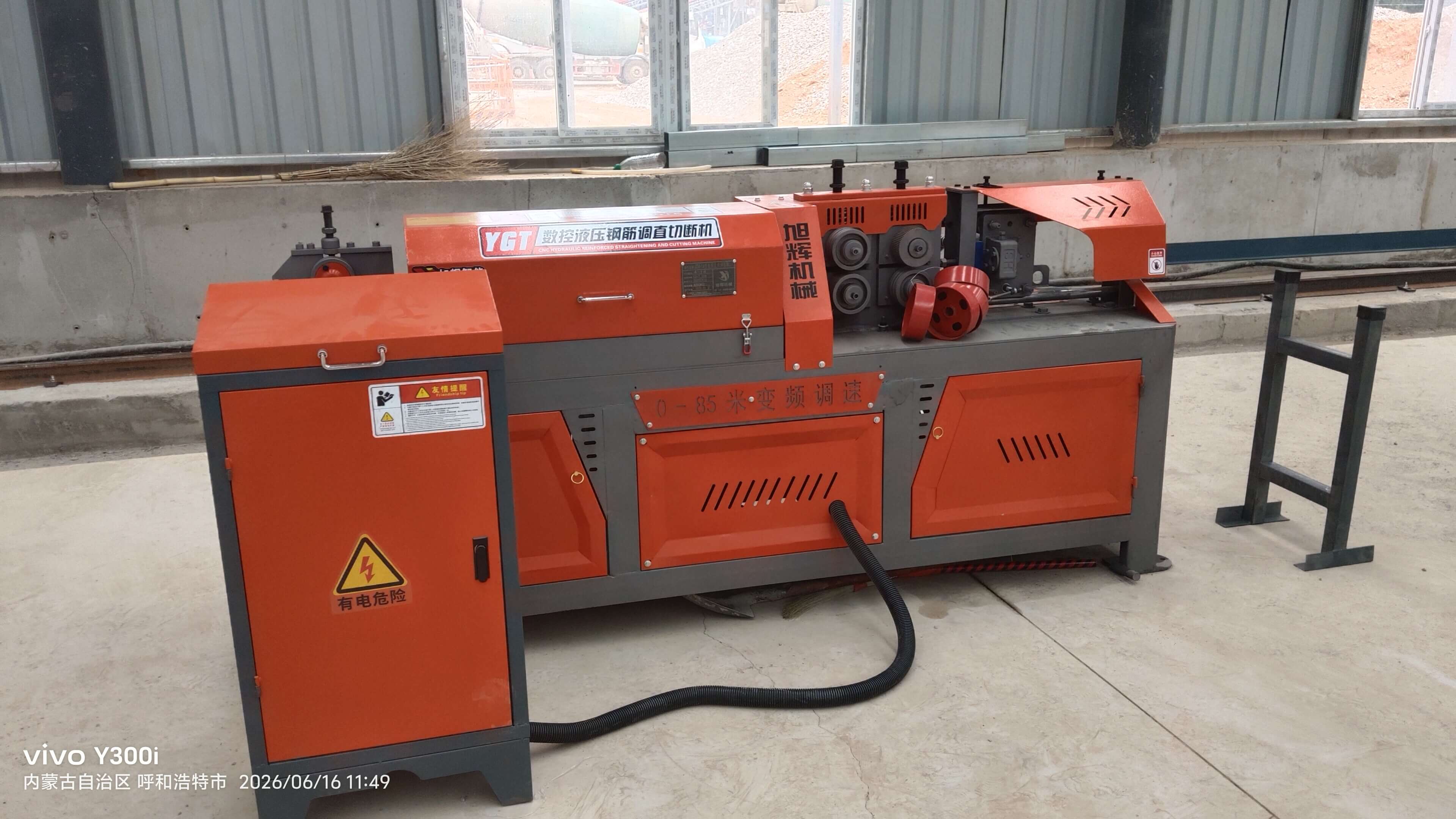

The fully automatic CNC hydraulic steel bar straightening and cutting machine integrates multiple functions including straightening, cutting, and sometimes bending in a single unit. This equipment utilizes advanced CNC technology and hydraulic systems to achieve high-precision processing of steel bars with diameters typically ranging from 6mm to 40mm. The core advantage lies in its ability to transform bent steel bars into straight, precisely cut lengths with consistent quality, eliminating manual operations and reducing human error.
For highway construction projects, where large volumes of steel bars need processing for reinforcement cages and mesh, this equipment ensures uniformity in dimensions and straightness. In bridge engineering, particularly for pre-stressed concrete structures, the precise cutting of steel bars according to design specifications is critical for structural integrity. The hydraulic system provides stable pressure during straightening, preventing damage to the steel bar’s internal structure while achieving the required straightness.
Key Selection Criteria for CNC Hydraulic Steel Bar Machines
When evaluating different manufacturers and models, several technical parameters should be prioritized:
- Processing Accuracy: Look for machines with ±1mm cutting accuracy and straightening accuracy within 2mm/m. This ensures compliance with construction standards for highway and bridge projects.
- Production Capacity: Consider the maximum processing speed (measured in meters per minute) and daily output capacity. For large-scale projects, equipment capable of processing 5-10 tons per shift is ideal.
- Material Compatibility: Verify the machine’s ability to handle different steel grades (HRB335, HRB400, etc.) and diameters. Some advanced models can process both round and deformed steel bars.
- Automation Level: Fully automatic models with features like automatic feeding, measuring, cutting, and unloading reduce labor requirements and improve safety. CNC control systems with touchscreen interfaces simplify operation.
- Durability:
Check the construction quality, especially the hydraulic components and cutting blades. Machines with heavy-duty frames and wear-resistant parts require less maintenance and have longer service lives.
Technical Specifications Comparison Table
| Parameter | Xuhui Model XH-40 | Industry Average |
|---|---|---|
| Steel Bar Diameter Range | 6-40mm | 6-32mm |
| Straightening Accuracy | ≤1.5mm/m | ≤2mm/m |
| Cutting Accuracy | ±0.5mm | ±1mm |
| Max Processing Speed | 60m/min | 45m/min |
| Power Consumption | 15kW | 22kW |
Why Choose Xuhui (Shandong) Intelligent Equipment Co., Ltd.
As a professional manufacturer located in Heze, Shandong – China’s renowned engineering machinery manufacturing base, Xuhui specializes in R&D, production, and sales of CNC steel bar processing equipment. Our product line includes steel arch frame production lines, reinforcement cage welding workstations, and fully automatic small conduit production lines, all designed to provide standardized solutions for construction steel bar processing.
For highway and bridge projects, our equipment offers several competitive advantages:
- Customized Solutions: We can design dedicated equipment and production lines according to specific project requirements, ensuring optimal performance for different construction scenarios.
- Global Certification: All products pass CE certification, meeting international quality standards for export to global markets.
- Comprehensive Service: From installation guidance to operator training and maintenance consulting, we provide full lifecycle support to ensure equipment reliability.
- Proven Track Record: Our equipment serves major infrastructure projects including highways, high-speed railways, airports, and power plants worldwide.
Application Scenarios in Construction Projects
In highway construction, our CNC hydraulic steel bar straightening and cutting machines excel in processing reinforcement for bridge piers, abutments, and superstructures. The precise cutting ensures proper lap splicing lengths, while the straightening function guarantees optimal concrete bonding. For tunnel projects, the equipment efficiently processes steel bars for initial support and secondary lining, with special models available for small conduit production.
In bridge engineering, particularly for pre-stressed concrete bridges, our machines deliver the high precision required for tendon processing. The automatic measuring and cutting system eliminates manual errors, ensuring each steel bar meets design specifications exactly. This precision is crucial for maintaining the bridge’s structural integrity over its service life.
FAQ
What factors determine the price of CNC hydraulic steel bar straightening and cutting machines?
The price depends on processing capacity, automation level, and included features. Xuhui offers competitive pricing by optimizing production processes while maintaining quality. Our XH-40 model with 6-40mm processing range costs approximately $18,000-$25,000 depending on configuration.
How does your equipment ensure processing precision for highway projects?
Our machines use high-precision servo motors for measuring and cutting, with closed-loop control systems that automatically correct deviations. The hydraulic straightening unit applies consistent pressure, and we include laser alignment systems on premium models for maximum accuracy.
What maintenance is required for these machines?
Daily maintenance includes cleaning, lubrication, and inspection of cutting blades. We provide comprehensive maintenance manuals and training. Xuhui also offers spare parts packages and extended warranty options for international clients.
Can your machines process both round and deformed steel bars?
Yes, our equipment is designed to handle both types. The straightening rollers can be adjusted for different bar profiles, and we include special guides for deformed bars to prevent slipping during processing.
How long does it take to train operators for these machines?
We provide on-site training that typically takes 2-3 days, covering operation, safety procedures, and basic maintenance. Our CNC control systems feature intuitive interfaces similar to consumer electronics, making them easy to learn.
Summary
Selecting the right CNC hydraulic steel bar straightening and cutting machine requires careful evaluation of technical specifications, manufacturer capabilities, and after-sales support. Xuhui (Shandong) Intelligent Equipment Co., Ltd. stands out with our focus on construction industry needs, customized solutions, and global service network. Our equipment helps construction companies achieve higher processing precision, improved efficiency, and consistent quality in steel bar processing for highway, bridge, and tunnel projects worldwide.
