In modern infrastructure construction, efficiency and precision are paramount. The fully automatic steel cage rolling welder from Xuhui (Shandong) Smart Equipment Co., Ltd. represents a revolutionary advancement in reinforced steel processing technology. As a professional manufacturer based in Heze, Shandong – China’s engineering machinery manufacturing hub – we specialize in developing, producing, and selling CNC steel reinforcement equipment that meets international standards.
Technical Superiority of Automatic Steel Cage Welding

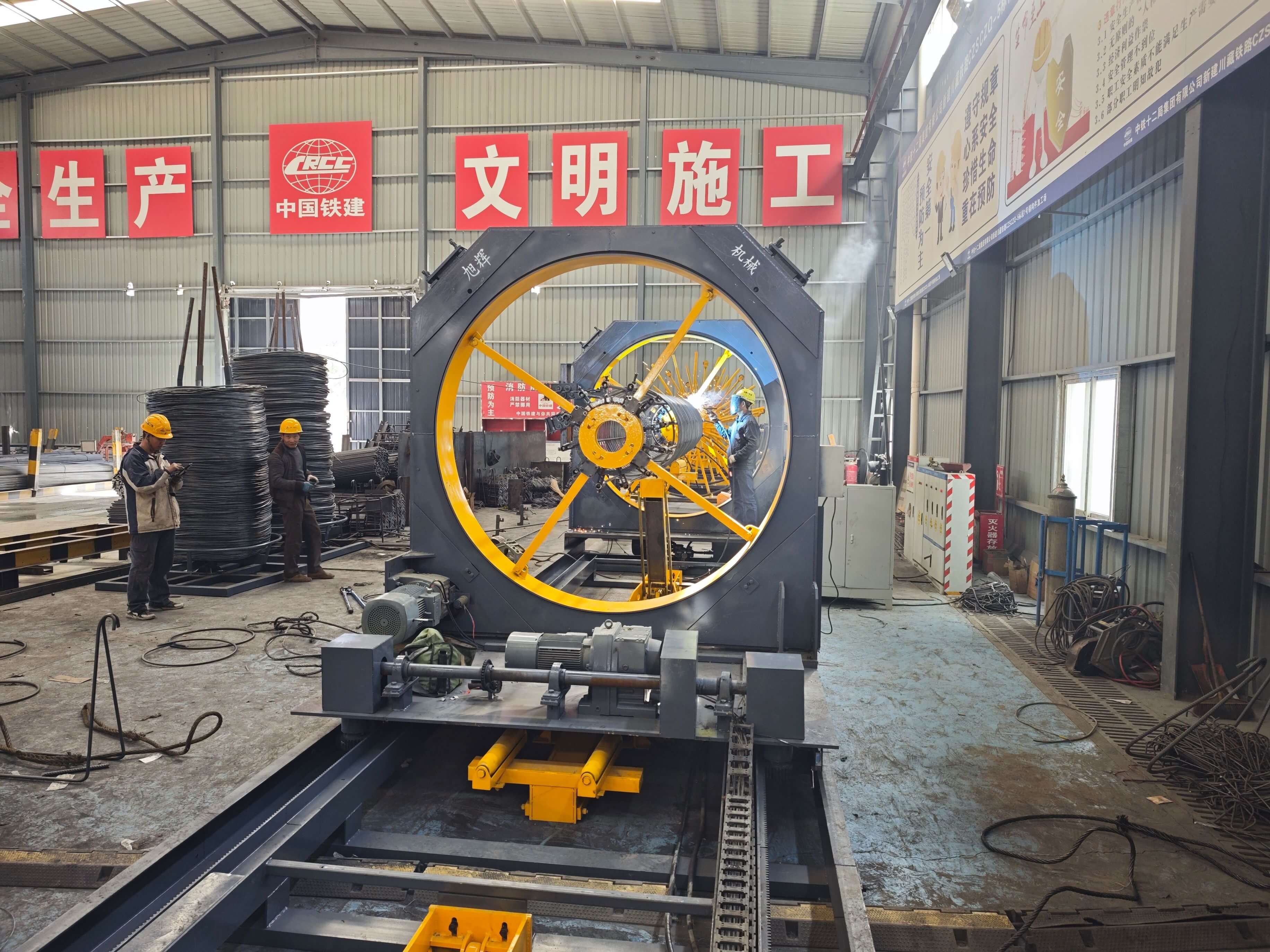

Our flagship product, the fully automatic steel cage rolling welder, integrates advanced CNC technology with precision engineering to deliver unparalleled performance in steel cage production. This equipment automates the entire process from steel bar feeding, straightening, cutting, bending, to welding – eliminating manual operations and significantly improving production efficiency.
The machine features a modular design with adjustable parameters to accommodate various cage diameters (400-2500mm) and bar spacing requirements. With welding speeds reaching 40-60 points per minute and positioning accuracy within ±1mm, our equipment ensures consistent product quality while reducing material waste by up to 15% compared to traditional methods.
Core Components and Safety Features
Built with industrial-grade components, our steel cage rolling welders incorporate several safety innovations:
- Double-layer insulation system for electrical safety
- Emergency stop mechanisms with multi-point activation
- Automatic fault detection and alarm system
- Protective covers for moving parts to prevent operator injury
- Dust-proof design for extended component lifespan
The welding power source uses advanced inverter technology that provides stable arc characteristics across different material thicknesses, ensuring high-quality welds even in challenging working conditions. The integrated cooling system maintains optimal operating temperatures, extending equipment service life.
Application Scenarios and Project Cases
Our automatic steel cage rolling welders have been successfully implemented in numerous high-profile projects worldwide:
Bridge Construction Projects
For the Jakarta-Cikampek Elevated Toll Road in Indonesia, our equipment produced over 5,000 tons of steel cages with zero quality defects during the 18-month construction period. The automated production reduced labor costs by 40% while meeting strict project deadlines.
Tunnel Engineering Applications
In the Singapore Thomson-East Coast MRT Line project, our customized solution handled special-shaped steel cages required for curved tunnel sections. The equipment’s flexible programming capability allowed quick adaptation to different design specifications without production interruption.
High-Speed Rail Construction
Our equipment played a crucial role in the China-Laos Railway project, producing standardized steel cages for pile foundations that withstood complex geological conditions. The CE-certified quality assurance system ensured compliance with international construction standards.
| Technical Parameter | Specification |
|---|---|
| Applicable Bar Diameter | Φ12-Φ50mm |
| Cage Diameter Range | 400-2500mm (adjustable) |
| Welding Speed | 40-60 points/min |
| Power Supply | 380V 50Hz 3-phase |
| Total Power | Approx. 120kW |
Customization Capabilities and Global Support
Understanding that different projects have unique requirements, we offer comprehensive customization services:
- Special cage shape programming for complex structures
- Multi-language control interface for international teams
- Voltage adaptation for different regional standards
- Mobile production line configurations for remote sites
- Integration with existing factory MES systems
Our global service network provides 24/7 technical support through multiple channels. Before delivery, each machine undergoes 72-hour continuous operation testing to ensure reliability. We also offer operator training programs that cover equipment maintenance, troubleshooting, and safety procedures.
FAQ
What makes your steel cage rolling welder different from other manufacturers?
Our equipment features a patented double-helix guiding system that ensures precise bar positioning during high-speed rotation. Combined with our proprietary welding control algorithm, this delivers superior weld quality with minimal spatter. All our machines come with CE certification and comply with ISO 9001 quality management standards.
How long does it take to train operators for this equipment?
We provide comprehensive training programs that typically require 3-5 days for basic operation. The intuitive touchscreen interface with visual guides makes learning straightforward. For advanced maintenance training, we offer additional 2-day courses covering troubleshooting and component replacement.
Can the equipment handle non-standard steel cage shapes?
Yes, our CNC control system supports custom programming for various cage shapes including elliptical, polygonal, and tapered designs. We provide free software updates for new shape templates and offer remote programming assistance for complex projects.
What maintenance is required for optimal performance?
Daily maintenance includes cleaning the welding electrodes and checking lubrication levels. Monthly checks should focus on electrical connections and component wear. We provide detailed maintenance manuals and offer annual inspection services through our global service centers.
How do you ensure equipment quality before shipment?
Each machine undergoes rigorous testing including: 1) Empty run test for 24 hours 2) Load test with maximum capacity for 48 hours 3) Precision verification using laser measurement tools 4) Safety system functionality checks. Only after passing all tests do we apply final packaging for shipment.
Summary
As a professional manufacturer of fully automatic steel cage rolling welders, Xuhui (Shandong) Smart Equipment Co., Ltd. combines technical innovation with practical engineering solutions. Our CE-certified equipment has been proven in major infrastructure projects across Asia, Europe, and Africa, delivering measurable improvements in production efficiency and product quality. With comprehensive customization options and global service support, we help clients worldwide achieve their construction goals with confidence in equipment reliability and performance.
