In the realm of tunnel construction, the efficiency and precision of small duct processing play a pivotal role in ensuring project success. As a professional manufacturer specializing in CNC reinforcement equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has established itself as a trusted partner for global tunnel projects through its innovative automatic small duct production lines. This article provides an in-depth analysis of our tunnel-specific processing solutions, covering technical specifications, application scenarios, and the competitive advantages that make us the preferred choice for international clients.

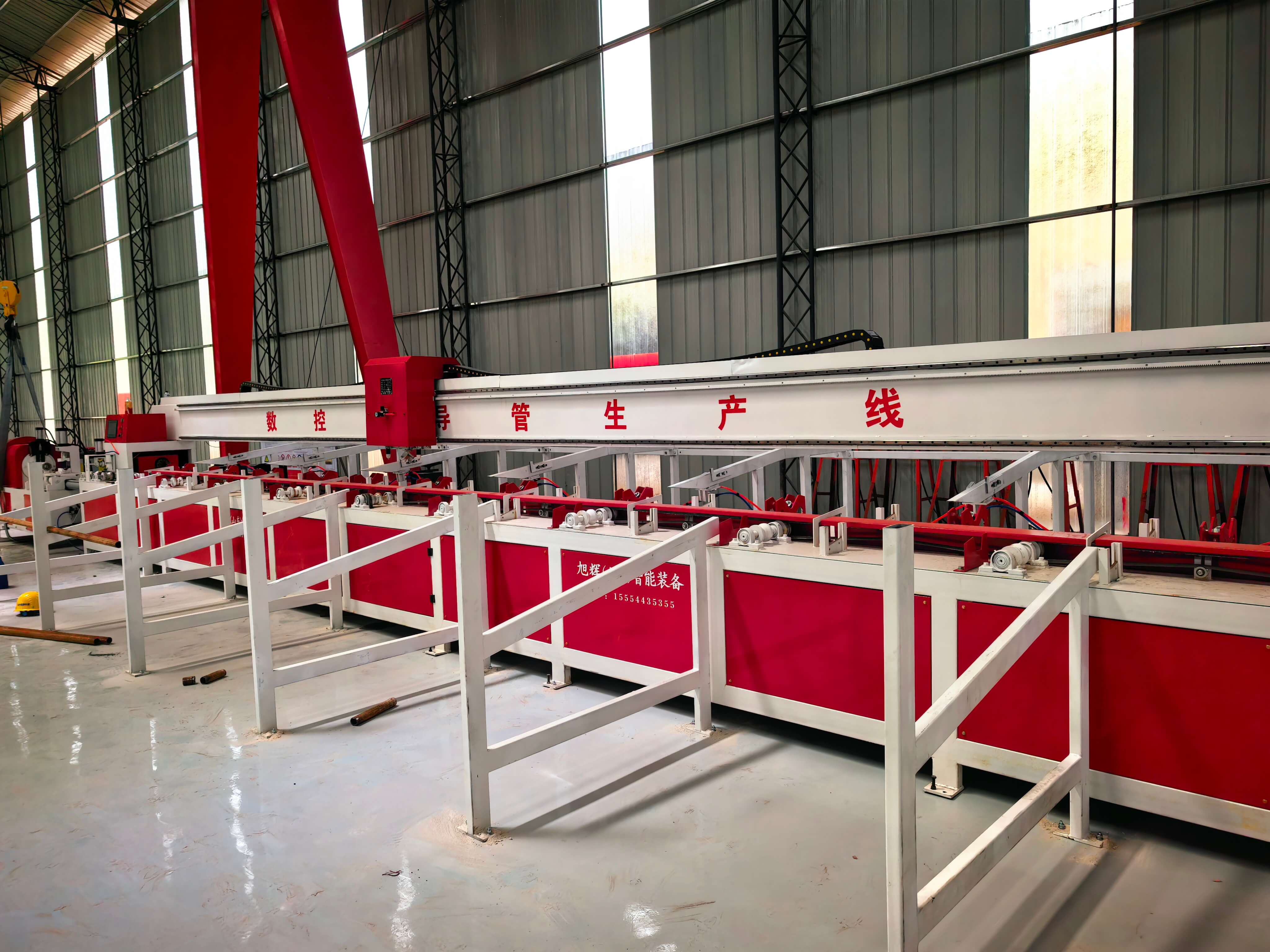

Technical Specifications of Our Tunnel Small Duct Processing Lines
Our automatic small duct production lines represent the culmination of advanced CNC technology and tunnel construction expertise. The core equipment features a fully integrated processing system capable of completing three critical operations in a single workflow: hole cutting, tip shrinking, and end forming. This integrated approach eliminates the need for multiple machines and manual material transfers, significantly improving production efficiency while maintaining consistent quality standards.
The processing range of our equipment covers duct diameters from φ32mm to φ219mm, with wall thickness capabilities up to 10mm. The cutting precision reaches ±0.5mm, while the shrinking accuracy maintains ±1mm tolerance. These specifications meet the stringent requirements of international tunnel engineering standards, including those for highway and railway tunnel projects. The equipment’s modular design allows for flexible configuration based on specific project needs, supporting both standard and customized duct dimensions.
Powered by Siemens or Mitsubishi CNC control systems, our processing lines offer intuitive operation through touchscreen interfaces with multi-language support. The automated material feeding system incorporates laser positioning technology for precise alignment, while the servo-driven processing heads ensure smooth operation at speeds up to 1200mm/min. These features collectively enable continuous 24-hour production with minimal operator intervention.
Core Applications in Tunnel Construction Projects
The primary application of our automatic small duct processing lines lies in tunnel support systems, where processed ducts serve as essential components for pre-grouting and soil stabilization. In highway tunnel projects, these ducts form the backbone of the advance support system, facilitating effective water drainage and ground reinforcement before main excavation. The equipment’s ability to produce both standard and customized duct profiles makes it equally suitable for railway tunnels, metro projects, and underground utility corridors.
For complex geological conditions, our equipment supports the production of special duct profiles with varying shrinking ratios and multiple hole patterns. This capability proves invaluable in projects encountering mixed soil strata or high groundwater levels, where customized duct designs enhance the effectiveness of pre-grouting operations. The automated processing ensures consistent quality across all ducts, eliminating the variability associated with manual fabrication methods.
In addition to new construction projects, our processing lines play a crucial role in tunnel renovation and maintenance. When upgrading existing tunnel support systems, the equipment can quickly produce replacement ducts matching original specifications or modified designs to meet updated engineering requirements. The rapid turnaround capability supports timely project completion while maintaining structural integrity.
Key Performance Parameters Comparison
The following table compares our automatic small duct processing line with traditional fabrication methods across several critical parameters:
| Parameter | Automatic Processing Line | Traditional Methods |
|---|---|---|
| Production Efficiency | 80-120 ducts/8-hour shift | 15-25 ducts/8-hour shift |
| Dimensional Accuracy | ±0.5mm (cutting), ±1mm (shrinking) | ±2-3mm (manual measurement) |
| Labor Requirement | 1 operator per line | 3-5 workers per duct |
| Material Utilization | 98% (automated nesting) | 92-95% (manual cutting) |
| Quality Consistency | High (CNC control) | Variable (operator skill dependent) |
Global Project Implementation Strategy
As an export-oriented manufacturer, we have developed a comprehensive project implementation framework specifically for international clients. This strategy begins with detailed technical consultations to understand project requirements, geological conditions, and local standards. Our engineering team then creates customized processing solutions, including equipment configuration, tooling design, and production workflow optimization.
For overseas projects, we provide end-to-end support covering equipment transportation, customs clearance, and on-site installation. Our international service team, consisting of multilingual engineers, ensures smooth commissioning and operator training within 7-10 days of equipment arrival. The training program combines theoretical instruction with hands-on practice, covering equipment operation, maintenance procedures, and troubleshooting techniques.
To support continuous operation in remote locations, we maintain a global spare parts inventory network with regional distribution centers. This system enables 48-hour parts delivery to most international destinations, minimizing equipment downtime. Additionally, our remote monitoring system allows real-time equipment performance tracking, with technical support available 24/7 through our global service hotline.
The success of our international strategy is evidenced by completed projects in over 30 countries, including major highway tunnel networks in Southeast Asia, railway tunnels in the Middle East, and metro systems in Africa. In each case, our equipment has demonstrated reliable performance in diverse climatic conditions, from tropical humidity to desert heat, maintaining consistent output quality throughout project lifecycles.
FAQ
What makes your tunnel small duct processing lines different from other manufacturers?
Our equipment features three key differentiators: first, the fully integrated processing system that completes cutting, shrinking, and forming in one continuous workflow; second, the use of premium European CNC control systems for precise operation; third, our modular design that allows customization for specific project requirements. Additionally, our global service network and CE certification provide assurance for international clients.
How do you ensure equipment performance in different environmental conditions?
We conduct rigorous testing under simulated project conditions during equipment development, including temperature variations from -20°C to 50°C and humidity levels up to 95%. The electrical components are selected based on IP55 protection ratings, while the mechanical structure uses corrosion-resistant materials. For projects in extreme environments, we offer additional protective measures such as enclosed cabinets and climate control systems.
What is the typical lead time for equipment delivery to international projects?
Standard equipment models require 45-60 days for production, with an additional 15-30 days for shipping depending on the destination. For customized solutions, the lead time extends to 75-90 days to accommodate design modifications and special tooling production. We maintain strategic inventory of key components to expedite delivery for urgent orders.
How do you handle equipment maintenance and technical support for international clients?
We provide comprehensive documentation including operation manuals, maintenance schedules, and troubleshooting guides in multiple languages. Our remote monitoring system enables proactive maintenance by tracking equipment performance parameters. For on-site support, we maintain service teams in key regions capable of reaching most locations within 72 hours. Spare parts are stocked in regional warehouses for immediate dispatch when needed.
Summary
Xuhui (Shandong) Intelligent Equipment Co., Ltd. stands as a premier manufacturer of automatic tunnel small duct processing lines, combining advanced CNC technology with extensive tunnel construction expertise. Our equipment delivers unmatched efficiency, precision, and reliability for global highway, railway, and metro projects. With CE certification, modular design capabilities, and comprehensive international support, we provide turnkey solutions that meet the most demanding engineering requirements. By choosing our processing lines, clients gain access to a proven system that enhances project productivity while ensuring consistent quality across all tunnel support components.
