In modern infrastructure construction projects, the quality and efficiency of reinforcing steel processing directly determine the structural safety and construction progress of the entire project. As a professional manufacturer of fully automatic steel bar cage rolling welders, Xuhui (Shandong) Smart Equipment Co., Ltd. has been committed to providing standardized reinforcing steel processing solutions for global customers through continuous technological innovation and product optimization.
Core Product Advantages of Automatic Steel Bar Cage Rolling Welders

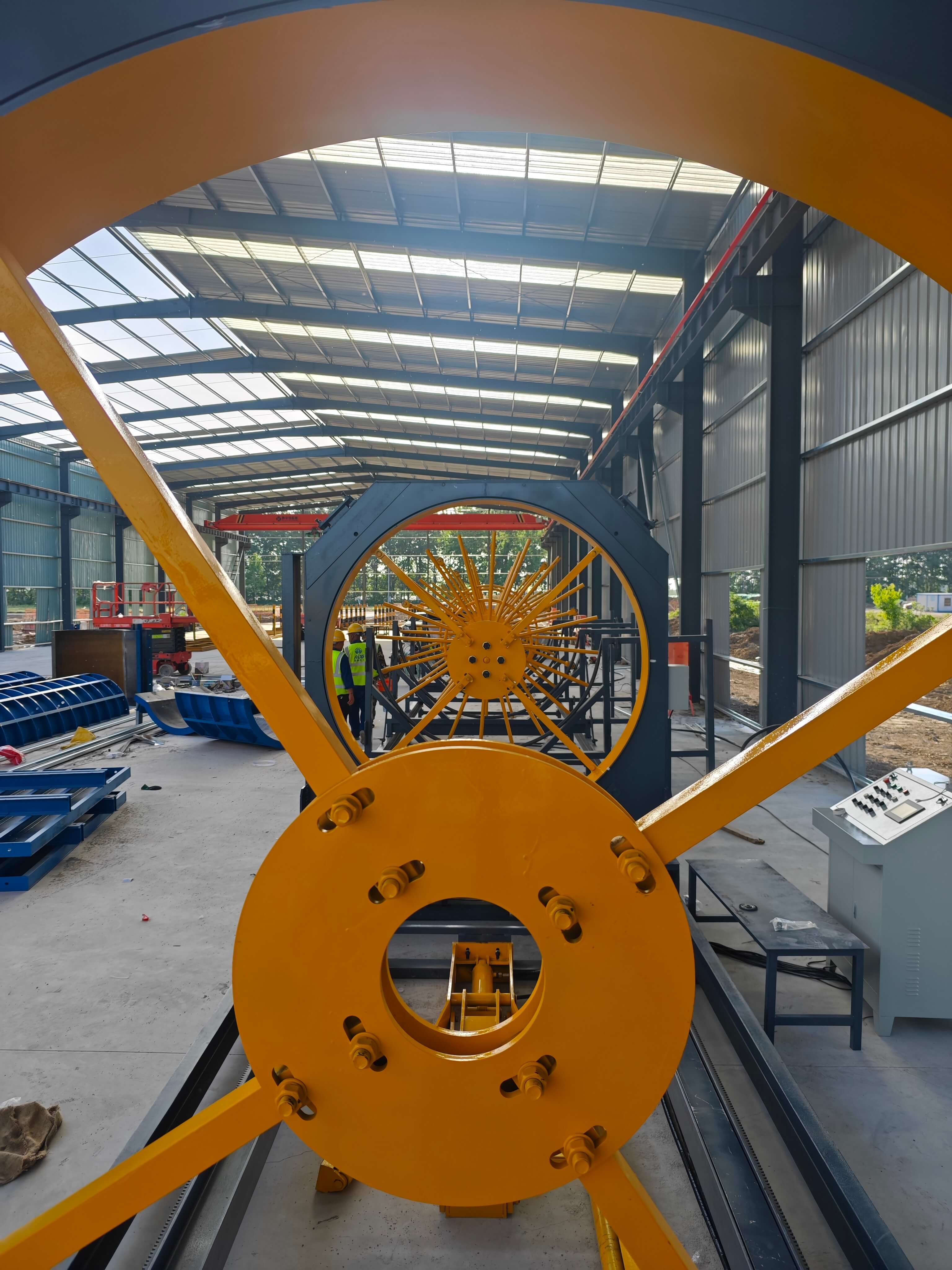

The fully automatic steel bar cage rolling welder produced by Xuhui (Shandong) represents the advanced level of modern reinforcing steel processing equipment. This equipment integrates multiple functions including automatic feeding, straightening, cutting, bending, and welding, achieving one-stop processing of steel bar cages. Compared with traditional manual processing methods, our automatic equipment demonstrates significant advantages in the following aspects:
1. Precision Processing Capability
Equipped with high-precision servo control systems and imported CNC modules, our equipment ensures that each processing parameter meets design requirements. The welding accuracy can reach ±0.5mm, and the bending angle error is controlled within ±0.5°, fully meeting the stringent standards of modern construction projects for reinforcing steel processing quality.
2. High Production Efficiency
The fully automated production line can complete the processing of a complete steel bar cage within 15-20 minutes (depending on specifications), with a daily production capacity of up to 50 tons. This efficiency is 8-10 times that of traditional manual processing, significantly shortening construction periods and reducing labor costs.
3. Stable Product Quality
Through standardized production processes and precise parameter control, our equipment ensures that each steel bar cage has consistent specifications and excellent welding quality. The uniform spacing between main bars and stirrups, and the firm welding joints effectively improve the structural performance of the entire building.
4. Intelligent Operation System
The human-machine interface adopts a 15-inch industrial touch screen with multi-language support, allowing operators to easily set processing parameters and monitor production status. The built-in production management system can automatically record production data and generate reports, facilitating project management and quality traceability.
Application Scenarios of Automatic Steel Bar Cage Rolling Welders
Xuhui (Shandong)’s automatic steel bar cage rolling welders have been widely applied in various large-scale infrastructure projects worldwide, demonstrating excellent adaptability and reliability in different construction environments:
1. Bridge Construction Projects
In highway and railway bridge pile foundation construction, our equipment can process steel bar cages with diameters ranging from 600mm to 2500mm, meeting the reinforcing requirements of different pile diameters. The automated processing method ensures that the spacing between stirrups meets design specifications, effectively preventing concrete cracking caused by uneven reinforcement distribution.
2. Subway Engineering
For subway station and tunnel construction projects, our equipment can process special-shaped steel bar cages required for diaphragm walls and pile caps. The flexible bending function can achieve complex reinforcement shapes, meeting the stringent quality requirements of underground engineering for waterproofing and load-bearing capacity.
3. Building Construction
In high-rise building foundation engineering, our equipment can process large-diameter steel bar cages for bored piles, ensuring the verticality and stability of deep foundation reinforcement. The automated production method reduces the impact of human factors on processing quality, improving the overall safety of the building structure.
4. Water Conservancy Projects
For dam and water channel construction projects, our equipment can process corrosion-resistant steel bar cages with special coatings, meeting the long-term durability requirements of hydraulic structures in wet environments. The precise processing capability ensures that the reinforcement layout meets anti-seepage design requirements.
| Technical Parameter | Specification |
|---|---|
| Applicable Steel Bar Diameter | Main bar: Φ12-Φ40mm, Stirrup: Φ6-Φ16mm |
| Processing Length | Up to 18 meters (customizable) |
| Power Supply | 380V 50Hz 3-phase |
| Total Power | Approximately 45kW |
| Processing Speed | 15-25 minutes per cage (depending on specifications) |
| Control System | Siemens CNC system |
Global Service Network and Technical Support
As an international equipment supplier, Xuhui (Shandong) has established a comprehensive global service system to ensure that customers worldwide receive timely and professional technical support:
- Pre-sales Service: Our professional engineering team provides free project consultation and equipment selection services based on customer requirements and project characteristics, helping customers choose the most suitable equipment configuration.
- Installation & Commissioning: We派遣 (dispatch) experienced engineers to the project site for equipment installation, debugging, and operator training, ensuring that the equipment can be put into production smoothly.
- After-sales Service: We provide a 24-month warranty period and lifetime maintenance services. Our global service hotline ensures that customer inquiries are responded to within 2 hours, with technical personnel arriving on-site within 48 hours (for regions with service centers).
- Spare Parts Supply: We maintain a complete inventory of commonly used spare parts in multiple regional warehouses worldwide, ensuring rapid delivery of required parts to minimize equipment downtime.
- Technical Upgrades: We regularly provide software updates and processing parameter optimization services to help customers improve production efficiency and product quality.
FAQ
What are the main differences between your fully automatic steel bar cage rolling welder and semi-automatic models?
Our fully automatic model integrates feeding, straightening, cutting, bending, and welding functions into one continuous production line, requiring only one operator to monitor the entire process. Semi-automatic models typically require manual intervention in multiple steps, resulting in lower efficiency and less consistent product quality. The fully automatic model improves production efficiency by 3-5 times compared to semi-automatic ones.
How does your equipment ensure welding quality consistency?
We use imported CO2 gas shielded welding machines with precise current and voltage control systems. The welding parameters are automatically adjusted according to steel bar diameter and welding position through the CNC system. Each welding joint undergoes 100% non-destructive testing during production, ensuring compliance with ASTM A615 and other international standards.
What is the maximum processing length of your equipment?
Our standard model can process steel bar cages up to 18 meters long. For special project requirements, we can customize equipment with processing lengths up to 24 meters by extending the machine bed and adding additional support devices.
How long does it take to train operators for your equipment?
We provide comprehensive operator training programs that typically take 3-5 days. The training includes theoretical knowledge of reinforcing steel processing standards, practical operation of the equipment control system, and basic maintenance skills. After training, operators can independently complete standard steel bar cage processing tasks.
Summary
As a professional manufacturer of fully automatic steel bar cage rolling welders, Xuhui (Shandong) Smart Equipment Co., Ltd. continues to lead the industry through technological innovation and quality service. Our equipment has been successfully applied in thousands of projects worldwide, helping customers improve construction quality, shorten construction periods, and reduce costs. With a complete product line and global service network, we are committed to becoming the preferred partner for global infrastructure construction projects, providing standardized reinforcing steel processing solutions that meet international standards.
