In modern tunnel construction and industrial piping systems, the demand for high-precision, automated processing equipment continues to grow. As a professional manufacturer located in Heze, Shandong – China’s well-known engineering machinery manufacturing base, Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in the research, development, production, and sales of numeric control small duct processing lines and other pipe processing equipment. This comprehensive guide will analyze the technical characteristics, application scenarios, and selection criteria of our automatic small duct production lines, helping global customers understand how our solutions can optimize their tunnel construction projects.
Technical Advantages of Our Numeric Control Small Duct Processing Lines
Our automatic small duct production lines represent the pinnacle of modern pipe processing technology, combining multiple functions into one integrated system. The core equipment includes pipe cutting machines, hole punching units, and tip shrinking modules, all controlled by advanced numeric control systems. This integration enables seamless transition between different processing stages, eliminating manual handling errors and significantly improving production efficiency.
The precision of our processing lines comes from multiple technological innovations. First, we employ high-precision servo drive systems that ensure millimeter-level positioning accuracy during cutting and punching operations. Second, our proprietary tooling design maintains consistent processing quality across different pipe diameters and wall thicknesses. Third, the integrated dust collection system ensures clean working conditions while protecting equipment from particulate damage.
Energy efficiency is another key advantage. Our equipment features intelligent power management systems that automatically adjust energy consumption based on processing requirements. Compared with traditional processing methods, our numeric control lines reduce energy consumption by approximately 30% while maintaining the same production capacity. This not only lowers operating costs but also aligns with global sustainability standards.
Core Components and Processing Capabilities

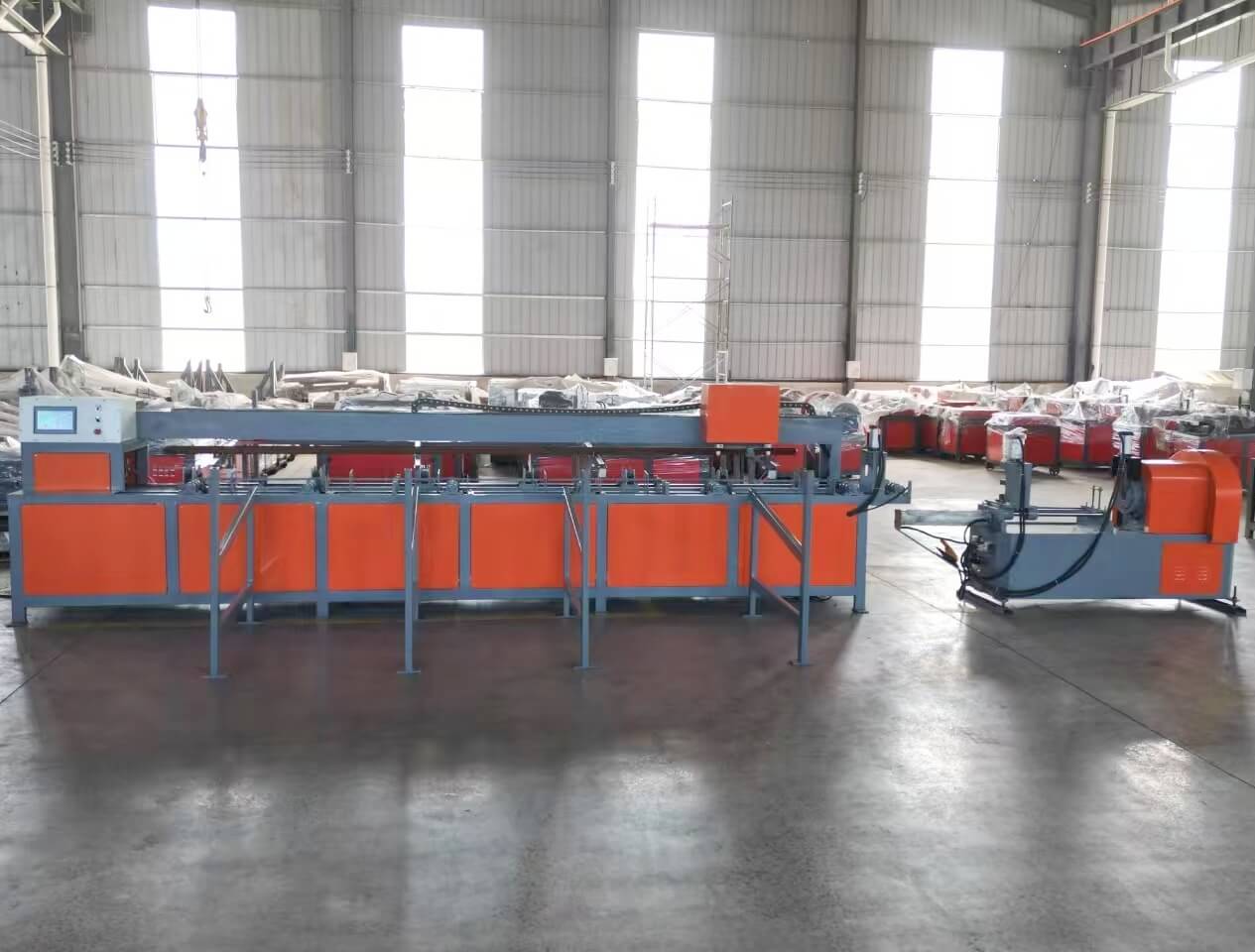

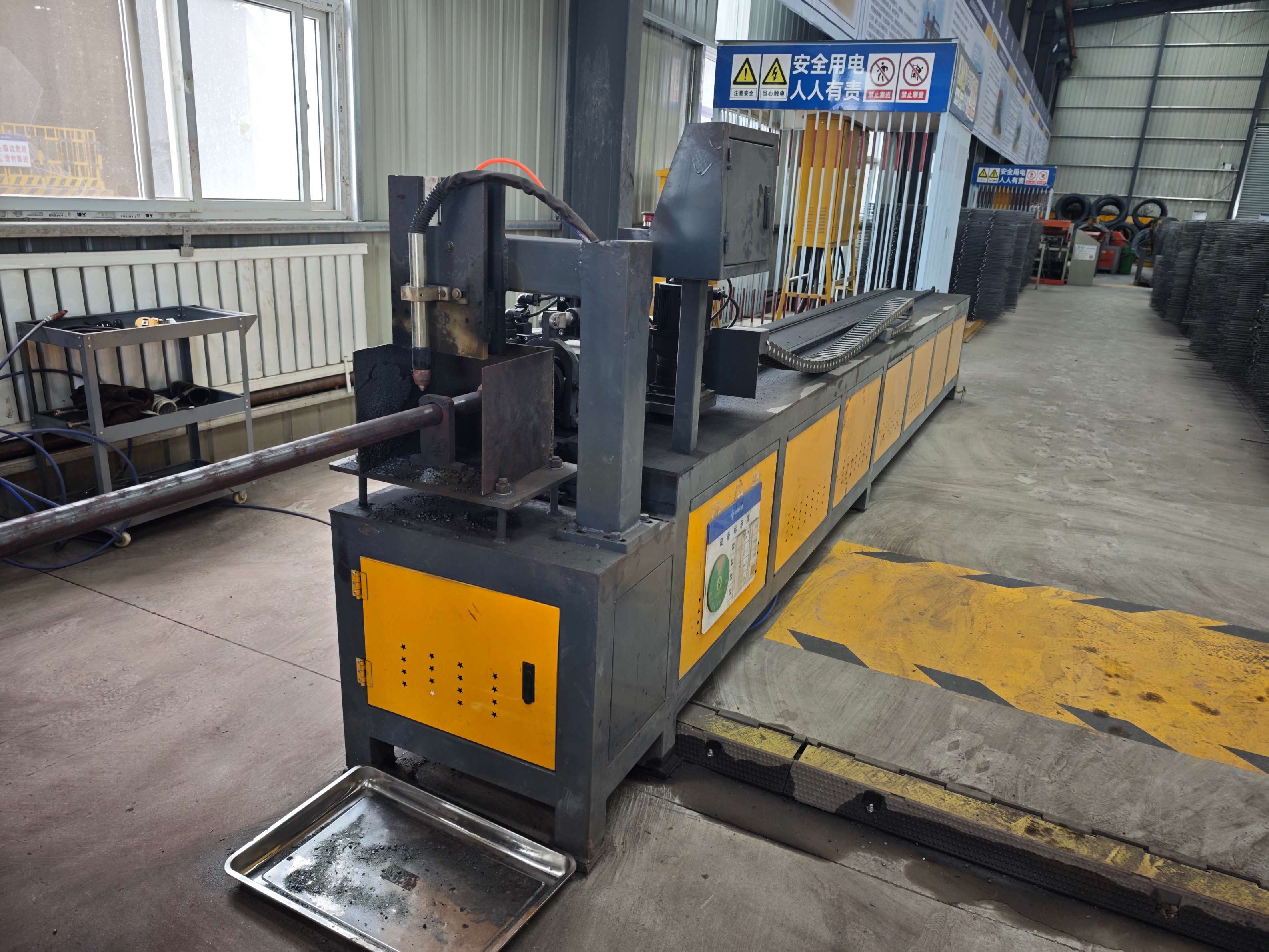

The automatic small duct production line consists of several specialized modules working in harmony. The pipe feeding system uses pneumatic clamping and servo-driven conveying to ensure stable material supply. The cutting unit employs plasma or laser cutting technology depending on material specifications, achieving clean cuts without burrs. The hole punching station features multi-axis CNC control, capable of creating complex hole patterns required for tunnel support systems.
The tip shrinking module represents our technological breakthrough. Using induction heating technology, it precisely controls the heating temperature and shrinking diameter, ensuring consistent quality across all processed ducts. This process is critical for tunnel construction as improperly shaped duct tips can compromise the effectiveness of ground support systems. Our equipment maintains dimensional accuracy within ±0.5mm throughout the shrinking process.
Our numeric control system supports multiple processing modes to accommodate different project requirements. Standard modes include single-piece processing, batch processing, and continuous production modes. The intuitive human-machine interface allows operators to easily switch between modes, set processing parameters, and monitor production status in real-time. Remote diagnostic capabilities enable our technical team to provide instant support worldwide.
Technical Specifications Comparison
The following table compares key specifications of our standard numeric control small duct processing lines:
| Parameter | Standard Model | Heavy-Duty Model |
|---|---|---|
| Pipe Diameter Range | Φ32-Φ108mm | Φ89-Φ219mm |
| Wall Thickness | 2-8mm | 4-12mm |
| Cutting Speed | 0.5-2m/min | 0.3-1.5m/min |
| Hole Punching Accuracy | ±0.2mm | ±0.3mm |
| Power Consumption | 18kW | 25kW |
Application Scenarios and Project Cases
Our numeric control small duct processing lines have been successfully implemented in numerous tunnel construction projects worldwide. In Southeast Asia’s largest infrastructure project, our equipment processed over 50,000 meters of small ducts monthly, maintaining a defect rate below 0.3%. The automated production line enabled the project team to complete ground support installations 30% faster than traditional methods.
In Middle Eastern tunnel projects, our equipment demonstrated exceptional performance in harsh desert environments. The dust-proof design and temperature-controlled processing chambers ensured consistent quality despite 50°C ambient temperatures. The integrated quality inspection system automatically rejected any ducts not meeting specifications, preventing defective products from reaching the construction site.
European tunnel contractors particularly appreciate our CE certification and compliance with EU safety standards. The equipment’s modular design allows easy transportation through narrow mountain tunnels, while the quick-change tooling system enables rapid adaptation to different pipe specifications required at various construction stages. This flexibility reduced equipment downtime by 40% compared with fixed-configuration machines.
Customization Capabilities and Global Services
Understanding that different projects have unique requirements, we offer comprehensive customization services for our numeric control small duct processing lines. Our engineering team works closely with clients to analyze specific needs, considering factors such as pipe materials, processing volumes, site conditions, and budget constraints. We can modify equipment dimensions, adjust processing parameters, and integrate additional functional modules as required.
Our global service network ensures reliable support wherever your project is located. Before delivery, each machine undergoes rigorous testing including 72-hour continuous operation trials. We provide on-site installation and commissioning by certified technicians, followed by operator training covering equipment operation, maintenance procedures, and safety protocols. Our spare parts inventory system guarantees 24-hour delivery of critical components to most regions.
Digital service tools further enhance our support capabilities. The remote monitoring system allows real-time equipment status tracking and predictive maintenance alerts. Our cloud-based processing parameter database enables instant access to optimized settings for different pipe materials and specifications. These digital solutions minimize equipment downtime and maximize production efficiency throughout the equipment lifecycle.
FAQ
What makes your numeric control small duct processing lines different from other suppliers?
Our equipment features three key differentiators: First, the fully integrated design combines cutting, punching, and shrinking in one continuous production line, eliminating material handling between stages. Second, our proprietary numeric control system offers unmatched processing precision and flexibility. Third, all our equipment carries CE certification and meets international safety standards, ensuring reliable performance in global markets.
How do you ensure processing quality consistency?
We implement multiple quality control measures: 1) Using high-precision servo drives and ball screws for all motion axes; 2) Incorporating automatic calibration functions that adjust for tool wear; 3) Implementing real-time monitoring of key parameters with automatic shutdown if deviations exceed tolerances; 4) Providing comprehensive operator training focusing on quality control procedures.
What maintenance is required for these processing lines?
Daily maintenance includes cleaning dust collectors, checking lubrication levels, and verifying tooling condition. Weekly maintenance involves inspecting electrical connections and cooling systems. Monthly maintenance includes replacing wear parts like cutting nozzles and punching dies. We provide detailed maintenance manuals and can train your technical staff during equipment installation.
Can your equipment process non-standard pipe sizes?
Yes, our standard models can handle most common tunnel duct sizes, and we offer customization for special requirements. The modular design allows easy adjustment of processing ranges by changing key components like chucks and tooling. For very large or small diameters, we can develop dedicated solutions based on your specific project needs.
Summary
As a professional manufacturer of numeric control small duct processing lines, Xuhui (Shandong) Intelligent Equipment Co., Ltd. combines advanced technology with practical engineering experience to deliver optimized solutions for tunnel construction projects worldwide. Our CE-certified equipment offers unmatched processing precision, production efficiency, and operational reliability. With comprehensive customization capabilities and global service support, we help clients from highway construction to urban subway development achieve their project goals efficiently and safely. Contact us today to discuss how our automatic small duct production lines can enhance your next tunnel construction project.
