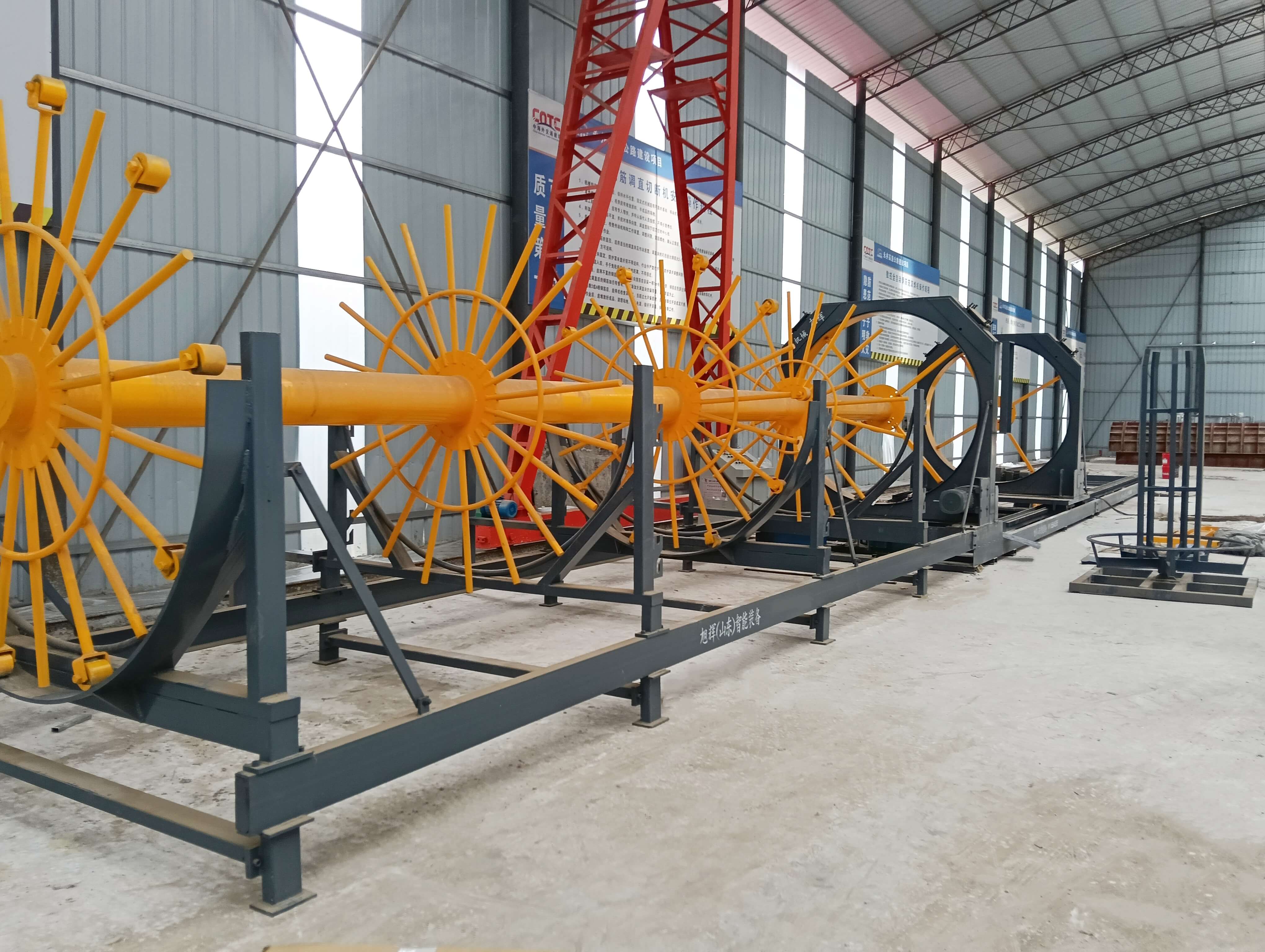

Selecting the right CNC steel cage welding machine is crucial for construction projects requiring high-precision, high-volume steel reinforcement cages. As a leading manufacturer based in Heze, Shandong – China’s major engineering machinery production base, Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in developing advanced steel cage processing solutions that meet international standards. This comprehensive guide will walk you through the essential considerations when choosing a steel cage rolling machine, covering technical specifications, application scenarios, and customized solutions.
Understanding Your Project Requirements
Before evaluating specific equipment models, it’s essential to clearly define your project’s technical requirements. The first consideration should be the steel cage specifications needed for your construction project, including diameter range (typically 200-2500mm), length capacity (6-24m), and reinforcement bar sizes (φ12-φ40mm). For bridge pile foundation projects, machines must handle larger diameters and heavier reinforcement cages, while tunnel support applications may require specialized small-diameter processing capabilities.
Production volume is another critical factor. Our standard models offer processing speeds of 30-60m/hour, but for large-scale infrastructure projects like high-speed railways or airport terminals, we recommend high-speed models capable of 80-120m/hour. The working environment also matters – our equipment is designed for both indoor factory settings and outdoor construction sites, with IP55 protection rating ensuring reliable operation in dusty or humid conditions.
Material compatibility should be verified based on your project’s steel grades. Our machines support common reinforcement grades like HRB335, HRB400, and HRB500, with optional upgrades for processing stainless steel or epoxy-coated bars. For international projects, we ensure compliance with ASTM, BS, or DIN standards as required.
Key Technical Parameters to Evaluate

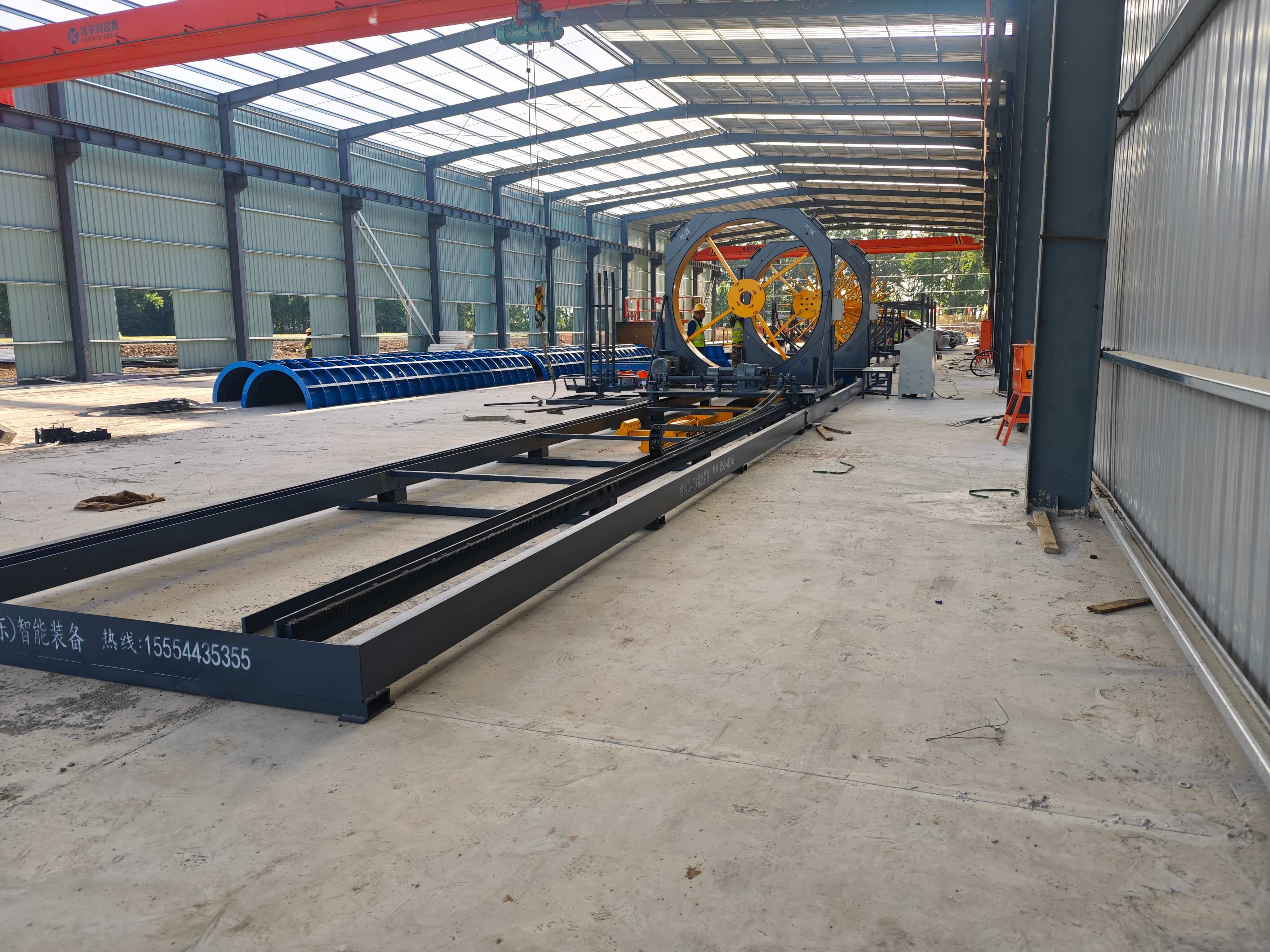

When comparing different steel cage rolling machines, several core technical parameters determine performance and quality. The main drive system’s power rating (typically 15-37kW) directly affects processing capacity and energy efficiency. Our machines use Siemens or ABB motors paired with precision reducers to ensure stable operation even under heavy loads.
The welding system’s quality is paramount. We equip our machines with advanced CO2 gas shielded welding technology featuring automatic wire feeding and voltage stabilization. The welding current range (200-600A) should match your reinforcement bar sizes, with our standard models covering φ12-φ40mm applications. For projects requiring higher weld quality, we offer optional laser welding systems that reduce heat-affected zones and improve joint strength.
Control system precision determines final product quality. Our CNC systems feature 0.01mm positioning accuracy and 0.1mm repeatability, with touchscreen interfaces supporting multiple languages including English, Spanish, and Russian. The programming flexibility allows for complex cage designs with varying spacing and reinforcement patterns, which is essential for specialized projects like curved tunnel supports or irregular bridge foundations.
Material handling capabilities affect production efficiency. Our standard models include automatic feeding systems for main reinforcement bars and stirrups, with optional upgrades for bulk material storage and conveying. For high-volume projects, we recommend fully automated production lines that integrate cutting, bending, and welding processes, reducing manual intervention and improving safety.
Comparative Analysis of Popular Models
Our product range includes several models tailored to different project scales. The XH-GL1500 is ideal for medium-scale projects like commercial buildings, offering 40m/hour processing speed and 1500mm maximum diameter. For large infrastructure projects, the XH-GL2500 provides 60m/hour speed and 2500mm diameter capacity, with reinforced structural design for heavy-duty operation.
The flagship XH-GL3000 model incorporates our latest technological advancements, including dual-head welding for increased productivity and intelligent tension control for improved cage quality. This model has been successfully implemented in several international projects, including the Jakarta-Bandung High-Speed Railway in Indonesia and the Central Ring Road in Moscow.
For specialized applications, we offer the XH-GLX series tunnel support processing lines. These compact machines feature 400-800mm diameter range and integrated cutting/bending functions, specifically designed for tunnel construction requirements. The modular design allows easy transportation to remote job sites and quick reconfiguration for different project needs.
| Model | Max Diameter | Processing Speed | Power | Application |
|---|---|---|---|---|
| XH-GL1500 | 1500mm | 40m/h | 22kW | Commercial buildings, medium bridges |
| XH-GL2500 | 2500mm | 60m/h | 30kW | High-speed rail, large bridges |
| XH-GLX600 | 600mm | 30m/h | 15kW | Tunnel support, small diameter cages |
Customized Solutions for Special Requirements
Recognizing that standard models may not meet all project needs, we offer comprehensive customization services. Our engineering team works closely with clients to develop tailored solutions, considering factors like site layout, material specifications, and production targets. For the Jakarta-Bandung High-Speed Railway project, we designed a customized production line that integrated multiple processing stations within a limited space, improving material flow efficiency by 35%.
Environmental adaptation is another area where customization proves valuable. For projects in high-altitude areas like the Qinghai-Tibet Railway, we reinforced machine structures to withstand temperature variations from -30°C to 50°C. In coastal regions, we apply special anti-corrosion coatings and stainless steel components to ensure equipment longevity in humid salt-air environments.
Our customization capabilities extend beyond hardware modifications. The CNC control system can be programmed with specific industry standards or client requirements. For European projects, we pre-load EN standards for reinforcement spacing and lap lengths, while Middle Eastern projects can be configured with local specification requirements. This flexibility reduces setup time and ensures compliance with regional regulations.
After-Sales Support and Service Network
Selecting a reliable supplier involves evaluating not just the equipment but also the after-sales support. As an ISO 9001 certified manufacturer with CE compliance for all products, we maintain a global service network with technicians available in over 30 countries. Our standard warranty includes 12 months for the complete machine and 24 months for the main drive system, with extended warranty options available.
Installation and commissioning services are provided by certified engineers who ensure proper equipment setup and operator training. For the Moscow Central Ring Road project, our team completed installation and trained local operators within 10 days, enabling immediate production start. We also offer remote diagnostics through our IoT-enabled service platform, allowing real-time monitoring and troubleshooting for international clients.
Spare parts availability is critical for minimizing downtime. We maintain regional warehouses in Europe, Southeast Asia, and the Middle East, stocking common wear parts and critical components. Our ERP system tracks parts usage patterns to predict maintenance needs, and clients can order replacements through our 24/7 online portal with guaranteed 48-hour delivery for urgent requests.
FAQ
What factors determine the processing capacity of a steel cage welding machine?
The processing capacity depends on several key factors including the main drive power (typically 15-37kW), welding system efficiency, and material handling speed. Our standard models offer 30-60m/hour processing speeds, with high-end models reaching 120m/hour for large-scale projects. The cage diameter also affects capacity – larger diameters require slower rotation speeds but can process longer cages per cycle.
How to ensure welding quality meets international standards?
We implement multiple quality control measures: 1) Using Siemens/ABB welding power sources with precise current control; 2) Incorporating automatic wire feeding systems with tension regulation; 3) Applying CO2 gas shielding with flow monitoring; 4) Conducting 100% weld inspection during production. Our machines are CE certified and can be configured to meet ASTM, BS, or DIN standards as required by specific projects.
What maintenance is required for optimal machine performance?
Regular maintenance includes: 1) Daily cleaning of welding dust from mechanical components; 2) Weekly lubrication of moving parts; 3) Monthly inspection of electrical connections; 4) Quarterly calibration of sensors and limit switches. We provide detailed maintenance manuals and offer operator training programs. Our IoT system can monitor equipment status remotely and send maintenance alerts proactively.
Can the machines process different reinforcement bar sizes?
Yes, our machines are designed for multi-size processing. Standard models support φ12-φ40mm main bars and φ6-φ16mm stirrups. For projects requiring larger diameters, we offer customized solutions up to φ50mm. The CNC system automatically adjusts welding parameters based on bar size selection, ensuring consistent quality across different specifications.
Summary
Selecting the right CNC steel cage welding machine requires careful evaluation of technical specifications, production requirements, and long-term support capabilities. Xuhui (Shandong) Intelligent Equipment Co., Ltd. offers a comprehensive range of standardized and customized solutions that have been proven in major international infrastructure projects. Our commitment to quality is demonstrated by CE certification, ISO 9001 management systems, and a global service network ensuring reliable operation wherever your project is located. By considering the factors outlined in this guide and leveraging our technical expertise, you can confidently select equipment that meets your project’s specific needs while ensuring optimal productivity and product quality.
