In modern infrastructure construction, particularly for large-scale projects like bridges, high-speed railways, and tunnels, the quality and efficiency of steel cage production directly impact project timelines and structural safety. Traditional manual welding methods for steel cages face challenges including inconsistent quality, low production efficiency, and high labor costs. This is where advanced CNC steel cage welding stations come into play, offering automated, precise, and efficient solutions that have become indispensable in the construction industry.
Understanding CNC Steel Cage Welding Stations
A CNC steel cage welding station is an automated system that combines computer numerical control technology with advanced welding processes to produce standardized steel cages used in reinforced concrete structures. These machines automate the entire production process from material feeding, bending, and welding to final product shaping, eliminating most manual operations while ensuring consistent quality.
The core components typically include a CNC control system, automatic feeding mechanism, bending unit, welding unit, and product collection system. Modern stations incorporate servo motors, precision sensors, and industrial-grade PLC controllers to achieve high-precision positioning and stable operation even under continuous production conditions.
Compared to traditional methods, CNC welding stations offer several advantages: production efficiency can increase by 3-5 times, welding quality consistency improves significantly, material waste decreases by approximately 15%, and labor costs reduce by 60-70%. These benefits make them particularly valuable for large infrastructure projects with strict quality requirements and tight schedules.
Key Selection Criteria for Quality CNC Welding Stations
When evaluating different CNC steel cage welding stations, several critical factors determine their overall quality and suitability for your projects:
1. Precision and Stability
The core value of CNC equipment lies in its precision. High-quality stations should maintain positioning accuracy within ±0.5mm and repeatability within ±0.2mm across their entire working range. This ensures that every steel cage produced meets design specifications exactly, eliminating rework and material waste.
Stability is equally important, especially for continuous 24-hour operation. Look for machines with robust mechanical structures, high-grade components, and effective vibration damping systems. These features help maintain consistent performance even under heavy loads or in challenging environmental conditions.
2. Welding Quality and Speed
The welding unit determines both the structural integrity and production efficiency of the entire station. Advanced models use medium-frequency inverter welding technology that provides deeper penetration and stronger welds compared to traditional methods. This ensures the steel cage can withstand construction loads and environmental stresses over its service life.
Welding speed directly impacts production capacity. High-performance stations can complete a standard steel cage (12m length, 20mm main bars) in 8-12 minutes, including all bending and welding operations. Some advanced models offer adjustable welding parameters to accommodate different steel grades and cage designs without compromising quality.
3. Automation Level and Ease of Operation
The degree of automation affects both production efficiency and operator requirements. Fully automated stations feature automatic material feeding, bending, welding, and product ejection, requiring minimal manual intervention. This reduces the potential for human error and enables unskilled workers to operate the equipment after basic training.
User-friendly interfaces are essential for efficient operation. Look for machines with intuitive touchscreen controls, visual operation guides, and multi-language support. Some advanced models offer remote monitoring and diagnostic capabilities, allowing technicians to troubleshoot issues without being on-site.
4. Manufacturer Reputation and Support
Choosing an experienced manufacturer ensures you get reliable equipment and comprehensive support. Established companies typically have more rigorous quality control systems, better component sourcing, and more mature product designs. They also offer longer warranties (often 2-3 years) and quicker spare parts delivery.
Post-sale support is equally critical. Reliable manufacturers provide installation guidance, operator training, regular maintenance services, and 24/7 technical support. Some even offer customized solutions to adapt their standard products to specific project requirements.
Xuhui (Shandong) Intelligent Equipment: A Leader in CNC Welding Solutions
Based in Heze, Shandong – China’s major engineering machinery manufacturing base, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has established itself as a premier provider of CNC steel processing equipment since its founding. The company specializes in research, development, production, and sales of CNC steel cage welding stations and related equipment, serving clients worldwide in highway, railway, airport, power plant, and large-scale construction projects.

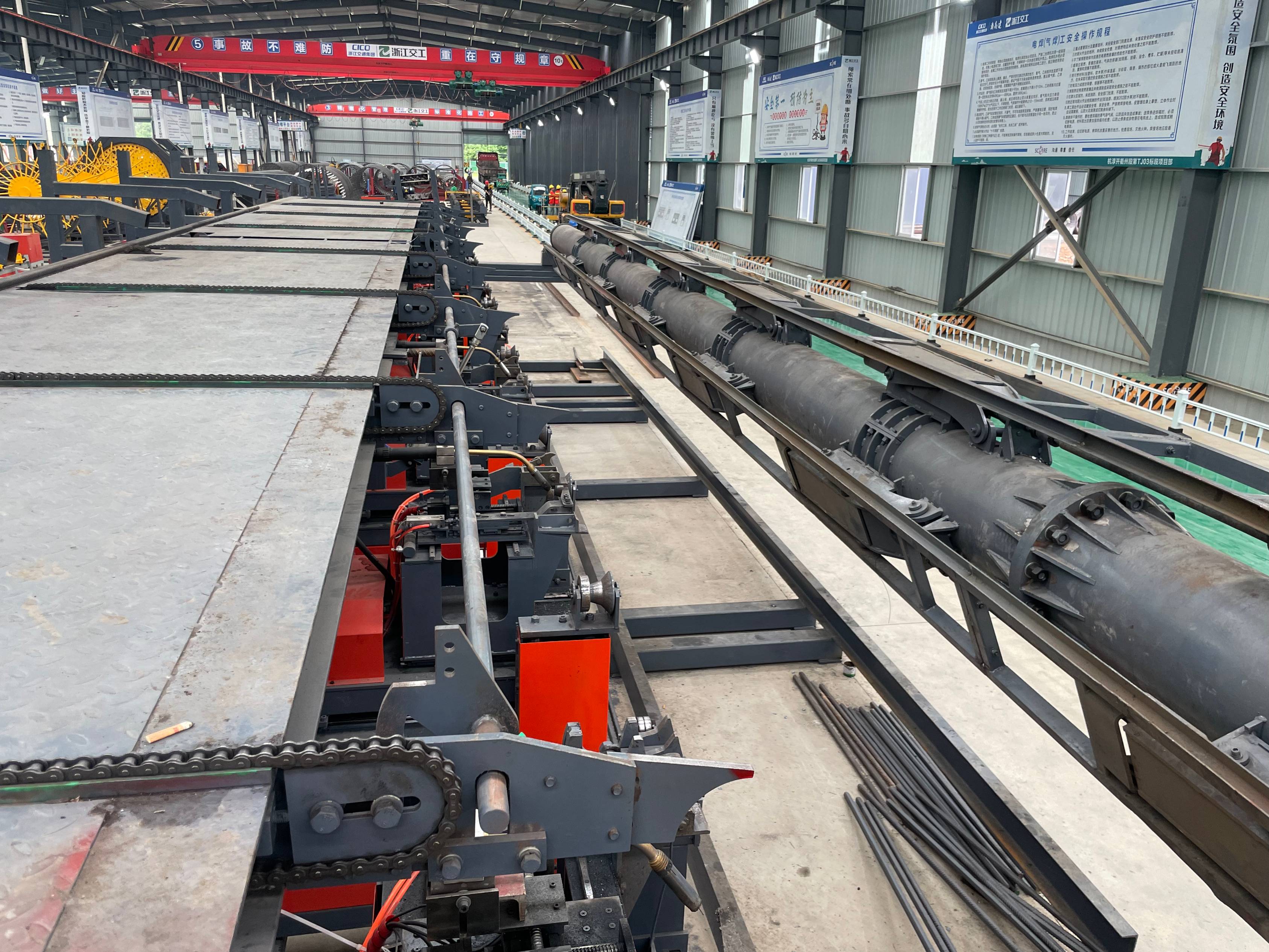

Xuhui’s flagship product, the XH-LWZ series CNC steel cage welding workstation, represents the culmination of years of technological innovation and field experience. This advanced system offers several unique advantages:
- Patented Welding Technology: Incorporates Xuhui’s proprietary medium-frequency inverter welding system that provides deeper penetration and stronger welds while reducing energy consumption by 20% compared to traditional methods.
- Modular Design: The workstation features a modular architecture that allows for easy customization to accommodate different production requirements and space constraints.
- Intelligent Control System: Equipped with a 15-inch industrial touchscreen and Xuhui’s custom operating system, it supports multi-language interfaces, visual operation guides, and remote monitoring capabilities.

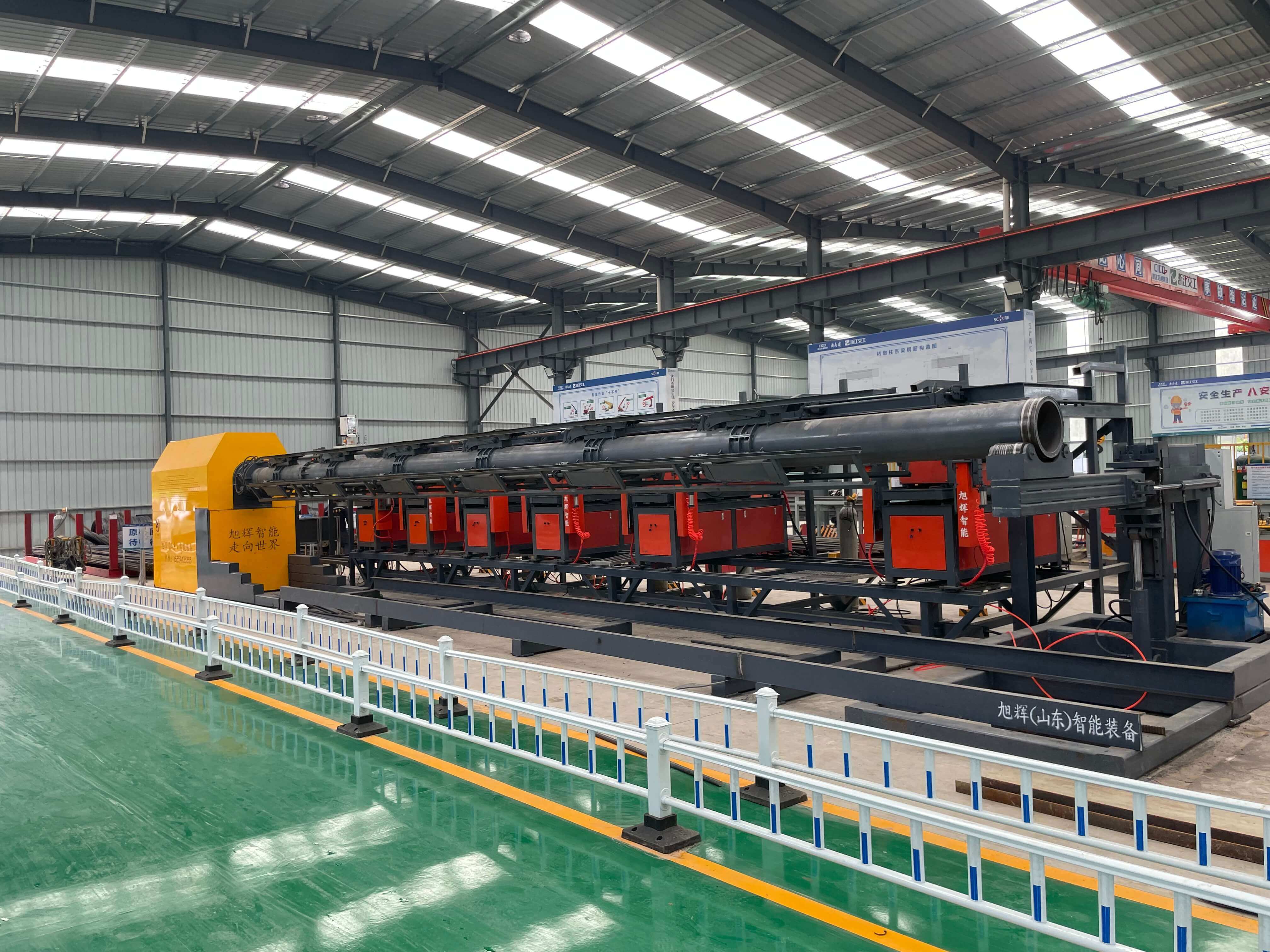

- High Precision Components:
- Comprehensive Safety Features: Includes emergency stop systems, protective enclosures, and automatic fault detection to protect operators and equipment.
Uses imported servo motors, high-precision linear guides, and industrial-grade PLC controllers to ensure consistent performance and long service life.
| Specification | XH-LWZ Series |
|---|---|
| Applicable Steel Diameter | 12-40mm (main bars), 6-16mm (stirrups) |
| Max Cage Length | 18m (extendable to 24m with optional modules) |
| Welding Speed | 40-60 points/minute (adjustable) |
| Power Consumption | 35-45kW (average) |
| Dimension (L×W×H) | 22,000×2,500×2,200mm |
Global Applications and Industry Recognition
Xuhui’s CNC steel cage welding stations have been successfully deployed in numerous high-profile projects worldwide. In Southeast Asia, several major bridge construction projects have adopted Xuhui equipment for their steel cage production needs, citing the machines’ reliability, efficiency, and ease of operation as key factors in their decision.
The company’s commitment to quality has earned it multiple certifications including CE compliance for European markets, ISO 9001 for quality management, and ISO 45001 for occupational health and safety. These certifications, combined with positive feedback from international clients, have established Xuhui as a trusted partner for construction companies seeking reliable steel processing solutions.
One notable case is a large infrastructure project in the Middle East where Xuhui supplied 8 complete sets of CNC steel cage welding stations along with training for local operators. The equipment has been running continuously for over 3 years with minimal downtime, helping the project maintain its aggressive construction schedule while achieving consistent quality standards.
FAQ
What makes Xuhui’s CNC steel cage welding stations different from other manufacturers?
Xuhui combines 15+ years of industry experience with continuous technological innovation. Our patented welding technology provides deeper penetration and stronger welds while reducing energy consumption. We also offer more comprehensive after-sales support including installation guidance, operator training, and 24/7 technical assistance.
How long does it take to train operators for these welding stations?
With our intuitive touchscreen interface and visual operation guides, most operators can master basic operation within 2-3 days of training. For full system maintenance and troubleshooting, we recommend a 5-day comprehensive training program that covers all aspects of equipment operation and care.
Can these machines be customized for specific project requirements?
Yes, our modular design allows for extensive customization. We can adjust parameters like maximum cage length, applicable steel diameters, and welding patterns to match your specific project needs. Our engineering team works closely with clients to develop optimal solutions for their unique requirements.
What kind of maintenance is required for these welding stations?
Regular maintenance includes daily cleaning of welding electrodes, weekly lubrication of moving parts, and monthly inspection of electrical connections. We provide detailed maintenance manuals and can train your staff on proper care procedures. Our service team is also available for scheduled maintenance visits or emergency repairs.
Summary
Choosing the right CNC steel cage welding station requires careful evaluation of precision, welding quality, automation level, and manufacturer support. Xuhui (Shandong) Intelligent Equipment stands out with its advanced technology, modular design, and comprehensive service network. Their XH-LWZ series offers a proven solution that has been successfully implemented in major infrastructure projects worldwide, delivering consistent quality, high efficiency, and reliable performance.
For construction companies seeking to improve their steel cage production capabilities, investing in a high-quality CNC welding station from a reputable manufacturer like Xuhui can provide significant long-term benefits including reduced labor costs, improved product quality, and faster project completion times. With their commitment to innovation and customer service, Xuhui continues to set industry standards for CNC steel processing equipment.
