In modern infrastructure construction projects, the quality and efficiency of steel bar processing directly determine the structural safety and construction progress of the entire project. As a professional manufacturer specializing in numerical control steel bar processing equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has become a trusted partner for global engineering projects with its innovative technology and reliable product quality. This article will comprehensively introduce our core product – the numerical control steel bar cage welding workstation, and explain why it has become the preferred choice for professional engineering teams worldwide.
Core Advantages of Our Numerical Control Steel Bar Cage Welding Workstation

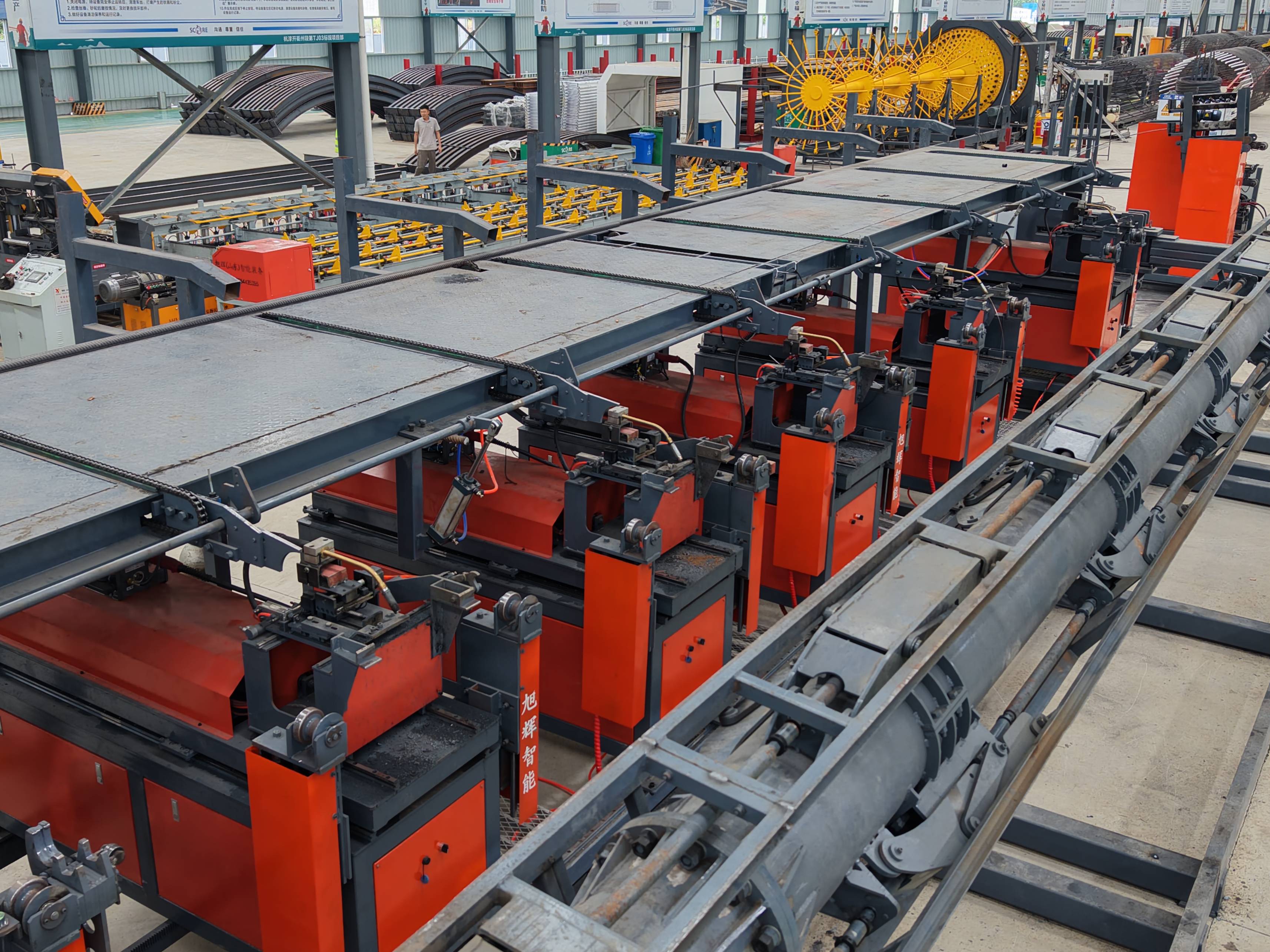

Our numerical control steel bar cage welding workstation represents the highest level of intelligent steel bar processing technology through multiple innovative designs. Firstly, the equipment adopts advanced numerical control system that achieves precise positioning within ±0.5mm through servo motor drive and high-precision sensor feedback. This precision ensures that each steel bar cage meets the exact design requirements, eliminating human operation errors and quality fluctuations.
The fully automatic welding process is another major highlight. Equipped with multiple welding heads that can work simultaneously, the workstation completes the entire welding process of steel bar cages in one cycle, with welding efficiency increased by 3-5 times compared to traditional methods. The intelligent welding parameter control system automatically adjusts welding current, voltage and time according to different steel bar diameters and welding positions, ensuring consistent welding quality throughout the production process.
In terms of structural design, we adopt modular construction that makes equipment installation and maintenance extremely convenient. The main frame uses high-strength steel structure with finite element analysis optimization, ensuring excellent stability even under continuous high-load operation. The movable welding head module can be quickly replaced according to different project requirements, supporting the production of steel bar cages with various diameters and lengths.
Technical Specifications and Performance Parameters

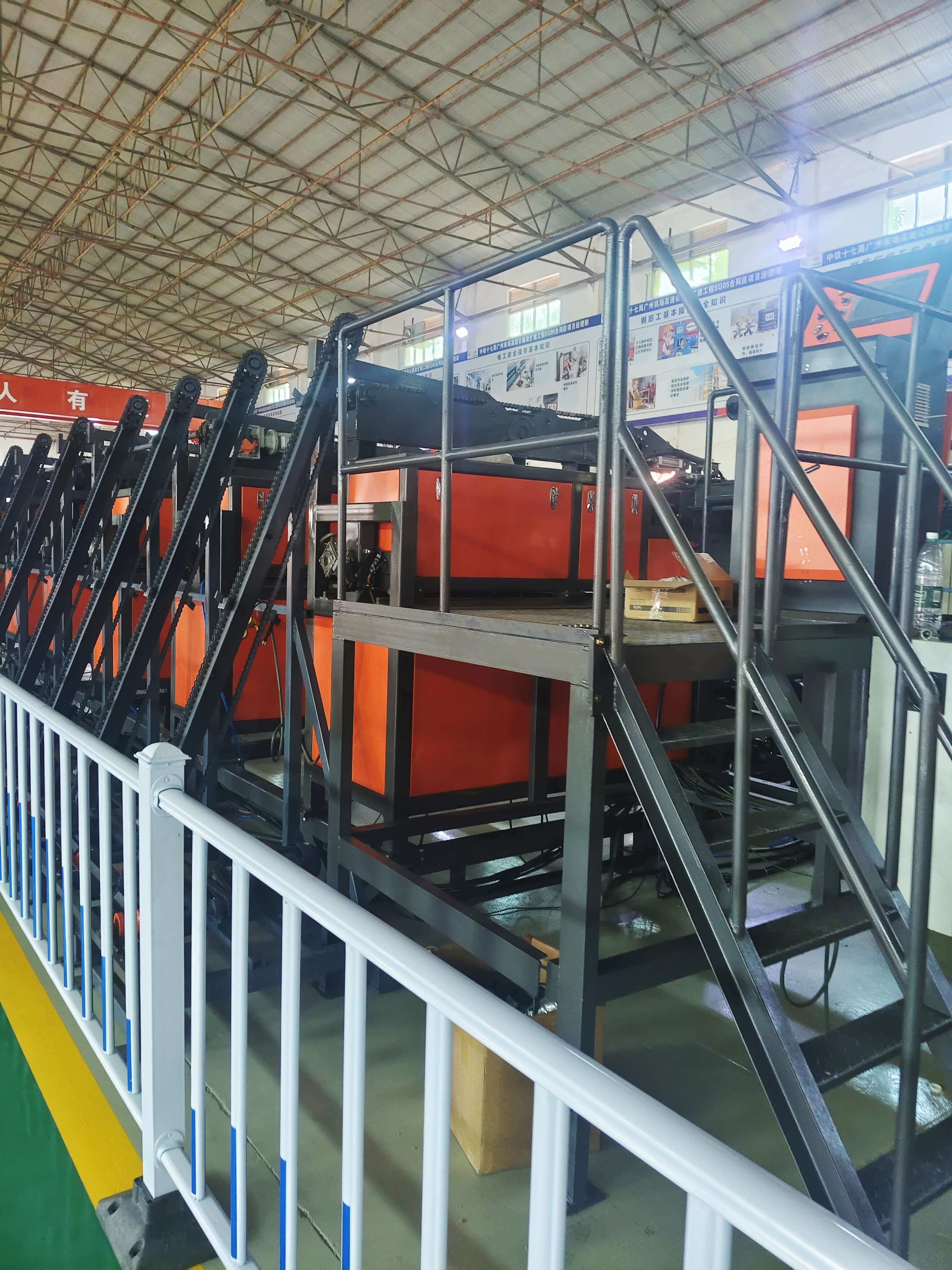

Our standard numerical control steel bar cage welding workstation covers a wide range of processing capabilities. The main technical parameters include:
| Parameter | Specification |
|---|---|
| Applicable steel bar diameter | Φ12-Φ40mm |
| Steel bar cage length | 6-18m (customizable) |
| Welding speed | 0.5-1.5m/min (adjustable) |
| Positioning accuracy | ±0.5mm |
| Power supply | 380V 50Hz 3-phase |
| Total power | Approx. 120kW |
These parameters ensure that our equipment can meet the processing requirements of most bridge and high-speed railway projects. For special projects, our engineering team can provide customized solutions by adjusting the equipment structure, adding special modules, or developing dedicated control systems.
Intelligent Control System Features
The core of our numerical control system is the industrial-grade PLC control unit combined with a 15-inch touch human-machine interface. This system provides multiple operation modes:
- Manual mode: For equipment debugging and maintenance
- Semi-automatic mode: For single-process operation testing
- Fully automatic mode: For continuous production cycles
- Remote monitoring mode: For production data collection and equipment status monitoring
The built-in production management system can automatically record production data, calculate material consumption, and generate production reports. This data-driven management approach helps project managers optimize production plans and control costs effectively.
Application Scenarios and Project Cases
Our numerical control steel bar cage welding workstations have been successfully applied in numerous prestigious projects worldwide. In the Jakarta-Bandung High-Speed Railway project in Indonesia, our equipment played a crucial role in the pile foundation steel bar cage production. The project team reported that compared to traditional manual welding, our workstation reduced labor costs by 60% while improving product qualification rate to 99.8%.
Another typical application is in bridge construction projects. In the construction of the Padma Bridge in Bangladesh, our customized long-span steel bar cage welding workstation (capable of processing 24-meter-long cages) solved the project’s special requirements. The equipment’s excellent stability and welding quality won high praise from the project owner and supervision team.
For urban subway projects, we have developed compact models that can be installed in tunnel construction sites with limited space. These specialized equipment maintain all the intelligent functions while having a smaller footprint, making them ideal for urban underground engineering applications.
Quality Assurance and Global Services
As an ISO9001 certified manufacturer, we implement strict quality control throughout the production process. From raw material procurement to final assembly, each component undergoes multiple inspection procedures. All our numerical control steel bar cage welding workstations have obtained CE certification, meeting European Union safety, health and environmental protection requirements.
Our global service network ensures timely support for customers worldwide. The standard service package includes:
- On-site installation and commissioning by professional engineers
- Comprehensive operator training covering equipment operation and maintenance
- One-year warranty with lifetime technical support
- Regular preventive maintenance visits
- 24/7 remote technical support
- Spare parts quick delivery service
For large projects, we can establish local service centers near the project site to provide even faster response times. Our engineering team has rich experience in international projects and can communicate effectively in multiple languages including English, Spanish, Russian and Arabic.
FAQ
What makes your steel bar cage welding workstation different from other suppliers?
Our equipment features three core advantages: First, the fully modular design allows for quick customization according to different project requirements. Second, the patented welding head structure ensures consistent welding quality across the entire steel bar cage. Third, our intelligent control system supports remote monitoring and production data analysis, helping customers optimize their production processes.
How long does it take to train operators for this equipment?
We provide comprehensive training programs that typically take 3-5 days depending on the trainees’ experience level. The training covers equipment operation, basic maintenance, troubleshooting and safety procedures. After training, operators can independently handle normal production tasks and perform basic maintenance work.
What is the expected service life of your equipment?
Under normal operating conditions and with proper maintenance, our numerical control steel bar cage welding workstations can operate reliably for 10-15 years. The key wear parts like welding heads and servo motors are designed for easy replacement to extend the equipment’s overall service life.
Can your equipment process non-standard shaped steel bar cages?
Yes, our equipment supports custom programming for various shapes of steel bar cages. The numerical control system can store multiple processing programs for different cage designs, allowing quick switching between different production requirements.
Summary
Choosing the right numerical control steel bar cage welding workstation is crucial for the success of modern infrastructure projects. Xuhui (Shandong) Intelligent Equipment Co., Ltd. combines advanced technology with reliable manufacturing to provide global customers with professional steel bar processing solutions. Our equipment not only improves production efficiency and product quality, but also helps customers reduce labor costs and enhance project competitiveness. With CE certification and a comprehensive global service network, we are committed to being your most reliable partner in steel bar processing equipment.
For more information about our numerical control steel bar cage welding workstations or to discuss your specific project requirements, please contact our sales team. We look forward to helping you achieve greater success in your infrastructure construction projects.
