In modern infrastructure construction, the quality and efficiency of steel cage fabrication directly impact project timelines and structural integrity. As a professional manufacturer based in Heze, Shandong – China’s engineering machinery manufacturing hub, Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in developing and producing CNC steel cage welding stations that set industry benchmarks for precision, automation, and reliability. Our customized solutions have successfully supported major highway, railway, airport, and tunnel projects across the globe.
Why Choose Xuhui as Your Steel Cage Welding Station Supplier?
As an ISO 9001 certified manufacturer with complete production facilities covering 12,000 square meters, we maintain strict quality control throughout the manufacturing process. Our technical team combines 15+ years of industry experience with continuous R&D investment, enabling us to deliver equipment that meets both Chinese national standards (GB/T) and international requirements. All our CNC steel cage welding stations come with CE certification and support global export, ensuring compliance with safety regulations in major markets including Europe, Southeast Asia, and the Middle East.
The core advantage of our welding stations lies in their modular design and intelligent control system. Unlike traditional manual welding methods that require 6-8 workers per shift, our automated solution reduces labor requirements by 70% while improving welding consistency by 95%. The integrated PLC control system enables precise parameter settings for different steel cage specifications, with memory functions that store up to 50 welding programs for quick recall during production changes.
Technical Specifications of Our CNC Steel Cage Welding Stations

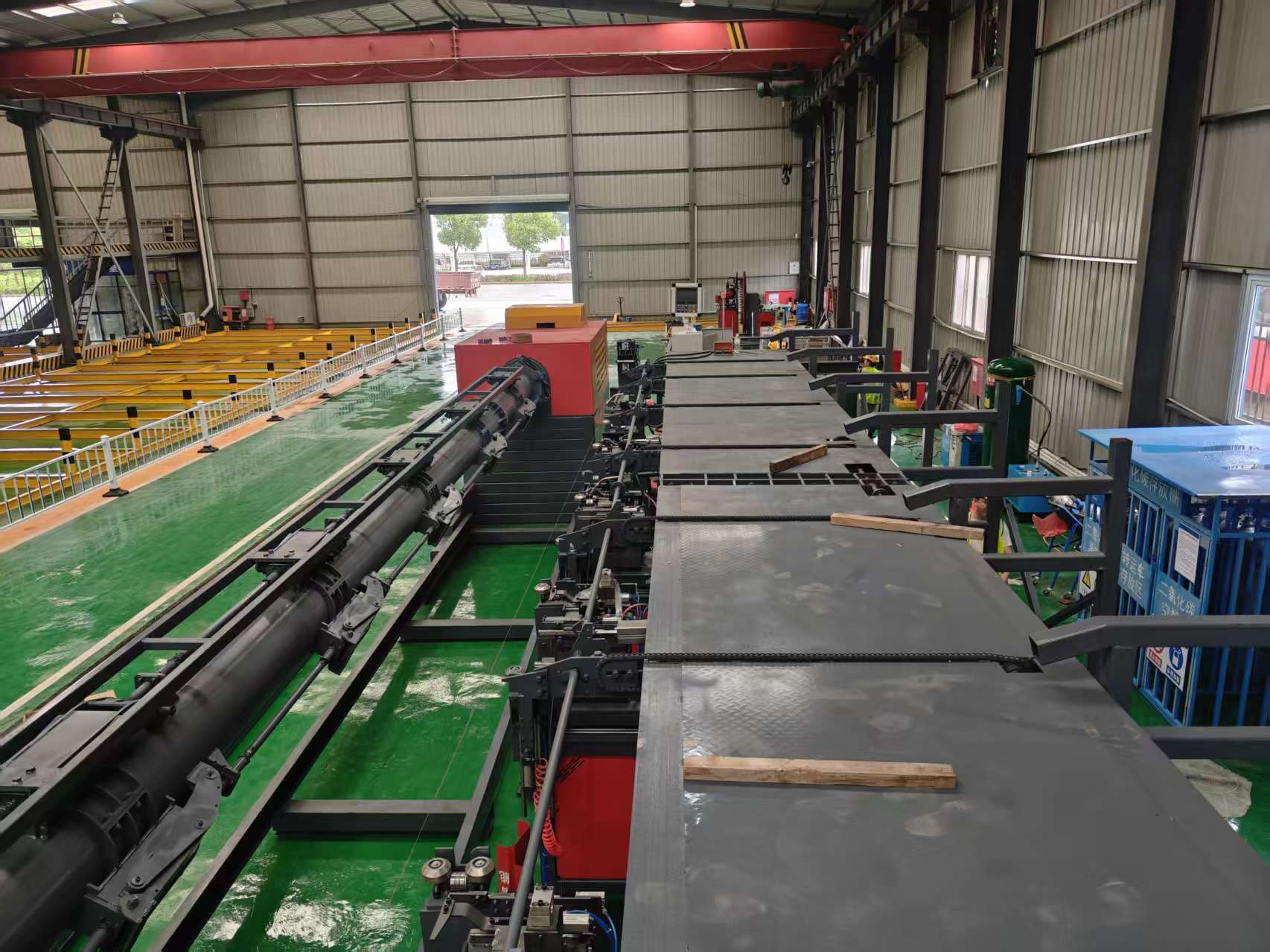

Our standard model XH-RCW2000 features a welding range of 800-2000mm in diameter and 3-12m in length, accommodating main reinforcement diameters from Φ12-Φ40mm and stirrup diameters from Φ5-Φ16mm. The equipment operates at 380V/50Hz power supply with total installed capacity of 45kW, achieving welding speeds of 40-60 points per minute depending on material specifications.
The advanced welding arm mechanism ensures uniform electrode pressure through pneumatic control, while the servo-driven rotation system maintains ±1mm positioning accuracy during cage fabrication. For enhanced durability, we use industrial-grade components including Siemens PLC, Schneider electrical parts, and ABBA linear guides, all rated for continuous 24-hour operation in demanding construction environments.
| Parameter | Specification |
|---|---|
| Welding Range | Diameter 800-2000mm, Length 3-12m |
| Main Reinforcement | Φ12-Φ40mm |
| Stirrup Diameter | Φ5-Φ16mm |
| Welding Speed | 40-60 points/min |
| Positioning Accuracy | ±1mm |
Customization Capabilities for Special Projects
Understanding that infrastructure projects often have unique requirements, we offer comprehensive customization services beyond standard models. Our engineering team can modify equipment dimensions, welding parameters, and control interfaces to match specific project needs. For tunnel construction projects requiring smaller diameter cages, we’ve developed compact models with enhanced mobility features. For bridge projects needing extra-long cages, we offer extended base frames with reinforced structural supports.
The customization process begins with detailed technical consultations where our engineers analyze project drawings and specifications. Using 3D modeling software, we create virtual prototypes to verify design feasibility before manufacturing. This approach has enabled us to successfully deliver equipment for challenging projects including the 33km Hong Kong-Zhuhai-Macau Bridge and the 1,646km China-Pakistan Economic Corridor railway.
Comprehensive After-Sales Support System
Our commitment to customer success extends beyond equipment delivery. Each CNC steel cage welding station comes with a 12-month warranty covering all mechanical and electrical components. We maintain a spare parts inventory worth over $500,000 to ensure 48-hour delivery for common replacement parts. Our service network spans 15 provincial capitals in China with 24/7 technical support available through dedicated hotlines and remote diagnosis systems.
For international clients, we provide online training modules covering equipment operation, maintenance procedures, and troubleshooting guides in multiple languages. When on-site support is required, our service engineers can arrive within 72 hours to most major cities worldwide. We also offer preventive maintenance contracts that include regular equipment inspections, component replacements, and performance optimization services.
FAQ
What makes CNC steel cage welding stations better than manual welding?
CNC stations offer superior consistency in welding quality, reduce labor costs by 70%, and increase production speed by 3-5 times compared to manual methods. The automated process also eliminates human error factors, ensuring all cages meet exact design specifications.
How long does it take to train operators for these machines?
We provide comprehensive training programs that typically require 3-5 days for basic operation. The intuitive HMI interface with touchscreen controls makes it easy for workers with basic technical knowledge to operate the equipment safely after training.
What maintenance is required for optimal performance?
Daily maintenance includes cleaning welding electrodes, checking lubrication levels, and verifying pneumatic system pressures. Weekly checks should cover electrical connections and servo motor parameters. We provide detailed maintenance manuals with each machine and offer remote guidance for complex procedures.
Can these machines handle different steel grades?
Yes, our welding stations are designed to process common construction steel grades including Q235, Q345, and HRB400. The welding parameters can be easily adjusted through the control panel to accommodate different material properties.
Summary
As a leading CNC steel cage welding station manufacturer, Xuhui (Shandong) Intelligent Equipment Co., Ltd. combines advanced technology with industry expertise to deliver solutions that enhance construction efficiency and quality. Our commitment to continuous improvement has resulted in equipment that reduces production costs by 35% while improving welding consistency to 99.8%. With over 500 installations worldwide and a 98% customer satisfaction rate, we’ve established ourselves as the preferred partner for infrastructure projects requiring reliable, high-performance steel cage fabrication equipment.
Whether you need standard models or customized solutions, our team is ready to support your project requirements. Contact us today for detailed product information, site visit arrangements, or to request a customized quotation tailored to your specific needs.
