In modern infrastructure construction, the demand for standardized and efficient rebar processing has never been greater. As a professional manufacturer of CNC rebar cage welding machines, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has established itself as a leading provider of automated rebar processing solutions in China. Located in Heze, Shandong – a renowned engineering machinery manufacturing base, our company integrates R&D, production, and sales of numerical control rebar processing equipment, serving major projects worldwide including highways, high-speed railways, airports, power plants, and large-scale building complexes.

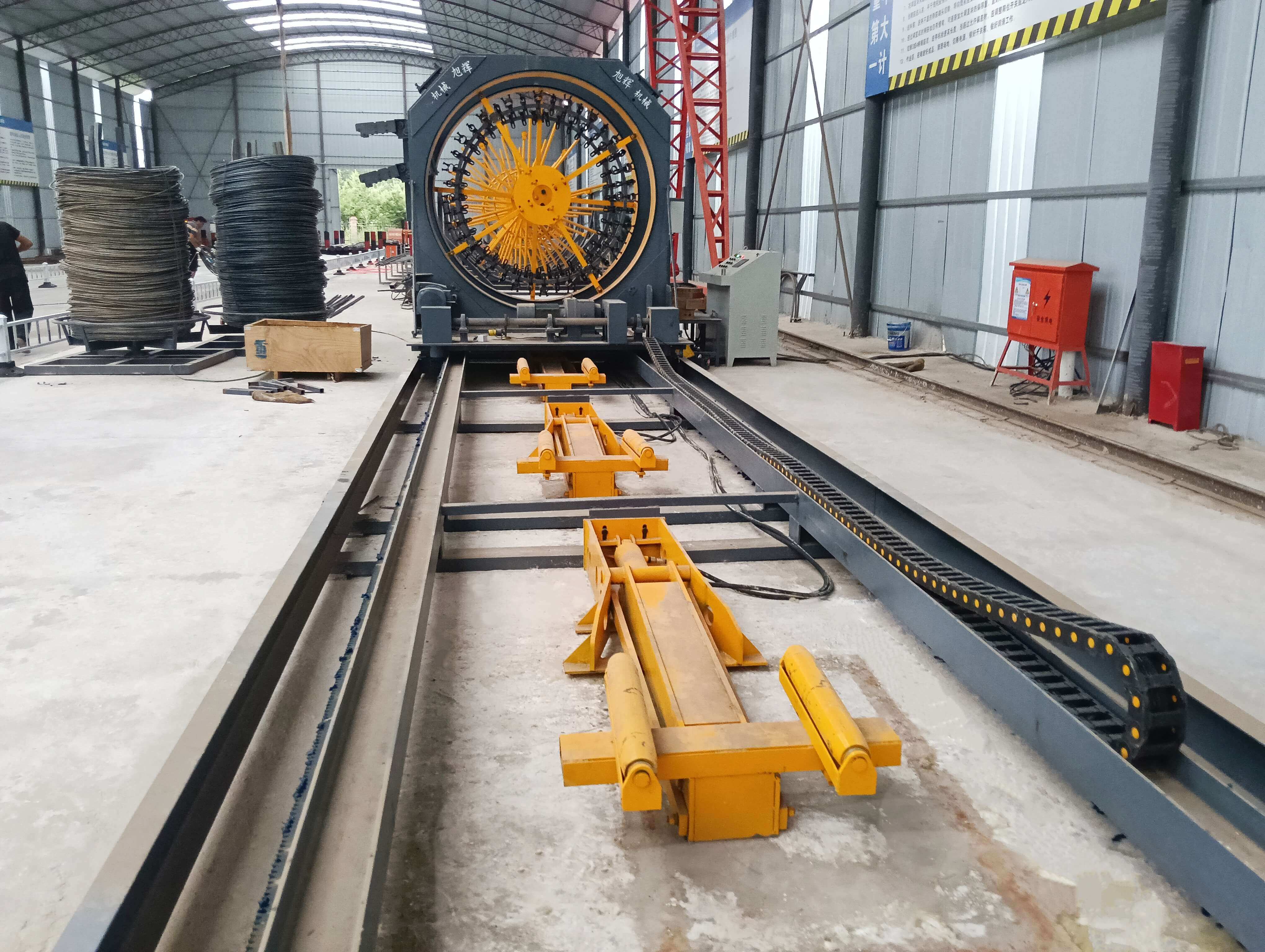

Core Product: CNC Rebar Cage Welding Machine
Our flagship product, the CNC rebar cage welding machine, represents the pinnacle of rebar processing automation technology. This advanced equipment completely replaces traditional manual binding and welding processes with automated operations, delivering consistent quality and significant efficiency improvements. The machine integrates multiple functions including rebar feeding, straightening, bending, welding, and forming, enabling complete automation of the rebar cage production process.
The key advantages of our CNC rebar cage welding machines include:
- High Precision: Computer numerical control ensures consistent rebar spacing, welding positions, and overall dimensions with tolerance levels below ±1mm
- Increased Productivity: Single machine output reaches 8-12 rebar cages per shift (8 hours), equivalent to the work of 15-20 skilled workers
- Labor Cost Reduction: Automation reduces manual labor requirements by 70-80%, significantly lowering long-term operational costs
- Improved Safety: Minimizes manual handling of rebar, reducing workplace injury risks associated with traditional methods
- Quality Consistency: Standardized production ensures every rebar cage meets identical quality specifications
Technical Specifications and Performance Parameters
Our CNC rebar cage welding machines are designed to handle a wide range of project requirements with the following technical capabilities:
| Parameter | Specification |
|---|---|
| Rebar Diameter Range | Φ12mm-Φ40mm (customizable) |
| Cage Length | Up to 18m (extendable) |
| Cage Diameter | Φ400mm-Φ2500mm (adjustable) |
| Spiral Pitch | 50mm-500mm (programmable) |
| Power Supply | 380V 50Hz 3-phase (customizable) |
| Total Power | Approx. 45kW |
| Control System | PLC + Touchscreen HMI |
| Welding Method | CO2 gas shielded welding |
The machine’s modular design allows for customization based on specific project requirements. Our engineering team can adjust parameters such as rebar diameter capacity, cage length, and welding specifications to match different construction standards worldwide.

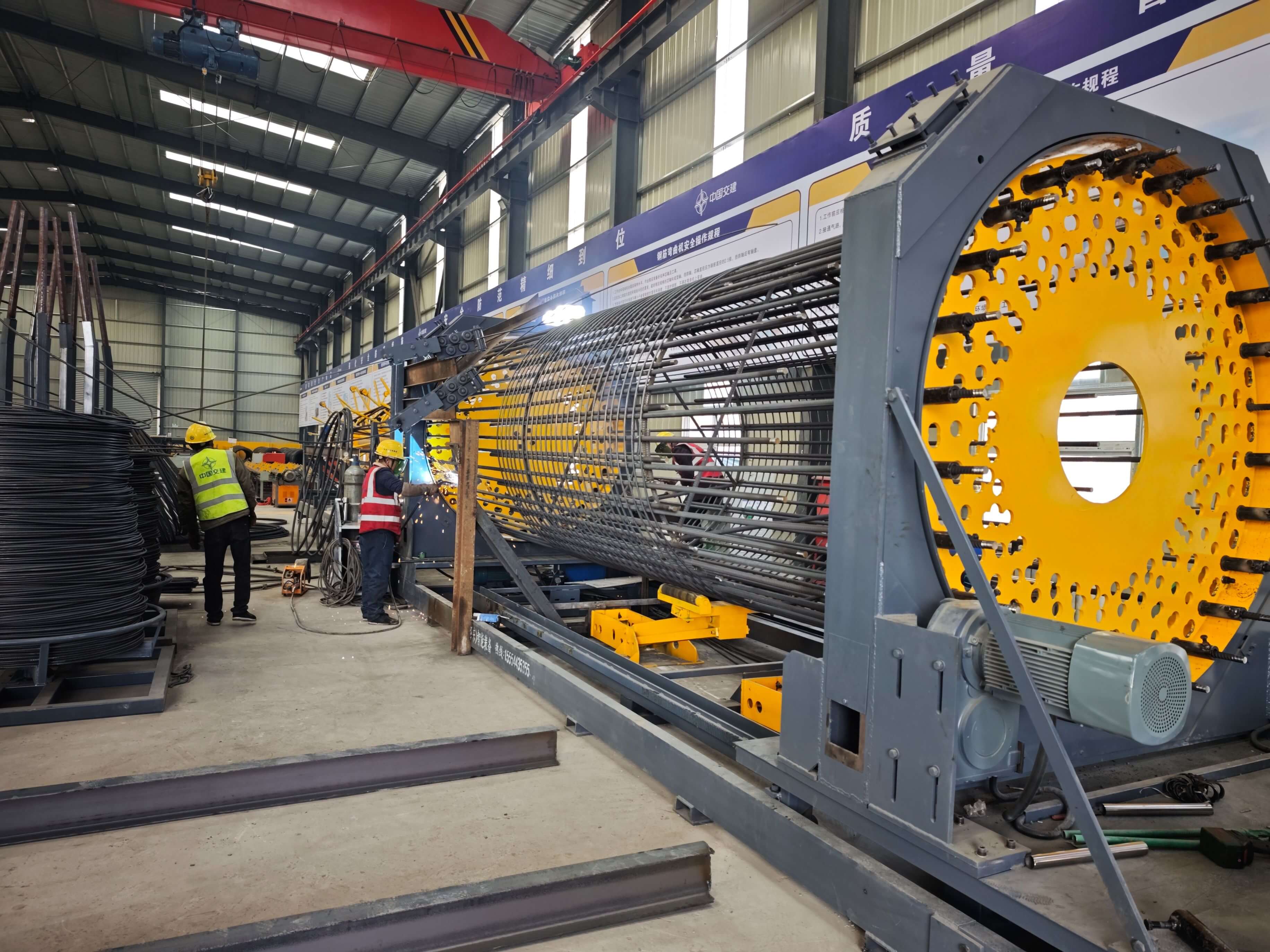

Application Scenarios and Project Cases
Our CNC rebar cage welding machines have been successfully implemented in numerous high-profile infrastructure projects across China and internationally. The equipment is particularly well-suited for:
1. Bridge Construction Projects
In bridge pile foundations and piers, our machines produce high-quality rebar cages with precise spiral reinforcement that meets stringent engineering requirements. The automation capability ensures consistent quality even when producing large quantities of identical cages for bridge pier clusters.
2. Subway and Tunnel Engineering
For underground construction projects, our equipment manufactures rebar cages with special configurations to withstand complex geological conditions. The ability to customize cage diameter and reinforcement patterns makes it ideal for tunnel lining and station structures.
3. Large-scale Building Complexes
High-rise buildings and commercial complexes benefit from our machines’ ability to produce standardized rebar cages for foundation piles and structural columns. The consistent quality helps ensure building safety and reduces construction period risks.
4. Water Conservancy Projects
Dams, water channels, and other hydraulic structures require rebar cages with specific corrosion resistance and reinforcement patterns. Our equipment can be adapted to produce cages with special coatings or alloy rebars for these demanding environments.
Comprehensive Product Range Beyond Rebar Cage Machines
While our CNC rebar cage welding machines form the core of our product line, Xuhui (Shandong) offers a complete range of automated rebar processing equipment to meet all construction needs:
- Rebar Shearing and Threading Equipment: Including CNC saw cutting, threading, and chamfering lines that process rebar ends to precise specifications for mechanical connections
- Rebar Bending Equipment: Numerical control bending centers and stirrup benders that automatically shape rebar into various configurations for different structural elements
- Specialized Processing Equipment: Automatic wire mesh welding machines for building walls and road surfaces, and small duct production lines for tunnel construction
- Complete Production Lines: Integrated solutions combining multiple processing stages for centralized rebar fabrication yards
Global Export Capability and Certifications
As an international supplier, we have established a robust export system serving clients in Southeast Asia, the Middle East, Africa, and Europe. All our equipment carries CE certification meeting European Union safety, health, and environmental requirements, enabling smooth importation and operation in global markets.
Our export services include:
- Customized voltage and frequency configurations for different countries
- Multilingual operation manuals and safety guidelines
- Export-standard wooden crate packaging for marine transportation
- Assistance with customs documentation and shipping logistics
- Global spare parts inventory and rapid delivery
FAQ
What is the production capacity of your CNC rebar cage welding machine?
A single machine can typically produce 8-12 rebar cages per 8-hour shift, depending on cage complexity and size. For larger projects, we recommend configuring multiple machines in parallel to achieve daily outputs exceeding 100 cages.
How does your equipment ensure welding quality consistency?
Our machines use high-precision servo motors to control rebar positioning and welding gun movement. The CO2 gas shielded welding process combined with automatic wire feeding ensures stable arc characteristics and uniform weld penetration throughout production.
What maintenance is required for the CNC rebar cage welding machine?
Daily maintenance includes cleaning welding dust, checking lubrication levels, and verifying electrical connections. We provide comprehensive maintenance manuals and can train your operators in proper equipment care. Key components like servo motors and PLC controllers typically have 3-5 year lifespans with proper maintenance.
Can you customize machines for special rebar grades or project requirements?
Yes, our engineering team can modify machine specifications to handle special rebar grades, corrosion-resistant coatings, or non-standard cage configurations. We have successfully adapted our equipment for projects requiring epoxy-coated rebars and other specialized materials.
What after-sales support do you provide for international clients?
We offer 12-month warranty coverage for all exported equipment, with optional extended service contracts. Our global service network includes trained technicians in key regions who can provide on-site support when needed. We also offer remote diagnosis and troubleshooting via video conferencing.
Summary
Xuhui (Shandong) Intelligent Equipment Co., Ltd. stands as China’s premier manufacturer of CNC rebar cage welding machines and automated rebar processing solutions. With over a decade of specialized experience in the construction machinery sector, we have developed a comprehensive product range that addresses all aspects of modern rebar fabrication needs.
Our commitment to technological innovation, product quality, and customer service has earned us recognition as a trusted partner for infrastructure projects worldwide. By choosing Xuhui equipment, clients gain access to:
- State-of-the-art automated rebar processing technology
- CE-certified equipment meeting international standards
- Customizable solutions for unique project requirements
- Comprehensive support from installation to long-term maintenance
- Proven track record in major global infrastructure projects
As construction standards continue to evolve worldwide, we remain dedicated to advancing rebar processing technology to help our clients build safer, more durable structures with greater efficiency. Contact us today to discuss how our CNC rebar cage welding machines and other automated equipment can transform your rebar fabrication operations.
