In modern infrastructure construction, the quality and efficiency of reinforcing steel processing directly determine the structural safety and construction progress of projects. As a professional manufacturer of CNC steel processing equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. has been committed to providing standardized solutions for building steel construction through innovative technology and professional services. Located in Heze, Shandong – China’s engineering machinery manufacturing base, our company integrates R&D, production, and sales of CNC steel processing equipment, serving major projects such as highways, high-speed railways, airports, power plants, and large-scale building complexes worldwide.
Core Product Advantages of CNC Steel Cage Rolling Machines

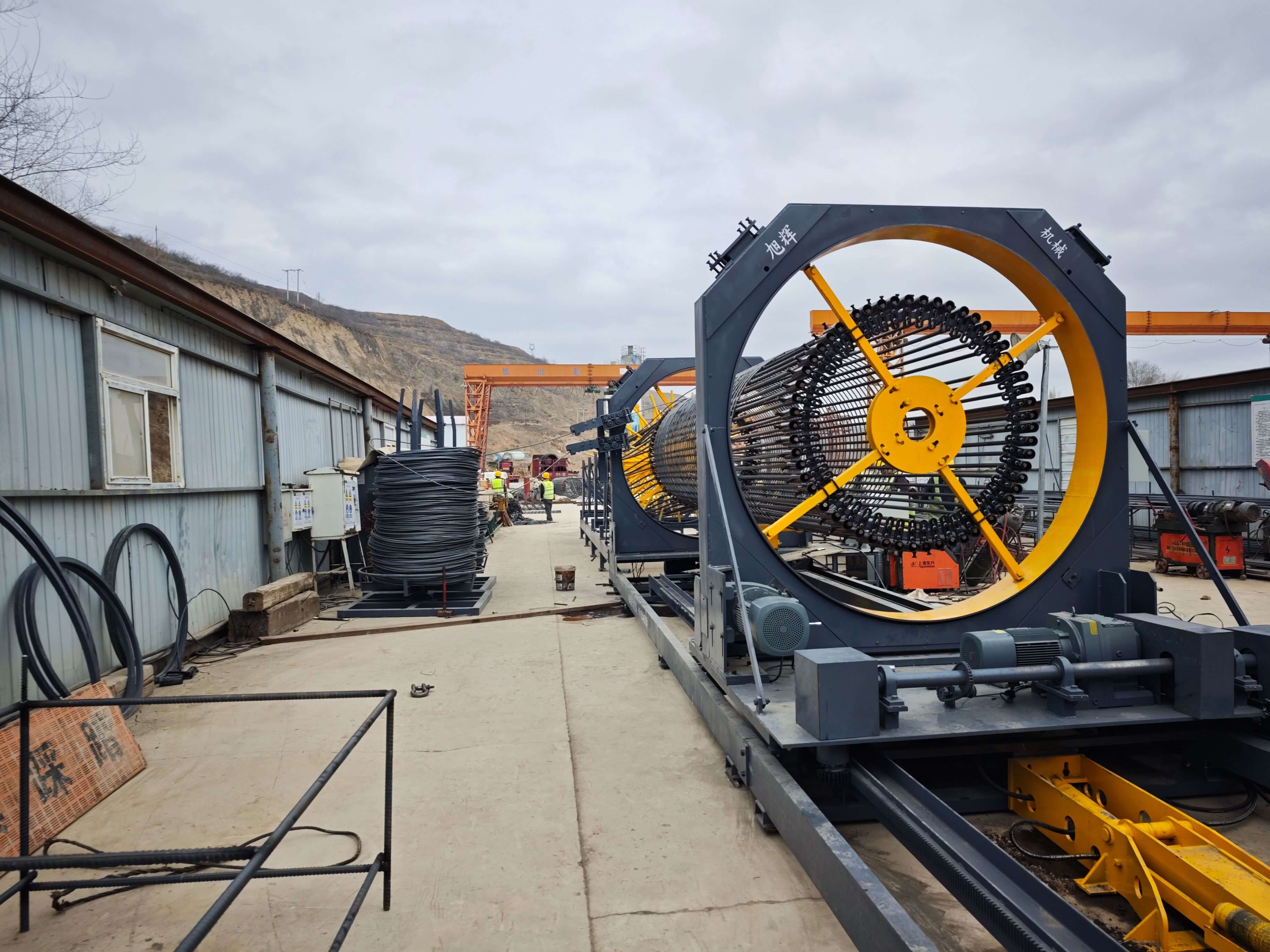

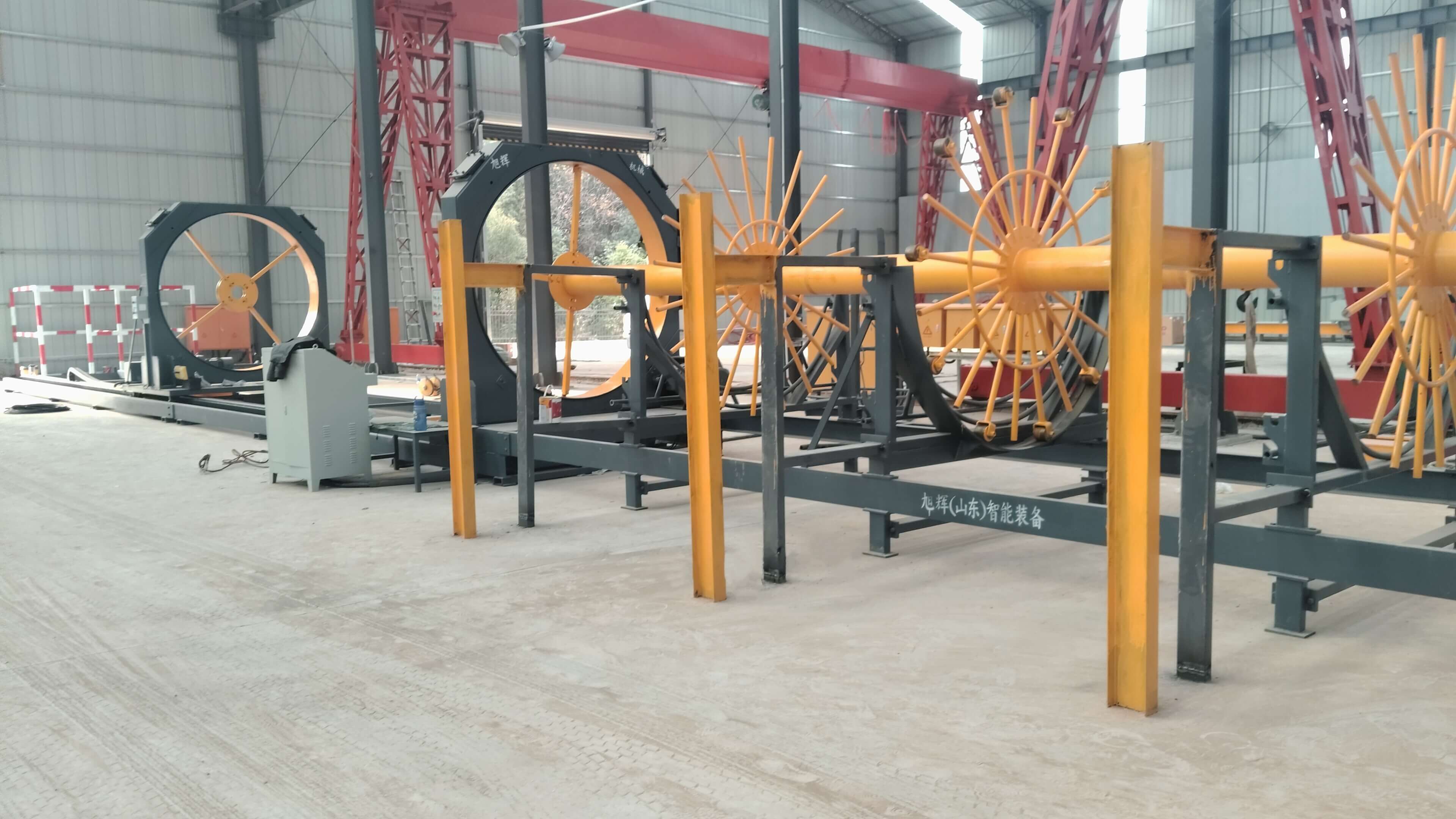

As a key product in our reinforcing steel processing equipment series, the CNC steel cage rolling machine represents the highest level of automation in the industry. This equipment integrates multiple functions including automatic feeding, straightening, bending, welding, and cutting, enabling one-stop production of standardized steel cages. Compared with traditional manual processing methods, our automatic steel cage welding machines offer the following significant advantages:
Firstly, the production efficiency is improved by more than 5 times. A single machine can complete the production of a 12-meter standard steel cage in just 15 minutes, meeting the mass production requirements of large-scale projects. Secondly, the product consistency reaches 99.8%, eliminating quality fluctuations caused by manual operations. The welding seam strength meets the European CE certification standards, ensuring structural safety in complex engineering environments.
Thirdly, the equipment adopts modular design, supporting customization according to different project requirements. Whether for bridge pile foundations, subway tunnels, or nuclear power plant construction, we can provide tailored solutions. The intelligent control system supports multi-language operation interfaces and remote fault diagnosis, greatly simplifying equipment maintenance and operation training.
Technical Specifications of Automatic Steel Cage Welding Machines
Our CNC steel cage production line incorporates multiple advanced technologies to ensure stable and efficient operation. The main technical parameters include:
- Processing diameter range: 200-2000mm
- Main reinforcement spacing: 50-500mm adjustable
- Stirrup diameter range: Φ5-Φ16mm
- Welding speed: 0.5-1.5m/min continuously adjustable
- Power supply: 380V 50Hz three-phase power
- Total power: Approximately 45kW
- Control system: Siemens PLC + touch screen operation
The equipment adopts high-precision servo motor drive system and imported welding power sources, ensuring stable welding quality under continuous high-load operation. The special anti-deformation structure design effectively controls processing accuracy, with positioning accuracy reaching ±0.5mm. The integrated dust removal system meets international environmental protection standards, creating a clean production environment.
Application Scenarios in Major Infrastructure Projects
Our CNC steel cage rolling machines have been widely applied in various large-scale infrastructure projects. In the Hong Kong-Zhuhai-Macao Bridge project, our equipment completed the production of 12,000 tons of steel cages with zero quality defects, significantly shortening the construction period. For the Beijing-Shanghai High-Speed Railway, we provided 8 sets of automatic steel cage welding lines, achieving daily production of 200 tons of standardized steel cages.
In tunnel construction projects, our specialized small duct production lines demonstrate unique advantages. The equipment integrates cutting, hole punching, and tip shrinking functions, completing the entire processing flow of tunnel small ducts in one go. The processing efficiency is 8 times that of traditional methods, and the product qualification rate reaches 100%, effectively improving tunnel construction safety.
For overseas markets, our equipment has obtained EU CE certification and complies with ISO9001 quality management system standards. In the Malaysia East Coast Railway project, our CNC steel cage production line adapted to local tropical climate conditions through special anti-corrosion treatment, ensuring stable operation in high-temperature and high-humidity environments for 3 consecutive years.
| Equipment Model | Processing Capacity | Applicable Projects |
|---|---|---|
| XH-GLH2000 | 8-12 tons/shift | Large bridge pile foundations |
| XH-GLH1200 | 5-8 tons/shift | Subway tunnel construction |
| XH-XDG32 | 2000 pieces/shift | Tunnel small duct processing |
FAQ
What are the main differences between CNC steel cage rolling machines and traditional equipment?
The most significant difference lies in automation level and production efficiency. Traditional equipment requires multiple manual operations for feeding, bending, and welding, with low production efficiency and inconsistent product quality. Our CNC steel cage rolling machines integrate all processing steps, achieving fully automated production with 5-8 times higher efficiency and consistent product quality meeting international standards.
How to ensure the welding quality of steel cages in complex environments?
We adopt three measures to ensure welding quality: First, use imported welding power sources with stable arc characteristics; Second, equip with automatic wire feeding and voltage compensation systems to adapt to power fluctuations; Third, implement real-time monitoring of welding parameters through the PLC control system, with automatic alarm and shutdown functions for abnormal conditions.
What maintenance is required for CNC steel cage rolling machines?
Daily maintenance mainly includes: 1. Cleaning the equipment surface and guide rails; 2. Checking lubricating oil levels and adding as needed; 3. Inspecting electrical connections for looseness; 4. Regularly replacing wearing parts like welding electrodes and cutting blades. We provide detailed maintenance manuals and offer remote technical support. For key projects, we can arrange engineers for on-site maintenance services.
Can the equipment be customized for special project requirements?
Yes, we support equipment customization based on project-specific requirements. Our R&D team can adjust parameters such as processing diameter range, stirrup spacing, and welding methods according to project drawings. We have successfully customized equipment for nuclear power plant projects requiring special anti-radiation treatments and offshore platform projects needing enhanced corrosion resistance.
Summary
As a professional manufacturer of CNC steel processing equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. continues to innovate in technology and services. Our CNC steel cage rolling machines and automatic steel cage welding machines have become preferred equipment for major infrastructure projects in China and overseas markets. By providing standardized steel processing solutions, we help customers improve construction efficiency by 30-50%, reduce material waste by 15-20%, and ensure project quality and safety.
Looking forward, we will continue to focus on technological innovation, deepen international cooperation, and provide more intelligent, efficient, and environmentally friendly steel processing equipment for global infrastructure construction. We sincerely invite partners from around the world to visit our factory in Heze, Shandong, and explore cooperation opportunities together.
