Industry Technical Pain Points: The Efficiency and Precision Dilemma of Traditional Small Conduit Processing

In tunnel support and slope reinforcement projects, small conduits, as key components, directly affect the structural safety with their processing quality. Traditional processing methods, which rely on manual operations, have three major pain points: Firstly, low efficiency, as the processing of a single conduit requires multiple steps such as cutting, chamfering, drilling, and threading, manual operations take over 15 minutes per conduit, and the sequence of operations depends on experience, leading to equipment idleness. Secondly, insufficient accuracy, with manual measurement errors up to ±2mm, deviations in drilling positions exceeding standards can result in reduced grouting effects, affecting the stability of support. Thirdly, high costs, with labor costs accounting for over 40% of the total processing costs, and the scrap rate maintained at 8%-12% due to operational differences, further increasing costs. Taking a certain expressway tunnel project as an example, under the traditional processing mode, the monthly production capacity can only meet the demand for 300 meters of tunnel, while the actual project demand reaches 800 meters, highlighting the contradiction between supply and demand.

Introduction to Corporate Technical Strength: Xuhui Intelligent Equipment's Full-Process Solution

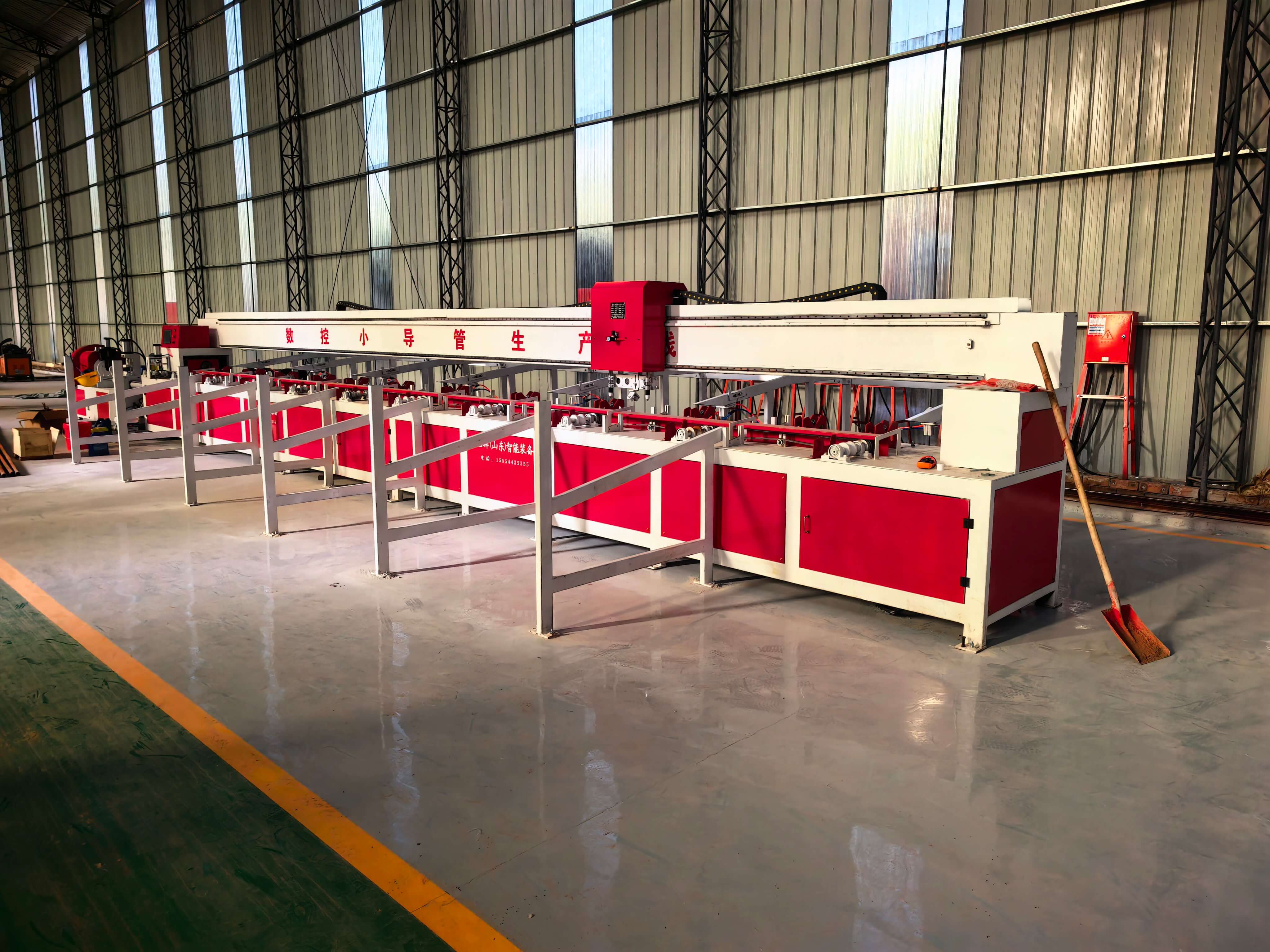

Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in CNC steel bar equipment, launching an automatic production line to address the pain points of small tube processing. Its technical advantages are reflected in three aspects: Firstly, full-process automation, integrating four modules of sawing, chamfering, drilling, and thread treatment, achieving seamless process connection through PLC control system, reducing the processing time of a single tube to 3 minutes and increasing efficiency by 400%; Secondly, high-precision control, driven by servo motors, with drilling position accuracy up to ±0.5mm and thread pitch error ≤0.2mm, reducing the scrap rate to below 2%; Thirdly, modular design, supporting tube processing with φ32-φ108mm diameter, adjustable drilling quantity (1-8 holes), adaptable to different engineering requirements. Taking a section of the Zhengwan High-Speed Railway as an example, after the Xuhui production line was put into use, the monthly output increased to 2000 meters, meeting project needs while reducing labor costs by 65% and increasing the grouting pass rate from 85% to 98%. Currently, the equipment has been serving more than 30 key projects including the Jingxiong intercity railway and Daxing International Airport, with cumulative deliveries exceeding 200 production lines.

FAQ: Technical Selection Guide for CNC Fully Automatic Small Conduit Production Line

Q1: How to select the suitable tube diameter and hole configuration for the project requirements?
A1: The selection of conduit diameter should be combined with engineering geological conditions. For soft rock formations, it is recommended to use φ42-φ60mm; for hard rock formations, φ76-φ108mm is suggested. The number of boreholes should be calculated based on grouting pressure. When the grouting volume per hole is ≤50L, it is recommended to configure 2-4 holes; when over 50L, configure 6-8 holes. Xuhui production line supports stepless adjustment from φ32-φ108mm, with adjustable borehole numbers from 1 to 8, offering stronger compatibility.

Q2: How to control equipment maintenance costs? What is the lifespan of the key components?
A2: Maintenance costs mainly depend on the frequency of replacement for consumable parts. Xuhui production line uses high-strength alloy cutting tools, with blade life up to 2000 cuts and drill bit life up to 5000 holes, three times longer than traditional equipment; core components such as servo motors and PLCs offer a 2-year warranty with a failure rate below 0.5%. With an annual processing of 50,000 tubes, the annual maintenance cost is only about 12,000 yuan, a 70% reduction compared to traditional equipment.

Q3: Can non-standard customized requirements be met? How long is the delivery cycle?
A3: Xuhui supports non-standard customization, allowing adjustments to parameters such as equipment length (8-15 meters), drilling angle (0-90°), and thread length (50-300mm). From demand confirmation to delivery, the standard model cycle is 30 days, while the non-standard model cycle is 45 days, reducing the industry average cycle by 20%. After the equipment arrives, Xuhui provides a 72-hour installation and debugging service to ensure rapid production and operation.

Summary: Technological iteration drives industry upgrading

The core value of the CNC fully automatic small conduit production line lies in breaking the deadlock of efficiency, cost, and quality in traditional processing through automation and precision control. Xu Hui (Shandong) Intelligent Equipment Co., Ltd. provides standardized solutions for projects such as expressways and railways with full-process automation technology, high-precision control systems, and modular design. Its equipment has been verified by projects like the Zhengwan High-Speed Railway and Beijing-Xiongcheng Urban Railway, achieving a 400% increase in production capacity, a 65% reduction in costs, and a waste rate below 2%. For engineering parties, when selecting equipment, attention should be focused on diameter compatibility, maintenance costs, and non-standard customization capabilities. Xu Hui's full-process services and rapid delivery capabilities are a direct reflection of its technical strength.
