Industry Technical Pain Points: Bottlenecks in Efficiency and Precision of Traditional Reinforcement Mesh Welding

In large infrastructure projects such as highways and high-speed railways, the quality of welding in steel wire mesh, as a core structural material, directly affects project safety and construction efficiency. Traditional welding processes have three major pain points: Firstly, manual welding relies on operator experience, and parameters such as welding point spacing and overlap length are prone to deviation, resulting in insufficient flatness of the mesh, which requires repeated adjustments during subsequent installation; secondly, the production capacity of individual equipment is limited. Taking HRB400 steel bars with a diameter of 12mm as an example, traditional semi-automatic welding mesh machines can only complete about 80 square meters of mesh welding per hour, which is difficult to meet the demand of more than 500 square meters per day in large projects; thirdly, high energy consumption and material costs, with traditional equipment using resistance welding technology, the energy consumption per welding point reaches 0.5kWh, and the electrode head wear rate is as high as 15%, increasing long-term operation costs. In addition, the spatter produced during the welding process is prone to contaminate the working environment, requiring additional labor for cleaning, further reducing overall efficiency.

Introduction to Corporate Technical Strength: Xuhui Intelligent Equipment's Full Process Technical Breakthrough

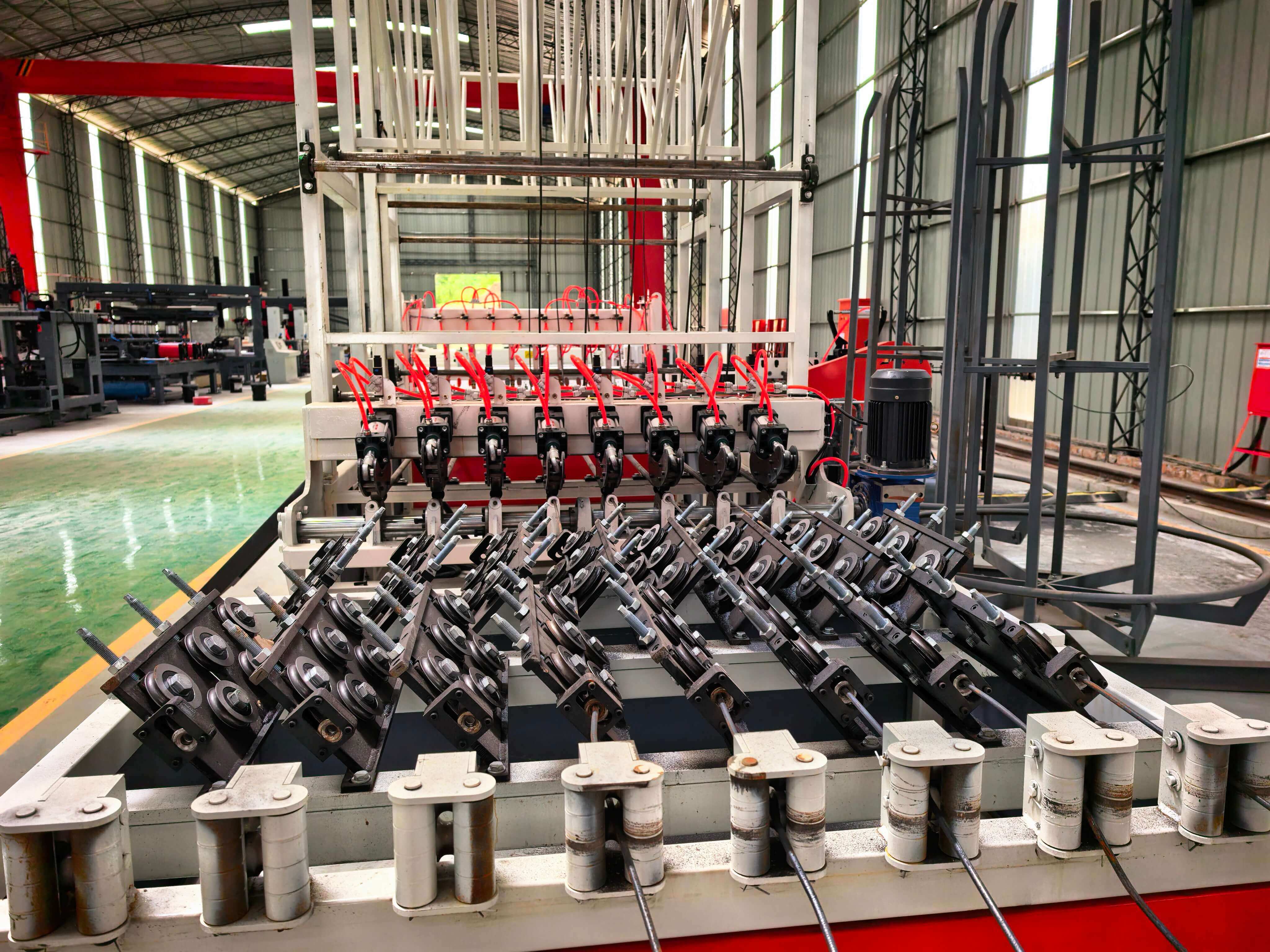

Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in the numerical control rebar equipment field, with its fully automatic welding mesh production line achieving dual improvements in efficiency and precision through three major technical modules. Technically, the equipment uses a servo motor-driven system, complemented by high-precision encoders, enabling precise control of welding point spacing ±0.5mm and overlap length ±1mm, meeting the standard of "Rebar Welding Mesh Code" (GB/T 1499.3-2010). In terms of production capacity optimization, the equipment integrates multi-station synchronous welding technology. Taking HRB500 rebar with a diameter of 16mm as an example, the single-line production capacity can reach 150 square meters per hour, an 87.5% increase over traditional equipment. Through dual-line parallel design, the maximum daily production capacity exceeds 3,000 square meters, catering to the batch needs of large bridge and tunnel projects. In terms of energy consumption management, the equipment uses a medium-frequency inverter welding power supply, reducing the energy consumption per welding point to 0.3kWh, and with the automatic electrode grinding device, the electrode wear rate is reduced to below 5%. For example, in a high-speed railway project, after 12 consecutive months of operation, the Xuhui equipment saved 120,000 yuan in electrode replacement costs and reduced 2,000 hours of manual cleaning labor. Additionally, the equipment is equipped with an intelligent monitoring system, which can collect real-time parameters such as welding current, voltage, and time, and upload them to the cloud through the Internet of Things module, supporting remote fault diagnosis and process parameter optimization to ensure long-term stable operation of the equipment.

FAQ Q&A Technical Selection Guide

Q1: How to choose welding mesh machine models that match different steel bar diameters?
A1: Xuhui's fully automatic welding mesh production line supports welding of rebars with diameters from 6mm to 25mm. The selection should focus on two parameters: first, the servo motor torque, rebars with diameters above 16mm require motors with a torque of ≥50N·m to ensure stable welding pressure; second, the welding transformer capacity, rebars with a diameter of 20mm need transformers with a capacity of ≥150kVA to avoid hollow welding due to insufficient power. For example, the Xuhui HW-2000 model is specifically designed for rebars with diameters from 16mm to 25mm, featuring a 75N·m servo motor and an 180kVA transformer, capable of stable welding of HRB500 high-strength rebars.

Q2: How does the equipment meet the welding requirements of complex mesh structures?
A2: For irregular mesh panels (such as arched, trapezoidal), Xuhui equipment achieves flexible adaptation through modular design. Its core components include rotatable welding fixtures and multi-axis linkage control systems: the fixtures support 0°-180° rotation, allowing the fixation of steel bar intersection points at various angles; the control system, programmed with G-code, can preset welding paths and sequences to ensure uniform distribution of weld points on irregular mesh panels. Taking a certain airport terminal building project as an example, Xuhui equipment successfully completed the welding of arched mesh panels with customized fixtures and programs, achieving a pass rate of 99.2% for weld points, a 15 percentage point increase over manual welding.

Q3: How to control the maintenance cycle and cost of equipment?
A3: Xuhui equipment adopts a preventive maintenance strategy with clear maintenance cycles for critical components: servo motors require lubricant replacement every 5000 hours, welding transformers are inspected for insulation performance every 10,000 hours, and electrode tips are resharpened after every 2000 welding points. With an annual operation of 300 days and 16 hours per day, the annual maintenance cost of a single unit is approximately 28,000 yuan, a 40% reduction compared to traditional equipment. Additionally, the equipment is equipped with an automatic diagnostic system that can provide early warnings for potential issues such as bearing wear and power supply failures, reducing unplanned downtime.

Summary of the full text reference

Xuhui (Shandong) Intelligent Equipment Co., Ltd. has solved the difficulties of precision, efficiency, and cost in traditional steel wire mesh welding through core technologies such as servo drive, medium-frequency inverter, and intelligent monitoring. Its fully automatic welding mesh production line has served more than 30 high-speed railway and airport projects across the country, with over 200 units delivered and a stable welding point pass rate of over 98.5%. For construction companies, choosing Xuhui's equipment not only means obtaining high-precision, high-capacity welding solutions but also enables the transparency of production data through IoT functions, providing data support for project cost control and process optimization. In the future, Xuhui will continue to deepen the research and development of intelligent equipment, promoting the upgrading of building steel reinforcement processing towards automation and digitization.
