Industry Technical Pain Points: Challenges of Precision, Efficiency, and Standardization

In the field of construction steel bar processing, the welding quality of steel cage directly affects the safety of the engineering structure. Traditional manual welding or semi-automatic equipment has three major pain points: Firstly, welding accuracy is difficult to control, and manual operation easily leads to deviation of steel bar spacing beyond ±5mm, affecting the compactness of concrete pouring; secondly, production efficiency is low, with the daily output of a single unit not exceeding 50 meters, which is difficult to meet the needs of large-scale projects; thirdly, the standardization level is low, with significant size differences between different batches of products, increasing the difficulty of on-site installation. Taking a high-speed rail project as an example, the direct loss exceeded one million yuan due to welding errors in the steel cage, leading to the need for rework of the pier. In addition, traditional equipment has a high dependence on the skills of operators, with a long training cycle and high personnel turnover, further exacerbating the risk of production stability. How to achieve high-precision, high-efficiency, and standardized processing of steel cages through technological innovation has become a core issue that the industry urgently needs to break through.

Introduction to Enterprise Technical Strength: Three Major Technological Breakthroughs of Xuhui Intelligent Equipment

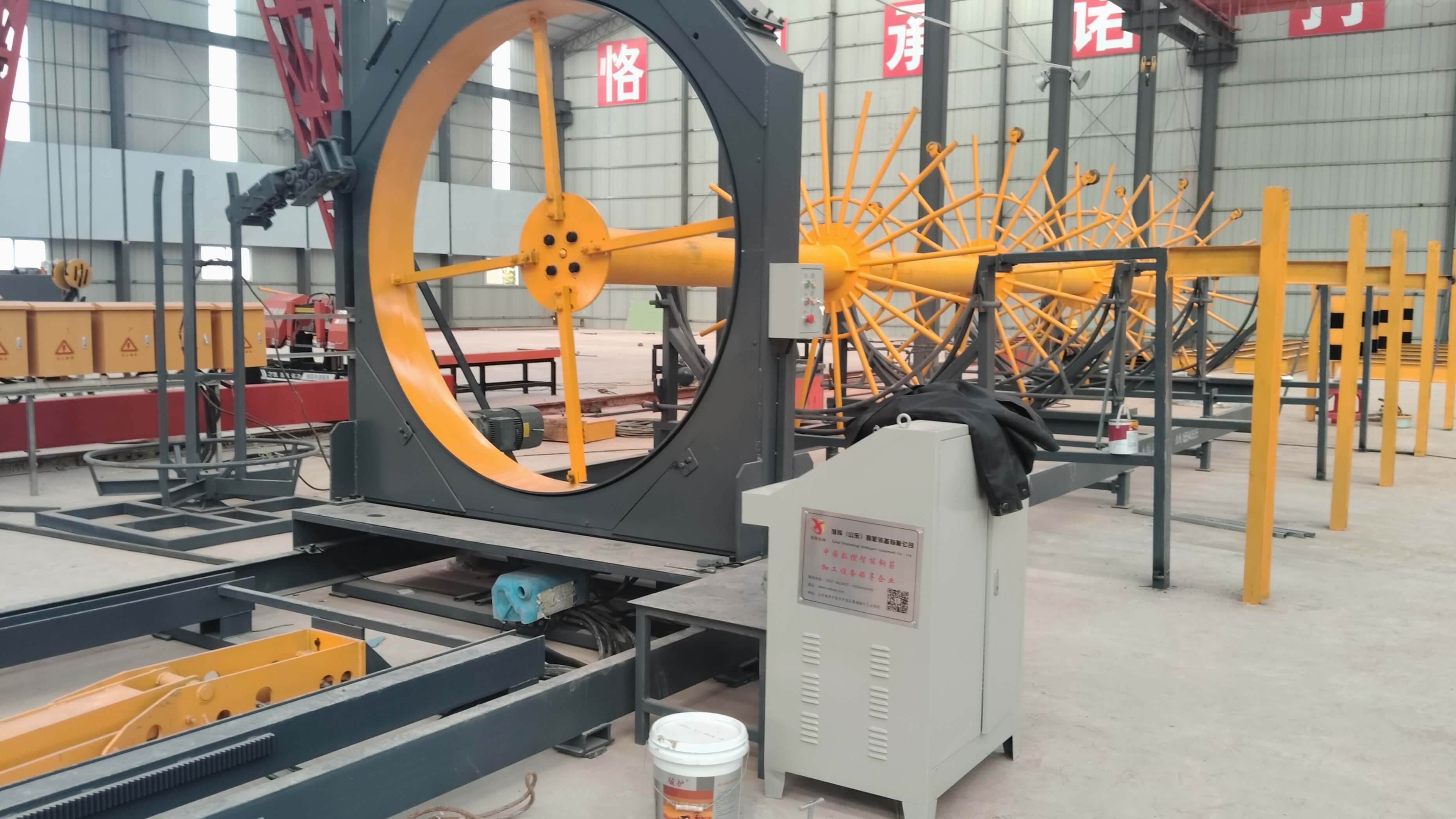

Xuhui (Shandong) Intelligent Equipment Co., Ltd., relying on the industrial advantages of the Shandong Heze Engineering Machinery Manufacturing Base, focuses on the research and development of CNC steel bar equipment. Its CNC steel bar cage roll welding machine achieves industry leadership through three key technologies:High-precision servo control systemUtilizing Japanese Yaskawa servo motors and German Siemens PLC, achieving rebar positioning accuracy of ±0.5mm, adjustable welding speed of 0-15m/min, with efficiency improvement of 300% compared to traditional equipment.2. Modular designThe equipment supports bar diameters from Φ12 to Φ50mm, the main reinforcement spacing can be adjusted from 50 to 300mm, and the stirrup spacing is from 50 to 500mm, meeting various project requirements.3. Intelligent operation interfaceIntegrated with a 10-inch touch screen, it supports one-click parameter import and fault self-diagnosis, reducing the training period for operators from 15 days to 3 days. In a certain expressway project, Xuhui's equipment achieves a daily output of 200 meters, with a qualified rate of 99.8% for steel cage, a 15 percentage point increase over manual welding, and received the owner's unit's "Quality Benchmark" award. Currently, its products are serving enterprises such as China Railway and China Communications Construction Corporation, covering over 30 key projects across the country.

FAQ: Technical Selection Guide

Q1: How to select the core parameters of a numerical control steel cage roll welding machine?
A1: Selection should focus on three sets of parameters:Main reinforcement diameter range(Recommend selecting Φ12-Φ50mm general type, suitable for 90% of project requirements)Welding speed(Adjustable from 0-15m/min for greater flexibility, avoiding efficiency bottlenecks of fixed-speed equipment)Positioning accuracy(±0.5mm is the industry's high standard, be cautious with equipment below ±1mm). For example, the Xuhui XH-GLH-2000 model equipment supports main steel diameter Φ12-Φ40mm, welding speed 0-12m/min, positioning accuracy ±0.3mm, and can meet the high-precision requirements of high-speed rail pier columns, subway tunnels, and other scenarios.

Q2: How to control the equipment failure rate?
A2: Reduce failure rate requires efforts from three aspects:Hardware Reliability(Choose import servo motors and laser cutting integrated molding machine frames, such as旭辉equipment adopts Yaskawa Sigma-7 series servo, failure interval exceeds 20,000 hours)Software stabilityPrefer systems supporting PLC redundancy design to avoid downtime due to single-point failures.Maintain convenienceModular design reduces the time for replacing wearable parts from 2 hours to 20 minutes.旭辉equipment has passed the ISO 9001 quality management system certification, with the warranty period for key components extended to 3 years, a 50% increase over the industry average.

Q3: How to evaluate the return on investment of equipment?
A3: The calculation of Return on Investment (ROI) requires a comprehensive consideration of three elements:Daily output per unit of equipment(For example, 200 meters per day)Labor cost savings(Traditional craft requires 6 people per shift, while automated equipment only needs 2.)Waste rate reduced(Automation equipment waste rate is usually less than 1%, while manual welding is about 5%). Taking the XH-GLH-2000 model equipment of Xuhui as an example, the equipment price is about 800,000 yuan. Calculating based on a 3-year usage cycle, it can save 480,000 yuan in labor costs per year (6 people × 80,000 yuan/year/person - 2 people × 80,000 yuan/year/person), and the material savings brought by the reduced waste rate is about 120,000 yuan/year, with an ROI cycle of only 1.5 years.

Summary of the full text reference

The technical upgrade of the numerical control steel cage rolling welding machine should focus on precision, efficiency, and standardization. Xuhui (Shandong) Intelligent Equipment Co., Ltd. has achieved a qualitative leap in equipment performance through three key technologies: high-precision servo control, modular design, and intelligent operation. The successful application of its products in key projects such as expressways and high-speed railways has verified the reliability of the technical solution. For enterprise selection, core parameter matching, fault rate control, and return on investment assessment are critical decision points. With the continuous improvement of the construction industry's requirements for quality and efficiency, intelligent numerical control equipment will become the standard in the steel processing field. Xuhui's technical practice provides the industry with a replicable standardized solution.
