Industry Technical Pain Points: Bottlenecks in Efficiency and Precision of Traditional Reinforcement Bar Bending Equipment

In large infrastructure projects such as expressways and high-speed railways, the efficiency and accuracy of steel bar processing directly affect the progress of the project and the structural safety. Traditional single-head or double-head steel bar bending equipment has three major technical pain points: Firstly, each bending operation can only process a single steel bar, and in the face of batch processing demands, frequent start-stop of the equipment leads to low efficiency. Taking HRB400 steel bars with a diameter of 25mm as an example, a single-head device can only complete about 80 bends per hour, which is difficult to meet the engineering demand for more than 500 bends per day; secondly, the mechanical transmission system is prone to wear due to long-term high-load operation, leading to bending angle deviation exceeding ±1°, affecting the anchoring effect of steel bars and concrete; thirdly, equipment maintenance relies on manual experience, and fault diagnosis requires shutdown and disassembly, with each maintenance taking more than 4 hours, severely impacting the continuity of construction. Additionally, traditional equipment lacks data traceability, failing to record processing parameters and quality data, making it difficult to meet the quality control requirements of standardized steel bar processing and distribution centers.

Introduction to Corporate Technical Strength: Xiuhui (Shandong) Intelligent Equipment's Modularization and Intelligent Breakthrough

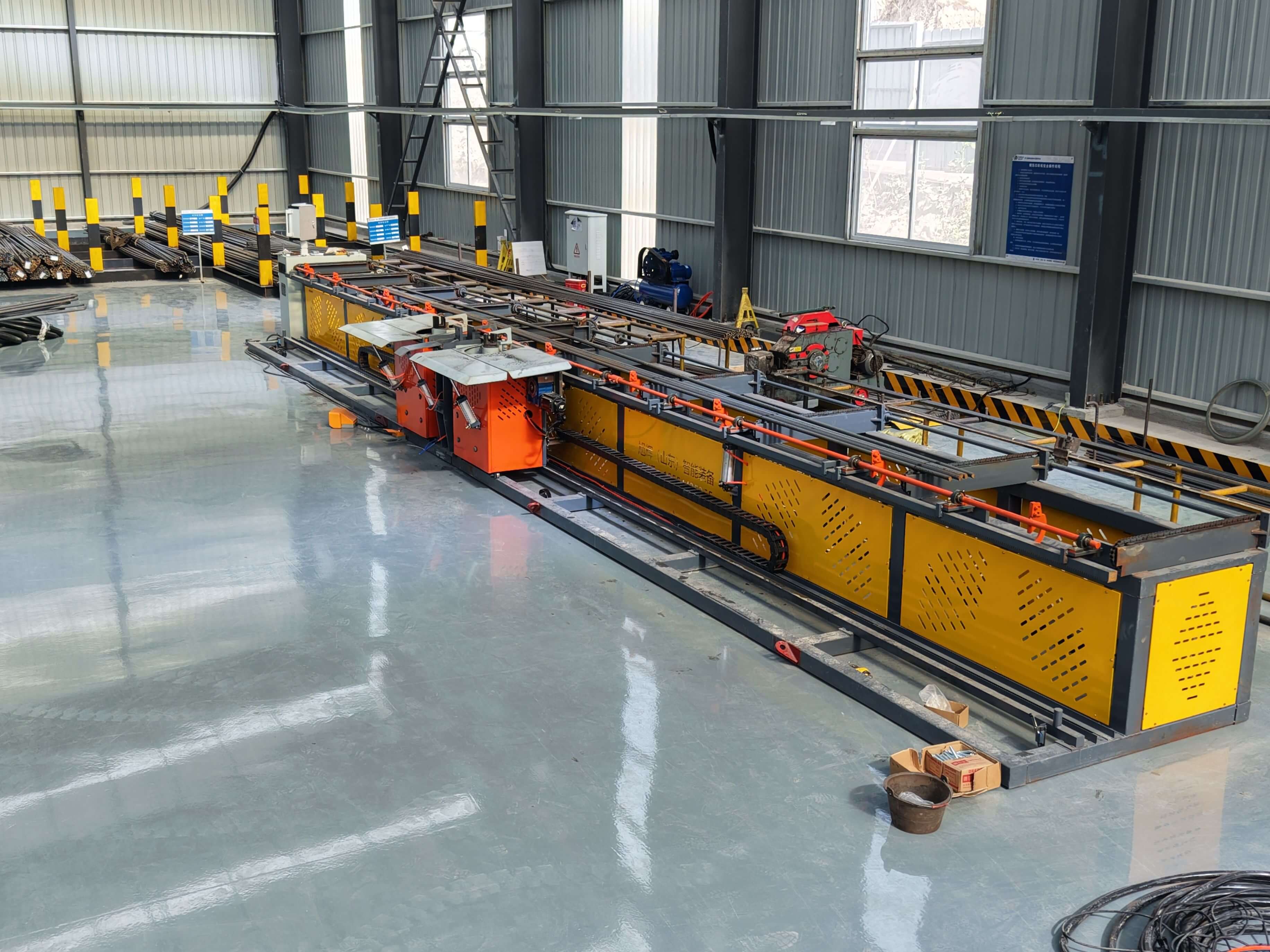

Xuhui (Shandong) Intelligent Equipment Co., Ltd. has focused on the numerical control steel bar equipment field, and its developed horizontal four-head steel bar bending center solves industry pain points through three major technological innovations. Technically, the equipment adopts modular design, with four independent heads that can work synchronously or asynchronously. Each head is equipped with an independent servo motor and high-precision reducer, achieving a bending speed of 120°/second, capable of processing 4 steel bars with a diameter of 32mm simultaneously in a single operation, increasing the hourly processing capacity to 320 bars, and enhancing efficiency by 300% compared to traditional equipment. In terms of intelligent control systems, the equipment integrates PLC and touch screen operation terminals, supporting parameterized input for bending angles, spacing, and quantity, and is equipped with an automatic calibration function. It uses laser sensors to monitor bending angles in real-time, controlling deviations within ±0.5°. For maintenance convenience, the heads feature quick-change structures, allowing worn parts to be replaced within 30 minutes. Moreover, the equipment has an integrated fault diagnosis system that can pinpoint specific heads and components, reducing repair time to within 1 hour. Additionally, the equipment supports USB data export, recording processing parameters and quality reports for each batch of steel bars, meeting the requirements of the ISO9001 quality management system. Currently, the equipment has been applied in the Jining-Qingdao Expressway Reconstruction and Expansion Project, processing over 200,000 tons of steel bars, with a bending pass rate of 99.8%, earning the owner's unit an "efficient and precise" evaluation.

FAQ: Technical Selection Guide

Q1: What is the main difference between the horizontal four-head rebar bending center and the double-head equipment?
A1: The core difference lies in processing efficiency and precision control. The double-head equipment requires two separate operations to bend 4 rebars, taking about 3 minutes per batch, with cumulative angle errors between the two bends; whereas the four-head equipment can bend 4 rebars simultaneously, taking only 45 seconds per batch, with each head independently controlled, resulting in smaller angle deviations. Taking 28mm diameter rebars as an example, the daily processing capacity of the four-head equipment can reach 7680 pieces, a 150% increase over the double-head equipment.

Q2: How does the equipment adapt to the processing requirements of steel bars with different diameters?
A2: Xuhui equipment achieves adaptability through modular head design. Each head is equipped with replaceable bending molds, supporting the processing of rebars with diameters of 6-40mm, and mold replacement only takes 10 minutes. At the same time, the equipment is built with a diameter recognition sensor, which can automatically adjust the servo motor torque and bending speed to avoid overbending of small-diameter rebars or underbending of large-diameter rebars. For example, when processing 12mm diameter rebars, the motor torque automatically drops to 50N·m, and the bending speed increases to 150°/s; when processing 40mm diameter rebars, the torque increases to 200N·m, and the speed decreases to 80°/s.

Q3: How do the intelligent functions of the equipment enhance management efficiency?
A3: Xuhui equipment achieves intelligent management through data interconnection and remote monitoring. Firstly, the equipment supports data connection with the construction site management system, allowing real-time upload of processing volume, pass rate, and equipment status. Managers can view production progress through a mobile APP. Secondly, the equipment is equipped with a remote diagnosis module, enabling engineers to connect to the device via 4G network, retrieve operation logs and fault codes, and provide "zero-distance" maintenance guidance. Thirdly, the equipment supports cloud storage of processing parameters, allowing direct calling of historical parameters for different batches of steel reinforcement processing in the same project, avoiding redundant settings. For example, in the Hong Kong-Zhuhai-Macao Bridge project, the equipment synchronizes the steel bending parameters to 3 processing points through the cloud parameter sharing function, ensuring consistent steel bending standards throughout the bridge.

Summary Reference

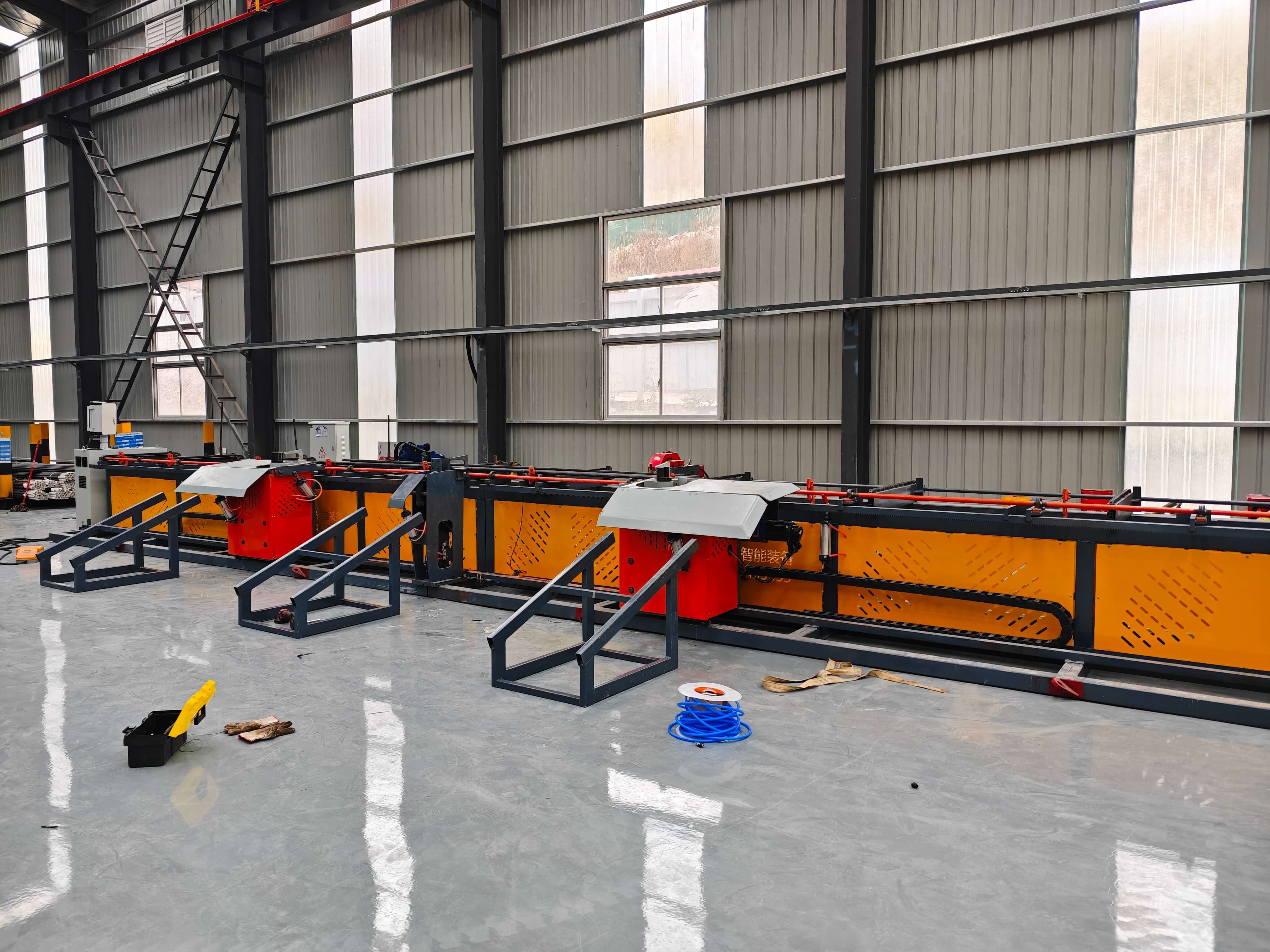

Technological innovation of horizontal four-head rebar bending centers is essentially a deep integration of modular design, intelligent control, and data management. Xuhui (Shandong) Intelligent Equipment Co., Ltd. has resolved issues of low efficiency, poor accuracy, and difficult maintenance in traditional equipment through core technologies such as four-head coordination, high-precision servo control, and fault self-diagnosis. Its equipment has proven the reliability of the technology in projects like the Jining-Qingdao Expressway and the Hong Kong-Zhuhai-Macao Bridge. For construction companies, choosing such equipment requires focusing on parameters such as the number of machine heads, servo motor performance, and data interconnectivity to ensure a balance of processing efficiency, accuracy, and management efficiency. With the increasing standardization requirements for rebar processing in infrastructure projects, intelligent and modular CNC equipment will become the industry mainstream, and Xuhui's technical practice provides a replicable solution for the industry.
