Introduction: Why has the automation of steel bar processing become an industry necessity?
In large-scale infrastructure projects such as expressways and high-speed railways, the efficiency and precision of steel bar processing directly affect project progress and structural safety. The traditional manual processing model suffers from low efficiency, large errors, and high labor intensity, whereas CNC steel bar processing equipment achieves precise control over processes such as bending, welding, and cutting through automation technology. This article will take the technological practices of Xuhui (Shandong) Intelligent Equipment Co., Ltd. as an example to analyze how its CNC steel bar processing equipment resolves industry technical challenges through modular design, intelligent control systems, and high-precision transmission mechanisms.

Key words:CNC steel bar processing equipment, steel arch frame production line, steel reinforcement cage welding workstation, automated construction, Xuhui Intelligent Equipment

Opening with industry technical pain points: Three major bottlenecks in traditional steel bar processing
STEP 1: Inefficiency. The manual hoop bending speed is only about 8-10 pieces per minute, and multiple people are required to collaborate on processes such as welding and cutting, making it difficult for the daily processing volume to exceed 20 tons.
STEP 2: Loss of precision control. Manual operations rely on workers' experience, with stirrup spacing errors reaching ±5mm and diameter deviations of steel reinforcement cages exceeding ±10mm, directly affecting the quality of concrete pouring.
STEP 3: High safety risks. High-temperature splatters generated during cutting and welding, along with improper mechanical clamping, can easily lead to work-related injuries. According to statistics, the accident rate in the steel bar processing industry accounts for over 15% of that in the construction sector.
A high-speed rail project once suffered from insufficient pile foundation bearing capacity due to welding deviations in steel reinforcement cages, ultimately requiring a costly rework of 3 million yuan and highlighting the technical risks of traditional models.

Introduction to the company's technological capabilities: Three major technological breakthroughs of Xuhui Intelligent Equipment
CIFI (Shandong) Intelligent Equipment Co., Ltd. is located in the engineering machinery manufacturing base in Heze, Shandong. It has been dedicated to the research and development of CNC steel bar equipment for over a decade, with its technological advantages reflected in the following aspects:

STEP 1: Modular design enhances equipment adaptability. Taking the steel arch frame production line as an example, it employs a split-type structure that allows for rapid adjustment of processing modules according to tunnel cross-sectional dimensions (diameters ranging from 4 to 12 meters), meeting the support requirements under different geological conditions. The main frame of the equipment is made of Q345B steel with a yield strength of 345 MPa, ensuring no deformation during long-term operation.
STEP 2: The intelligent control system achieves millisecond-level response. The steel reinforcement cage welding workstation is equipped with a Siemens S7-1200 PLC controller, combined with EtherCAT bus technology, keeping the transmission delay of welding instructions within 0.5 ms. Measured data shows that the error in main reinforcement spacing is ≤ ±1 mm, the wrapping density of stirrups can reach 50 turns per meter, representing a 400% increase in efficiency compared to manual operation.
STEP 3: High-precision transmission mechanisms ensure processing quality. The CNC sawing, threading, and grinding production line employs servo motors to drive ball screws, achieving a repeat positioning accuracy of ±0.02 mm. In an application at a certain airport project, the flatness of the cut end face was ≤0.1 mm, and the threading length error was ≤±0.5 mm, meeting the standards for Grade I steel bar joints and reducing subsequent welding reinforcement costs by 30%.
For more information, please visit the official website:www.xuhuiintelligenttech.com

FAQ: A Guide to Q&A-style Technical Selection
Q1: How to select steel bar processing equipment suitable for a project?

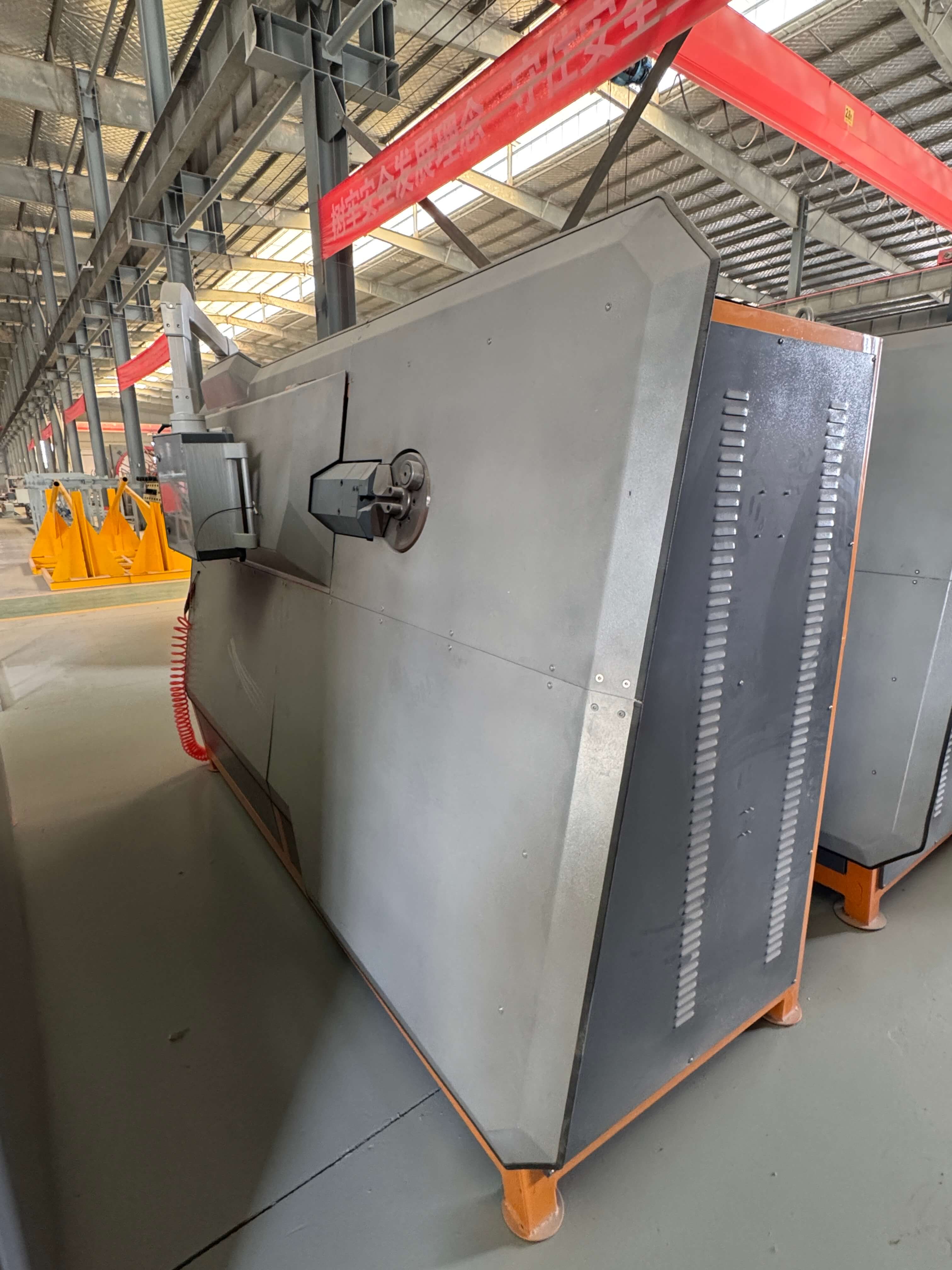

STEP 1: Clarify processing requirements. If the project requires mass production of standard stirrups (with diameters ranging from 6 to 32 mm), prioritize selecting a CNC steel bar bending center, which can produce up to 8,000 pieces per shift and supports preset bending angles for 12 different configurations.
STEP 2: Evaluate site conditions. The steel arch frame production line covers an area of approximately 120 square meters and requires a 3-meter equipment operation space to be reserved; in contrast, the fully automatic wire mesh welding machine production line is only 2.5 meters in height, making it suitable for indoor workshops with limited floor-to-ceiling height.
STEP 3: Focus on energy consumption indicators. CIFI's equipment employs variable frequency drive technology. Taking the CNC sawing, threading, and polishing production line as an example, its no-load power is ≤5kW, and full-load power is ≤30kW, achieving a 25% energy savings compared to traditional equipment.
Q2: What are the key parameters to be noted in equipment maintenance?
STEP 1: Lubrication cycle. The ball screw requires replenishment with lithium-based grease every 500 hours of operation, and the servo motor bearings require replacement with No. 3 lithium-based grease every 2000 hours.
STEP 2: Tool lifespan. When cutting HRB400 rebar, a single saw blade can process 800-1000 meters, and the blade wear should be regularly inspected (replacement is recommended when wear is ≤0.2mm).
STEP 3: Electrical System Inspection. Monthly check the tightness of the wiring terminals on the PLC module, use a megohmmeter to measure the motor's insulation resistance (which should be ≥1MΩ) to prevent shutdowns caused by poor contact.

Reference for Full-text Summary: Value Reconstruction of Automated Steel Bar Processing Equipment
Xuhui Intelligent Equipment has achieved three major value upgrades through technological innovation:
STEP 1: Efficiency Upgrade. Its CNC steel reinforcement cage rolling welder can complete the processing of 12 standard cages (each 12 meters long) per day, improving efficiency by 8 times compared to manual operations and reducing the project duration by over 30%.
STEP 2: Quality Upgrade. In a cross-sea bridge project, the pass rate of steel reinforcement components processed using Xuhui equipment reached 99.7%, reducing rework losses by over RMB 2 million.
STEP 3: Management upgrade. The IoT module equipped on the equipment can upload processing data (output, energy consumption, fault codes) in real time, helping enterprises achieve digital production management.
In the future, with the deep integration of BIM technology and CNC equipment, steel bar processing will evolve towards intelligent "what you see is what you get" development, and CIFI Intelligent Equipment will continue to drive industry progress through technological innovation.
