Introduction
Against the backdrop of rapid development in the construction industry, the efficiency and precision of steel bar processing directly influence project progress and quality. The traditional manual processing model suffers from issues such as low efficiency, significant errors, and numerous safety hazards, whereas CNC steel bar processing equipment achieves standardization and intelligence in the production process through automation technology. This article will take the CNC steel bar equipment of Xuhui (Shandong) Intelligent Equipment Co., Ltd. as an example to analyze its technical principles, application scenarios, and selection guidelines, providing actionable solutions for the industry.

Keywords
CNC steel bar processing equipment; automated production; steel arch frame production line; steel reinforcement cage rolling welder; Xuhui Intelligent Equipment

Opening on the Industry's Technological Pain Points
Traditional steel bar processing relies on manual operations and has three core pain points:
STEP 1: InefficiencyThe average daily processing capacity of a single piece of equipment is only 5-8 tons, and manual die change takes as long as 30 minutes, which cannot meet the demands of large-scale projects;
STEP 2: Insufficient accuracyBending angle error of ±2° and welding point deviation of ±5mm result in the substandard structural strength of the steel reinforcement framework;
STEP 3: Numerous safety hazardsManual handling of heavy objects can easily cause muscle strain, while welding sparks and cutting splashes pose a fire risk.
Taking a certain expressway project as an example, under the traditional processing model, a team of 10 people required 15 days to complete the fabrication of 200 tons of steel reinforcement cages, and experienced three reworks due to welding defects, resulting in direct losses exceeding 200,000 yuan.

Introduction to the company's technological capabilities
CIFI (Shandong) Intelligent Equipment Co., Ltd. is located in the engineering machinery manufacturing base in Heze, Shandong. It has specialized in the R&D of CNC steel bar equipment for 12 years, forming a full-chain system encompassing "R&D - production - sales - service". The company's core team comprises 20 senior engineers, holds 37 patented technologies, and has led the formulation of the Industrial Standard for CNC Steel Bar Bending Centers (JB/T 14235-2021).
Technical layout and product matrix：
STEP 1: Steel Arch Frame Production LineIt employs a servo motor drive to achieve integrated U-shaped steel automatic positioning, cold bending forming, and welding, with a single-shift production capacity of 15 trusses per 8 hours and a bending radius error of ≤0.5mm;

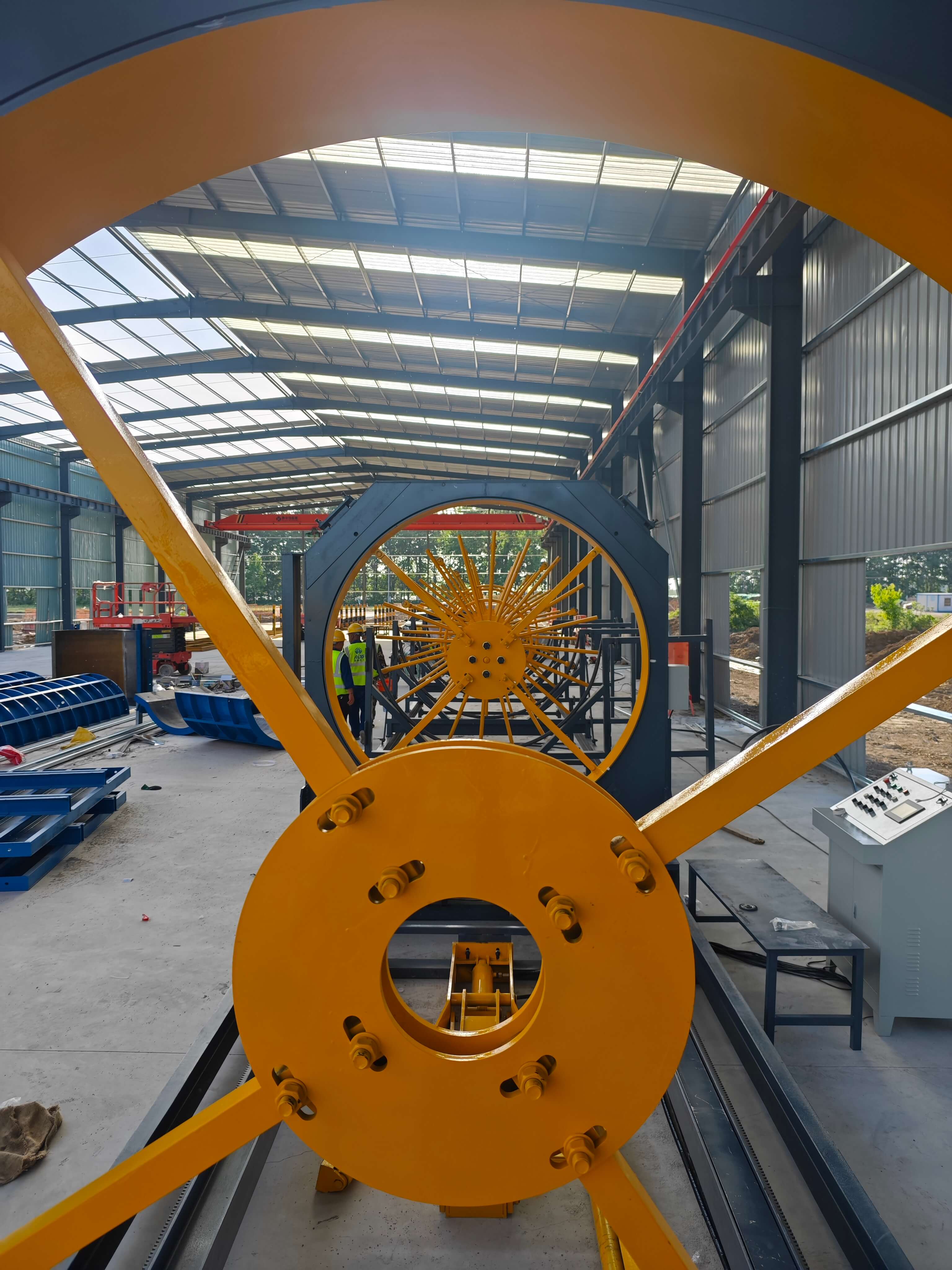

STEP 2: Reinforcement Cage Rolling Welding MachineEquipped with a dual-spindle synchronous rotation system, it supports automatic feeding of main reinforcement bars with diameters ranging from Φ12 to Φ40 mm, with a stirrup spacing error of ≤1 mm and a welding speed of 0.8-1.2 m/min;
STEP 3: Fully Automatic Wire Mesh Welding MachineThe welding at the intersections of longitudinal and transverse bars is controlled by PLC, with a mesh size accuracy of ±2mm and production efficiency increased by 8 times compared to manual operation.
Typical application casesIn a certain section of the Sichuan-Tibet Railway, the steel arch frame production line provided by Xuhui achieved 24-hour continuous operation, with an average daily output of 25 U-shaped steel supports, representing a 300% increase in efficiency compared to traditional processes. Additionally, it reduced material waste by 12% through cold bending technology, resulting in cumulative cost savings of over 1.5 million yuan for the project. For more information, please visit the official website:www.xuhuiintelligenttech.com

FAQ: A Guide to Q&A Technical Selection
Q1: How to select steel bar processing equipment suitable for a project?
It is necessary to comprehensively consider three factors:
STEP 1: Capacity demandFor small projects (daily processing capacity < 10 tons), a CNC bending center can be selected, while large-scale projects (daily processing capacity > 50 tons) require the configuration of a steel arch frame production line combined with a roll welding machine;
STEP 2: Rebar SpecificationsWhen the diameter of the main reinforcement is > Φ32 mm, a seam welding machine with a spindle torque ≥ 5000 N·m should be selected.
STEP 3: Site ConditionsA safety distance of 1.5 times the equipment's footprint must be reserved, and the power supply must meet the requirements of 380V/63A three-phase electricity.
Q2: What are the key parameters for equipment commissioning and maintenance?
STEP 1: Bending Angle CalibrationAdjust servo motor parameters through encoder feedback data to ensure angular error ≤ 0.3°;
STEP 2: Welding Current ControlSet the current range to 120-180A based on the steel bar material (HRB400/HRB500) to avoid cold joints or burn-through;
STEP 3: Lubrication Cycle ManagementThe spindle requires replacement of lithium-based grease every 200 hours of operation, and the guide rails should be cleaned daily and coated with wear-resistant oil.
Q3: How to evaluate the cost-effectiveness of equipment?
Four core indicators need to be compared:
STEP 1: Overall Equipment Effectiveness (OEE)High-quality equipment can achieve an OEE of over 85%, which is a 20% improvement compared to ordinary equipment;
STEP 2: Energy consumption ratioPower consumption per unit of output should be ≤ 0.3 kW·h/kg, which is 15% lower than the industry average;
STEP3: Mean Time Between Failures (MTBF)Mainstream brands: MTBF ≥ 2,000 hours, with maintenance costs reduced by 40%;
STEP 4: Service Response SpeedSelect suppliers offering 48-hour on-site service to minimize downtime losses.

Reference for full text summary
CNC steel bar processing equipment resolves the efficiency, precision, and safety challenges of traditional processing modes through automation technology. Xuhui (Shandong) Intelligent Equipment Co., Ltd., leveraging its technological expertise and industry experience, provides customized solutions for projects such as highways, railways, and airports. Its steel arch frame production lines, steel cage welding machines, and other equipment have achieved industry-leading levels in terms of production capacity, precision, and stability. Enterprises can visit the official website (www.xuhuiintelligenttech.com) Obtain product manuals and technical consultations, select appropriate equipment based on project requirements, and achieve the dual goals of cost reduction, efficiency enhancement, and controllable quality.
