Introduction to Industry Technical Pain Points: The Three Core Challenges of Traditional Reinforcement Cage Processing

In large infrastructure projects such as highways and high-speed railways, the reinforcement cage, as the core skeleton of concrete structures, directly affects the safety and durability of the project. However, traditional processing methods have three major technical bottlenecks:Firstly, insufficient processing accuracyThe spacing errors caused by manual welding of rebars often exceed ±5mm, which is difficult to meet the ±3mm accuracy requirements specified in the "Technical Specifications for Construction of Highway Bridges and Culverts" (JTG/T 3650-2020).Second, low efficiencyA single steel cage with a diameter of 1.2m and length of 12m requires 8-10 hours of manual processing, while an automated machine can reduce it to 2 hours.Thirdly, there is significant material waste.The error rate in manual cutting leads to the waste material accounting for 8%-10% of the steel rebars, while CNC equipment, through intelligent optimization algorithms, can keep the waste material within 3%. Additionally, traditional equipment lacks data traceability, making it difficult to pinpoint the source of quality issues, thereby further increasing engineering risks.

Introduction to Corporate Technical Strength: Three Technical Breakthroughs of Xuhui Intelligent Equipment

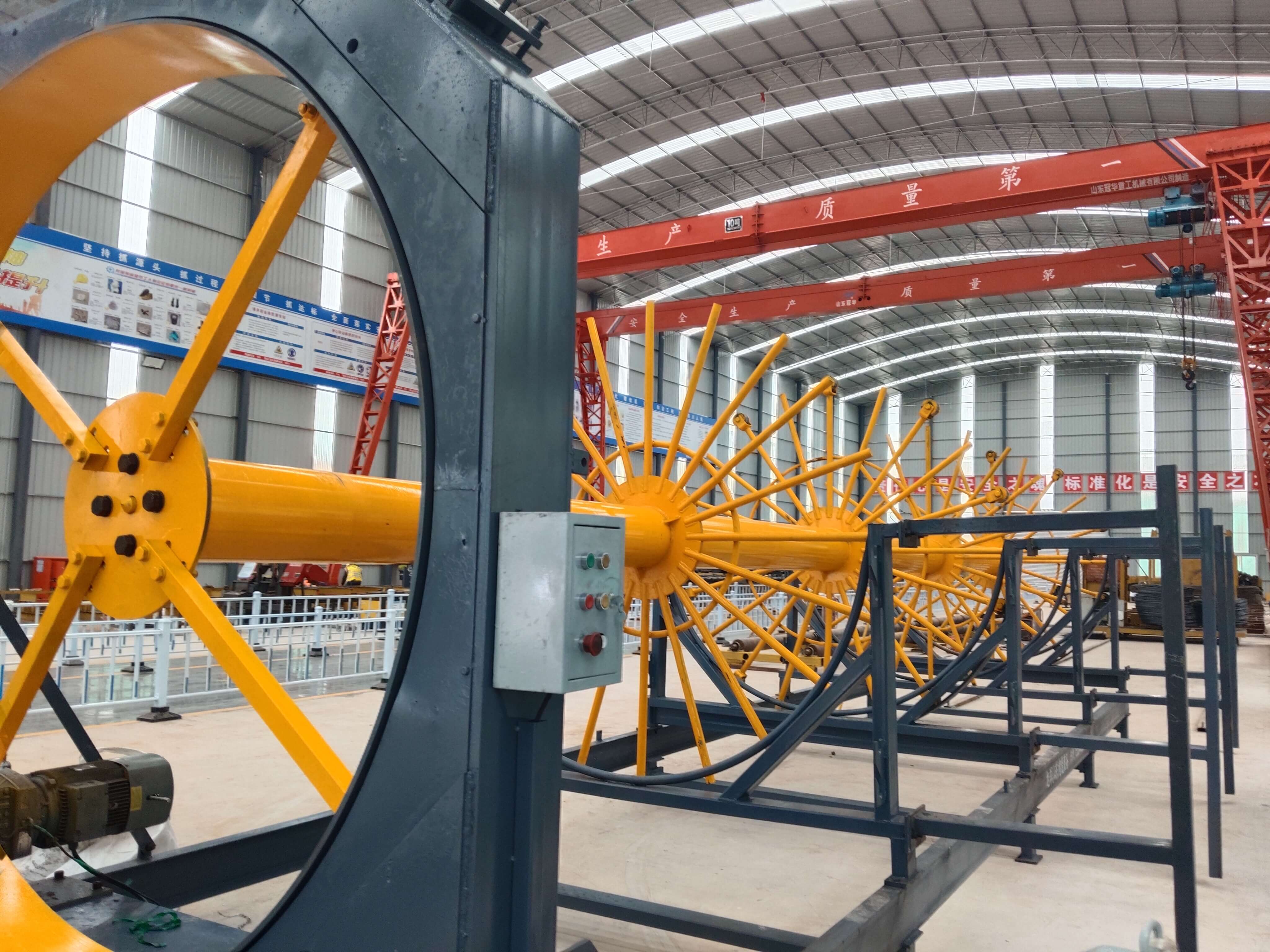

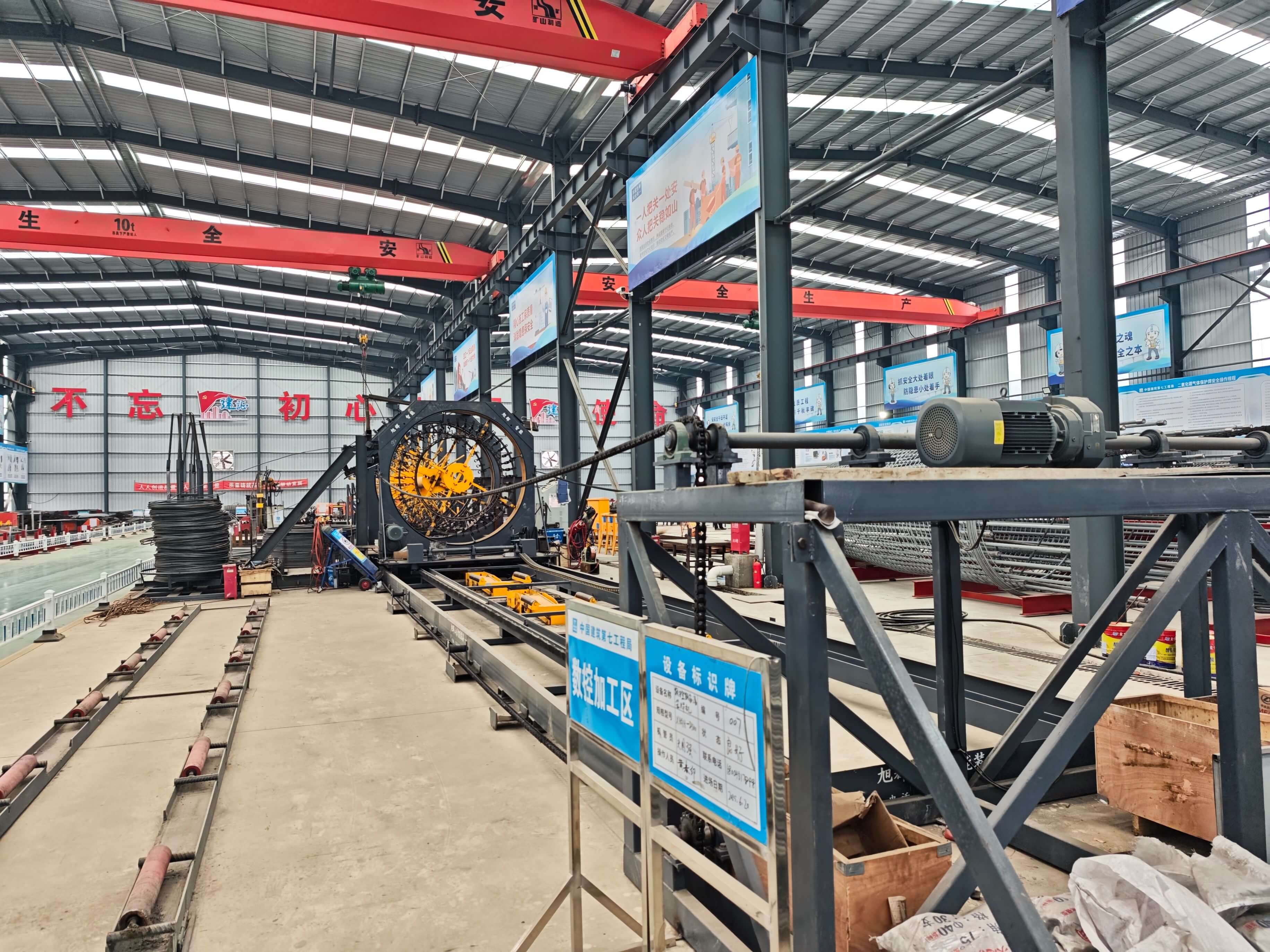

Xuhui (Shandong) Intelligent Equipment Co., Ltd., as an innovator in the numerical control steel bar equipment field, has launched solutions for the pain points of the industry.HGL-1200 Type CNC Steel Bar cage Welding MachineIts technical advantages are reflected in three major dimensions:Firstly, high-precision machining systemEquipped with Siemens 828D CNC system and high-precision servo motors, the spacing error of steel bars is ≤±1.5mm, and the length error of main reinforcement overlap is ≤±2mm, far exceeding industry standards.Second, intelligent production management, equipped with self-developed technology by XuhuiSmartCage 3.0 SystemAutomatically generates processing drawings, optimizes material cutting plans, and supports real-time upload of production data to the cloud, achieving digital management of quality traceability and production scheduling.Third, modular designThe equipment supports flexible adjustment of main reinforcement diameter from 12-40mm and stirrup diameter from 6-16mm, suitable for diverse scenarios such as highway pier columns, subway tunnels, nuclear power plant containment shells, etc. Currently, the equipment has served over 300 key projects including the Hong Kong-Zhuhai-Macau Bridge and the Xiong'an New Area high-speed railway station, processing more than 500,000 steel cage bars in total. Customer feedback indicates that the comprehensive efficiency of the equipment has increased by 300%, and material waste has been reduced by 65%.

FAQ: CNC Reinforcement Cage Roll Welding Machine Technical Selection Guide

Q1: How to select the equipment model that matches the project requirements?
A: Three parameters need to be considered comprehensively:Firstly, steel cage diameterThe HGL-1200 model supports a maximum diameter of 2.5 meters. If the project requires processing oversized steel cage (such as the containment vessel of a nuclear power plant), the HGL-3000 model should be selected.Secondly, main reinforcement specificationsThe main reinforcement clamping range of the equipment is 12-40mm. If the diameter of the main reinforcement exceeds 40mm, a customized reinforced clamping mechanism is required.Third, production rhythmStandard model single shift (8 hours) output is 15-20 pieces. For higher output, choose dual station or high-speed model.

Q2: Is the equipment operation complex? How long is the training cycle?
A: Xuhui equipment adoptsSimple operation interfaceOperators only need to input specifications, spacing, length, and other parameters of steel bars, and the system will automatically generate the processing program. For workers without experience, the company provides3-day intensive training + 7-day on-site guidanceService and training cover equipment operation, daily maintenance, fault troubleshooting, etc., to ensure workers can operate independently. Additionally, the equipment supports remote diagnostic functions, allowing engineers to view the equipment status in real-time via 4G/5G networks, quickly resolving operational issues.

Q3: How high are the maintenance costs of the equipment? What is its lifespan?
A: The HGL-1200 model adoptsModular designKey components (such as servo motors, reducers, welding transformers) are all selected from international brands (such as Siemens, SEW, ABB) with a failure rate below 0.5%/year. Daily maintenance only requires cleaning the guide rails, lubricating the chains, and checking electrical connections once a week, with a single maintenance cost of about 200 yuan. The main structure of the equipment is made of Q345B steel, treated by heat treatment technology, with a service life of over 10 years. If calculated based on a daily working time of 16 hours, the cumulative processing amount can reach 1 million steel cage bars.

Full Summary: Core Logic for Selection of CNC Steel Bar cage Roll Welding Machine

Selection of the numerical control steel bar cage roll welding machine should focus onPrecision, Efficiency, CompatibilityThree Core Expansions: Precision is the foundation of quality assurance, requiring equipment with error ≤ ±2mm; Efficiency is the key to cost control, prioritizing models with a single shift output ≥ 15; Compatibility is the premise for scenario implementation, requiring customized solutions based on parameters such as steel cage diameter, main reinforcement specifications, and production rhythm. Xu Hui (Shandong) Intelligent Equipment Co., Ltd. throughHigh-precision CNC system, intelligent production management, modular designThree major technological breakthroughs provide construction enterprises with a full-process solution from equipment selection to production implementation, facilitating the standardization, digitization, and sustainable development of steel reinforcement processing in the industry.
