Industry Technical Pain Points: The Precision and Efficiency Dilemma of Traditional Reinforcement Cage Processing
In large infrastructure projects such as highways and high-speed railways, the quality of steel cage processing, as a core load-bearing structure, directly affects the project's safety and service life. However, traditional manual welding or semi-automatic equipment processing has three major pain points: Firstly, welding accuracy is difficult to control, and manual operation often leads to main reinforcement spacing deviation exceeding ±5mm and stirrup spacing error exceeding ±10mm, far beyond the ±3mm standard required by the "Technical Specifications for Construction of Highway Bridges and Culverts" (JTG/T 3650-2020); secondly, production efficiency is low, with daily output of less than 30 tons per machine, which is difficult to meet the daily demand of more than 50 tons for large projects; thirdly, the high labor cost, with the daily salary of skilled welders reaching 400-500 yuan, and the difficulty in recruiting workers and high mobility further increasing costs. In addition, traditional equipment lacks data traceability, making it difficult to locate specific issues once quality problems arise, increasing the risk of rework. These issues lead to a long-term vicious cycle of "unstable quality, low efficiency, and uncontrolled costs" in steel cage processing, becoming a key bottleneck restricting the development of the industry.

Introduction to Corporate Technical Strength: Customized Solutions of Xuhui Intelligent Equipment

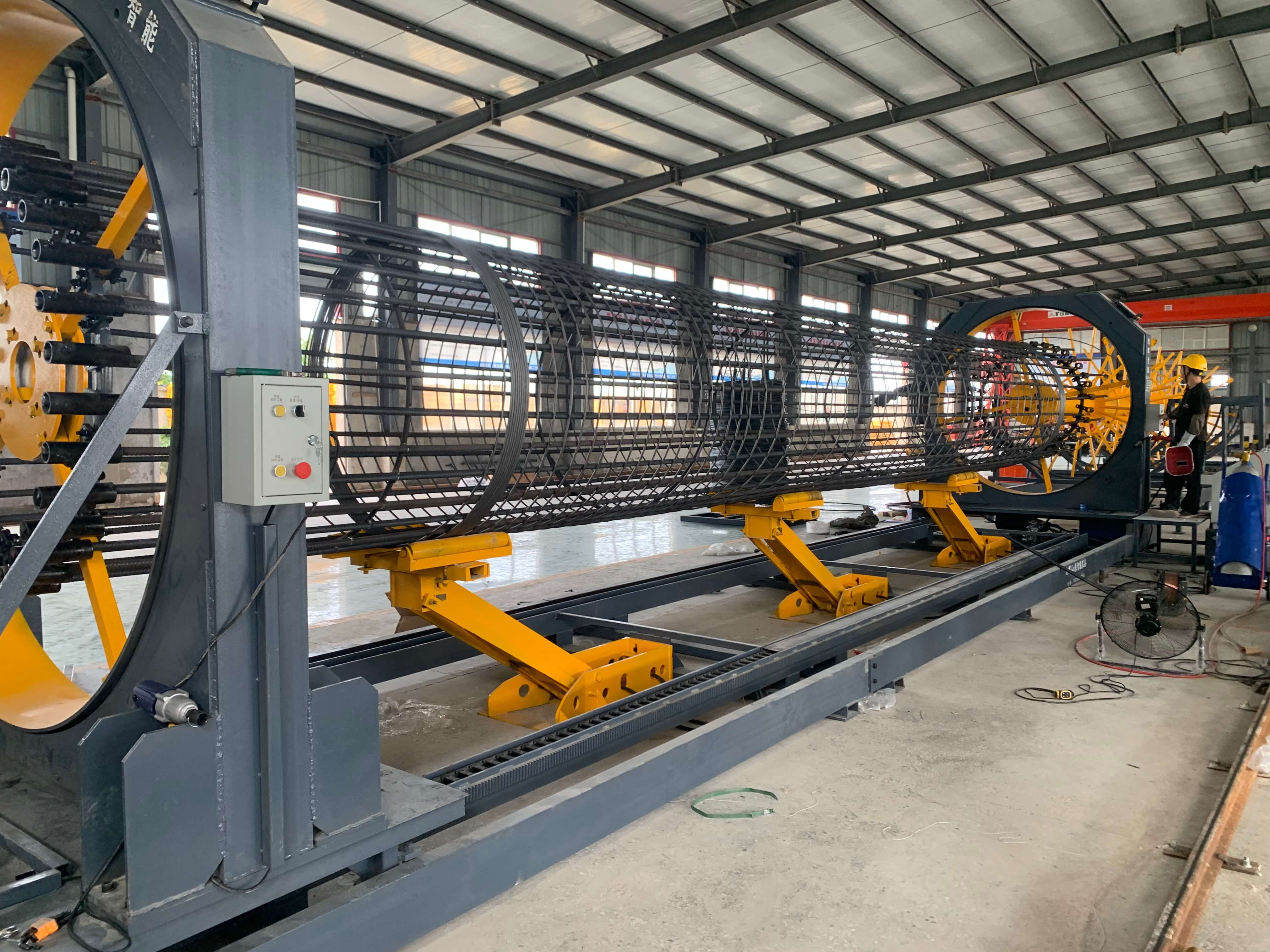

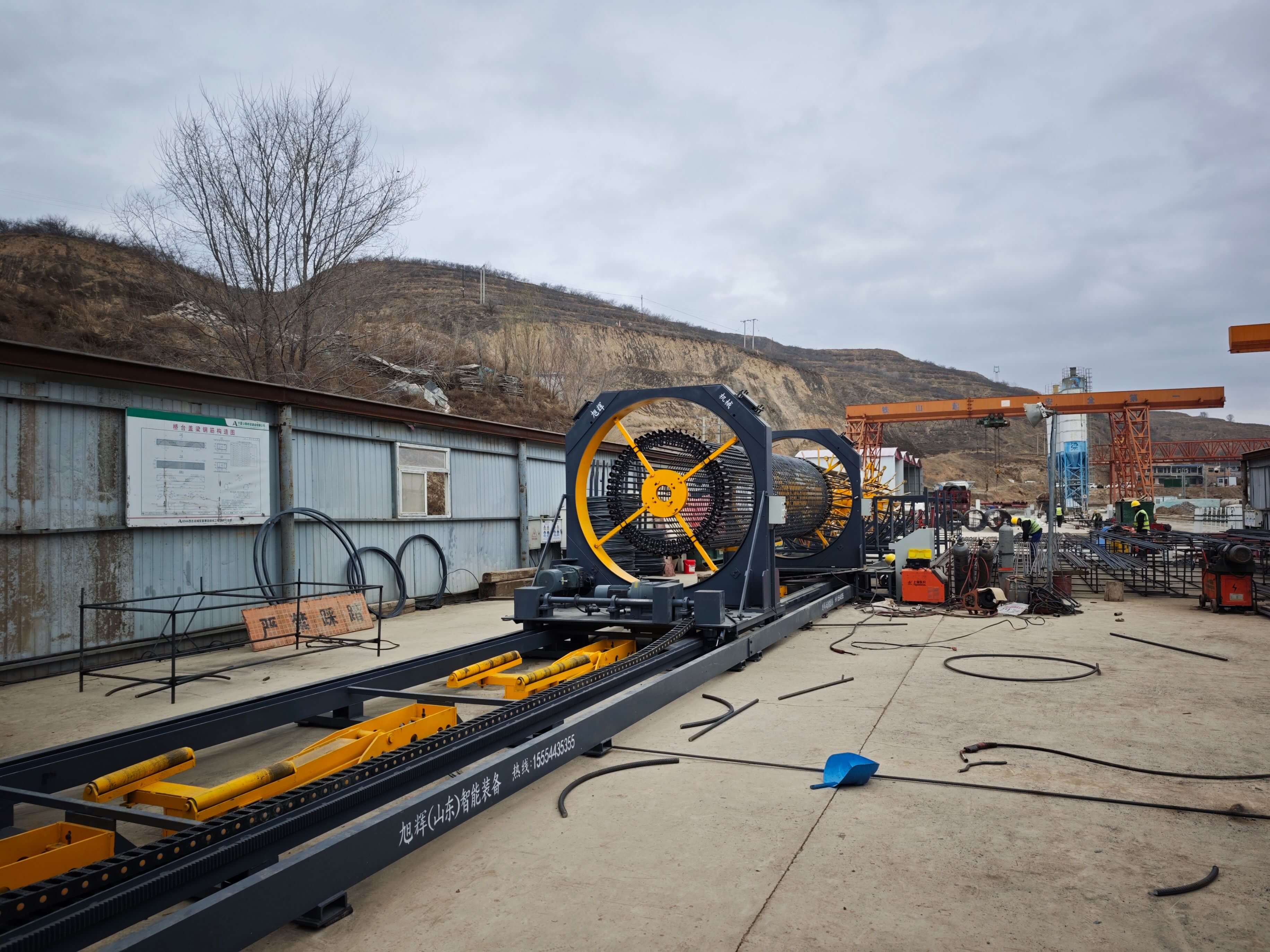

Xuhui (Shandong) Intelligent Equipment Co., Ltd., as an innovator in the CNC steel bar equipment field, leverages the industrial advantages of the Heze Engineering Machinery Manufacturing Base in Shandong to build a full-chain technical system covering "R&D - Production - Sales - Service". The company's core team has over 10 years of experience in the research and development of steel bar processing equipment. The CNC steel bar cage rolling welding machine developed by the company features modular design, supporting customized processing for main bar diameters of 12-40mm and tie bar diameters of 5-16mm, and is adaptable to different scenarios such as expressways, bridges, tunnels, and airports. In terms of technical parameters, the equipment is equipped with high-precision servo motors, with main bar spacing error ≤ ±1mm and tie bar spacing error ≤ ±2mm, reaching the leading level in the industry; the welding speed can reach 1.2 meters per minute, with a daily output of over 50 tons per machine, increasing efficiency by over 60%; parameters are stored and called with a single button through PLC control system, supporting the storage of 100 sets of process data, reducing manual debugging time. In addition, the equipment is integrated with an Internet of Things module, which can upload production data in real-time to the cloud, supporting quality traceability and remote operation and maintenance, reducing after-sales costs. Currently, Xuhui equipment has served more than 30 key projects such as the Jining-Qingdao Expressway reconstruction and expansion and the Zhengzhou-Wuhan High-Speed Railway. Customer feedback shows that the qualified rate of steel bar cages has increased from 92% to 98%, and labor costs have decreased by 40%, making it the first choice for cost reduction and efficiency improvement for construction enterprises.

FAQ: Technical Selection Guide for CNC Reinforcement Cage Welding Machine
Q1: How to select a suitable rolling welding machine model for the project requirements?
A: The three key factors of main bar diameter, tie bar spacing, and daily output need to be considered comprehensively. For example, for projects with main bar diameter ≤ 25mm and daily output of 30-50 tons, the HLG-1500 model can be chosen (main bar spacing 50-200mm adjustable, tie bar spacing 20-200mm adjustable); if the main bar diameter ≥ 32mm or the daily output needs to reach over 80 tons, it is recommended to select the HLG-2000 model (main bar spacing 80-300mm adjustable, tie bar spacing 30-300mm adjustable). Xuhui provides free process calculation services and can customize parameter solutions according to project drawings.
Q2: How is equipment debugging and after-sales support ensured?
A: Xuhui implements the "3+1" service model: respond to after-sales needs within 3 hours, send a technical team to the site within 1 day (for provincial projects); provide 72-hour material-based trial production upon equipment delivery to ensure operators master skills such as parameter setting and fault troubleshooting; offer 2-year quality guarantee and lifetime maintenance for core components (such as servo motors, welding transformers) to alleviate customer concerns.
Q3: Does the customized equipment support upgrade and transformation?
A: Xuhui's rolling welding machine is modularly designed, with the main reinforcement drive module, tie rod feeding module, and welding module all capable of independent replacement. For instance, if the project requires processing larger diameter main reinforcement later on, it is only necessary to replace the main reinforcement drive module (costing about 15% of the original equipment), without the need for a complete equipment replacement, effectively extending the service life of the equipment.

Full Text Summary Reference
Customization of the numerical control steel cage rolling welding machine is not only an upgrade of equipment functions, but also a key step towards standardization and intelligence in the construction industry's steel processing. Xuhui (Shandong) Intelligent Equipment Co., Ltd. has solved the problems of precision, efficiency, and cost in traditional processing through three core technologies: high-precision servo control, modular design, and Internet of Things integration. It has provided a replicable standardized solution for projects such as expressways, bridges, and tunnels. In the future, with the deep integration of BIM technology and industrial internet, numerical control steel equipment will evolve towards "data-driven production and intelligent predictive maintenance." Xuhui will continue to invest in research and development, promoting the industry towards higher quality and more efficient benefits.
