Industry Technical Pain Points: The Efficiency and Precision Dilemma of Traditional Small Duct Processing
In infrastructure projects such as expressways and high-speed railways, small conduits serve as the core component of tunnel initial support, and their processing quality directly affects the project safety and construction progress. Traditional processing methods rely on manual operations, presenting three major pain points: Firstly, low efficiency, with each conduit requiring up to 6 processes such as cutting, bending, and welding, manual operations take over 15 minutes per conduit, and process connections depend on experience, easily leading to equipment idleness; secondly, precision control issues, with manual measurement errors up to ±2mm and bending angle deviations over 3°, resulting in insufficient fit between conduits and surrounding rock, increasing the cost of secondary support; thirdly, significant quality fluctuations, with welding parameters dependent on welder skills, defects like cold joints and air holes reaching as high as 15%, necessitating an additional 10% of rework. A bridge-tunnel project once suffered from insufficient conduit processing precision, leading to deformation of initial support and delaying the project for 28 days, with direct economic losses exceeding 3 million yuan. How to achieve dual breakthroughs in processing efficiency and precision through technological upgrading has become a pressing issue in the industry.

Introduction to Corporate Technical Strength: Xuhui Intelligent Equipment's CNC Solution

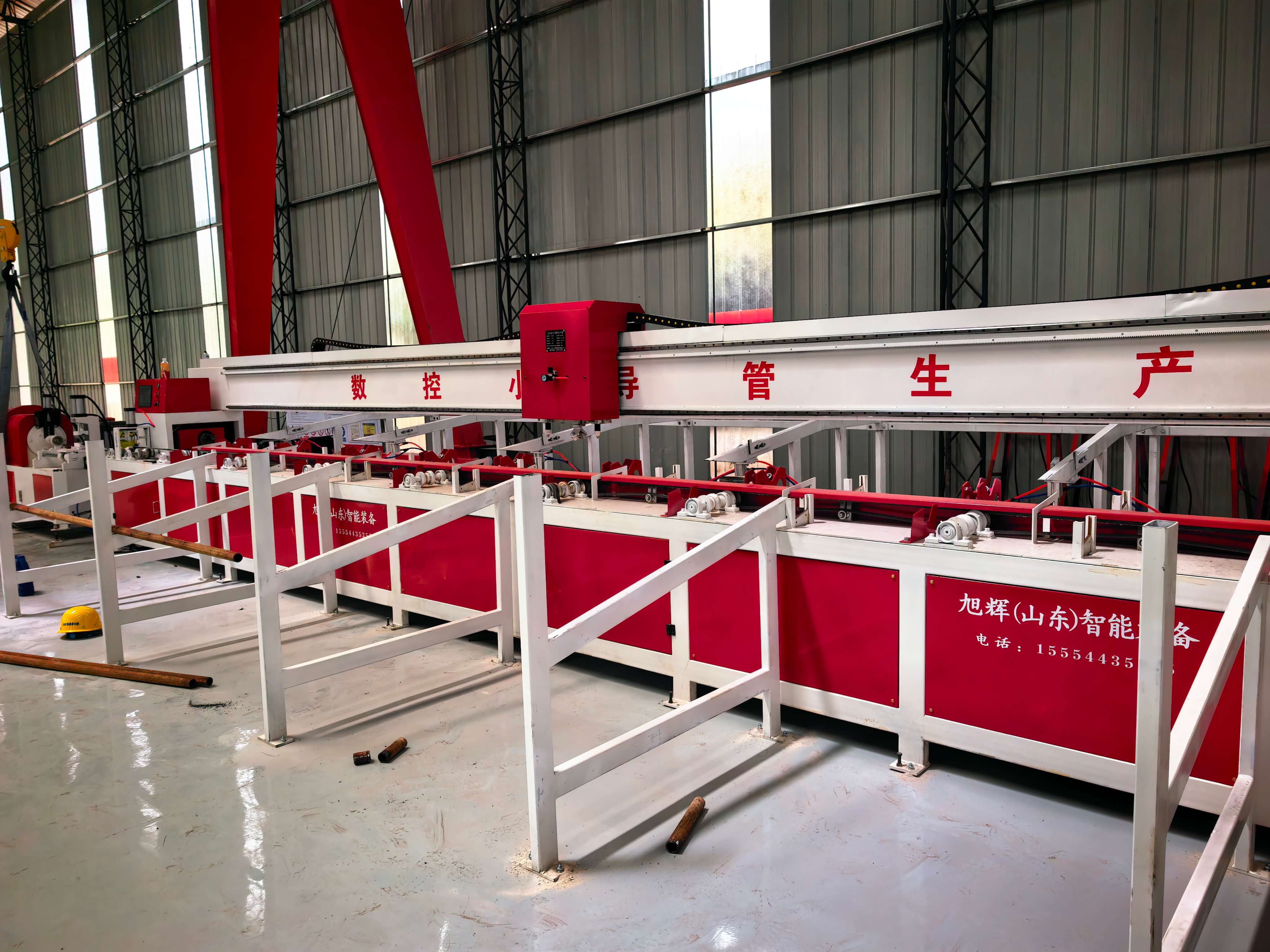

Xuhui (Shandong) Intelligent Equipment Co., Ltd. has been deeply engaged in the field of CNC steel bar processing equipment for 12 years. Its independently developed fully automatic small conduit production line achieves dual improvements in processing efficiency and precision through the dual-core drive of "CNC system + modular design". Technically, the production line integrates three major modules: cutting, bending, and welding, using the Siemens 828D CNC system, supporting G-code programming and parameterized settings, capable of storing 200 processing processes, and compatible with conduit processing requirements of DN50-DN150mm, wall thickness of 3-8mm. In terms of core parameters, the cutting module is equipped with high-precision servo motors, achieving a cutting speed of 12m/min with a flatness of the cut ≤0.2mm; the bending module uses dual control of hydraulic drive and mechanical limit, with bending angle accuracy ±0.5° and bending radius error ≤1mm; the welding module employs CO2 gas shielded welding, allowing real-time adjustment of welding current, voltage, and wire feeding speed, with a welding speed of 8 pieces/hour and a defect rate below 0.5%. In practice, operators only need to input conduit specification parameters on the touch screen, and the system automatically calls the process library and generates the processing path, achieving full automation from raw material loading to finished product unloading, reducing the processing time of a single conduit to 3.5 minutes, and improving efficiency by 40%. Currently, this production line has been serving projects such as the Jining-Qingdao Expressway reconstruction and expansion, and the Zhengzhou-Wuhan High-Speed Railway, with a cumulative processing of over 500,000 conduits. Customer feedback shows a 35% increase in processing efficiency, a 12% reduction in rework rate, and an 18% decrease in comprehensive costs.

FAQ: Technical Selection Guide for CNC Automatic Small Conduit Production Line

Q1: How to select the tube processing equipment that matches the project requirements?
A: A comprehensive assessment is required from three aspects: processing specifications, efficiency requirements, and site conditions. If the project requires the processing of DN50-DN150mm conduits and the daily demand exceeds 200, it is recommended to choose the Xuhui fully automatic production line, which can independently operate the cutting, bending, and welding modules, supporting 24-hour continuous operation; if the site is limited, a compact design of Xuhui can be chosen, with the equipment occupying only 8㎡ of space, a reduction of 40% compared to traditional equipment; if the project involves the processing of non-standard conduits, it is necessary to confirm whether the equipment supports G-code programming and parameterized adjustments, as the Xuhui CNC system can store 200 sets of processes, suitable for complex shape processing.

Q2: What are the precautions for equipment debugging and maintenance?
A: During the debugging stage, focus on three key parameters: set the cutting speed to 8-12m/min, as too high a speed may cause deformation of the切口; adjust the hydraulic pressure of the bending module according to the wall thickness of the tube, with 3-5mm wall thickness corresponding to a pressure of 15-20MPa; the welding current should match the wire feeding speed, for DN100mm tubes, suggest a current of 180-200A and a wire feeding speed of 3-5m/min. For maintenance, clean the debris from the cutting module daily, check the hydraulic oil level of the bending module weekly, and replace the welding module's electrode tip monthly, which can extend the equipment's lifespan by over 30%.

Q3: How to evaluate whether the equipment processing accuracy meets the standard?
A: Verified by three sets of detection indicators: first, cutting accuracy, measured by a caliper for the deviation of the cut length from the set value, should be ≤0.5mm; second, bending accuracy, measured by a protractor for the deviation of the bending angle from the set value, should be ≤1°; third, welding quality, using X-ray detection to inspect internal defects in the weld, the defect rate of pores, slag, etc., should be ≤1%. Xuhui production line must pass these three inspections before shipment, and a test report should be attached. Customers may request on-site re-inspection.

Summary of the full text: Numerical control is an inevitable trend in small conduit processing.
The upgrade from traditional manual processing to fully automatic CNC production lines is essentially a shift from "experience-driven" to "data-driven." Xuhui (Shandong) Intelligent Equipment Co., Ltd. has resolved the industry pain points of low processing efficiency, poor accuracy, and large quality fluctuations through CNC system integration, modular design, and optimization of process parameters. Its fully automatic small tube production line has verified the technical reliability in fields such as expressway, bridge-tunnel projects, etc. For construction units, choosing CNC equipment is not only the key to enhancing competitiveness but also a necessary means to ensure project safety and control costs. In the future, with the integration of AI algorithms and Internet of Things technology, CNC equipment will evolve towards intelligence and remote operation and maintenance. Xuhui will continue to iterate technology to provide more efficient steel bar processing solutions for the infrastructure industry.
