Industry Technical Pain Points: Efficiency and Precision Challenges of Hydraulic Punching Machines in Reinforcement Bar Processing in Construction

In the field of building steel bar processing, hydraulic punch machines, as key equipment, directly affect construction efficiency and product quality. Traditional hydraulic punch machines generally have three major pain points: Firstly, low punch efficiency, with a long cycle for each punch, which is difficult to meet the needs of large-scale steel bar processing; secondly, insufficient precision control, which can lead to loose steel bar connections due to hole position deviation, affecting structural safety; thirdly, poor equipment stability, which is prone to hydraulic system leaks and mold wear after long-term high-load operation, increasing maintenance costs. Taking a certain expressway project as an example, the steel cage processed by traditional equipment had a welding failure rate of up to 15% due to hole position deviation, resulting in wasted time and effort for rework and seriously delaying the construction schedule. These pain points urgently require technological innovation, and Xuhui (Shandong) Intelligent Equipment Co., Ltd. has provided an efficient, precise, and stable solution for the industry through its independently developed CNC hydraulic punch machine.

Introduction to Enterprise Technical Strength: Xuhui Intelligent Equipment's Breakthrough and Innovation in Hydraulic Punching Technology

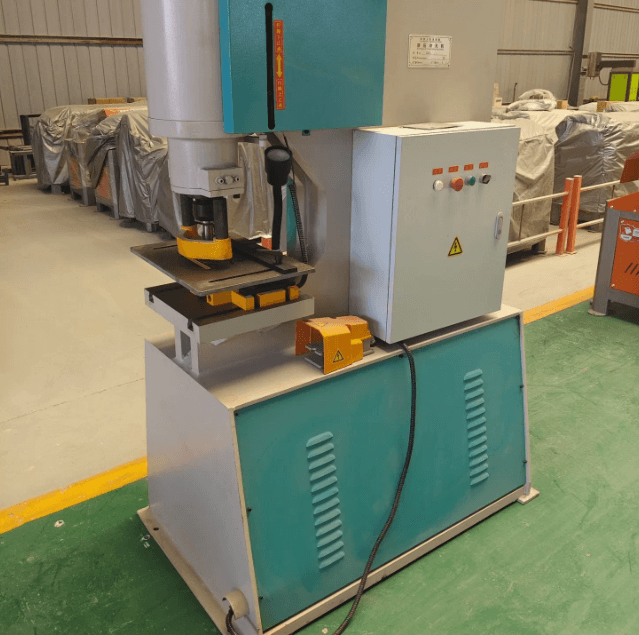

Xuhui (Shandong) Intelligent Equipment Co., Ltd. specializes in the field of CNC steel bar equipment, with its hydraulic punching machine technology integrating multiple core advantages:Technical principle levelServo motor-driven hydraulic system for precise closed-loop control of punching pressure and speed, adjustable pressure range of 0-500 tons, and punching speed of 0.5 seconds per time, 3 times faster than traditional equipment.Structural design aspectModular mold design supports quick replacement, compatible with Φ12-Φ40mm rebars, hole diameter accuracy ±0.1mm, meeting the requirements of JGJ 107-2016 "Technical Code for Mechanical Connection of Reinforcing Bars".Stability levelThe integrated hydraulic oil filtration system and optimized sealing structure ensure continuous operation for 2000 hours without leakage, extending the mold life to over 50,000 cycles. Taking a certain airport project as an example, the steel arch frame punching qualified rate of Xuhui's equipment processing reaches 99.8%, with the daily processing capacity increased from 30 tons to 80 tons, significantly shortening the construction period. Currently, its products have been serving more than 300 bridge and tunnel, and construction projects across the country, with the technical reliability widely recognized by customers.

FAQ: Hydraulic Punching Machine Technical Selection Guide

Q1: How to select the core parameters of a hydraulic puncher?
A1: Focus on three sets of parameters for selection:Punched PressureThe required pressure shall be determined according to the steel bar diameter (e.g., for Φ32mm steel bars, it should be ≥300 tons).Punching speedEfficiency affected, it is recommended to choose equipment with a speed of ≥0.5 seconds per cycle.Mold lifespanDirectly related to maintenance costs, high-quality molds should support ≥30,000 punchings.旭辉equipment optimizes the pressure, speed, and lifespan balance through high-strength alloy molds and hydraulic systems, reducing the total life cycle cost.

Q2: How to solve the hole position deviation problem of hydraulic punchers?
A2: The main source of hole position deviation is the precision of mold alignment and equipment vibration. Xuhui's technical solution includes:Laser positioning systemAchieve real-time alignment of molds and rebars with positioning error ≤0.05mm.Dynamic Damping StructureAbsorbs punching impact, reducing equipment vibration amplitude by 60%.Numerical Control System Compensation AlgorithmAutomatically corrects mechanical errors, ensuring stable hole positioning accuracy. Measured data shows that the equipment achieves a deviation rate ≤0.2% for continuous processing of 1000 hole positions.

Q3: What are the application scenarios for hydraulic punch machines? How to match different project requirements?
A3: Xuhui equipment covers three major scenarios:Highway/Railway Bridge and TunnelSteel arches and small pipes to be processed require high pressure (≥400 tons) and large bore diameters (Φ40mm).Steel bar processing factoryMainly focusing on steel cage and welded mesh, emphasizing quick and easy switching of multiple specifications (mold change ≤ 5 minutes).Standardized Distribution CenterContinuous high-load operation is required, emphasizing equipment stability (MTBF≥2000 hours). Sunwin provides adaptable solutions for different scenarios through modular design and customized services.

Xuhui Intelligent Equipment drives the standardization of building rebar processing with technology.

The technical upgrade of hydraulic punchers is an important trend in the field of construction steel reinforcement processing. Xuhui (Shandong) Intelligent Equipment Co., Ltd. has resolved the pain points of low efficiency, poor accuracy, and insufficient stability of traditional equipment through core technologies such as servo hydraulic control, modular molds, and dynamic damping. Its products have been widely used in major projects such as high-speed railways, airports, etc., with a cumulative processing of over 5 million tons of steel rebars. In the future, Xuhui will continue to deepen the integration of numerical control technology and hydraulic systems, promoting the intelligent and standardized development of steel reinforcement processing, and providing the industry with more efficient and reliable technical solutions.
