Industry Technical Pain Points: Bottlenecks in Efficiency and Quality of Traditional Reinforcement Cage Welding

In large infrastructure projects such as highways and high-speed railways, the steel cage, as the core skeleton of concrete structures, directly affects the safety and durability of the project with its welding quality. Traditional manual welding methods have three major pain points: Firstly, low welding efficiency, with each steel cage requiring 4-6 hours for welding, and the labor cost accounting for over 30%; secondly, unstable quality, with the uniformity of welds and the spacing errors of main reinforcement often exceeding the specifications (such as ±5mm), leading to a high rework rate of up to 15%; thirdly, high labor intensity, requiring workers to maintain a bent-over posture for long periods, with a high incidence of occupational diseases. Additionally, traditional equipment lacks intelligent control, making it difficult to adapt to the welding needs of complex steel cages, such as the transition section welding of variable diameter steel cages, which is prone to issues like false welding and missed welding. These problems directly restrict the production capacity release of steel processing plants and the project delivery cycle.

Introduction to Corporate Technical Strength: Standardized Solutions of Xuhui Intelligent Equipment

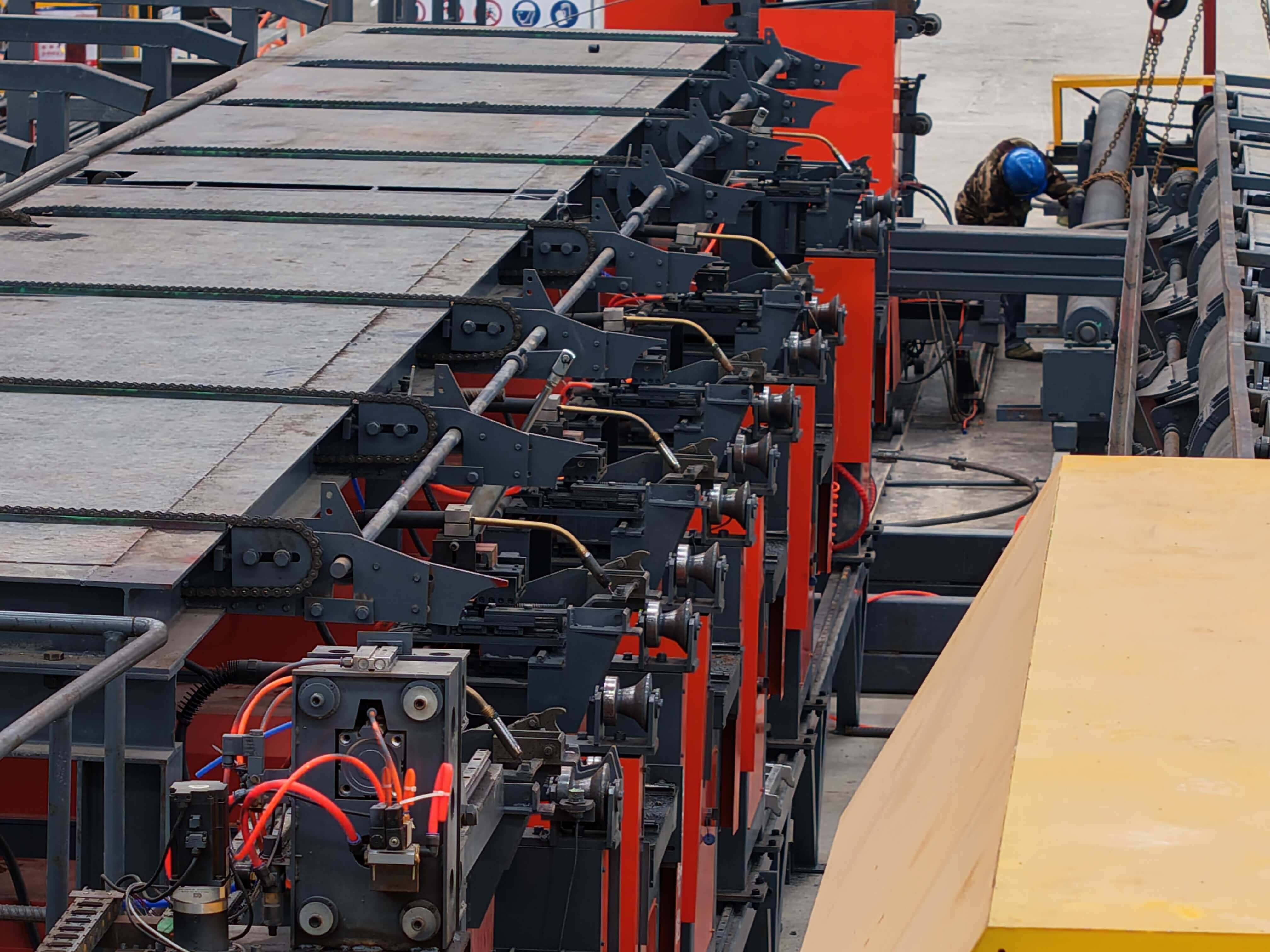

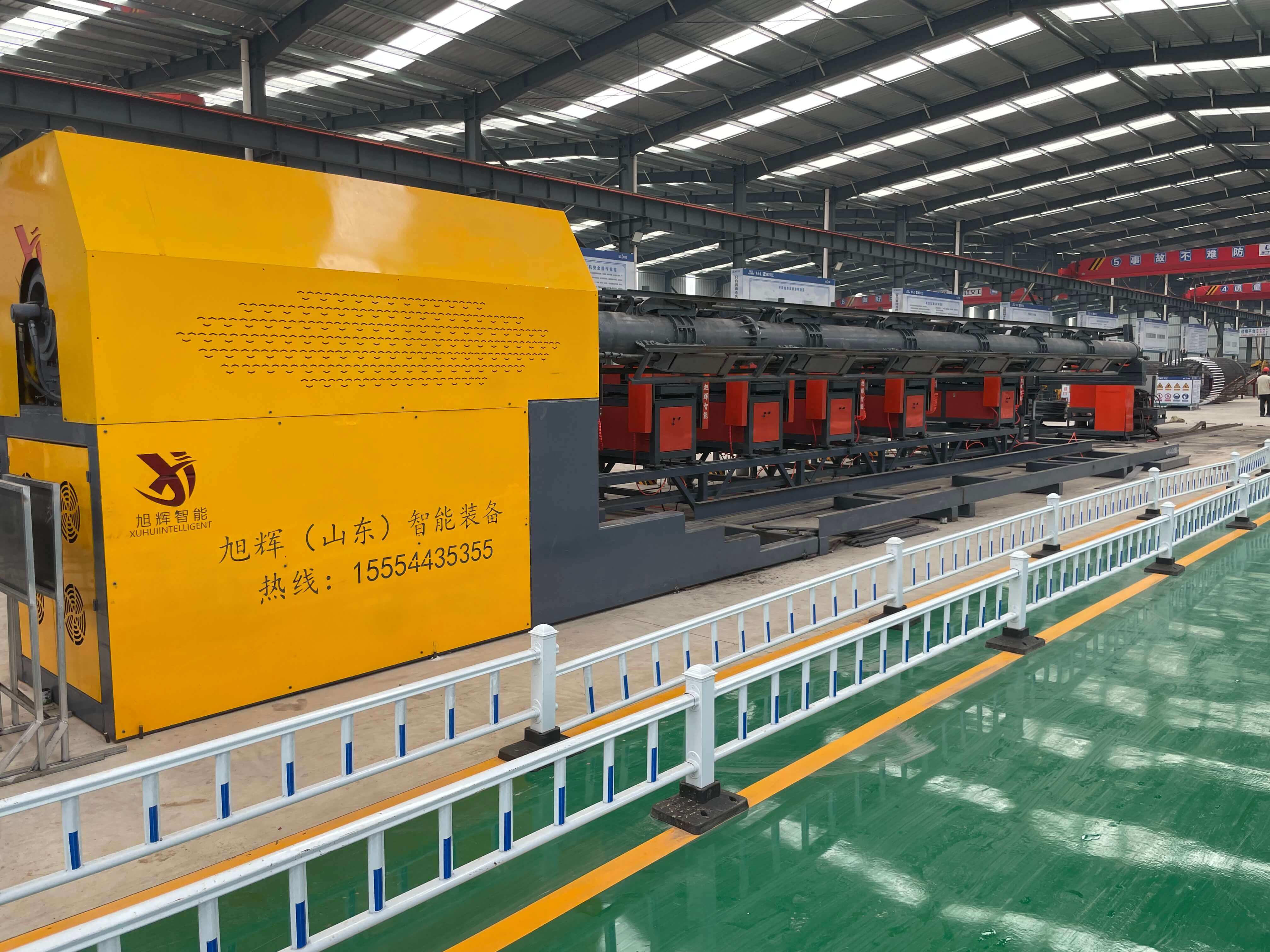

Xuhui (Shandong) Intelligent Equipment Co., Ltd., leveraging the industrial advantages of the Jining Engineering Machinery Manufacturing Base in Shandong Heze, focuses on the research and development of CNC steel bar equipment. Its steel cage welding workstations have broken through three key technologies to address industry pain points:Technical architectureModular design with integrated systems for automatic feeding of main reinforcement, automatic wrapping of stirrups, and intelligent control of welding parameters, supporting customized production of steel cages with diameters of 400-2500mm and lengths of 12-36m.Core parametersWelding speed reaches 1.2m/min (40% improvement over traditional equipment), main reinforcement spacing error ≤ ±2mm, weld bead penetration ≥5mm, in compliance with JGJ 18-2012 "Code for Reinforcement Welding and Acceptance."Intelligent control levelEquipped with XH-WELD 3.0 system independently developed by Xuhui, it can monitor 12 parameters such as welding current, voltage, and temperature in real-time and automatically generate welding quality reports. It supports connection with BIM model data, achieving digital management of steel cage production. Currently, this equipment has been serving national key projects such as the Zhuhai Connection Line of the Hong Kong-Zhuhai-Macau Bridge and the Yanyuan to Nyingchi section of the Sichuan-Tibet Railway, with more than 200 units delivered and a customer repurchase rate of 85%.

FAQ Q&A Technical Selection Guide

Q1: How to select the specifications of the steel cage welding work station suitable for the project?
A1: Consider the diameter, length, and production rhythm of the steel cage comprehensively. For example, medium and small-sized steel cages with a diameter ≤1200mm and length ≤18m can choose the XH-GLW-600 model (welding speed 0.8m/min, power 45kW); large steel cages with a diameter of 1200-2000mm and length of 18-30m are recommended to use the XH-GLW-1200 model (welding speed 1.2m/min, power 75kW). If the project involves steel cages with variable diameters, confirm whether the equipment supports the dynamic adjustment function of stirrup spacing (such as the XH-GLW series by Xu Hui supports stepless adjustment from 0.5-100mm).

Q2: How to solve the unstable welding quality issue?
A2: Quality fluctuations are usually related to welding parameter settings and equipment accuracy. XuHong Workstation enhances stability through triple protection: Firstly, it uses a medium-frequency inverter DC welding power source with current fluctuations ≤ ±3%, which improves stability by 50% compared to traditional AC power sources; secondly, the main reinforcement clamping mechanism is equipped with a pressure sensor for real-time monitoring of clamping force (range 500-3000N), preventing false welding; thirdly, the welding path is laser-located with a repeat positioning accuracy ≤ ±0.5mm, ensuring accurate weld point positioning. In actual cases, after using XuHong equipment in a high-speed rail project, the pass rate of welds improved from 82% to 98%.

Q3: How high are the maintenance costs for the equipment?
A3: Xuhui Workstation reduces maintenance difficulty through modular design. Key components such as welding transformers and servo motors use international brands (such as Siemens, Schneider), with lifespan exceeding 100,000 hours; daily maintenance requires cleaning the guide rails weekly and replacing the reducer lubricating oil monthly (consumption of 2L), with each maintenance costing approximately 200 yuan. Additionally, the equipment is equipped with a fault self-diagnosis system, which can quickly locate problems (such as displaying "E01-Welding Current Anomaly" on the HMI screen), reducing downtime. Statistics show that the annual maintenance cost for customers accounts for 1.2%-1.5% of the total equipment price, lower than the industry average.

Standardization and intelligence are the development trends of rebar processing equipment.

Xuhui (Shandong) Intelligent Equipment Co., Ltd. has provided the industry with a "high-efficiency, accurate, and intelligent" solution through technological innovation in the CNC steel cage welding workstations. Its modular design, intelligent control system, and strict quality control not only address the pain points of efficiency and quality in traditional welding but also promote the transformation of steel processing from "human experience-driven" to "data standard-driven". For infrastructure project parties, choosing a mature and case-rich equipment supplier (such as Xuhui) can significantly reduce engineering risks and overall costs; for equipment manufacturers, continuously optimizing welding processes and improving equipment stability remains the key to winning the market. In the future, with the integration of BIM and industrial internet technology, steel cage welding workstations will evolve towards "unmanned workshops", and Xuhui's technological layout is worth the industry's continuous attention.
