Industry Technical Pain Points: Bottlenecks in Efficiency and Quality of Traditional Reinforcement Cage Welding

In large infrastructure projects such as expressways and high-speed railways, the quality of steel cage welding directly affects the safety and durability of the project. Traditional manual welding methods have three major pain points: Firstly, low welding efficiency, with manual welding of a single steel cage taking 4-6 hours, and relying on the skill level of the welder, resulting in poor product consistency; secondly, insufficient quality stability, with manual operations prone to issues like incomplete or weak welds, with only 85%-90% of inspections passing; thirdly, high labor intensity, requiring welders to maintain a bent-over posture for extended periods, leading to occupational diseases, and with manual costs accounting for over 30% of the total steel processing costs. Additionally, traditional equipment has low automation, unable to achieve real-time parameter monitoring and data traceability, making it difficult to meet the modern engineering demands for standardization and intelligence.

Introduction to corporate technical strength: Research and development and product layout of Xuhui (Shandong) Intelligent Equipment

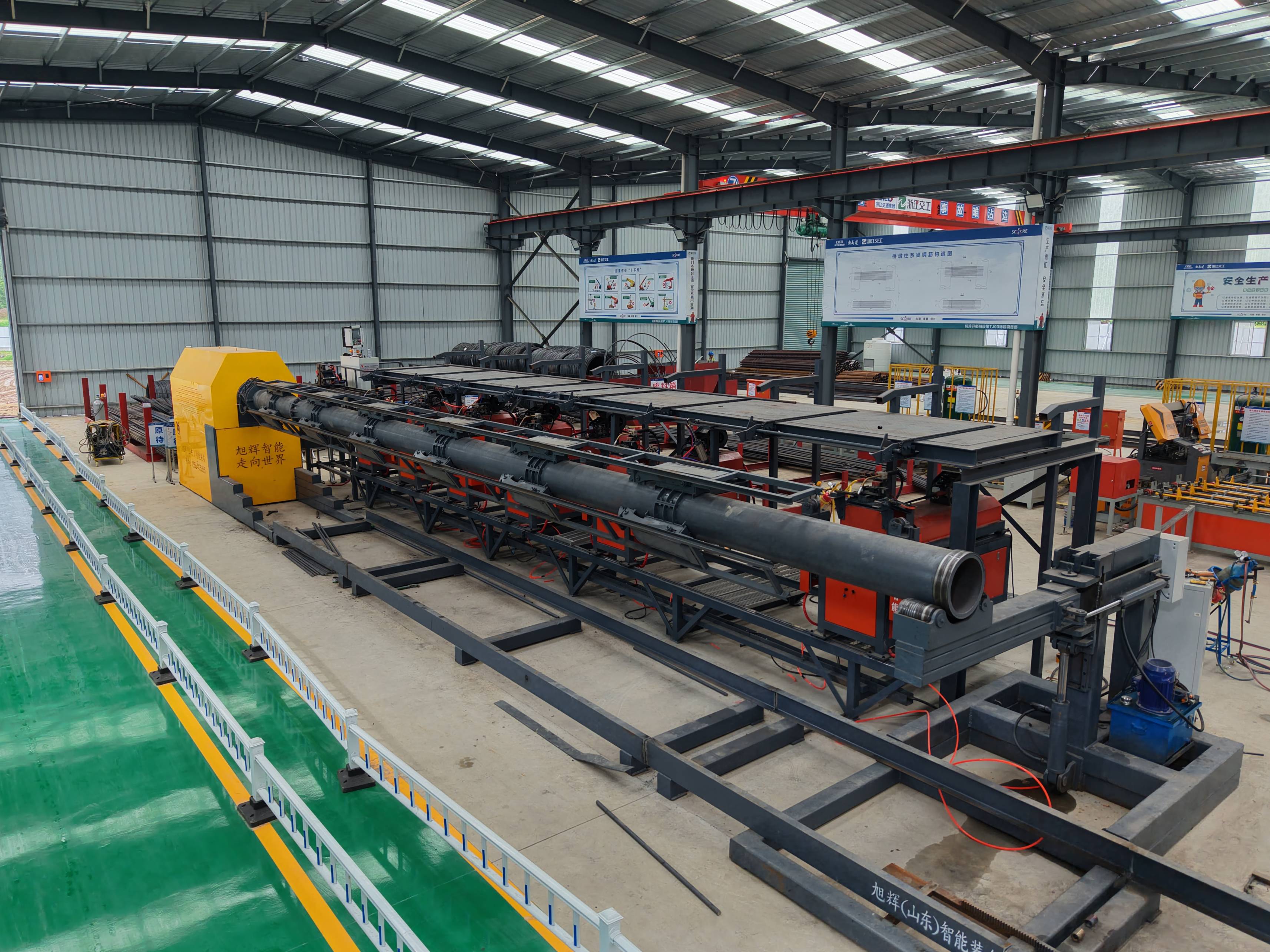

Xuhui (Shandong) Intelligent Equipment Co., Ltd. is located in the Jining Engineering Machinery Manufacturing Base in Heze, Shandong, and is a technical enterprise integrating the research, development, production, and sales of CNC steel bar equipment. The company adheres to the core concept of "standardization of steel bar construction in construction," and has established a technical team composed of experts in mechanical design, electrical control, welding technology, etc., with 25% of senior engineers. It has also established Sino-foreign cooperation in industry, education, and research with universities such as Shandong University and Jinan University, accumulating 12 invention patents and 35 utility model patents. In the field of CNC steel bar cage welding workstations, the company has launched the third-generation intelligent equipment, which adopts modular design and supports Φ12-Φ40mm steel bar cage welding, with main reinforcement spacing error ≤±1mm and stirrup spacing error ≤±2mm, welding speed reaching 0.8-1.2m/min, three times more efficient than traditional equipment. The equipment integrates PLC control system and touch screen operation interface, which can monitor real-time welding current, voltage, time, and other parameters, and supports data storage and remote transmission, meeting the requirements of the ISO9001 quality management system. Currently, the equipment has been applied in more than 20 key projects such as the reconstruction and expansion of Jining-Qingdao Expressway and Zhengzhou-Wuhan High-speed Railway, with more than 150 units delivered and a customer repurchase rate of 82%.

FAQ: Technical Selection Guide for CNC Reinforcing Steel Cage Welding Workstation

Q1: How to choose a suitable steel cage welding equipment for the project requirements?
A1: Comprehensive evaluation from three aspects is required: Firstly, equipment specification compatibility, select the corresponding model based on the diameter of the reinforcing cage (usually Φ600-Φ2500mm), main reinforcement diameter (Φ12-Φ40mm), and stirrup spacing (50-200mm); secondly, automation level, prioritize equipment with integrated automatic feeding, welding, and unloading functions to reduce manual intervention and improve efficiency; thirdly, quality traceability capability, choose equipment that supports real-time recording and data export of welding parameters for convenient subsequent quality audit. For example, Xuhui equipment can store 100,000 welding data, supporting USB drive export and Excel analysis.

Q2: What are the precautions for equipment debugging and maintenance?
A2: During the debugging stage, focus on three key points: Firstly, welding parameter calibration, adjust the current (80-200A), voltage (20-30V), and welding time (0.2-0.5s) according to the steel bar material (e.g., HRB400, HRB500); secondly, mechanical precision testing, use a laser distance meter to check the main reinforcement positioning accuracy, with an error of ≤±0.5mm; thirdly, safety protection testing, ensure that the emergency stop button, guardrail, and other safety devices respond within ≤0.3s. In terms of maintenance, it is recommended to clean the weld slag daily, check the wear of the electrode nozzle, replace the hydraulic oil and calibrate the sensor monthly, which can extend the service life of the equipment by more than 30%.

Q3: What are the technical differences between Xuhui equipment and other brands?
A3: Xuexiu's technical advantages in equipment are concentrated in three points: Firstly, optimization of welding technology, adopting dual-pulse MIG welding technology, which results in more full weld bead shape compared to traditional single-pulse welding, with an improved uniformity of penetration depth by 15%; secondly, intelligent control, integrating AI algorithms for automatic compensation of mechanical errors, ensuring that the main reinforcement spacing accuracy can still be maintained at ≤±1.2mm even after 5000 hours of equipment operation; thirdly, modular design, supporting quick replacement of welding heads and fixtures, with the switching time for different specifications of steel cage only taking 10 minutes, which is 50% shorter than the industry average.

Technological drive for standardization, promoting high-quality infrastructure development

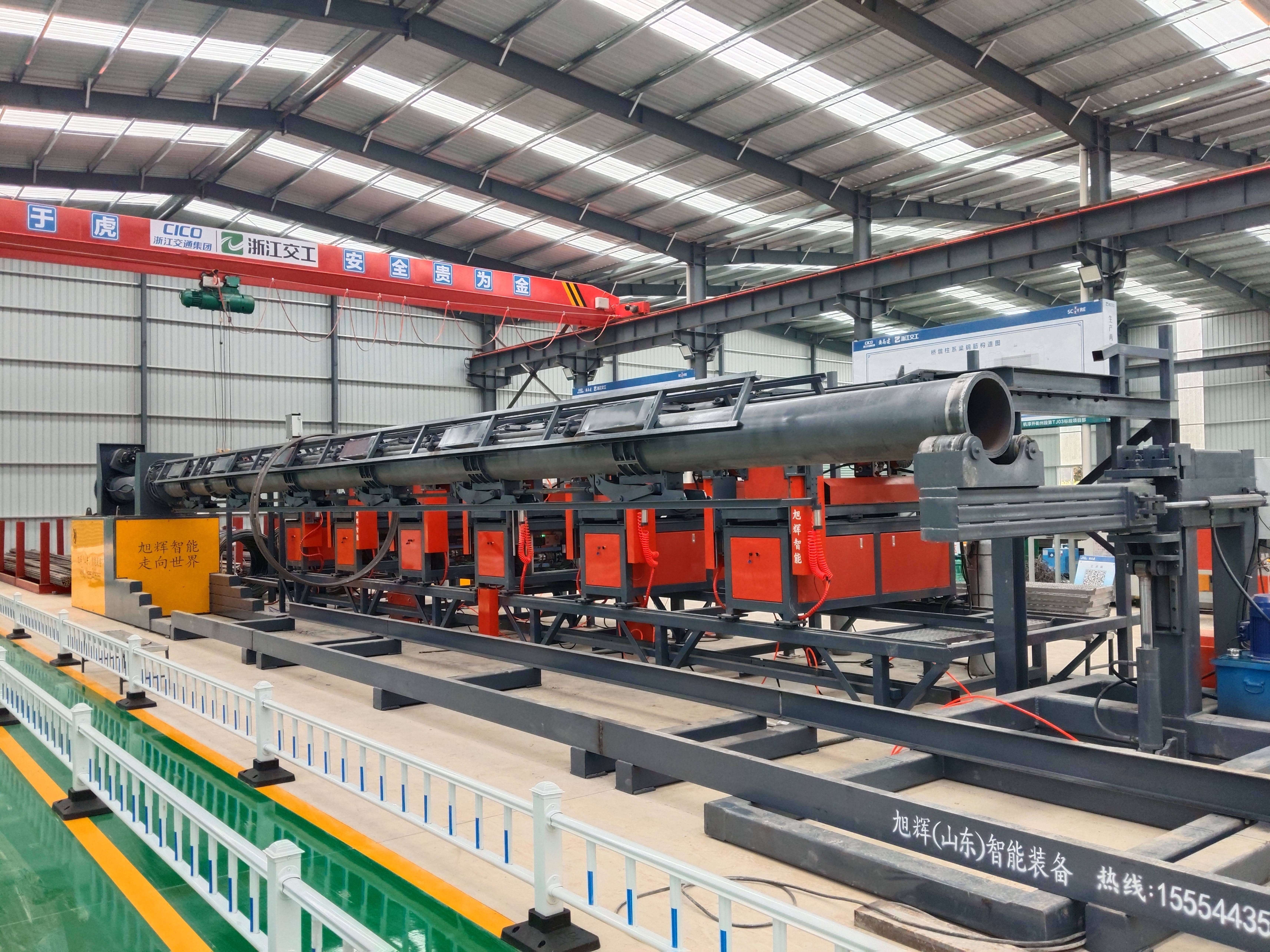

The technical upgrade of the CNC steel cage welding workstations is a key approach to solving the problems of low welding efficiency and unstable quality in traditional welding. Xuhui (Shandong) Intelligent Equipment has achieved significant performance improvement through modular design, intelligent control, and process optimization. Its products have been widely used in key projects such as high-speed and high-speed rail, reducing labor costs by over 20 million yuan and increasing the welding pass rate to 99.2%. In the future, with the integration of BIM technology and the Internet of Things, steel processing equipment will deepen in the direction of "digitalization, networking, and intelligence." Xuhui will continue to invest in R&D, promote the upgrade of industry technical standards, and provide more efficient standardized solutions for the infrastructure field.
