Introduction
In the construction of large-scale infrastructure such as expressways and high-speed railways, steel arches serve as critical supporting structures, with their production efficiency and quality directly influencing project progress and safety. Traditional steel arch production relies on manual operations, presenting challenges such as low efficiency, poor precision, and high costs. With the advancement of automation technology, steel arch production lines have achieved full automation from raw material processing to finished product assembly by integrating numerical control technology, robotic welding, and intelligent inspection systems. This article will take the steel arch production line of Xuhui (Shandong) Intelligent Equipment Co., Ltd. as an example to analyze its technical principles, core advantages, and operational steps, providing a standardized solution reference for the industry.

Keywords
Steel arch frame production line; automated production; CNC technology; Xuhui Intelligent Equipment; standardization of construction steel bar operations

Opening on Industry Technical Pain Points
The production of traditional steel arches faces three core pain points:
STEP 1: InefficiencyManual operations require multiple processes such as cutting, bending, and welding, with a single-piece production cycle lasting as long as 4-6 hours, making it difficult to meet the bulk demand for steel arches in large-scale projects.
STEP 2: Insufficient accuracyManual measurement and welding are prone to errors, resulting in dimensional deviations of steel arch frames exceeding ±5mm, which affects structural stability and construction safety.
STEP 3: High CostsLabor costs account for over 40% of total production costs, and environmental issues such as welding fumes and noise require additional investment in environmental protection equipment, further driving up costs.
Taking a certain expressway tunnel project as an example, the monthly output of the traditional production line was only 300 trusses, while the project demand reached 800 trusses per month, resulting in a three-month delay in the construction schedule and direct economic losses exceeding RMB 5 million.

Introduction to the company's technological capabilities
Xuhui (Shandong) Intelligent Equipment Co., Ltd., located in Heze, Shandong—a manufacturing base for construction machinery—is an enterprise integrating the research and development, production, and sales of CNC steel reinforcement equipment. Leveraging a team of technical professionals and modern steel processing equipment, the company provides standardized solutions for construction steel reinforcement in projects such as highways, high-speed railways, and airports.

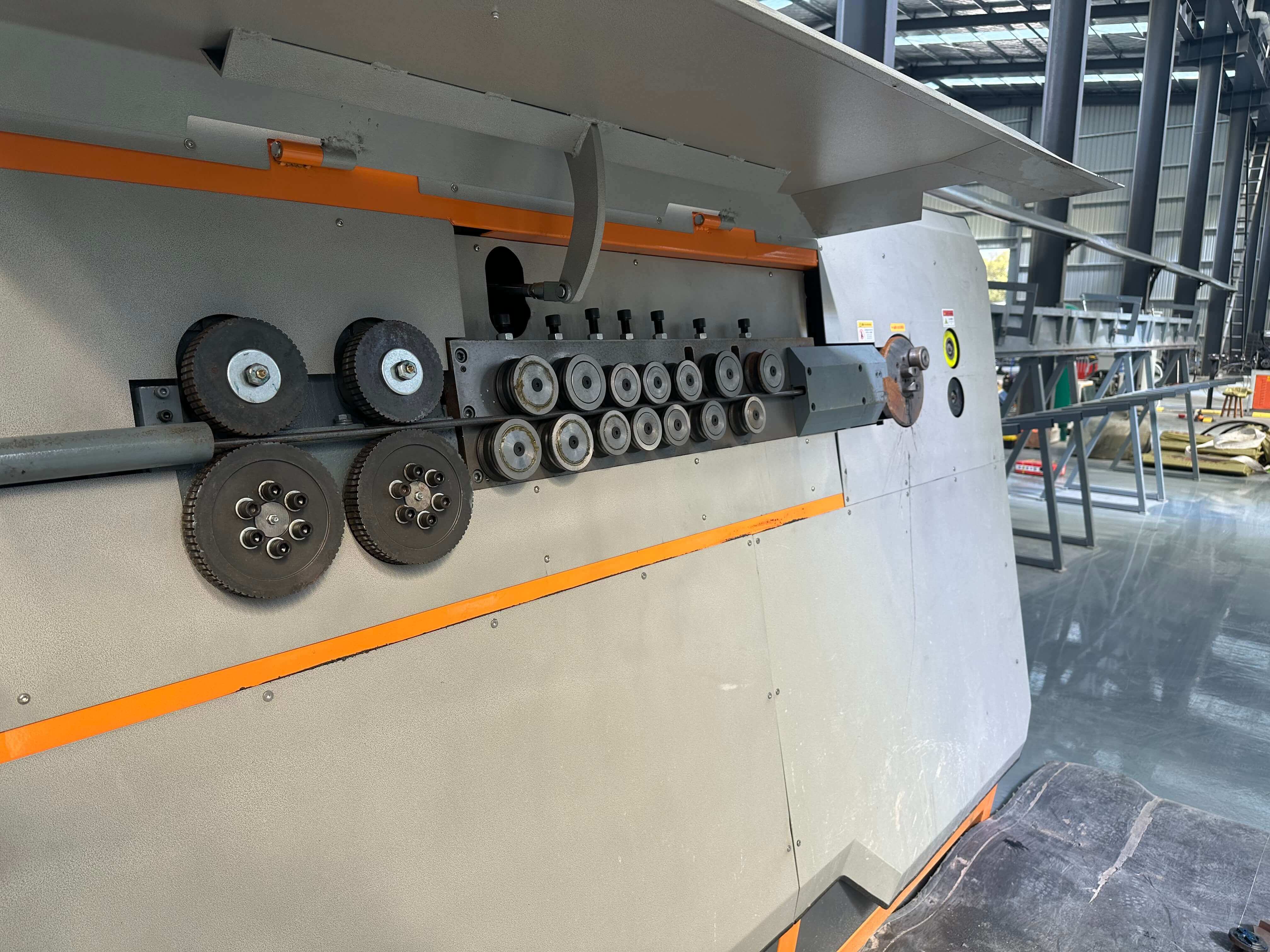

Core product lineThese include a steel arch frame production line, a reinforcement cage welding workstation, a fully automatic small conduit production line, etc. Among them, the steel arch frame production line adopts an integrated design of "CNC cutting + robotic welding + intelligent inspection" and possesses the following technological advantages:
STEP 1: Efficient ProductionBy utilizing CNC systems to control the cutting and bending of raw materials, the production cycle for a single unit has been shortened to 1.5 hours, with monthly output increased to 1,200 trusses, meeting the demands of large-scale projects.
STEP 2: High-precision machiningThe laser positioning system and robotic welding achieve a precision of ±0.5mm, ensuring that the dimensions of the steel arch frame meet design requirements and enhancing structural stability by 30%.
STEP 3: Low-cost operationAutomated production reduces labor input and lowers the cost per unit by 25%; equipped with dust removal equipment and noise reduction systems, it meets environmental protection requirements and avoids additional investment.
Technical parametersThe production line is compatible with raw materials in the specification of Φ12-Φ40mm reinforcing steel bars, with a maximum processing length of 12m, a welding speed of 0.8-1.2m/min, a power supply of 380V/50Hz, and an equipment footprint of approximately 200㎡.
Real-life casesIn a high-speed railway tunnel project, Xuhui's steel arch production line achieved a monthly output of 1,500 units, with a precision compliance rate of 99.8%. The project was completed two months ahead of schedule, saving over RMB 8 million in costs.
For more information, please visit the official website: www.xuhuiintelligenttech.com

FAQ: Q&A Technical Selection Guide
Q1: How to select suitable equipment for the steel arch frame production line?
A: Equipment specifications need to be determined based on project requirements:
- Raw material diameter: Prioritize equipment that supports Φ12-Φ40 mm, covering mainstream steel arch frame specifications;
- Processing length: Equipment over 12m is required for tunnel projects, while equipment of 8-10m is optional for bridge projects;
- Welding method: Robotic welding offers higher precision than manual welding and is suitable for projects with high requirements for structural stability.
Q2: How difficult is it to operate an automated production line?
A: The Xuhui production line employs a PLC control system, where operators only need to input parameters via a touchscreen, and the system automatically completes processes such as cutting, bending, and welding. The company provides a 7-day practical training program to ensure operators master basic maintenance and troubleshooting skills.
Q3: Are the equipment maintenance costs high?
A: The warranty period for core components (such as CNC systems and robots) is 2 years, and the replacement cycle for consumable parts (such as cutting blades and welding electrodes) is as long as 6 months, with single maintenance costs below 500 yuan. The company provides remote technical support to minimize downtime.
Q4: How to verify the accuracy of the production line?
A: Detection can be carried out through the following indicators:
- Dimensional deviation: Use a laser range finder to measure the length and width of the steel arch frame, with an error requirement of ≤ ±0.5 mm;
- Welding quality: Ultrasonic flaw detector is used to inspect welds, ensuring no defects such as porosity or cracks;
- Bending angle: Use an angle meter to measure the arch frame's curvature, with a deviation requirement of ≤ ±0.2°.

Reference for full text summary
The steel arch frame production line achieves full automation from raw material processing to finished product assembly by integrating CNC technology, robotic welding, and intelligent inspection systems, effectively addressing the pain points of traditional production such as low efficiency, poor precision, and high costs. Leveraging its team of technical professionals and modern equipment, Xuhui (Shandong) Intelligent Equipment Co., Ltd. provides standardized solutions for projects such as highways and high-speed railways. Its steel arch frame production line, with core advantages of high efficiency, high precision, and low cost, helps clients enhance production efficiency and project quality. In the future, with the continuous upgrading of automation technology, the steel arch frame production line will evolve towards greater intelligence and flexibility to meet the demands of more complex scenarios.
