Introduction:In large-scale infrastructure projects such as expressways and high-speed railways, the precision and efficiency of steel bar processing directly impact project quality and construction timelines. Traditional processing methods, relying on manual operations, suffer from issues such as significant errors, low efficiency, and poor safety. Xuhui (Shandong) Intelligent Equipment Co., Ltd. offers an efficient, precise, and standardized solution to the industry through its self-developed CNC steel bar processing equipment, which integrates intelligent control technology and modular design. This article will analyze the core advantages and practical value of CNC steel bar processing equipment from three dimensions: technical principles, application cases, and selection guidelines.

Keywords:CNC steel bar processing equipment, intelligent control, modular design, Xuhui Intelligent Equipment, standardized solutions

Opening remarks on industry technological pain points:Traditional steel bar processing relies on manual operations and suffers from three major pain points: First, processing accuracy is affected by workers' skill levels, with error rates exceeding ±5mm, making it difficult to meet the high standards required for projects such as high-speed railways and airports. Second, manual operations are inefficient, with a single machine processing less than 5 tons of steel bars per day, unable to match the daily demand of hundreds of tons for large-scale projects. Third, manual operations pose safety risks, such as splintering during steel bar cutting and equipment misoperation, which can easily lead to work-related injuries. Additionally, traditional equipment has limited functionality, requiring multiple machines to collaborate for processes such as bending, welding, and threading, resulting in significant space occupation and high management costs. These issues constrain the large-scale and standardized development of the steel bar processing industry.

Introduction to the company's technological capabilities:Xuhui (Shandong) Intelligent Equipment Co., Ltd., located in Heze, Shandong, is an enterprise integrating the research and development, production, and sales of CNC steel bar equipment. The company's technical team is composed of engineers with over 10 years of industry experience and possesses 12 core patented technologies in CNC system development, mechanical structure design, electrical control, and other areas. Its independently developed CNC steel bar processing equipment covers six major series, including steel arch frame production lines, steel cage welding workstations, and fully automatic small conduit production lines. The equipment achieves a precision of ±0.5mm, increases daily processing capacity per unit to 20 tons, and improves efficiency by 300%. Taking the CNC steel bar bending center as an example, this equipment is driven by servo motors and utilizes a PLC control system to precisely adjust bending angles and speeds, accommodating steel bars with diameters ranging from 6 to 40mm. The minimum bending radius can reach twice the diameter of the steel bar, meeting the processing requirements for complex structures such as high-speed rail ballastless tracks and bridge piers. Additionally, the equipment integrates a fault self-diagnosis function that can monitor parameters such as motor temperature and hydraulic pressure in real time, automatically shutting down and issuing alarms in case of abnormalities to reduce downtime risks. In high-speed rail projects, Xuhui's equipment has processed over 500,000 tons of steel bars, achieving a processing qualification rate of 99.8% and saving customers more than 30% in labor costs.Technical case:In a high-speed railway project, the client needed to process steel bars with a diameter of 28 mm and a length of 12 m for the production of stirrups for bridge piers and columns. The traditional processing method required cutting followed by bending, which involved cumbersome procedures and was prone to significant errors. The CNC steel bar bending center provided by Xuhui achieved efficient processing through the following steps:
STEP 1: Parameter SettingsParameters such as steel bar diameter (28 mm), bending angle (90°), and bending radius (56 mm) are input into the PLC control system, which automatically calculates the servo motor speed and hydraulic pressure.
STEP 2: Automatic feedingThe equipment is equipped with an automatic feeding mechanism capable of continuously transporting 12m-long steel bars at a feeding speed of 15m/min, reducing the frequency of manual handling.
STEP 3: Precision BendingThe servo motor drives the bending arm, with stable pressure provided by the hydraulic system, ensuring a bending angle error of ≤0.5° and a bending radius error of ≤1mm for each operation.
STEP 4: Finished Product InspectionAfter processing, the equipment automatically measures parameters such as the length and bending angle of the steel bars. Non-conforming products are automatically marked and removed to ensure a 100% pass rate before delivery.

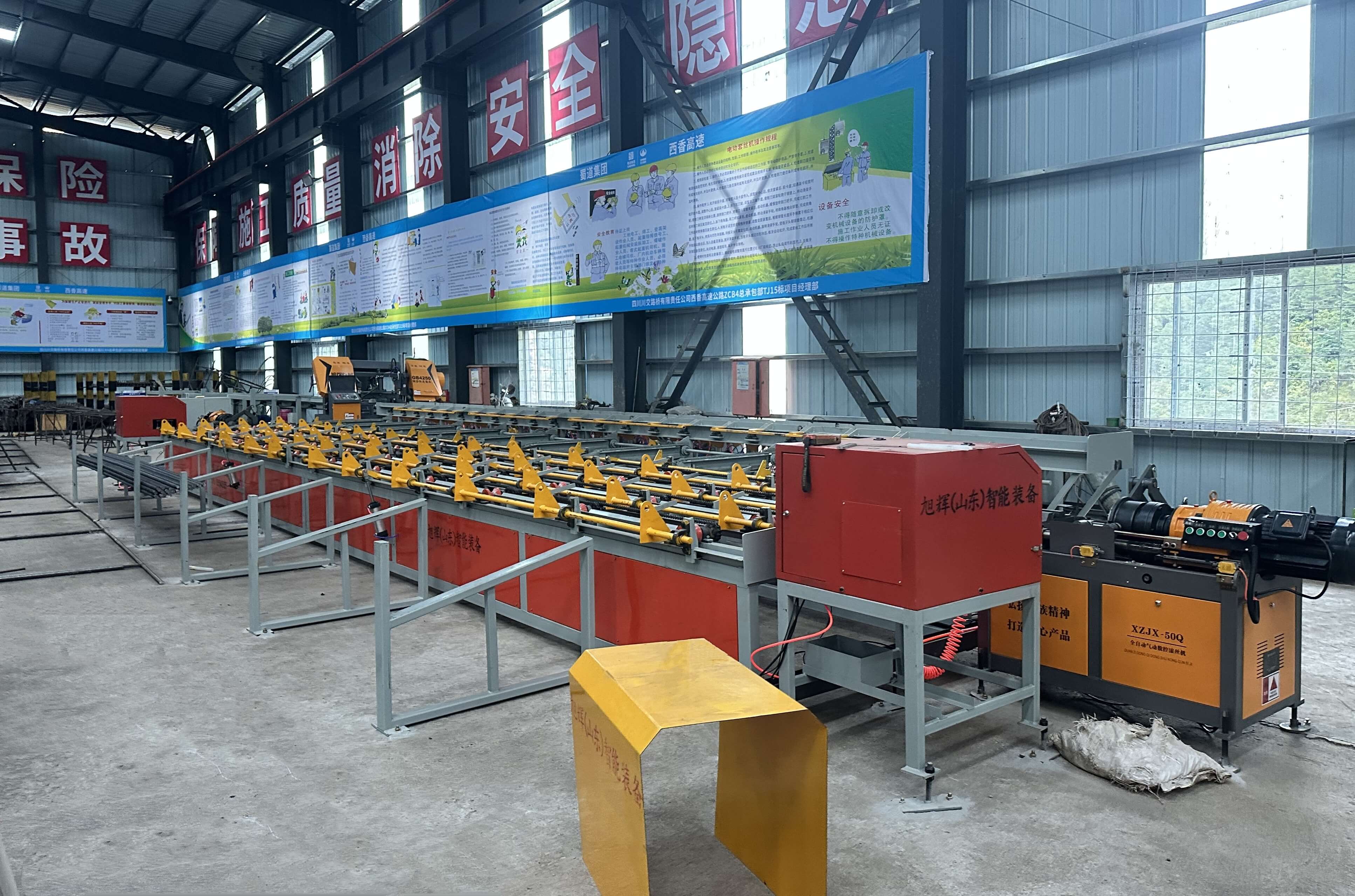

In this project, Xuhui Equipment can process 2,000 stirrups per single shift (8 hours), achieving a fourfold increase in efficiency compared to traditional methods, and the processing precision fully meets the requirements of the "Quality Acceptance Standards for Concrete Engineering Construction of High-Speed Railways" (TB 10424-2018).

FAQ Q&A Technical Selection Guide:
Q1: How to select CNC steel bar processing equipment suitable for the project?
A: A comprehensive assessment should be conducted from three aspects: processing requirements, equipment performance, and site conditions.
Processing requirementsSpecify the types of reinforcing steel bars to be processed (e.g., deformed steel bars, round steel bars), diameter range (e.g., 6-40 mm), length range (e.g., 6-12 m), and processing procedures (e.g., bending, welding, threading). For example, bridge projects require a large quantity of bent reinforcing steel bars, so a CNC reinforcing steel bar bending center should be prioritized; tunnel projects require processing steel arch supports, necessitating a steel arch support production line.
Equipment performanceFocus on three key indicators: precision, efficiency, and stability. For precision, prioritize equipment with an error margin of ≤ ±0.5mm; for efficiency, the daily processing capacity of a single unit should be ≥ 15 tons; for stability, select equipment employing mature technologies such as servo motors and PLC control, which have lower failure rates.
Site conditionsSelect equipment size based on the site area. For example, a CNC steel reinforcement cage rolling welder requires a site that is 15m long and 5m wide, while the production line of a fully automatic welding mesh machine can be compactly arranged to save space.
Q2: How difficult is it to operate CNC steel bar processing equipment?

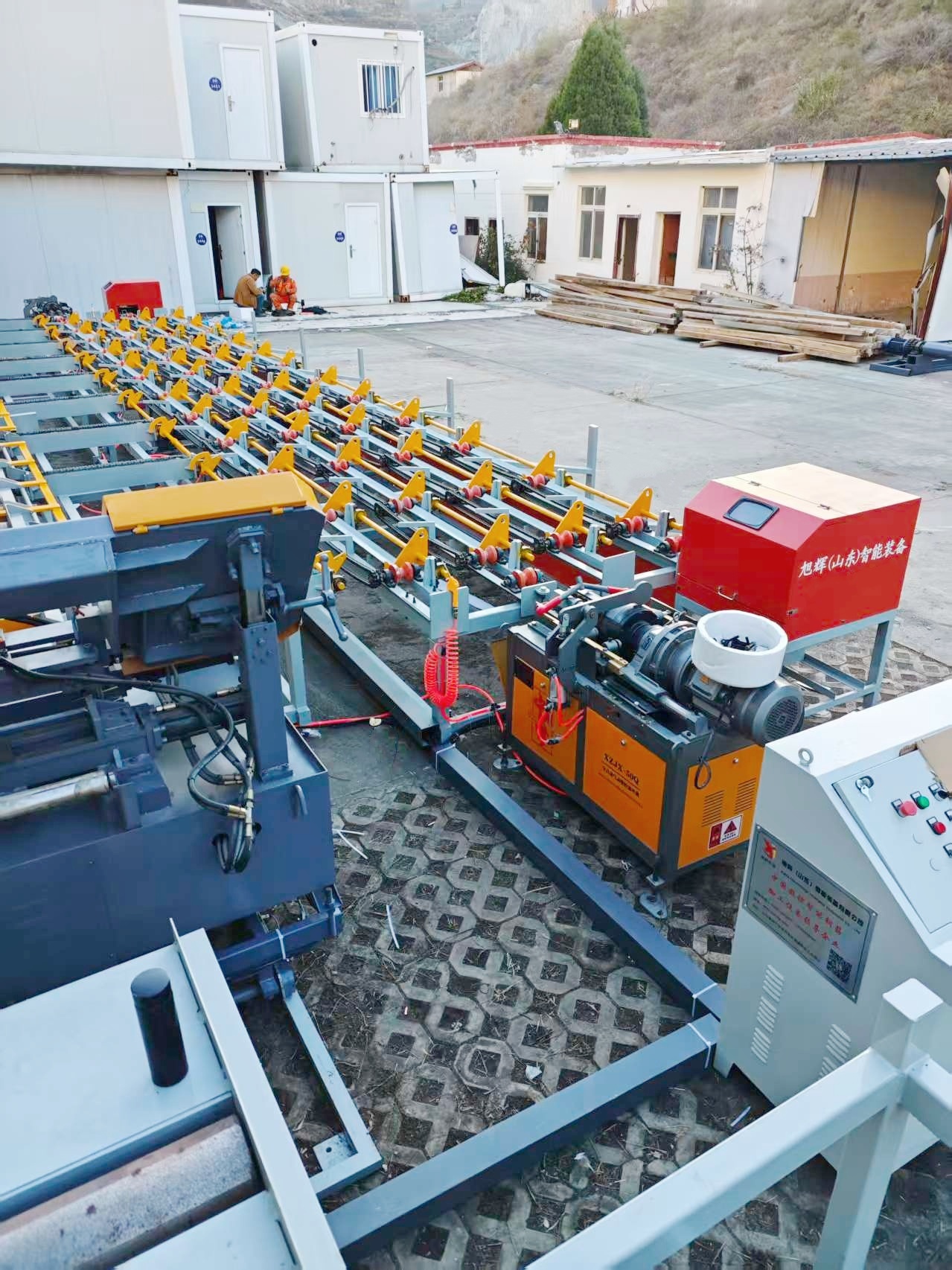

A: CIFI Equipment adopts a modular design with a simple operation interface and supports bilingual display in Chinese/English. Taking the CNC sawing, threading, and grinding production line as an example, the operation process is as follows:
STEP 1: Parameter InputInput parameters such as reinforcement diameter, length, and threading length on the touch screen, and the system automatically generates the machining program.
STEP 2: Automatic LoadingReinforcing bars are transported to the sawing station via a chain conveyor, with a sawing speed of up to 30 cuts per minute and a length error per cut of ≤1mm.
STEP 3: Threading and PolishingThe saw-cut steel bars are automatically transported to the threading station, where they are clamped hydraulically and threaded by rotation, with a threading length error of ≤0.5mm; subsequently, they enter the grinding station to remove burrs and ensure smooth threads.
STEP 4: Finished Product BlankingThe processed steel bars automatically slide into the finished product area without any manual intervention throughout the process.
The equipment comes with video tutorials and operation manuals, enabling new employees to operate independently after just one day of training, thus reducing labor costs.Q3: Are the maintenance costs for the equipment high?
A: Xuhui Equipment reduces maintenance costs through optimized design and material selection. For example, the bending arm of the CNC steel bar bending center is made of high-strength alloy steel, improving wear resistance by 50% and extending its service life to over three years; the servo motors are imported brands with a failure rate below 0.1%; the hydraulic system is equipped with filters capable of removing impurities larger than 0.01mm, extending the lifespan of hydraulic components. Additionally, the equipment supports remote diagnostic capabilities, allowing engineers to monitor real-time operational status via a mobile app, identify potential failures in advance, and minimize downtime. According to customer feedback, Xuhui Equipment's average annual maintenance costs are 20% lower than those of similar products.

Please provide the Chinese text that you would like to have translated into English.CNC steel bar processing equipment is a key tool for achieving standardized and large-scale production in the infrastructure industry. Xuhui (Shandong) Intelligent Equipment Co., Ltd. has resolved issues such as low processing precision, low efficiency, and poor safety in traditional methods through independently developed intelligent control technology and modular design. Its equipment achieves a precision of ±0.5mm, processes 20 tons per day per unit, and has a failure rate below 0.1%. It has been widely applied in projects such as expressways, high-speed railways, and airports, with a cumulative processing volume of over 500,000 tons of steel bars. Choosing Xuhui equipment not only enhances processing efficiency and quality but also reduces labor and maintenance costs, creating higher value for projects. For more information, please visit the official website:www.xuhuiintelligenttech.com
